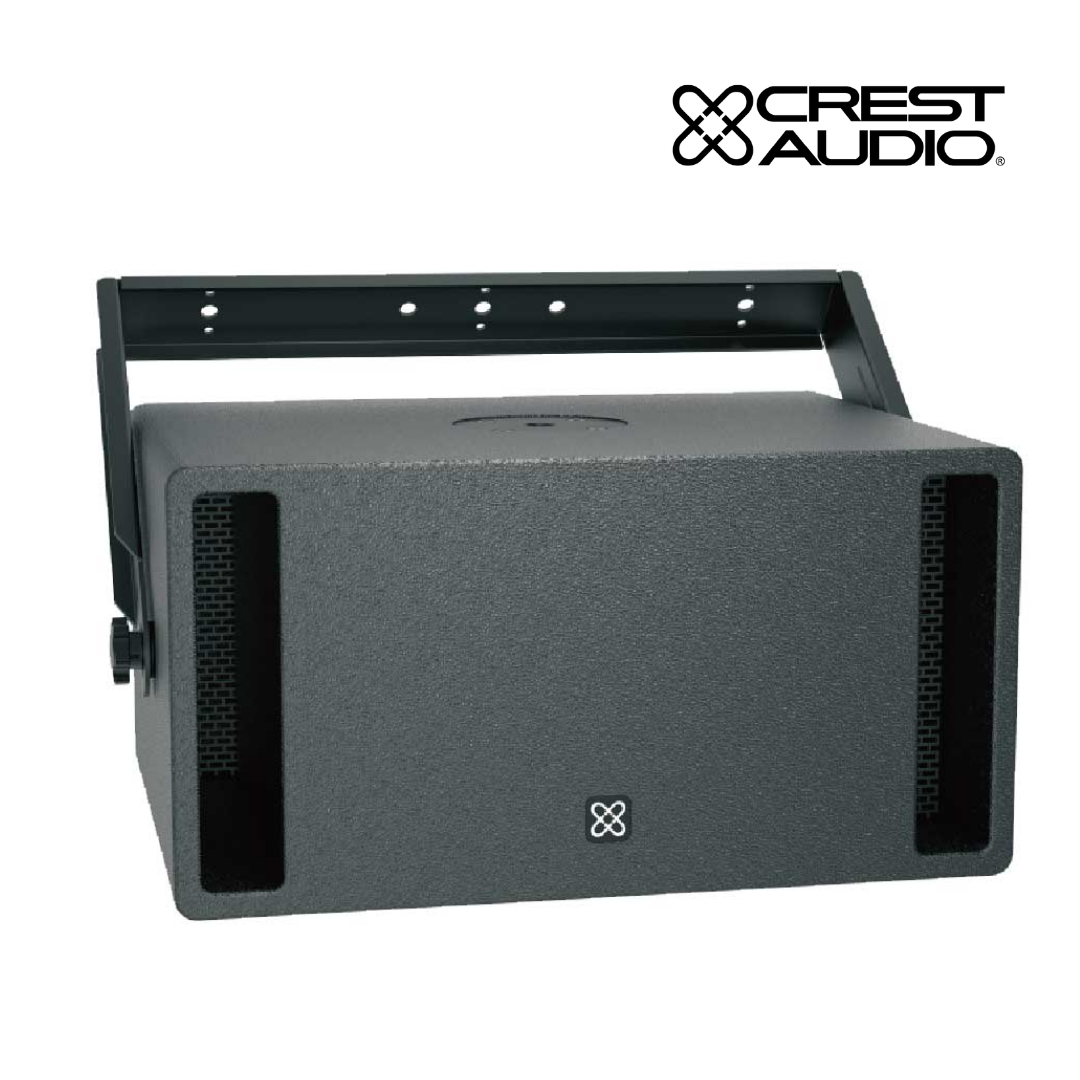

CPL™ 265B+

The Crest Audio® CPL™ 265B+ is an ultra-compact passive subwoofer designed to extend the performance of the CPL+ series loudspeaker systems down to 53 Hz. It is the ideal add on for music playback, public address and live performance reinforcement applications.

The CPL 265B+ can be utilized for both permanent installations and portable live sound applications. Perfect for public address, and background audio reinforcement purposes typically required in houses of worship, clubs, bars/restaurants, retail outlets plus education and corporate meeting facilities or anywhere high quality audio distribution and a powerful low end is required.

The CPL 265B+ is equipped with two premium 6.5 inch woofers having 1.2 inch voice coils. Impedance of the loudspeaker is 4 Ohms. Connectivity is made via either looping 4-pin twist-lock or 4-pin Euroblock connectors.

The CPL 265B+ enclosure is built from prime-grade 15 mm plywood that offers sturdy mechanical and low resonant electro-acoustic characteristics together with a heavy-duty steel grille to ensure maximum protection of the internal components. The loudspeaker is equipped with a total of 3 threaded suspension points and a M20 threaded pole mount fitting offering multiple mounting options for various applications. Available in durable black and white finish.

Description
  • Ultra-compact passive subwoofer• Ultra-compact passive subwoofer
  • Two premium 6.5” woofers, 1.2“ voice coil
  • Continuous power handling: 100 Watts
  • Nominal impedance: 4 Ohms
  • Connectors: 2 x 4-pin twist-lock & 4-pin Euroblock
  • 2+/2- Loop Through
  • M20 threaded pole mount fitting
  • U-Bracket included
  • Ergonomic handle on one side
  • 15 mm Plywood construction
  • Textured polyurea paint
  • Available in Black and White

House of Worship

Bar

Restaurants

Retail Outlets

Educational Facilities

Corporate Meeting Rooms

Configuration Subwoofer
Power Continuous (Watts) 100
Power Peak (Watts) 400
Sensitivity (1W/1m) 94 dB
Max SPL Peak 120 dB
LF Driver 2 x 6.5″ (165 mm) – Crest Audio CPL16505
Woofer Voice Coil 1.2″ (30 mm)
Frequency Range (-10 dB) 53 Hz – 200 Hz
Frequency Response (±3 dB) 65 Hz – 173 Hz
Nominal Impedance 4 Ohms
Input Connectors 1 2 x 4-pin twist-lock (NL-4 style)
Input Connectors 2 1 x 4-pin Euroblock
Pole Mount Yes (M20)
Enclosure Material 0.6″ (15 mm) Plywood
U-Bracket Included
Black Finish Textured Polyurea Paint
RAL # 9003 Signal White (Pantone: 705)
Rubber Feet Yes (not mounted)
Handles Yes (1 x Right)
Loop Thru (+/-2) Yes
Logo Position on Grille Bottom Center
Logo Size 25 x 25 mm
Grille Foam Backing Yes (acoustically transparent)
Grille Mesh Size (mm) 3 x 12
Net Weight 25.3 lbs (11.5 kg)
Dimensions (HWD) 9.45″ x 18.5″ x 14.57″ (240 x 470 x 370 mm)
