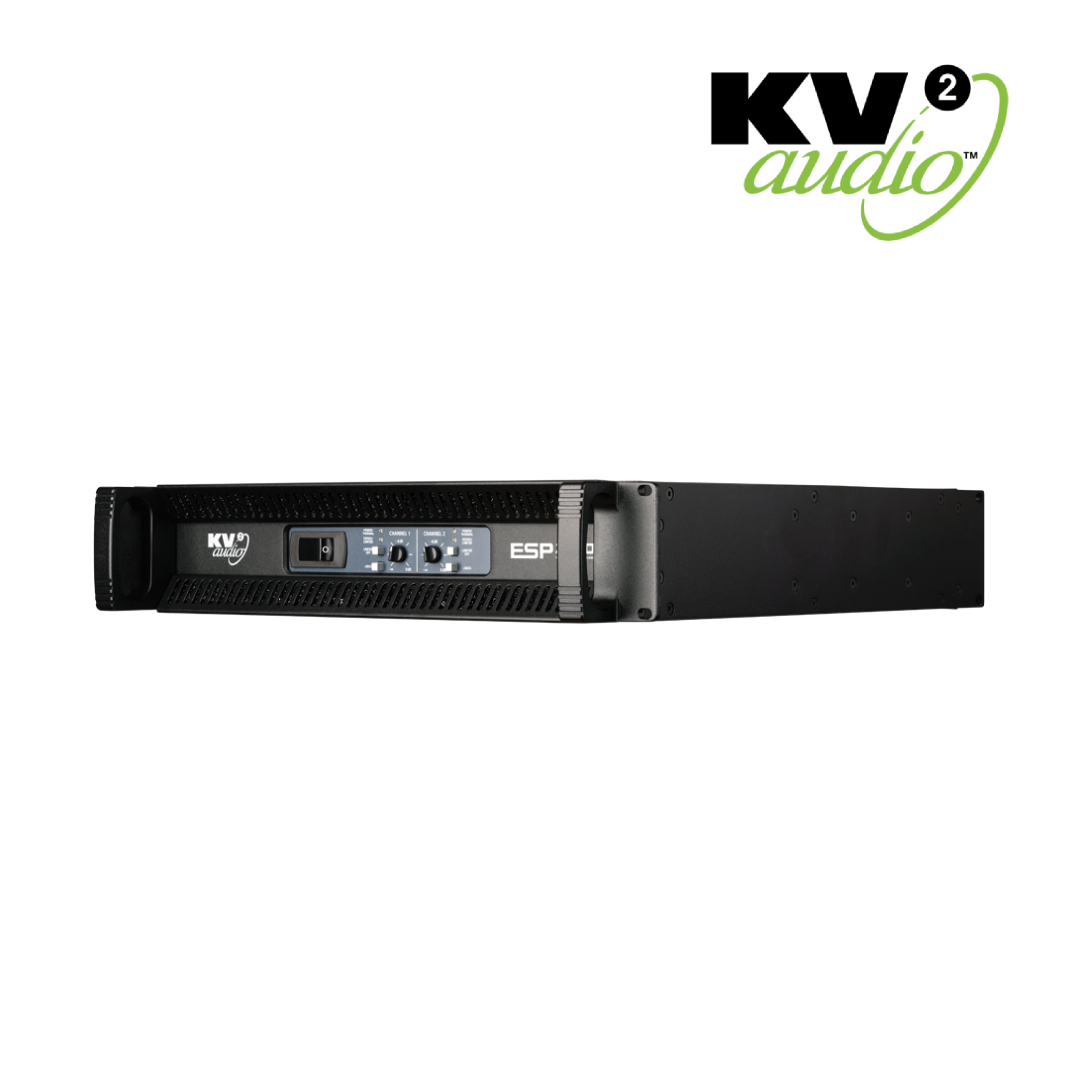

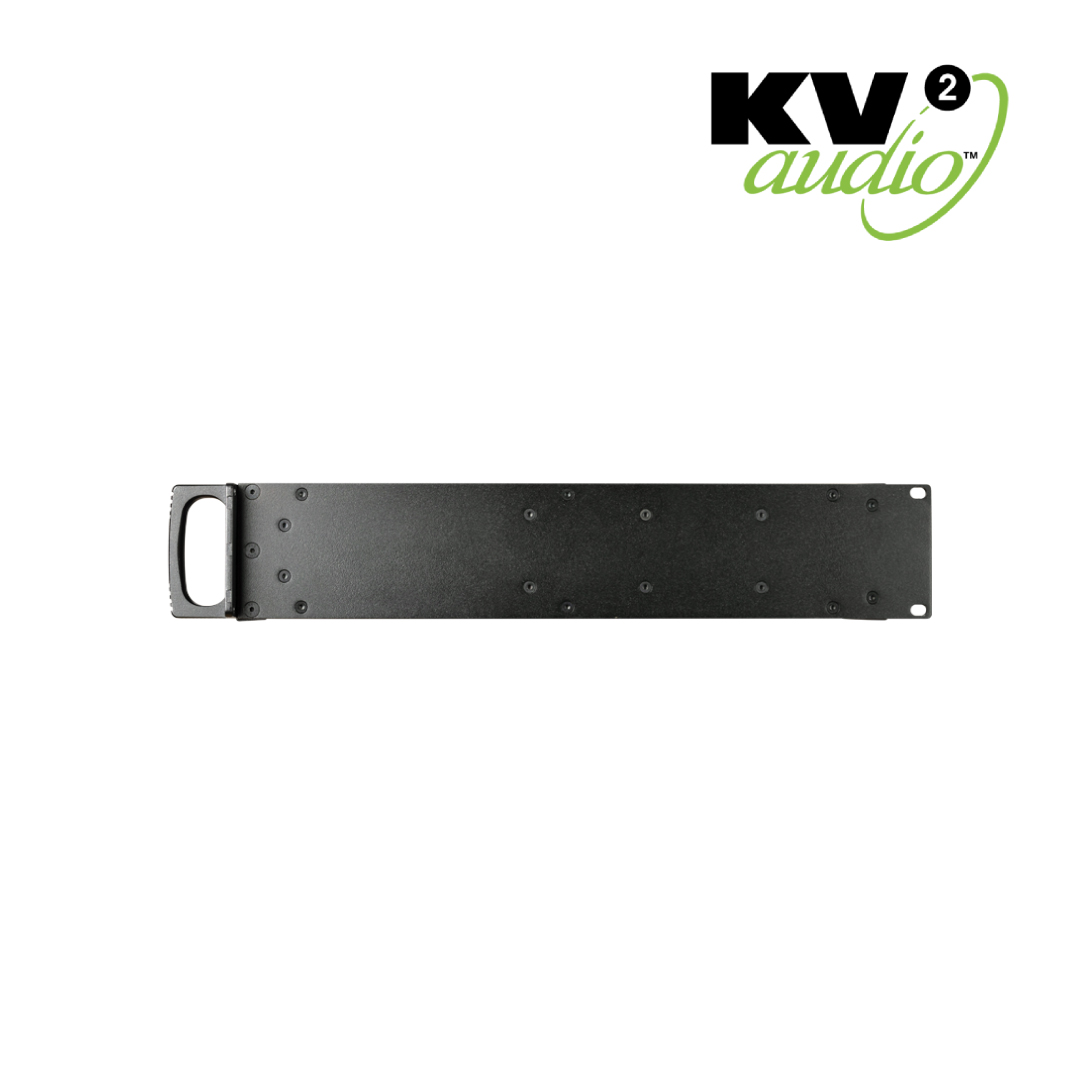

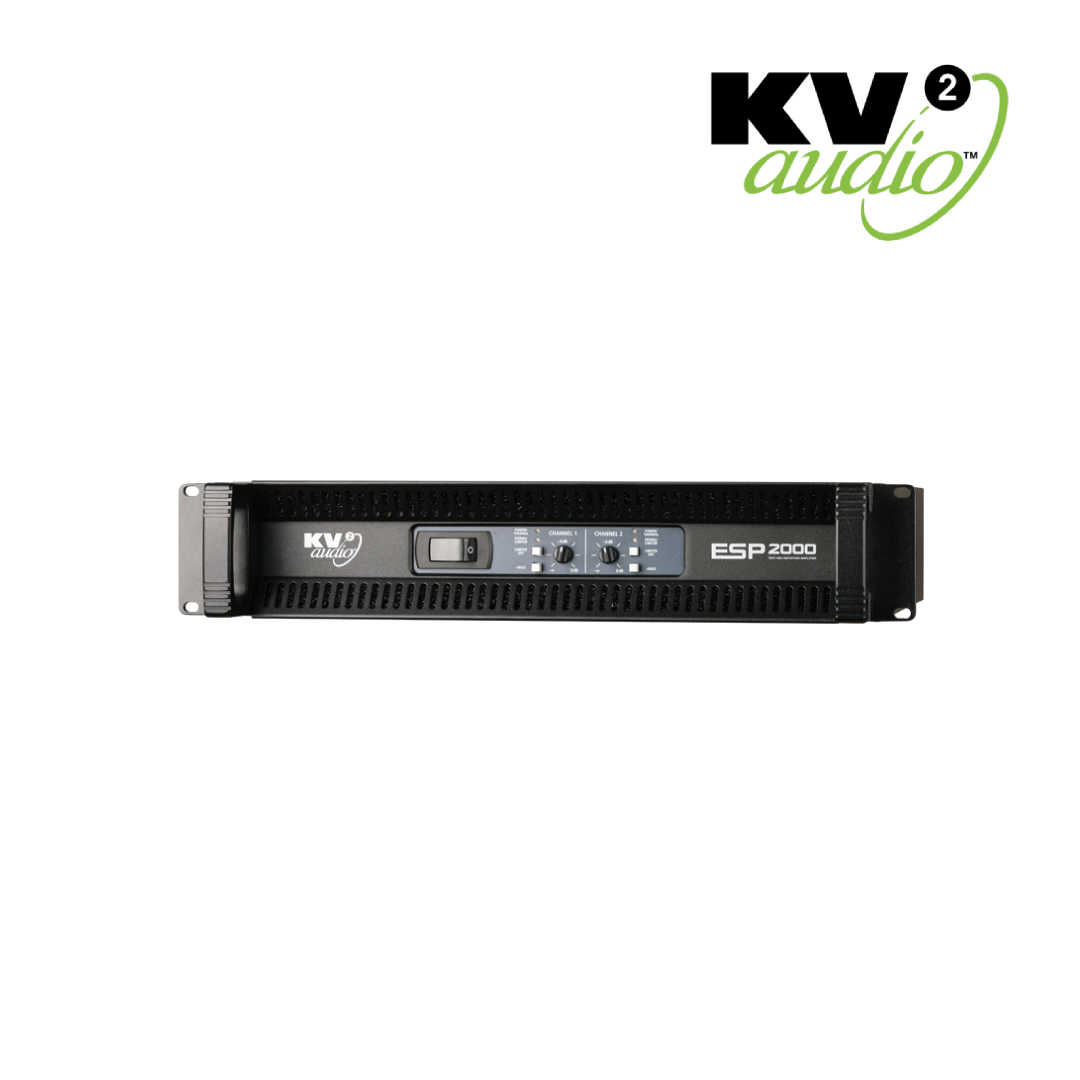

ESP 2000
The ESP2000 amplifier incorporates KV2’s SLA design principles, delivering very low distortion characteristics, even under extreme operation. Equally at home as a reference amplifier in a high-end recording studio or driving a large-scale live audio system, the ESP2000 is a sonically superb unit featuring Class H amplifier. The ESP2000 incorporates the same cooling system as other KV2 amplifiers where only the heat sinks are exposed protecting the internal electronics. Robust enough for the harshest touring or installation environments the ESP2000 will provide years of trouble-free performance, delivering absolutely pristine audio.
Description
- Very high definition
- 2 channel rack mountable power amplifier
- 2 x 1000W / 2Ω
- Separate power supplies ensure increased reliability and continuous delivery of full power
- Two shock mounted fans move air across the fins but never directly across the electronic components.
- Minimises maintenance cycles and improves the components lifespan and reliability
Live Venues
House of Worship
Auditorium
Touring Rigs
| -1dB Response | 3Hz to 40kHz |
| Channel Crosstalk | >70dB |
| Signal to Noise Ratio | >115dB |
| Total Harmonic Distortion | <0.005% (1W) / <0.01% (clip -1dB) |
| Amplifier Type | High Efficiency, Emitter coupled |
| Number of Channels | 2 |
| Total Output Power | 2000W |
| Max. Output Voltage | 78V (peak) per channel |
| Max. Output Current | 48A (peak) per channel |
| Minimum load impedance per channel | 2Ω |
| Out. Power 16Ω – 1 channel / 2 channels loaded | 175W / 160W (RMS) |
| Out. Power 8Ω – 1 channel / 2 channels loaded | 340W / 300W (RMS) |
| Out. Power 4Ω – 1 channel / 2 channels loaded | 600W / 500W (RMS) |
| Out. Power 2Ω – 1 channel / 2 channels loaded | 1000W / 800W (RMS) |
| Out. Power 16Ω – bridged | 600W (RMS) |
| Out. Power 8Ω – bridged | 1000W (RMS) |
| Out. Power 4Ω – bridged | 1500W (RMS), 2000W short term |

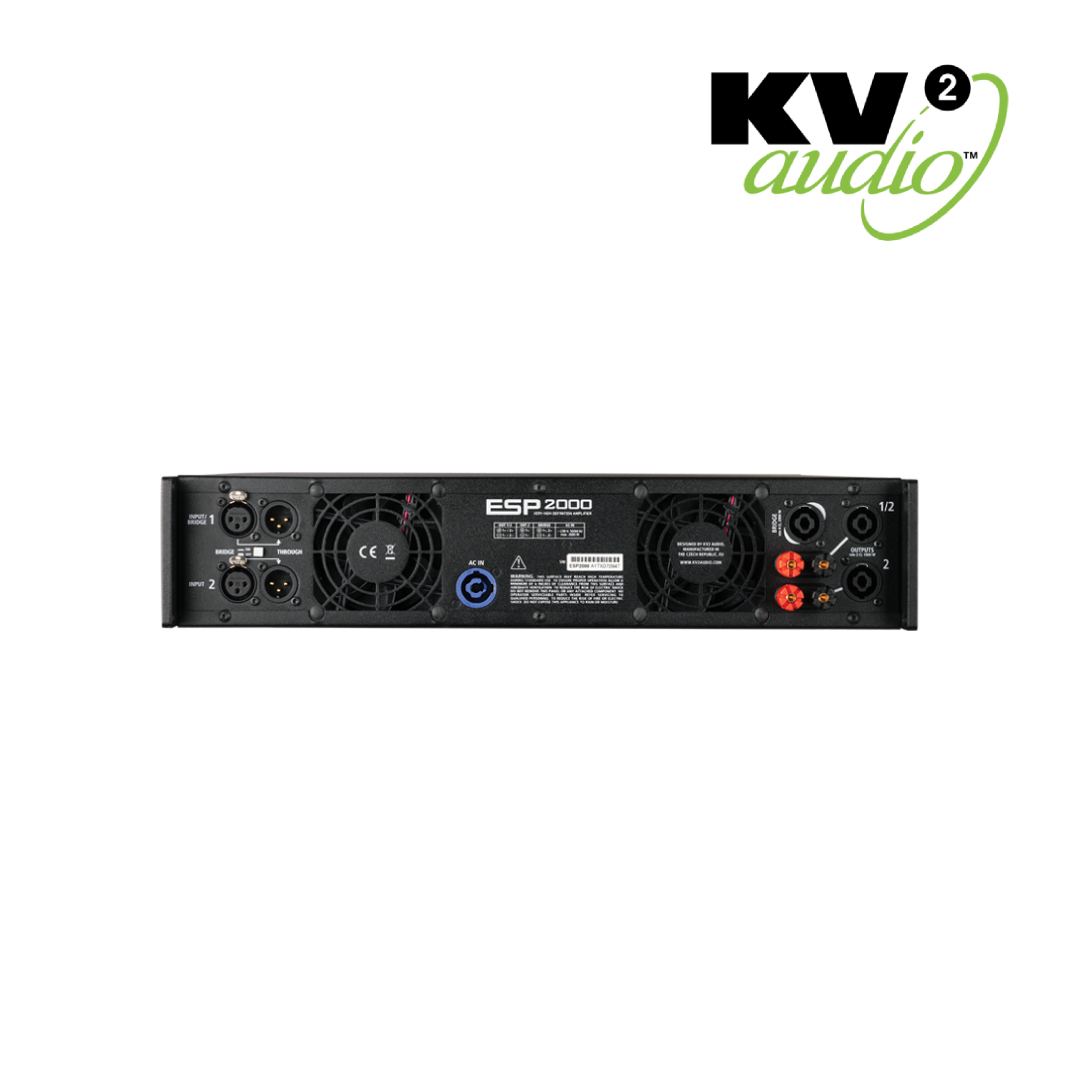

| Input Channels | XLR |
| Input Sensitivity | 1.55V |
| Input Impedance | 20kΩ (balanced) |
| Signal Output | XLR Through |
| Speaker Output | Neutrik Speakon®, 2x Binding posts |
| Input Level Control | -∞ to 0dB |
| Subwoofer Level Control | +6dB @ 60Hz |
| RMS Limiter | On / Off |
| Indicators | Power ON/Thermal, Signal/Limiter |
| Power Connector | Neutrik PowerCon® |
| Operating Voltage | 115V / 230V / 250V |
| Operating Voltage Range | 100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz |
| Recommended Amperage | 20A 115V | 10A 230V | 10A 250V |
| Soft Start | YES |
| Protection | Thermal breaker |
| Cooling | 2x temperature controlled fans |
| Height | 88 mm (3.5″), 2RU |
| Width | 482,6 mm (19.00″) |
| Depth | 496 mm (19.54″) |
| Weight | 18,8 kg (41,23 lbs) |
