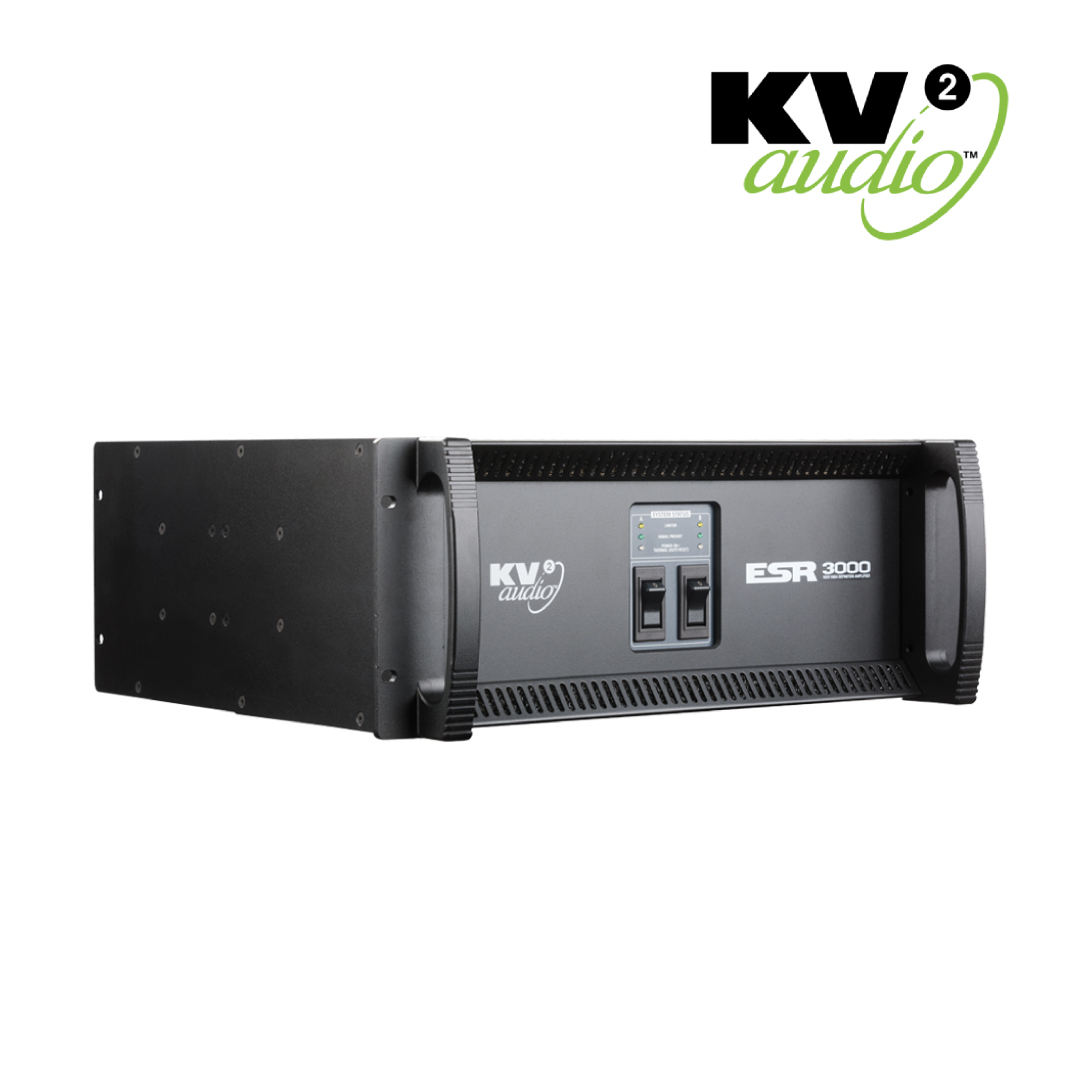

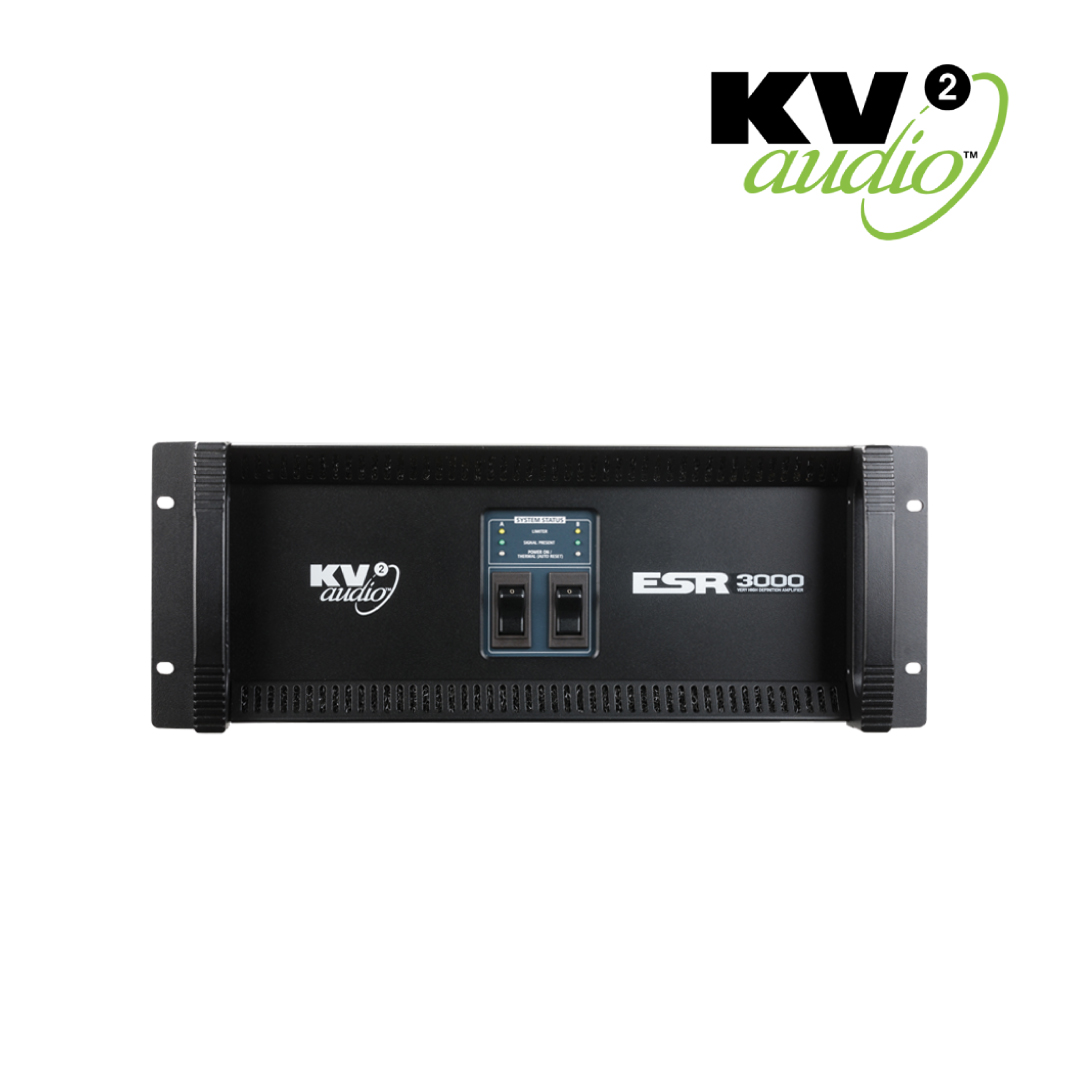

ESR3000MkII
The ESR3000MkII is three-way, active control and amplification system specially designed for the KV2 Audio ESR full range series loudspeaker systems. It houses all signal processing, amplification and subwoofer crossover function if required, utilising an external subwoofer amplifier. The ESR3000MkII powers the ESR215MkII. Each unit incorporates six amplifiers consisting of two 100-watt, Class AB, push pull, low intermodulation amplifier for high frequencies, two 200-watt, Class AB, push pull, low intermodulation design for mids and two a 1000-watt, high-efficiency, currentenhancing switch mode technology amplifier for bass. The ESR3000MkII stereo configuration powers two ESR cabinets accordingly.
Description
- High Frequency – 2x 100-watt, Class AB, push pull, low intermodulation design
- Mid Frequency – 2x 200-watt, Class AB, push pull, low intermodulation design
- Low Frequency – 2x 1000-watt, high-efficiency, current-enhancing switch mode
Nightclubs
Multi-use venues
Large bars
Fixed installations
| Output Channels | |
| Number of Channels | 2 (stereo) |
| Total Output Power | 2 x 1300W |
| High Frequency Amplifier Specification | |
| Type | Class AB – Push Pull – Low IM Design, Transformer balanced output |
| Rated Continuous Power | 100W |
| Distortion | <0.02% |
| Operating Bandwidth | 2.5kHz to 40kHz |
| Mid Frequency Amplifier Specification | |
| Type | Class AB – Push Pull – Low IM Design, Transformer balanced output |
| Rated Continuous Power | 200W |
| Distortion | <0.02% |
| Operating Bandwidth | 400Hz to 2.5kHz |
| Low Frequency Amplifier Specification | |
| Type | High efficiency, Current-Enhancing, Switched-Rail Amplifier |
| Rated Continuous Power | 1000W |
| Distortion | <0.02% |
| Operating Bandwidth | 20Hz to 400Hz |
| Signal Input | |
| Input Sensitivity | 2.2V RMS |
| Input Impedance | 20kΩ (balanced) |

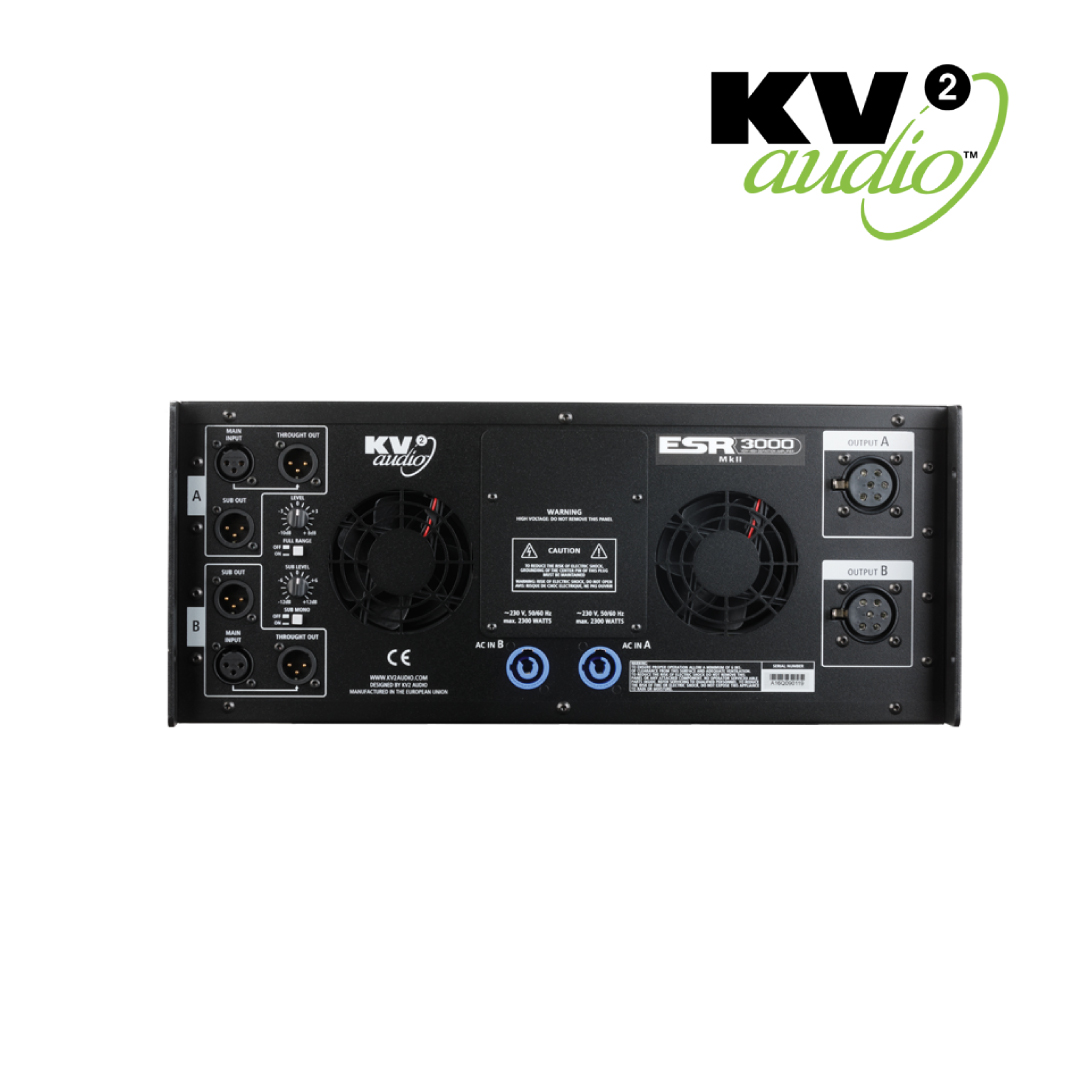

| Speaker Output | |
| Speaker Output | 2x AP6 female |
| Power | |
| Power Connector | 2x Neutrik PowerCon® |
| Operating Voltage | 115V / 230V / 250V |
| Operating Voltage Range | 100 to 120V @ 60Hz |
| Recommended Amperage | 2x10A 115V |
| Physical Dimensions | |
| Height | 177 mm (6.97″), 4RU |
| Width | 481.4 mm (18.95″) |
| Depth | 455.3 mm (17.93″) |
| Weight | 39 kg (86 lbs) |
