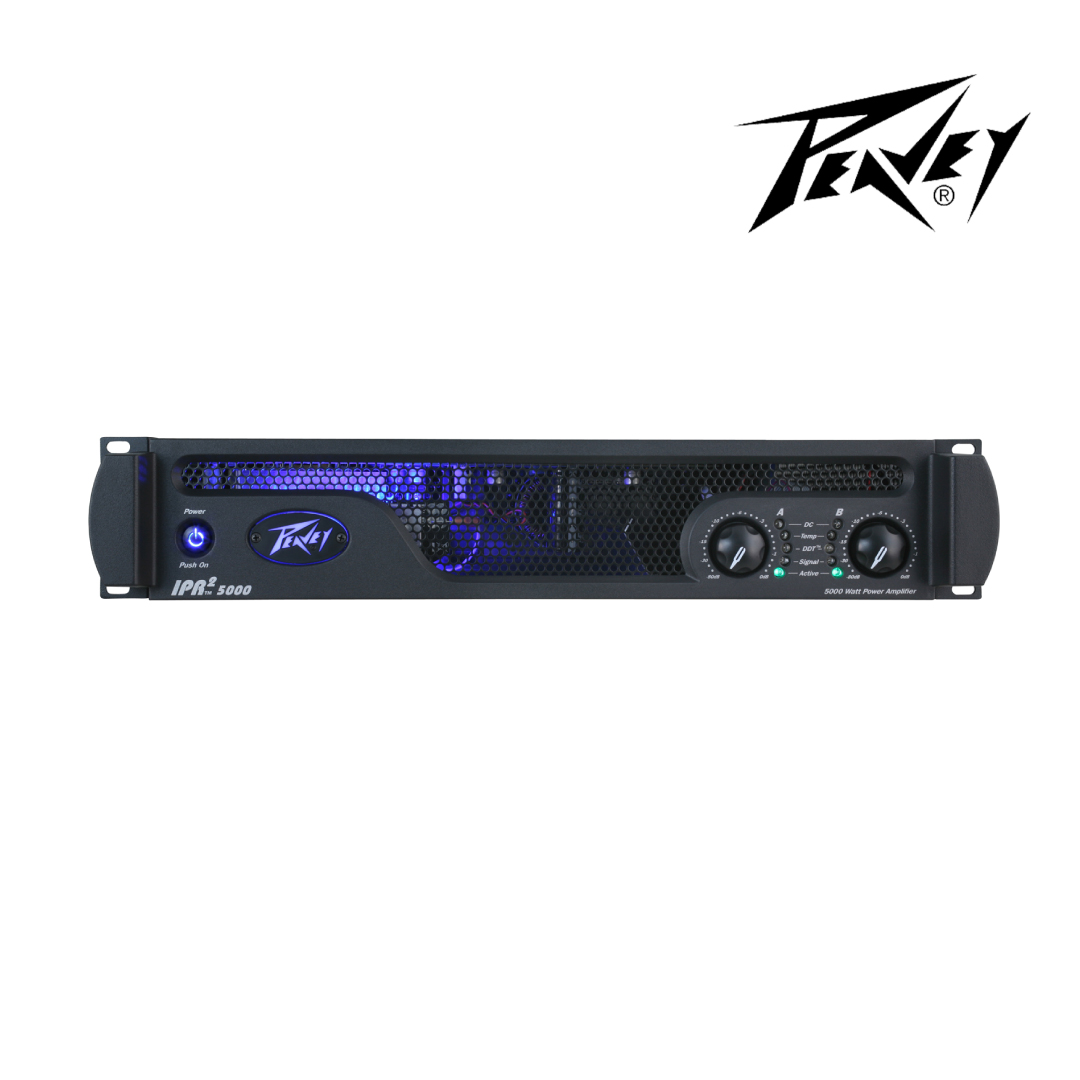

IPR2™ 5000
IPR2 power amplifiers, designed for years of reliable, flawless operation under rigorous use. The groundbreaking IPR2 series utilizes an advanced design that allows Peavey engineers to dramatically reduce weight while increasing output power, reliability and thermal efficiency. IPR2 Series amplifiers are designed with a resonant switch-mode power supply and a high-speed class D topology that yields the highest audio resolution and efficiency available. This revolutionary amplifier offers the sonic superiority and unsurpassed reliability for which Peavey is famous, in an extremely efficient and lightweight design. Advanced technology and extensive protection circuitry allow operation with greater efficiency into difficult loads and power conditions. The DDT (Distortion Detection Technique) circuitry ensures trouble-free operation into loads as low as 2 ohms. DDT protects drivers and ensures that sonic integrity is maintained, even in extreme overload conditions. The IPR2’s high-efficiency design allows the amplifier to operate at very low temperatures, and does not require massive heat sinks to cool..
- Rated Watts 2ch x 2 ohms 3230 watts 20ms repetitive burst / 2530 watts 1% THD both channels driven @ 1kHz
- Rated Watts 2ch x 4 ohms 1985 watts 20ms repetitive burst / 1700 watts 1% THD / 1470 watts 0.15% THD, both channels driven @ 1kHz
- Rated Watts 2ch x 8 ohms 1175 watts 20ms repetitive burst / 1025 watts 1% THD / 880 watts 0.15% THD, both channels driven @ 1kHz
- RX 22CT compression driver
- 2 channel independent, fourth-order Linkwitz-Riley crossovers
- DDT protection
- Revolutionary IPR class D topology
- Detented input controls
- Combination XLR 1/4″ inputs
- 4 pole twist lock output connectors
- Ultra-light weight
- Individual signal pass 1/4″ jacks on each channel
- LED illuminated
- Standby, LED power present indication
- Packed Weight: 17.42 lb (7.9 kg)
- Packed Length: 21.2″ (53.85 cm)
- Packed Width: 21″ (53.34 cm)
- Packed Height: 6″ (15.24 cm)
Concert, Arenas
Clubbing
Large-Scale Events
Auditoriums
Worship Halls
| Rated Watts 2ch x 2 ohms | 3230 watts 20ms repetitive burst / 2530 watts 1% THD both channels driven @ 1kHz |
| Rated Watts 2ch x 4 ohms | 1985 watts 20ms repetitive burst / 1700 watts 1% THD / 1470 watts 0.15% THD, both channels driven @ 1kHz |
| Rated Watts 2ch x 8 ohms | 1175 watts 20ms repetitive burst / 1025 watts 1% THD / 880 watts 0.15% THD, both channels driven @ 1kHz |
| Minimum Load Impedance | 2 ohms |
| Maximum RMS Voltage Swing | 105 volts |
| Frequency Response | 20Hz – 22kHz; +/- 0.5dB at 1 watt |
| 20Hz – 20kHz 2ch x 2 ohms | <0.5% @ 2250 watts 20Hz to 4kHz, decreasing to 1640 watts @ 20kHz, both channels driven |
| 20Hz – 20kHz 2ch x 4 ohms | <0.15% @ 1400 watts 20Hz to 10kHz, decreasing to 1350 watts @ 20kHz, both channels driven |
| 20Hz – 20kHz 2ch x 8 ohms | <0.15% @ 860 watts 20Hz to 4kHz, increasing to 1000 watts @ 20kHz, both channels driven |
| Input CMRR | > – 75dB @ 1 kHz |
| Voltage Gain | x 40 (+32dB) |
| Crossover | 100Hz switchable 2nd order high pass and 3rd low pass per channel |
| Crosstalk | > -60dB @ 1kHz @ 700 watts power @ 8 ohms |
| Hum and Noise | > -105dB, “A” weighted referenced to rated power @ 4 ohms |
| Slew Rate | > 12V/μs |
| Damping Factor (8 ohms) | > 210:1 @ 20Hz – 1kHz @ 8 ohms |
| Input Sensitivity | 1.95 volts +/- 3% for 1kHz 4 ohm rated power, 1.83 volts +/- 3% for 1kHz 2 ohm rated power |
| Input Impedance | 20 kilohms, balanced and 10 kilohms unbalanced |
| Current Draw @ 1/8 in VA (watts) | 1435 (890) @ 2 ohms, 920 (525) @ 4 ohms, 625 (335) @ 8 ohms |
| Current Draw @ 1/3 in VA (watts) | 195VA, 90 watts |
| Idle Consumption | 195VA, 90 watts |
| Cooling | 3 temperature dependent variable speed fans |
| Controls | 2 front panel attenuators, crossover select switch for HPF, Normal and LPF |
| Indicator LEDs | Five LED indicators per channel: Active, Signal, DDT, Temperature and DC |
| Protection | Thermal, DC, subsonic, incorrect loads, under and over voltage |

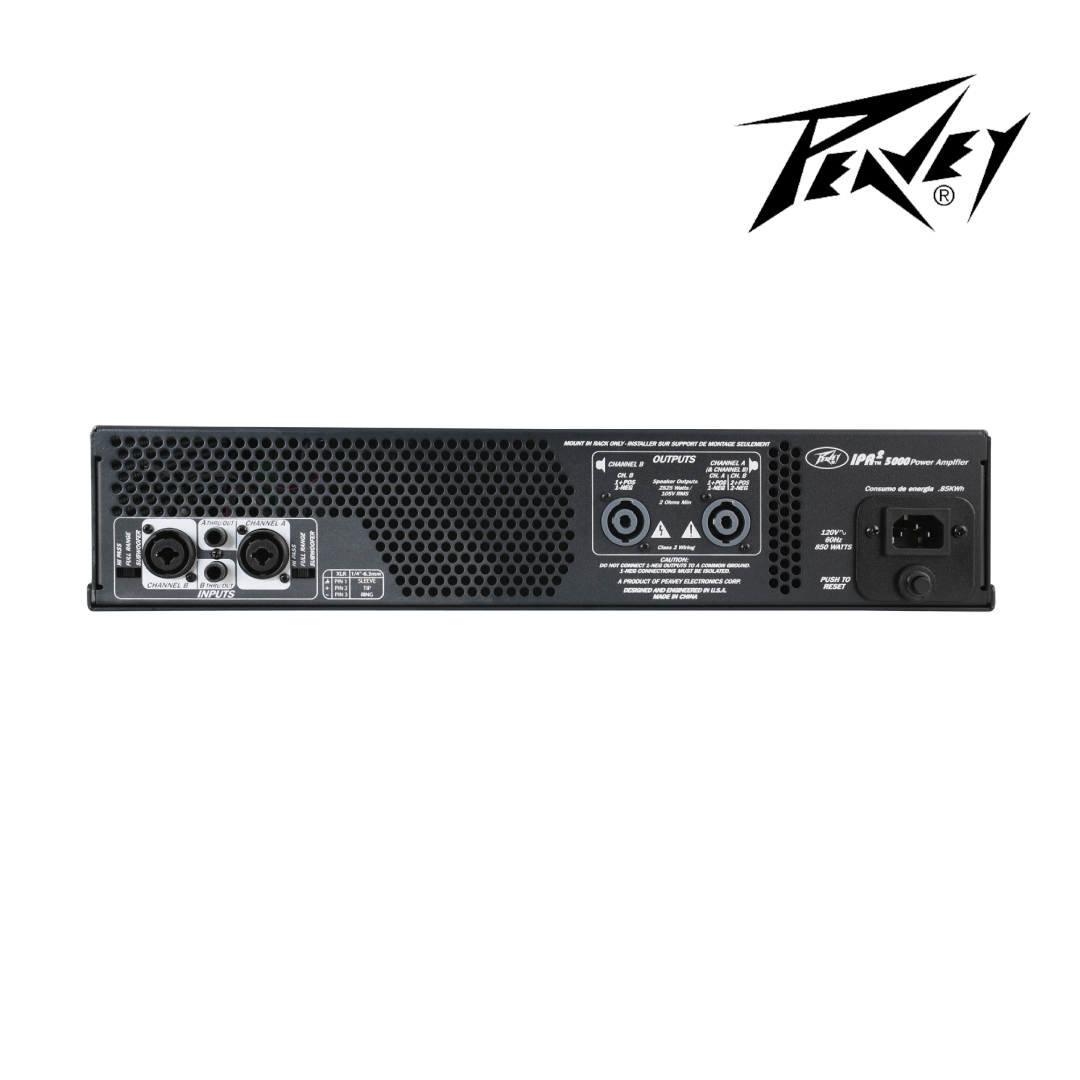

| Connectors | Inputs: Dual combination 1/4” XLR, Outputs: Dual 1/4” thru, one 2-pin & one 4 pin twist-lock connector |
| Construction | 0.062” thick aluminum |
| Dimensions | 3.5”x19”x 17” behind front panel + 0.6” for handle |
| Net Weight | 6.2 kg (13.6 lbs.*) |
| Gross Weight | 7.9 kg (17.4 lbs.) |
