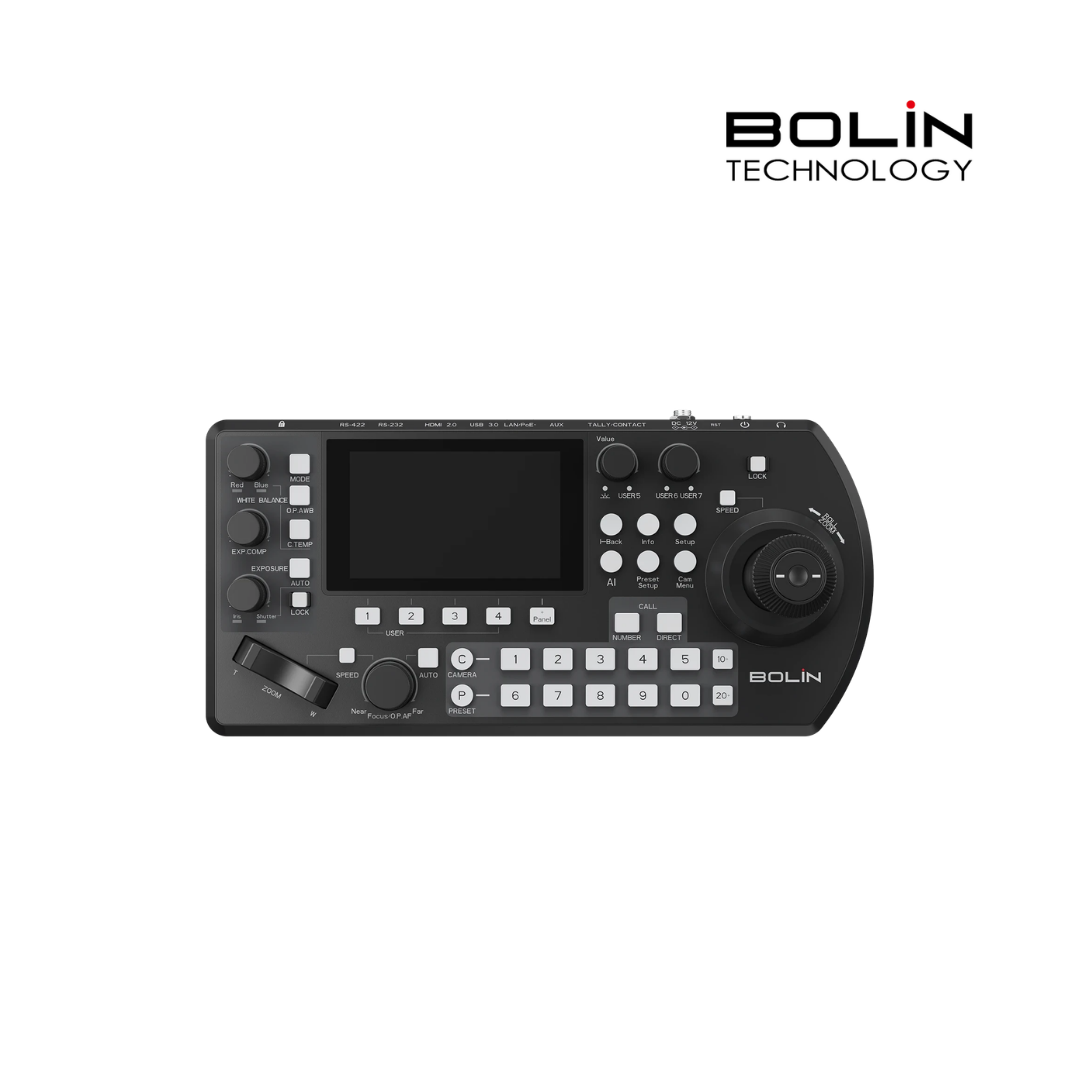

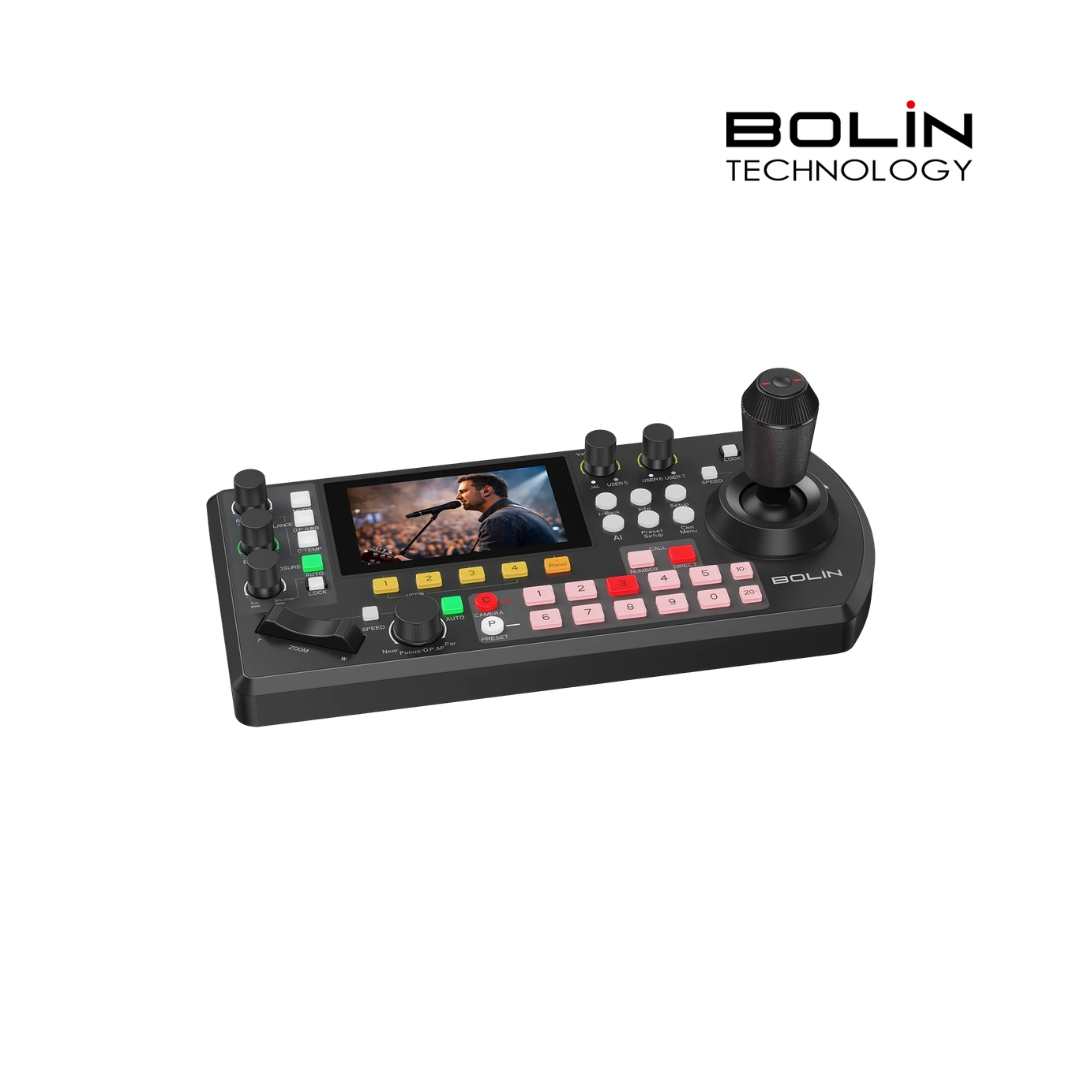

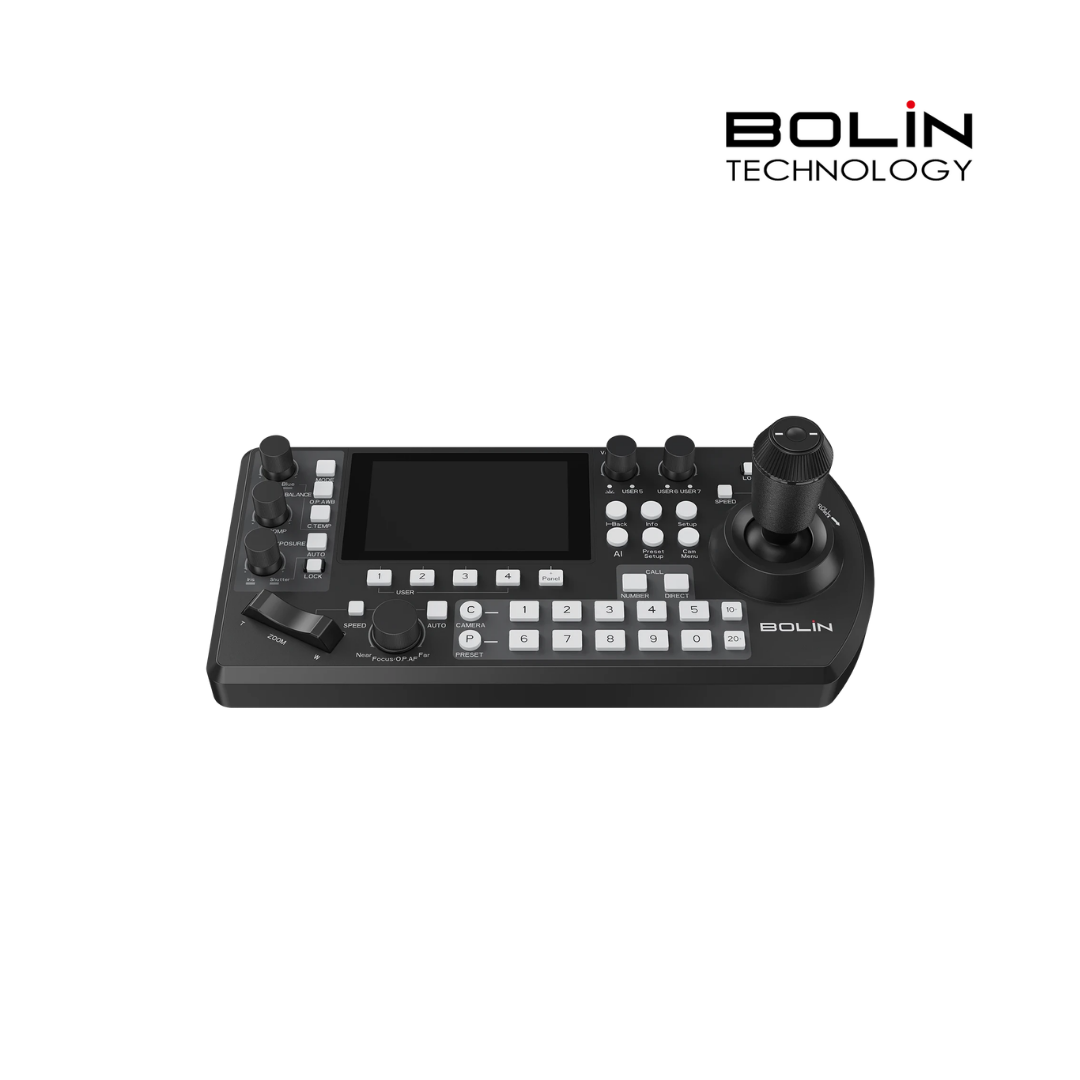

KBD Plus Advanced PTZ Production Controller

The KBD Plus joystick is purpose-built for professional PTZ operation, delivering smooth response, precise positioning, and long-term reliability. Unlike generic joystick modules, it is engineered specifically for professional camera operation.

– Tested to over 1 million motion cycles to ensure long-term durability

– Maintains precise control accuracy, with only 0.7% deviation after 500,000 rotations

– Designed for long operational life, supporting 700,000+ real-world control actions

Decode up to four IP video streams simultaneously with low latency for real-time monitoring and control.
View multiple camera feeds in a single multiview layout for convenient monitoring while controlling cameras.
HDMI 2.0 output displays decoded camera feeds on external monitors in single-view or multiview layouts.
USB-C output supports UVC, allowing decoded video to appear as a webcam in software applications.

Banquet Halls

Casinos

Auditoriums

Houses of Worship

Educational Facilities

Convention Centres

Corporate Environments

Restaurant

Bars

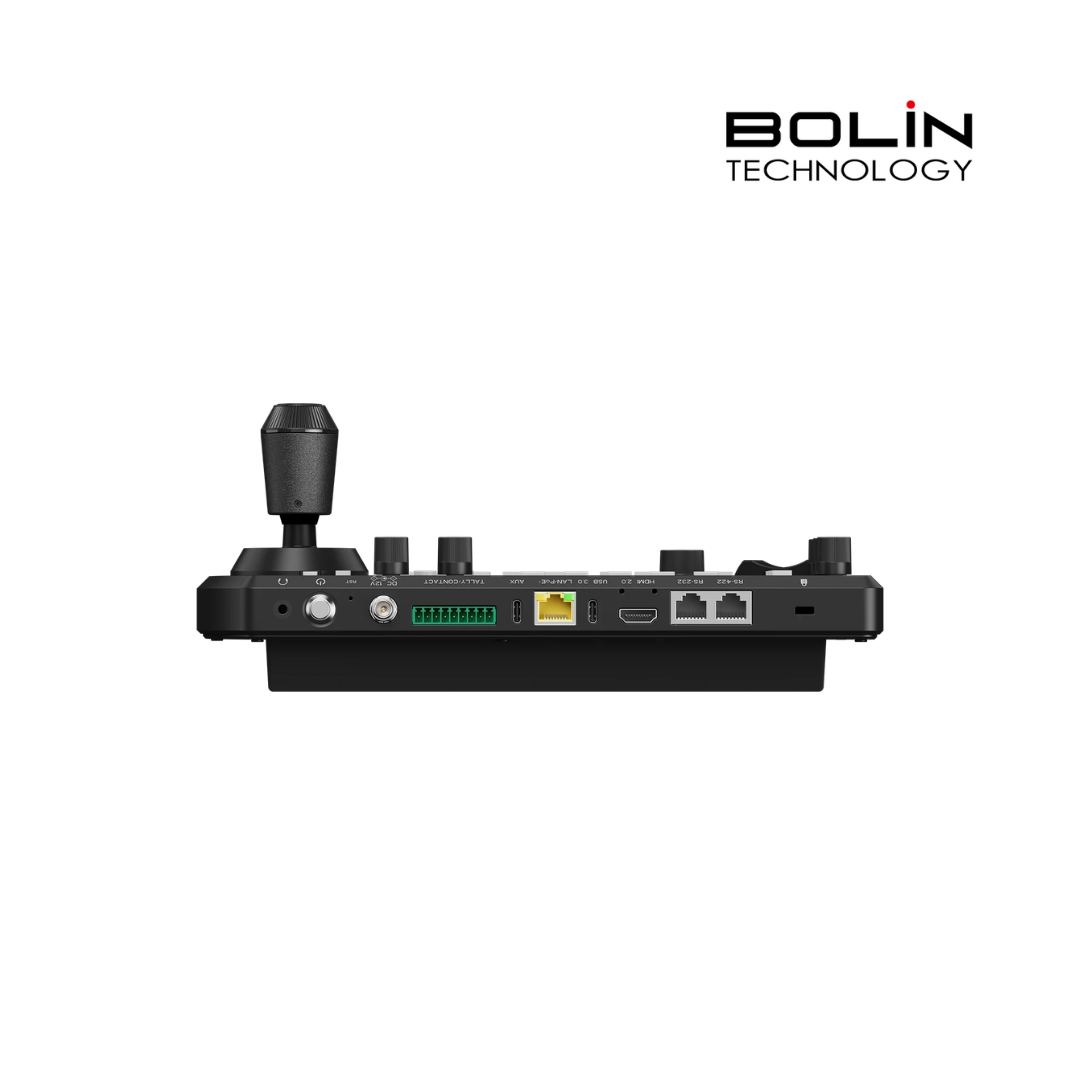

Control Input/Output	RS232: RJ45 x1; RS422: RJ45 x1; Tally In/Contact Out: 9-pin x1; LAN: RJ-45 x1, 1GBaseT (10/100/1000BASE-TX automatically detected); USB 2.0 for Aux Device x1
Video Output	HDMI 2.0 with secure mount x1; USB 3.2 for UVC output x1
Audio Output	3.5mm Unbalanced Audio Output
Power Connector	DC IN 12V, RJ45 x1 for PoE+ (IEEE 802.3at), RJ45 x1 for Power Over Control
Power/Input & Voltage	Independent Power Input 12VDC; Voltage tolerance 6V–36V; PoE+ (IEEE 802.3at)
Current Consumption	Min 12W; Max 14W
Operation Temperature	-10°C to 40°C / 14°F–104°F
Dimensions	278 × 132 × 99.5 mm (without the raiser)
Weight	1.4 kg / 3.1 lbs
Supplied Accessories	Power Adapter and Power Core (110VAC–220VAC to 12VDC/2A) x1; RS422 Adaptor Cable x1; Magnetic Base Raiser x1; Screen Cleaning Cloth x1; Tally Phoenix Connector x1; Thank You Card x1
Certificates	CE, FCC, IC, UL, UKCA, ROHS, WEEE
