• Automatic Device Discovery: Detect and configure all IPMX-supported devices with ease

• Friendly Device Naming: Assign user-friendly names to devices for easy identification

• Grouping & Tagging: Advanced grouping capabilities and tag-based filtering for simplified device management

• Push Updates and Profiles: Perform so ware updates and configuration changes to large deployments with ease

• Real-Time Alarms: Set up automatic notifications for system alerts, with detailed logging for tracking and troubleshooting

• Matrix View: Quickly switch between video sources and destinations using a matrix interface. Matrix view provides video thumbnails for confident switching

• Video Wall Processing: Easily manage video walls up to a 3×3 configuration for large displays

• API Integration: Seamlessly integrate third-party control systems and automation with the GraphQL API

• IPMX & NMOS Integration: Fully supports IPMX and NMOS (IS-04, IS-05) for open, scalable, and future-proof deployments

Banquet Halls

Casinos

Auditoriums

Houses of Worship

Educational Facilities

Convention Centres

Corporate Environments

Restaurant

Bars

ENCODER MODE INTERFACE SPECIFICATIONS
HDMI and USB Interfaces
HDMI Input (1)	Type-A Female, HDMI 2.1/1.4b
	Content Protection – up to HDCP 2.3
	Consumer Electronics Control (CEC)
	EDID Control – Auto, Presets or Manual
HDMI Loop Out (1)	Type-A Female, HDMI 2.1, 1.4b
	Content Protection – up to HDCP 2.3
USB-C (3)	Two USB 2.0 (Data, Front)
	One USB 3.0 (Video, DisplayPort Alt Mode, Rear)
DECODE MODE INTERFACE SPECIFICATIONS
HDMI and USB Interfaces
HDMI Input (1)	Type-A Female, HDMI 2.1/1.4b
	Content Protection – up to HDCP 2.3
HDMI Output (1)	Type-A Female, HDMI 2.1, 1.4b
	Content Protection – up to HDCP 2.3
	Consumer Electronics Control (CEC)
	EDID Control – Save EDID to file or EDID download
USB-C (3)	Two USB 2.0 (Data, Front)
	One USB 3.0 (Video, DisplayPort Alt Mode, Rear)
Network Interfaces
Ethernet 1	RJ-45 PoE+ (100/1000 Auto-Negotiating)
Ethernet 2	RJ-45 (100/1000 Negotiating)
Fiber	SFP 1GB (100/1000 Auto-Negotiating)
IPMX Support
	TR-10-1 – System Timing and Definitions
	TR-10-3 – PCM Digital Audio
	TR-10-5 – HDCP Key Exchange Protocol
	TR-10-7 – Compressed Video
	TR-10-8 – NMOS Requirements
	TR-10-11 – Constant Bit-Rate Compressed Video
VIDEO AND AUDIO SPECIFICATIONS
Codecs	JPEG XS, FIP/TDC (Flawless Image Profile), MPEG-4 (H.264), HEVC (H.264)
Video Support (HDMI/USB-C Input)
	3840x2160P @ 60, 50, 30, 25fps
	2560x1600P @ 60*
	2560x1440P @ 60*
	2560x1080P @ 60*
	1920x1200P @ 60*
	1920x1080P @ 60, 50, 30, 25fps
	1680 x 1050P @ 60*
	1600 x 1200P @ 60*
	1440 x 900P @ 60*
	1280 x 1024P @ 60*
	1024 x 768P @ 60*
	1280x720P @ 60, 50fps
	800 x 600P @ 60*
	640 x 480P @ 60*
	* Supported in upcoming release. Subject to change
Video Support (IPMX stream output)
	3840x2160P @ 60, 50, 30, 25fps
	1920x1080P @ 60, 50, 30, 25fps
	1280x720P @ 60, 50fps
Bitrates	5 – 800 Mbps*, user configurable
Dynamic Range	HDR10, SDR
Color Formats (IPMX stream output)	8/10 bit, YUV 4:2:0/4:2:2/4:4:4
Color Formats (HDMI/USB-C output)	8/10/12 bit, RGB 4:2:0/4:4:4
Color Gamut	BT.2020, BT.709, BT.601
Video Scaling	Support on Encoder and Decoder mode. Supports resolution upscaling, downscaling, frame rate conversion, color mode conversion, and aspect ratio adjustment.
Videowall Processing	Up to 3×3, more templates available upon request
Audio Support	Linear PCM, AES67, AAC-Main, and Pass-through
AAC Bitrate Range	96/112/128/160/192/224/256 (Kbps)
Sampling Rate	44.1, 48KHz
Volume Control	+/- adjustment
Dante Audio Support
	Dante Controller detects P-AVN-4
	Dante Stereo PCM audio support
	1x Dante Stereo IP input
	1x Dante Stereo IP output
Analog Audio Support
Connector	5-pin Phoenix
Channels	Stereo Pair, Balanced or Unbalanced
MANAGEMENT AND CONTROL

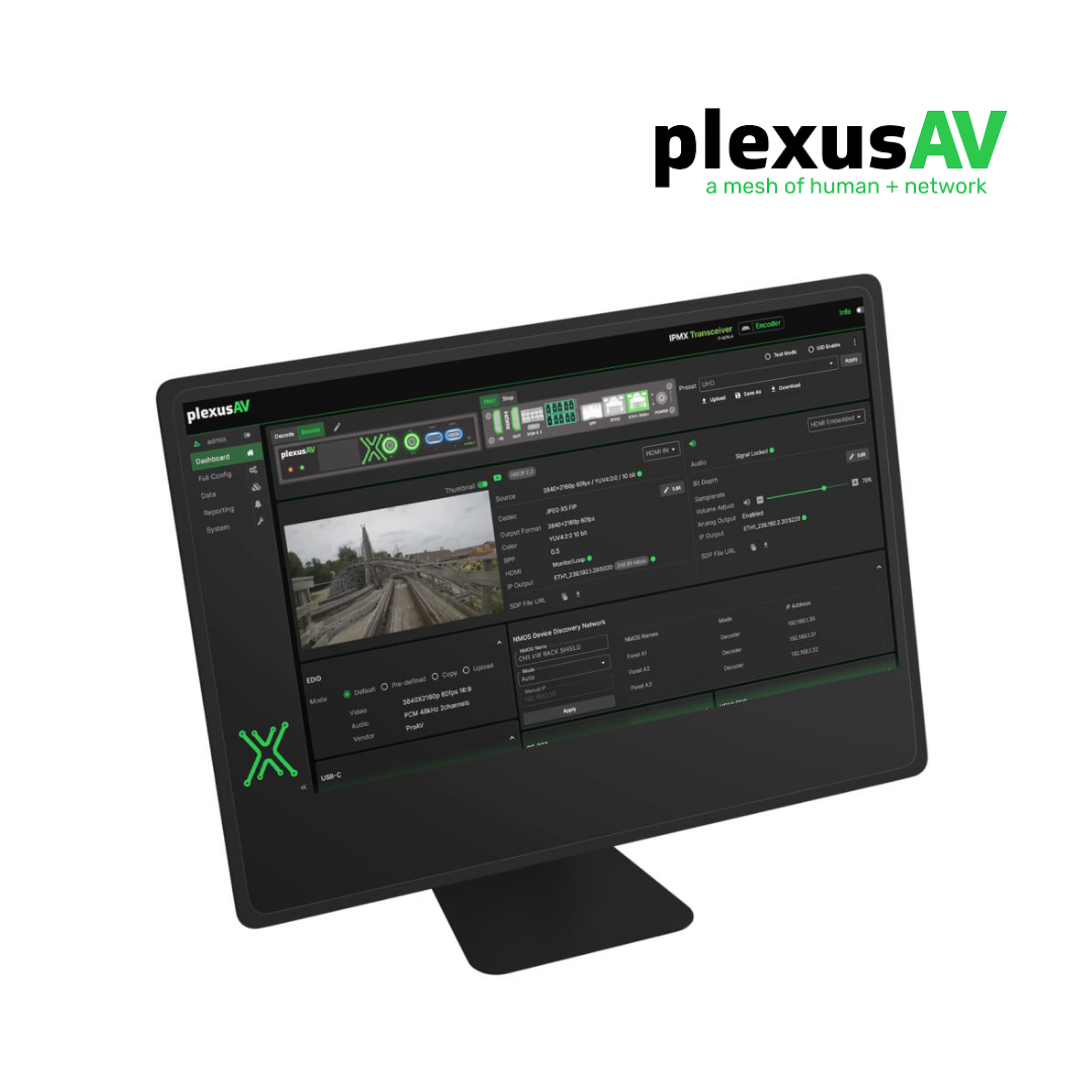

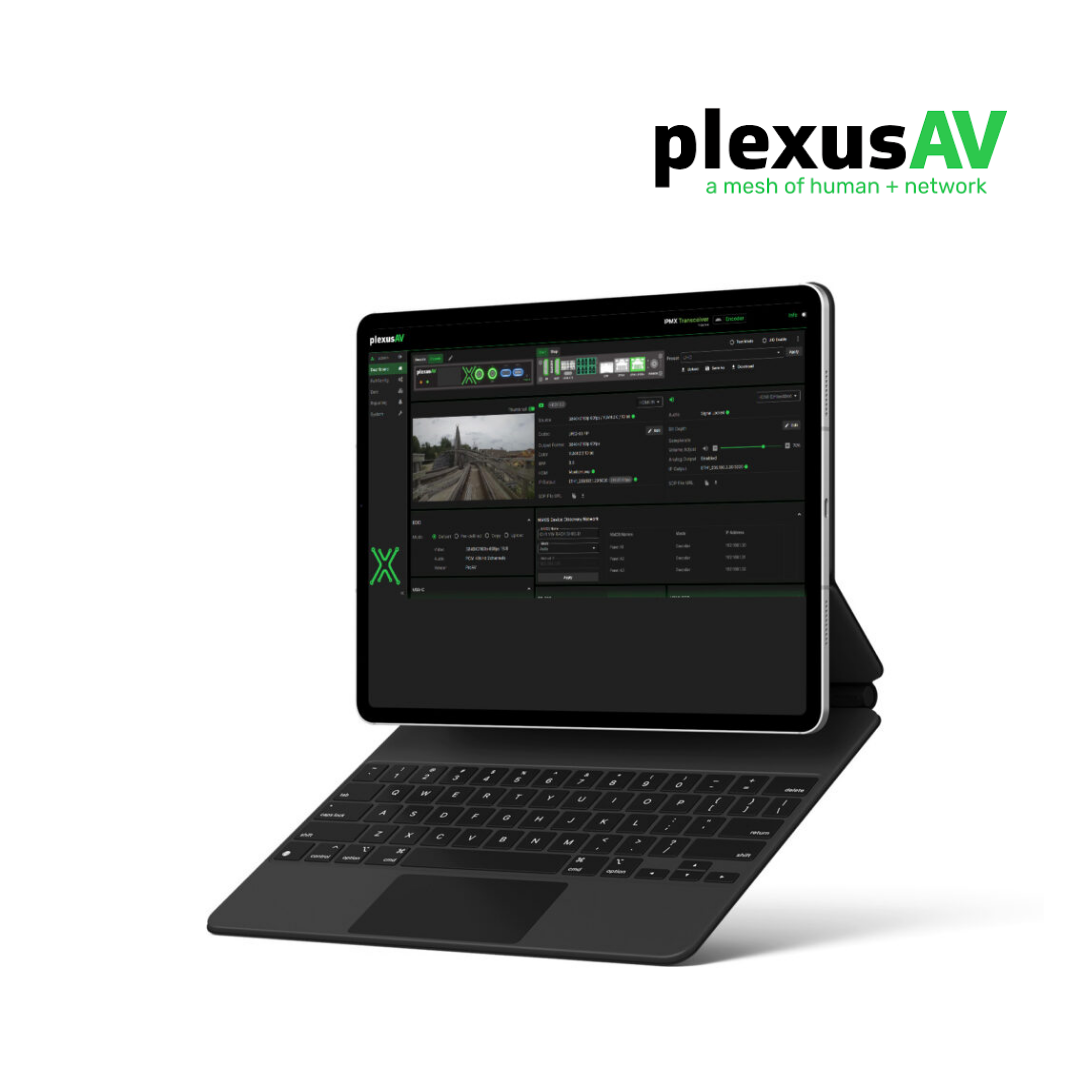

Web Interface (Web UI)	Built-in web interface for easy configuration and control
HTTPS API	Supports GraphQL for advanced integration.
NMOS Support	IS-04, IS-05, and BCP-003
Dante Controller	(Dante Audio only)
RS232 Control	5-pin Phoenix connector for integration with existing control systems.
LED Indicators	Power, error, UID, and dark mode to disable indicators.
DIMENSIONS & POWER
Size	162 mm x 143 mm x 26 mm (6.37″ x 5.63″ x 1.02″)
Weight	1.3 lbs (0.6 kg)
PoE+	IEEE 802.3at Type 2 Class 4 compliant
External	12V DC/3A (optional, sold separately). See Power Accessories.
Power Consumption (Operational Mode)	26W Typical
Power Consumption (Eco Mode)	14.8W
ENVIRONMENTAL CONDITIONS
Operating Temperature	-13° to 113°F (-25° to 45°C)
Storage Temperature	-40° to 113°F (-40° to 45°C)
Operating Humidity	Less than 95% (non-condensing)
Acoustic Noise	33 dBA typical
MOUNTING ACCESSORIES
P-AVN-M-1RU	3x P-AVN-4 1RU Rackmount Kit Frame
P-AVN-4RU-KIT	14x P-AVN-4 4RU Rackmount Kit Frame
P-AVN-WALL	Table and wall mounting bracket (set of 2)
POWER ACCESSORIES
P-AVN-PSU-TYPE-A-US	Type A power supply
P-AVN-PSU-TYPE-C-EU	Type C power supply
P-AVN-PSU-TYPE-G-UK	Type G power supply
P-AVN-PSU-TYPE-I-AUS	Type I power supply
SFP OPTIONS
P-AVN-SFP-1G-COPPER-RJ45-ETH	SFP Copper Module, 1Gbps RJ45 transceiver
P-AVN-SFP-1G-FIBER-1310NM-SM	SFP Fiber Module, 1Gbps Single Mode, 1310NM
P-AVN-SFP-1G-FIBER-850NM-MM	SFP Fiber Module, 1Gbps Multimode, 850NM
FUTURE FEATURES (PLANNED UPDATES)	IR input and output
WARRANTY	3-year warranty: The P-AVN-4 comes standard with a 3-year limited warranty.

Click to enlarge

PlexusAV

P-AVN-4

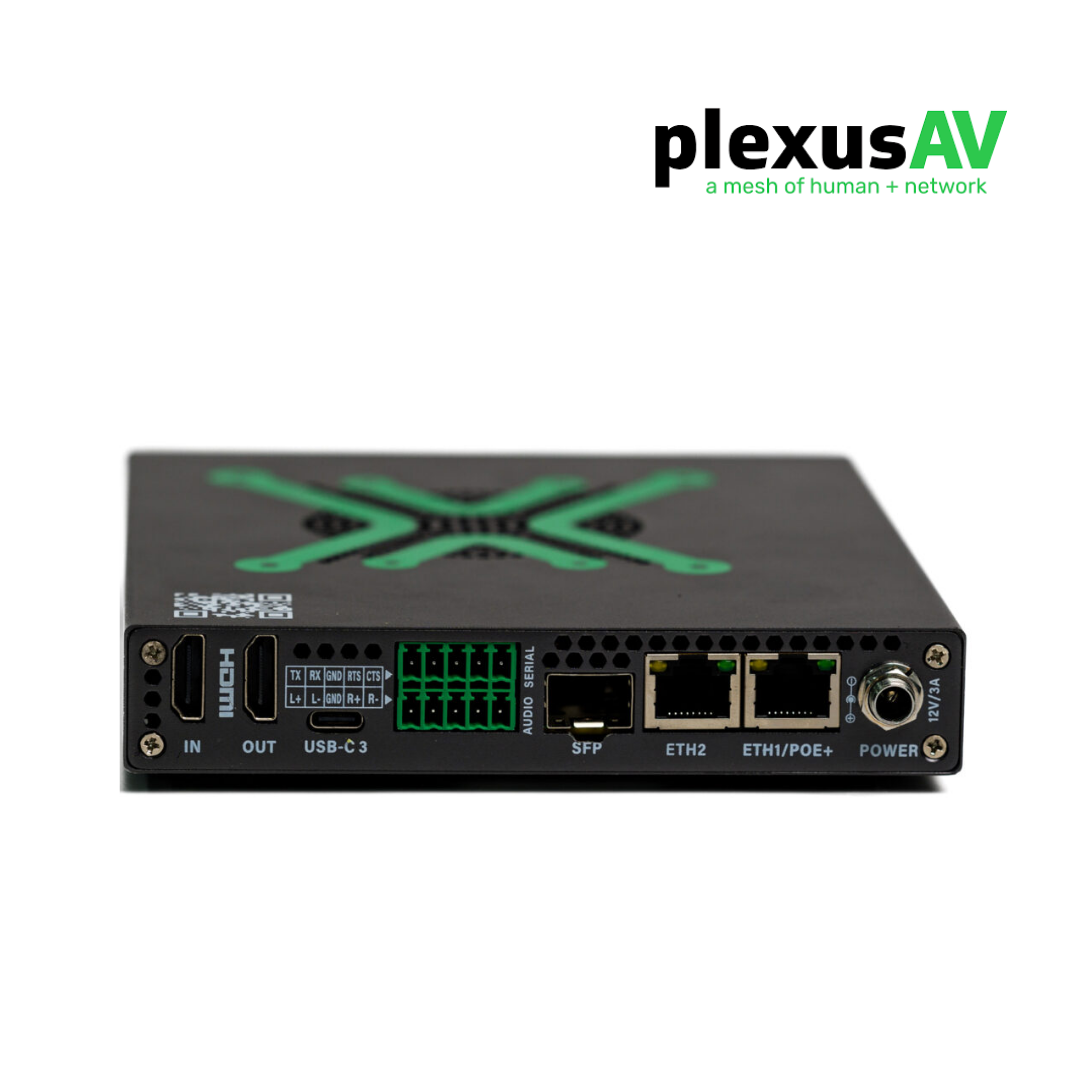

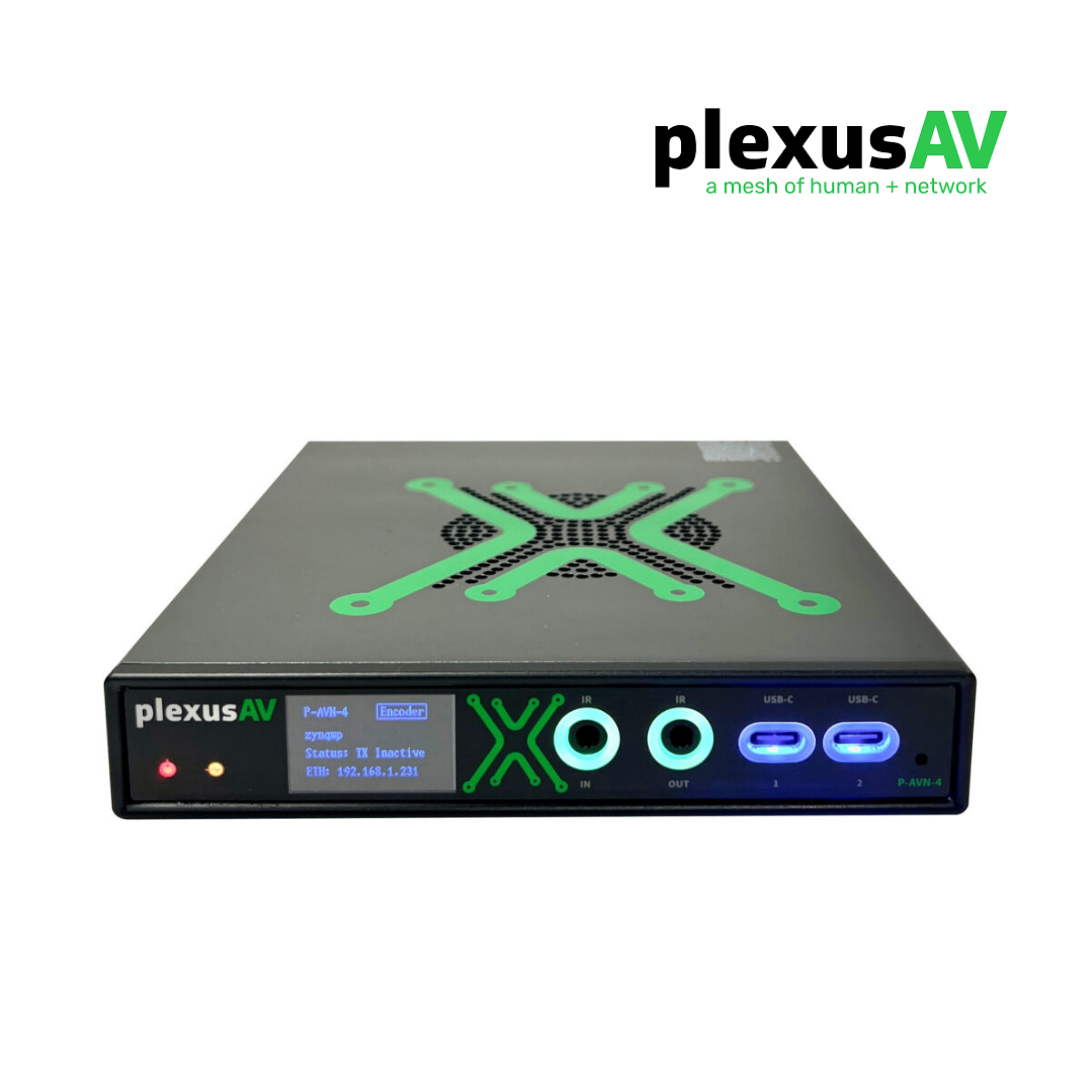

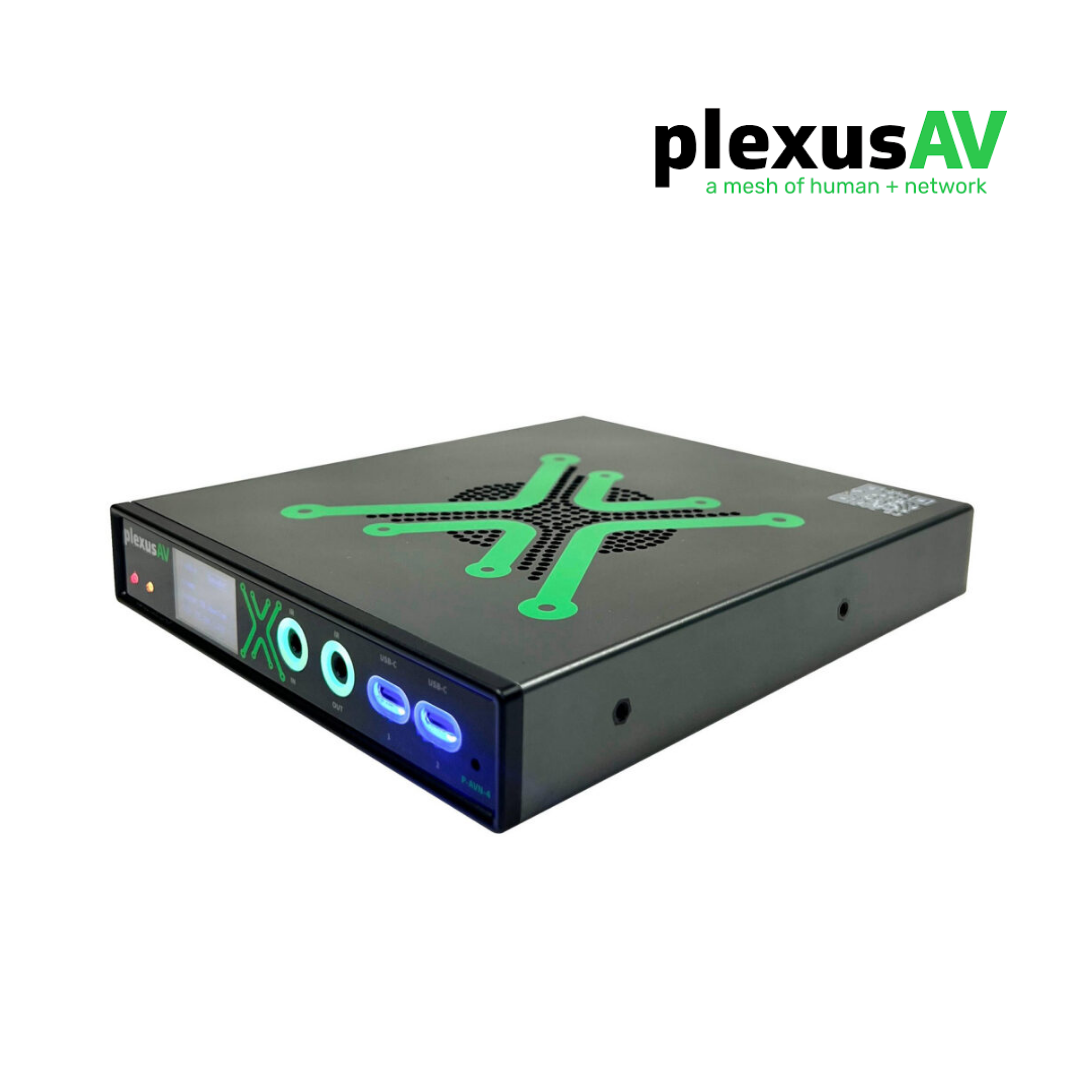

The PlexusAV P-AVN-4 IPMX Transceiver is a versatile, high-performance AV-over-IP device capable of both encoding and decoding video. Built to support open standards like IPMX, the P-AVN-4 ensures seamless integration into existing and future AV networks. With robust video scaling, HDR support, and flexible network connectivity options, it delivers high-quality, low-latency video transmission across various AV applications, from digital signage to live production.

Category: IPMX AV-over-IP Transceivers

Description

ENCODER MODE INTERFACE SPECIFICATIONS
HDMI and USB Interfaces
HDMI Input (1)	Type-A Female, HDMI 2.1/1.4b
	Content Protection – up to HDCP 2.3
	Consumer Electronics Control (CEC)
	EDID Control – Auto, Presets or Manual
HDMI Loop Out (1)	Type-A Female, HDMI 2.1, 1.4b
	Content Protection – up to HDCP 2.3
USB-C (3)	Two USB 2.0 (Data, Front)
	One USB 3.0 (Video, DisplayPort Alt Mode, Rear)
DECODE MODE INTERFACE SPECIFICATIONS
HDMI and USB Interfaces
HDMI Input (1)	Type-A Female, HDMI 2.1/1.4b
	Content Protection – up to HDCP 2.3
HDMI Output (1)	Type-A Female, HDMI 2.1, 1.4b
	Content Protection – up to HDCP 2.3
	Consumer Electronics Control (CEC)
	EDID Control – Save EDID to file or EDID download
USB-C (3)	Two USB 2.0 (Data, Front)
	One USB 3.0 (Video, DisplayPort Alt Mode, Rear)
Network Interfaces
Ethernet 1	RJ-45 PoE+ (100/1000 Auto-Negotiating)
Ethernet 2	RJ-45 (100/1000 Negotiating)
Fiber	SFP 1GB (100/1000 Auto-Negotiating)
IPMX Support
	TR-10-1 – System Timing and Definitions
	TR-10-3 – PCM Digital Audio
	TR-10-5 – HDCP Key Exchange Protocol
	TR-10-7 – Compressed Video
	TR-10-8 – NMOS Requirements
	TR-10-11 – Constant Bit-Rate Compressed Video
VIDEO AND AUDIO SPECIFICATIONS
Codecs	JPEG XS, FIP/TDC (Flawless Image Profile), MPEG-4 (H.264), HEVC (H.264)
Video Support (HDMI/USB-C Input)
	3840x2160P @ 60, 50, 30, 25fps
	2560x1600P @ 60*
	2560x1440P @ 60*
	2560x1080P @ 60*
	1920x1200P @ 60*
	1920x1080P @ 60, 50, 30, 25fps
	1680 x 1050P @ 60*
	1600 x 1200P @ 60*
	1440 x 900P @ 60*
	1280 x 1024P @ 60*
	1024 x 768P @ 60*
	1280x720P @ 60, 50fps
	800 x 600P @ 60*
	640 x 480P @ 60*
	* Supported in upcoming release. Subject to change
Video Support (IPMX stream output)
	3840x2160P @ 60, 50, 30, 25fps
	1920x1080P @ 60, 50, 30, 25fps
	1280x720P @ 60, 50fps
Bitrates	5 – 800 Mbps*, user configurable
Dynamic Range	HDR10, SDR
Color Formats (IPMX stream output)	8/10 bit, YUV 4:2:0/4:2:2/4:4:4
Color Formats (HDMI/USB-C output)	8/10/12 bit, RGB 4:2:0/4:4:4
Color Gamut	BT.2020, BT.709, BT.601
Video Scaling	Support on Encoder and Decoder mode. Supports resolution upscaling, downscaling, frame rate conversion, color mode conversion, and aspect ratio adjustment.
Videowall Processing	Up to 3×3, more templates available upon request
Audio Support	Linear PCM, AES67, AAC-Main, and Pass-through
AAC Bitrate Range	96/112/128/160/192/224/256 (Kbps)
Sampling Rate	44.1, 48KHz
Volume Control	+/- adjustment
Dante Audio Support
	Dante Controller detects P-AVN-4
	Dante Stereo PCM audio support
	1x Dante Stereo IP input
	1x Dante Stereo IP output
Analog Audio Support
Connector	5-pin Phoenix
Channels	Stereo Pair, Balanced or Unbalanced
MANAGEMENT AND CONTROL
Web Interface (Web UI)	Built-in web interface for easy configuration and control
HTTPS API	Supports GraphQL for advanced integration.
NMOS Support	IS-04, IS-05, and BCP-003
Dante Controller	(Dante Audio only)
RS232 Control	5-pin Phoenix connector for integration with existing control systems.
LED Indicators	Power, error, UID, and dark mode to disable indicators.
DIMENSIONS & POWER
Size	162 mm x 143 mm x 26 mm (6.37″ x 5.63″ x 1.02″)
Weight	1.3 lbs (0.6 kg)
PoE+	IEEE 802.3at Type 2 Class 4 compliant
External	12V DC/3A (optional, sold separately). See Power Accessories.
Power Consumption (Operational Mode)	26W Typical
Power Consumption (Eco Mode)	14.8W
ENVIRONMENTAL CONDITIONS
Operating Temperature	-13° to 113°F (-25° to 45°C)
Storage Temperature	-40° to 113°F (-40° to 45°C)
Operating Humidity	Less than 95% (non-condensing)
Acoustic Noise	33 dBA typical
MOUNTING ACCESSORIES
P-AVN-M-1RU	3x P-AVN-4 1RU Rackmount Kit Frame
P-AVN-4RU-KIT	14x P-AVN-4 4RU Rackmount Kit Frame
P-AVN-WALL	Table and wall mounting bracket (set of 2)
POWER ACCESSORIES
P-AVN-PSU-TYPE-A-US	Type A power supply
P-AVN-PSU-TYPE-C-EU	Type C power supply
P-AVN-PSU-TYPE-G-UK	Type G power supply
P-AVN-PSU-TYPE-I-AUS	Type I power supply
SFP OPTIONS
P-AVN-SFP-1G-COPPER-RJ45-ETH	SFP Copper Module, 1Gbps RJ45 transceiver
P-AVN-SFP-1G-FIBER-1310NM-SM	SFP Fiber Module, 1Gbps Single Mode, 1310NM
P-AVN-SFP-1G-FIBER-850NM-MM	SFP Fiber Module, 1Gbps Multimode, 850NM
FUTURE FEATURES (PLANNED UPDATES)	IR input and output
WARRANTY	3-year warranty: The P-AVN-4 comes standard with a 3-year limited warranty.
