Wolfmix W1
Wolfmix W1 is a standalone performance DMX lighting controller – designed for creating light shows on the fly without a computer.
A toolbox of FX modules, music sync, and up to 4 DMX universes – packed inside robust hardware with a powerful processor. Choose from 1000’s of light fixtures, or build your own directly inside the controller. Whether it’s for a live performance, disco, club or show – Wolfmix has you covered.
Setup
• Standalone (no computer needed)
• Compatible with any DMX device
• Up to 4 DMX universes (2048 channels. Add-on required for U3+4)*
• Up to 680 fixtures & beams
• Up to 50 fixture types
• Up to 5000 fixture features (color/gobo etc…)
• 8 fixture groups
• Up to 100 projects, or 3.5mb of data (whichever comes first)
• 20000+ available fixtures (3500+ on the controller)
• DMX address, fixture order & group setup
• Use as a DMX splitter with DMX universe mapping
• Backup and restore projects and fixtures from a USB memory stick
*some features require an add-on purchase available through the WTOOLS app
Banquet Halls
Casinos
Auditoriums
Houses of Worship
Educational Facilities
Convention Centres
Corporate Environments
Restaurant
Bars
| Size | 195 x 220 x 62 mm / 7.68 x 8.66 x 2.44 in |
| Weight | 1070g / 2.36lb |
| Housing | ABS Plastic, Powder-coated steel base plate with 100mm VESA (M4 6mm max) |
| Display | 4.3” Color TFT with tinted glass, Capacitive touch |
| Encoders | Electroplated encoder caps, Incremental push with acceleration |
| Button pads | 37 Silicone buttons with matt oil finishing, LED color backlit |
| Processing | 220Mhz CPU with ARM core, 8MB RAM, 16MB Flash |
| Audio | Omnidirectional electret mic, 3.5mm Jack Line-In, Analog adaptive peak detector |

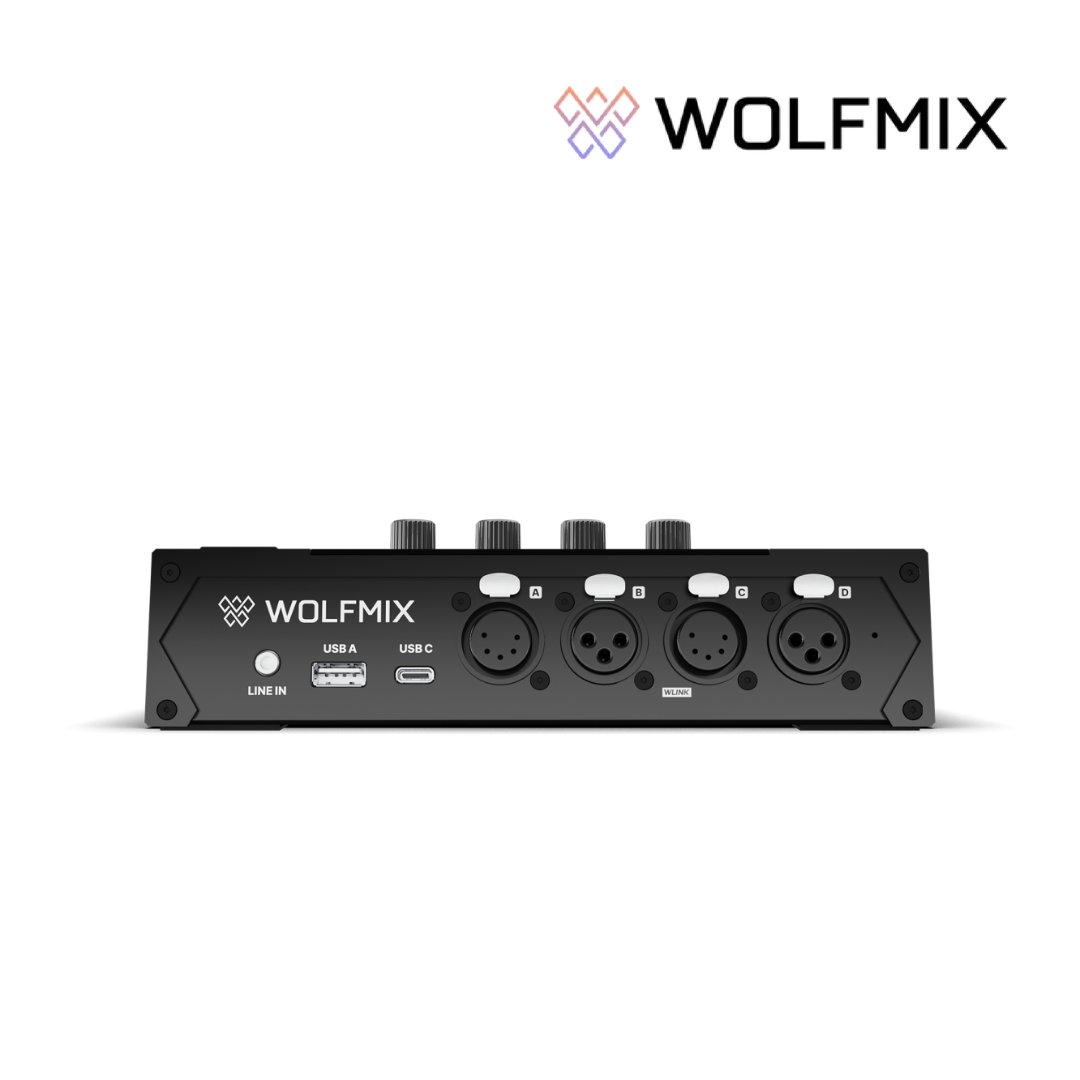

| DMX | 2x 3pin DMX OUT XLR connectors, 1x 5pin DMX OUT XLR connector, 1x 5pin DMX IN/OUT XLR connector with WLINK |
| USB | USB-C connector – 5V 900mA required (1500mA recommended for MIDI/WLINK), USB-A connector with MIDI, MSD & WLINK (5V 900mA), High-speed USB communication |
