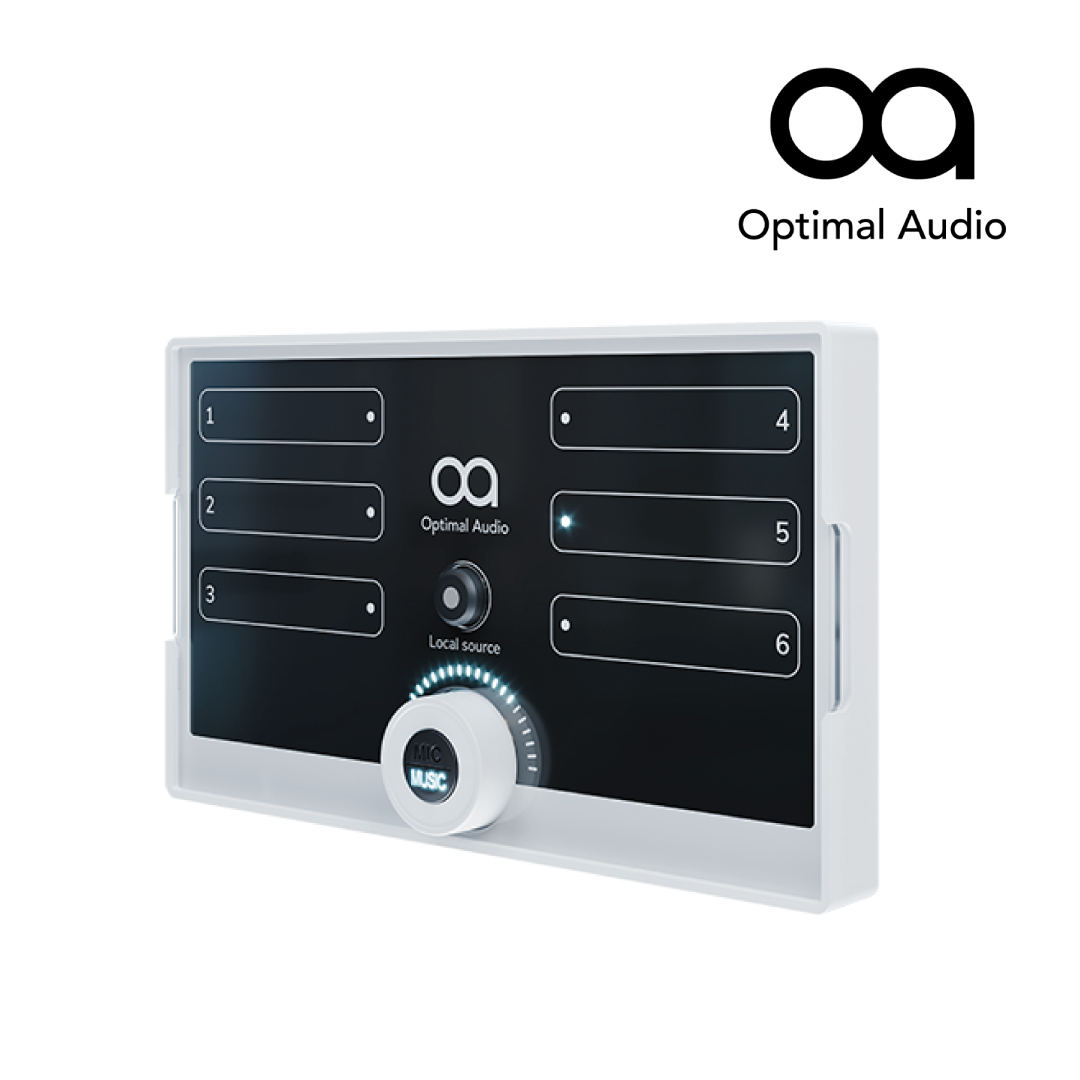

ZonePad 1
ZonePad 1 is an elegant wall mounted controller, providing users clear and simple access to the essential controls of one zone of an Optimal Audio system.
It gives all users the confidence and access they need to operate the system and features a clean, slick intuitive touch interface.
ZonePad 1 enables selection and volume control of playback sources and features a local microphone and mono line input.
Description
- QuaFull suite of audio controls for up to 8 zones
- Fully flexible signal routing
- Eight channels of 100W integrated amplification at 4Ω or 8Ω
- Bridge channels for 200W @ 8Ω for 70v applications

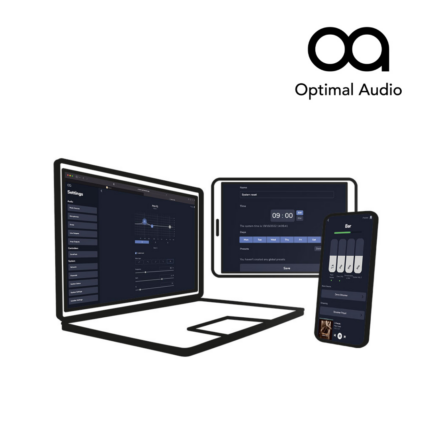

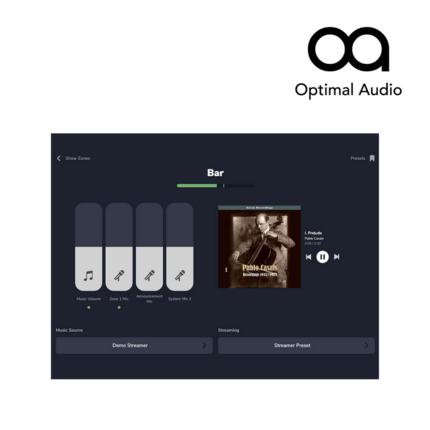

- WebApp interface for easy system configuration and everyday control
- 2 mic, 4 stereo line and 2 HDMI inputs
- Fully programmable presets and timed events
- Very competitive pricing
Bar/Restaurants
Retail
Wedding Venues
Hotels
Educational Facilities
House of Worship
Corporate Offices
Museums
Fitness Studios
Residential
| TYPE | Single zone wall controller with local mic and line inputs |
| LOCAL MIC INPUT | 1 with 48V phantom power, +12dB to +55dB gain, fixed hi-pass filter @160Hz |
| LOCAL MUSIC INPUT | 1 x mono |
| MAXIMUM DISTANCE (CAT5) | 500m |
| CONNECTION | RJ 45 |
| DATA PROTOCOL | Optimal Audio proprietary over CAT 5 |
| CASE MATERIAL | Zinc plated steel, ABS |
| LENS MATERIAL | Clear acrylic |
| BACK BOX | 2-gang UK/EURO 20mm deep back box, or 3-gang US, with the use of the US ZonePad adapter plate |
| DIMENSIONS | (W) 146mm x (H) 86.2mm x (D) 39.3mm |
| (W) 5.75” x (H) 3.39” x (D) 1.55” | |
| WEIGHT | 0.35kg (0.8lbs) |
