P-AVN-4D
The PlexusAV P-AVN-4D IPMX Decoder is a versatile, high-performance AV-over-IP device that receives IPMX streams and outputs them over HDMI. Built to support open standards like IPMX, the P-AVN-4D integrates cleanly into existing networked AV designs and stays ready for future system expansion.
With support for JPEG-XS up to 4K60, along with HDR and built-in video scaling, it delivers high-quality, ultra low-latency video into a wide range of ProAV and live production workflows. Beyond video, the P-AVN-4D also brings audio and control onto the same network, with USB, serial, and balanced audio connectivity for a single, installation-ready endpoint.
• 1Gbps Ultra Low-Latency JPEG-XS decoding
• Dual Ethernet Ports: Two RJ45 ports support standard network or PoE+ installations
• PoE+ Power Delivery: Simplifies deployment with single-cable connectivity for both power and data
• IPMX Standards Compliance: Ensures seamless integration into interoperable, standards-based AV networks
• Site-to-Site Transmission: Perfect for applications requiring lower bandwidth consumption over the network infrastructure
• HDMI Video Output: Accepts HDMI 2.1 with HDCP 2.3 support, enabling clean integration with modern displays
• Analog & Digital Audio: Includes balanced analog input and support for AAC, Linear PCM, and optional Dante audio
• Slim Form Factor: Mounts easily behind displays, under tables, or in control rooms
• Mounting Accessories: Compatible with 1RU, 4RU, and wall-mount kits for any environment
Banquet Halls
Casinos
Auditoriums
Houses of Worship
Educational Facilities
Convention Centres
Corporate Environments
Restaurant
Bars

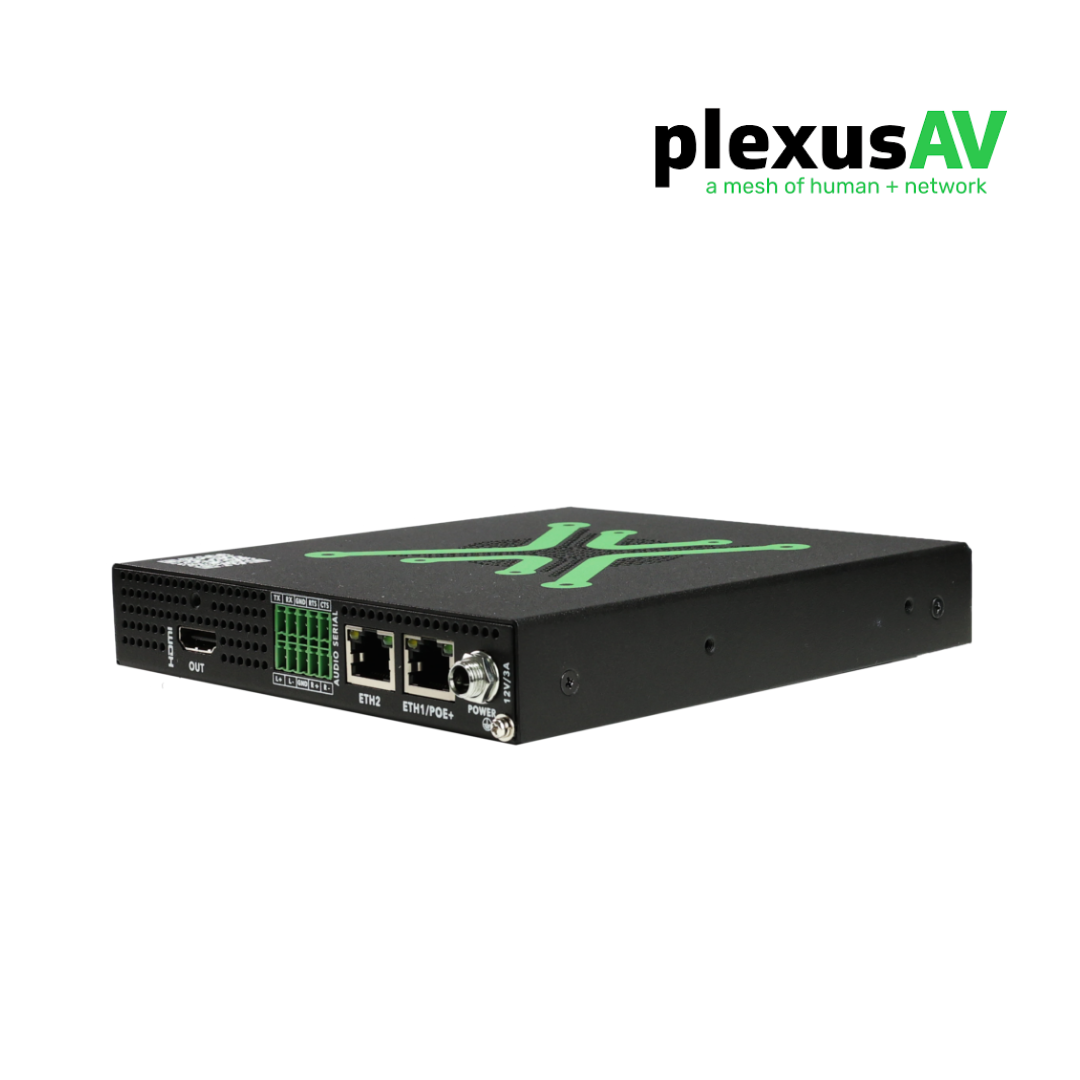

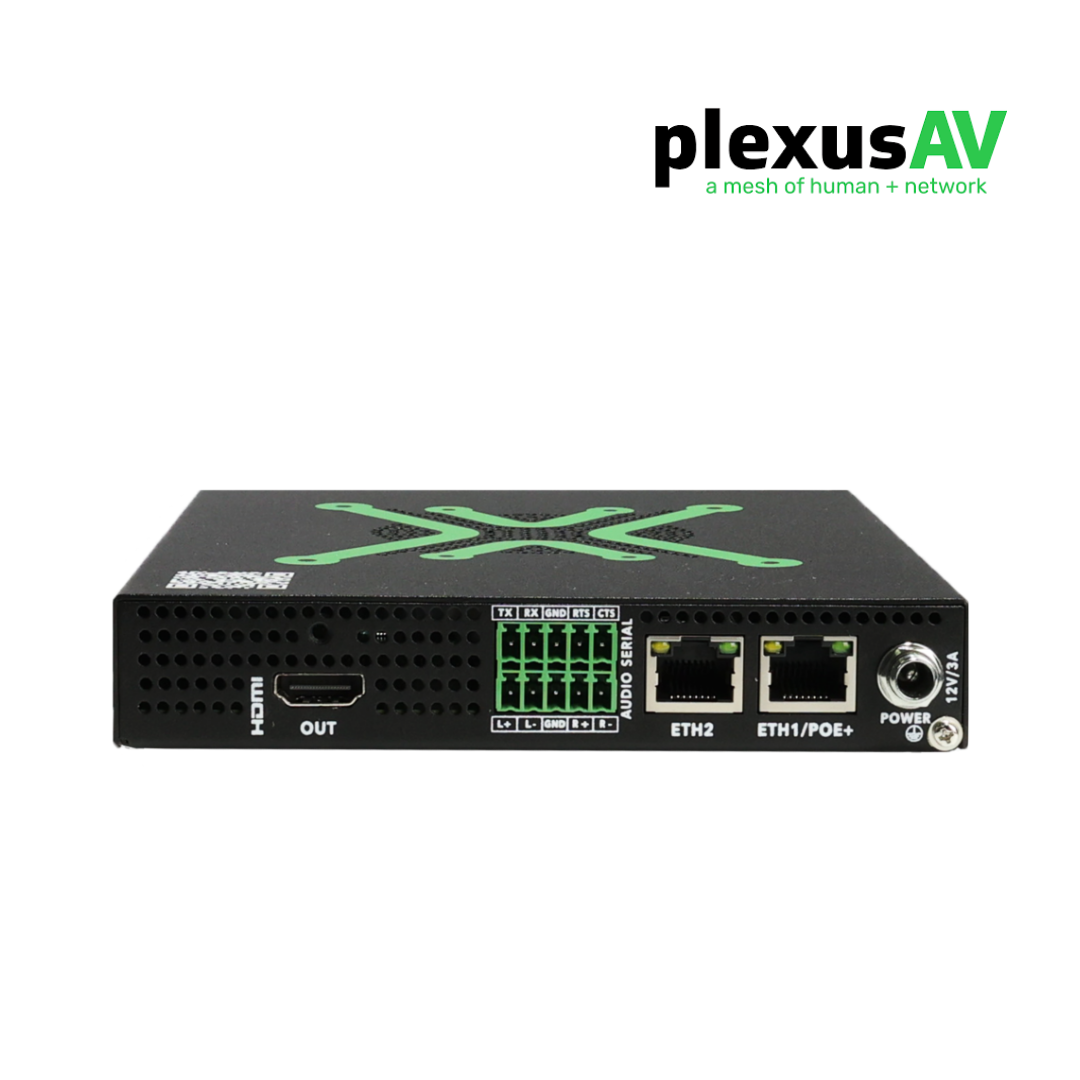

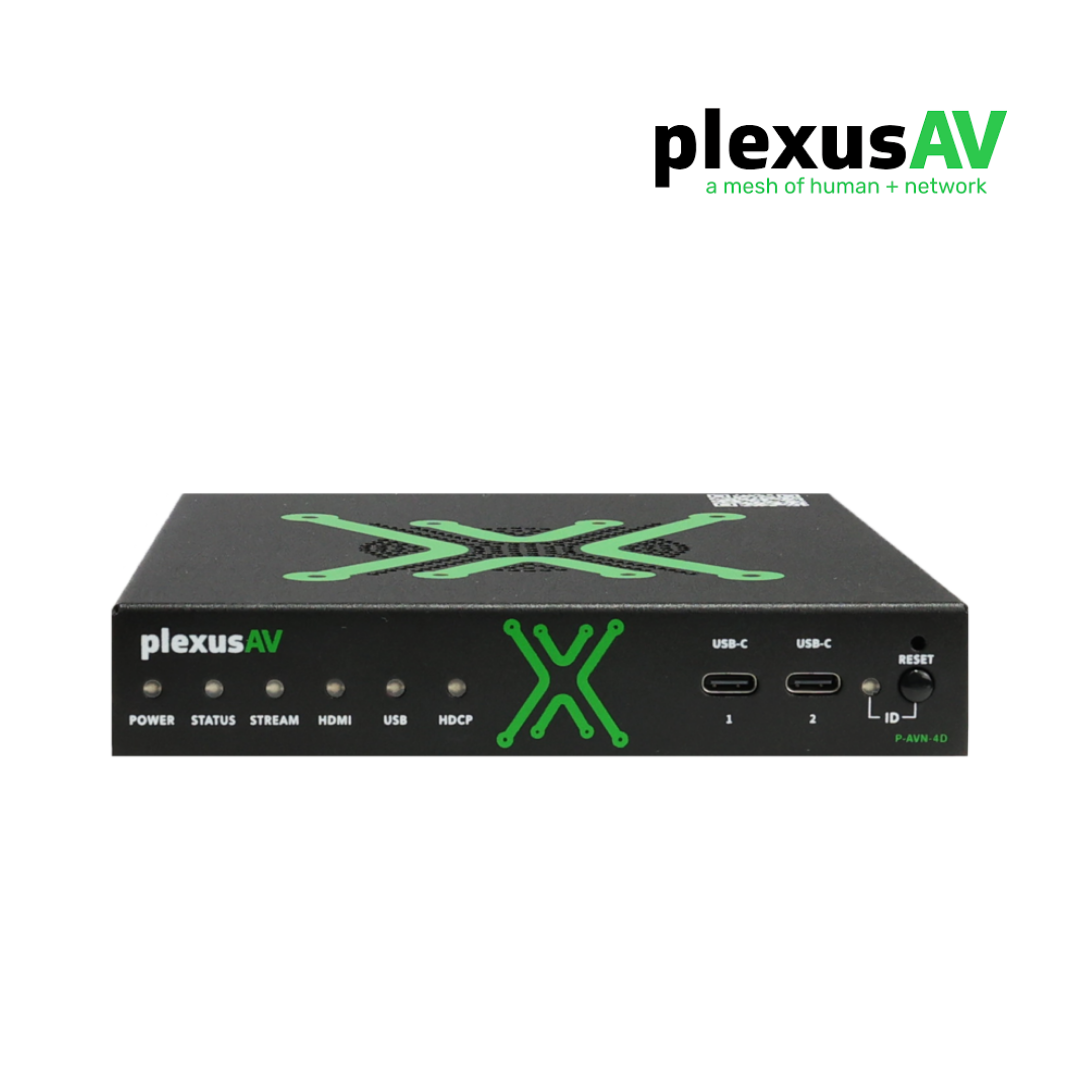

| REAR PANEL PORTS | |
| HDMI Output | Content Protection – up to HDCP 2.3 |
| Consumer Electronics Control (CEC) | |
| EDID Control – Auto, Presets or Manual | |
| Type-A Female, HDMI 2.1, 1.4b | |
| Analog Audio Input Support | |
| Connector | 5-Pin Phoenix |
| Channels | Stereo Pair, Balanced or Unbalanced |
| Volume Adjust | Slider in web-interface (+/- volume) |
| Pinouts | Printed on chassis silk screen |
| Serial Communication | |
| Connector | 5-Pin Phoenix |
| Protocol | RS-232 “Serial” |
| Pinouts | Printed on chassis silk screen |
| Network Interfaces | |
| Ethernet 1 | RJ-45/PoE+ (100/1000 Auto-Negotiating) |
| Ethernet 2 | RJ-45 (100/1000 Auto-Negotiating) |
| Cable Type | CAT6 or CAT6A shielded cable recommended |
| Power Port | |
| Power Specifications | 12V/3A DC |
| Polarity | Center-Positive |
| FRONT PANEL PORTS | |
| USB-C Ports | |
| USB-C (1) | USB 2.0 – Keyboard/Mouse/UVC Webcam Extension |
| USB-C (2) | USB 2.0 – Keyboard/Mouse/UVC Webcam Extension |
| USB Power Delivery (1/2) | 5W Max. (Not for charging laptop or video input) |
| ID Button | |
| ID Push Button | One-Click |
| ID Light | When ID mode is on, LED is lit and HDMI output shows system information |
| Factory Reset | Press and hold recessed button for 10 seconds |
| IPMX SUPPORT | |
| Technical Standards | TR-10-1: System Timing and Definitions |
| TR-10-3: PCM Digital Audio | |
| TR-10-5: HDCP Key Exchange Protocol* | |
| TR-10-7: Compressed Video | |
| TR-10-8: NMOS Requirements | |
| TR-10-11: Constant Bitrate Compressed Video | |
| VIDEO SCALING | |
| Video Scaling | Upscale (up to 3840×2160) |
| Aspect Ratio Adjustment | Maintain Aspect Ratio (no change) |
| Stretch (fill screen) | |
| AUDIO SUPPORT | |
| Audio Signal Type | Linear PCM, Pass-Through |
| Sample Rate | 32/44.1/48/96/192/384 kHz |
| VIDEO AND AUDIO SPECIFICATIONS | |
| Dynamic Range | HDR10 Pass-Through |
| SDR (Standard Dynamic Range) | |
| Color Formats (IPMX JPEG-XS Stream) | 8/10-bit, RGB/YUV 4:4:4 |
| 8/10-bit, YUV 4:2:2 | |
| HDMI Output Color Formats | 8-bit, RGB/YUV 4:4:4 |
| 8/10-bit, YUV 4:2:0 | |
| 12-bit, YUV 4:2:2 | |
| Color Gamut | BT.2020, BT.709, BT.601 |
| Codec Support | |
| Video Codecs | JPEG-XS |
| Audio Codecs | PCM |
| IPMX Stream Output | |
| Auto | Follow Input |
| HDMI Output Formats | 3840×2160P @ 60, 50, 30, 25fps |
| 1920×1080P @ 60, 50, 30, 25 | |
| 1280×720P @ 60, 50fps | |
| Video Input Formats (IPMX Stream Formats) | 4096×2160P @ 60, 59.94, 50, 30, 29.97, 25fps |
| 3840×2160P @ 60, 59.94, 50, 30, 29.97, 25fps | |
| 1920×1080P @ 60, 59.94, 50, 30, 29.97, 25fps | |
| 1280×720P @ 60, 59.94, 50, 30, 29.97, 25fps | |
| 720×576P @ 60, 59.94, 50, 30, 29.97, 25fps | |
| 2560×1600P @ 60fps | |
| 2560×1440P @ 60fps | |
| 2560×1080P @ 60fps | |
| 1920×1200P @ 60fps | |
| 1680×1050P @ 60fps | |
| 1600×1200P @ 60fps | |
| 1440×900P @ 60fps | |
| 1280×1024P @ 60fps | |
| 1024×768P @ 60fps | |
| 800×600P @ 60fps | |
| 640×480P @ 60fps | |
| MANAGEMENT AND CONTROL | |

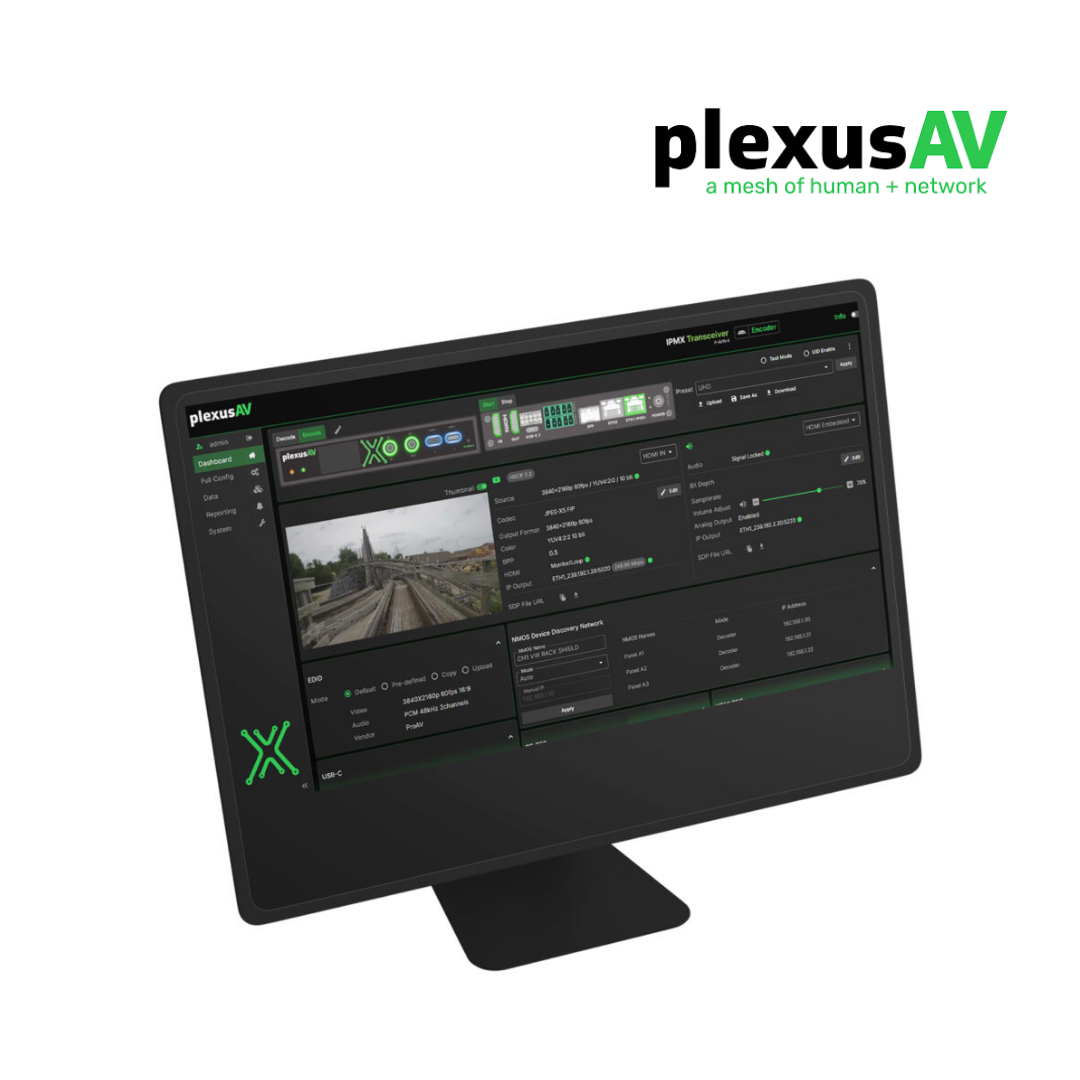

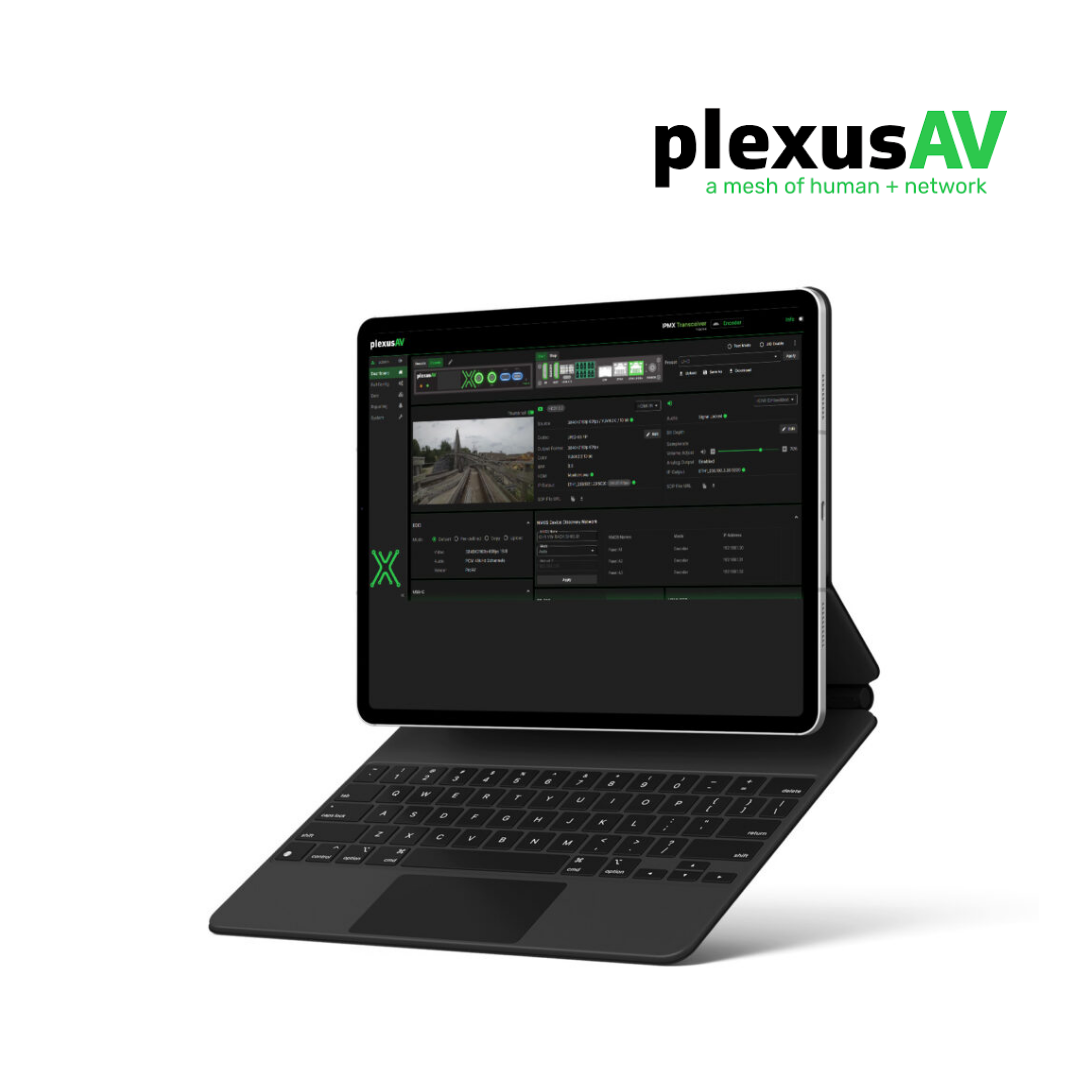

| Web Interface | Browser-based HTTPS Web-UI and Control |
| HTTPS API | REST API, GraphQL |
| NMOS Support | IS-04, IS-05, IS-11* BCP-003 |
| LED Indicators | (1) Power |
| (2) Status | |
| (3) Stream | |
| (4) HDMI | |
| (5) USB | |
| (6) HDCP | |
| DIMENSIONS AND POWER | |
| Size | 162mm × 143mm × 26mm (6.37” × 5.63” × 1.02”) |
| Weight | 1.3 lbs (0.6kg) |
| PoE+ | IEEE 802.3at Type 2 Class 4 compliant |
| External Power | 12V DC/3A (optional, sold separately) |
| Power Consumption (Operational Mode) | 15W Typical |
| Power Consumption (Eco Mode) | FW 1.4: 11.9W |
| ENVIRONMENTAL CONDITIONS | |
| Operating Temperature | -13° to 113° F (-25° to 45° C) |
| Storage Temperature | -40° to 113° F (-40° to 45° C) |
| Operating Humidity | Less than 95% (non-condensing) |
| Acoustic Noise | 33 dBA (normal operation) |
| DANTE AUDIO (OPTIONAL) | |
| Dante Stereo License Option | 1× Input + 1× Output |
| Dante Features | Dante Controller Detects P-AVN-4D |
| Dante Stereo PCM Support | |
| 1× Dante Stereo IP Input | |
| 1× Dante Stereo IP Output | |
| MOUNTING ACCESSORIES | |
| P-AVN-M-1RU | 3× P-AVN-4D 1RU Rackmount Kit Frame |
| P-AVN-M-4RU-KIT | 14× P-AVN-4D 4RU Rackmount Kit Frame |
| POWER ACCESSORIES | |
| P-AVN-PSU-TYPE-A-US | Type A Power Supply |
| P-AVN-PSU-TYPE-C-EU | Type C Power Supply |
| P-AVN-PSU-TYPE-G-UK | Type G Power Supply |
| P-AVN-PSU-TYPE-I-AUS | Type I Power Supply |
| FUTURE FEATURES (PLANNED UPDATES) | * indicates a future feature option |
| WARRANTY | 3-year warranty: The P-AVN-4D comes standard with a 3-year limited warranty |
