P-AVN-2D
The PlexusAV P-AVN-2D IPMX Decoder delivers high-performance video playback for networked AV environments. Built on open IPMX standards, it receives and decodes IP video streams into HDMI output with low latency and exceptional image quality. Supporting H.264 and H.265 compression, PoE+ power, and professional audio formats, the P-AVN-2D simplifies real-time video delivery across classrooms, conference rooms, and production environments—bringing reliable, standards-based decoding to any 1 Gbps AV-over-IP network.
• 1 Gbps Low-Latency Decoding: Ensures smooth, high-quality video delivery across standard Ethernet networks
• Dual Ethernet Ports: Two RJ45 ports support PoE+ power and network redundancy for uninterrupted playback
• PoE + Power Delivery: Simplifies setup with single-cable connectivity for power and data
• Advanced Audio Formats: Supports AES67 and Linear PCM for reliable, high-fidelity sound
• Optional Dante License: Adds Dante stereo audio input/output for integration into networked audio systems
• HDMI 2.1 Output: Delivers 4K60 video with HDCP 2.3 compliance for use with professional displays
• Video Scaling & Aspect Control: Supports upscaling to 4K and adjustable aspect ratios for consistent display performance
• CEC and EDID Management: Simplifies setup and ensures consistent communication with connected displays
• RS-232 Serial Support: Enables integration with control systems and legacy devices
Banquet Halls
Casinos
Auditoriums
Houses of Worship
Educational Facilities
Convention Centres
Corporate Environments
Restaurant
Bars

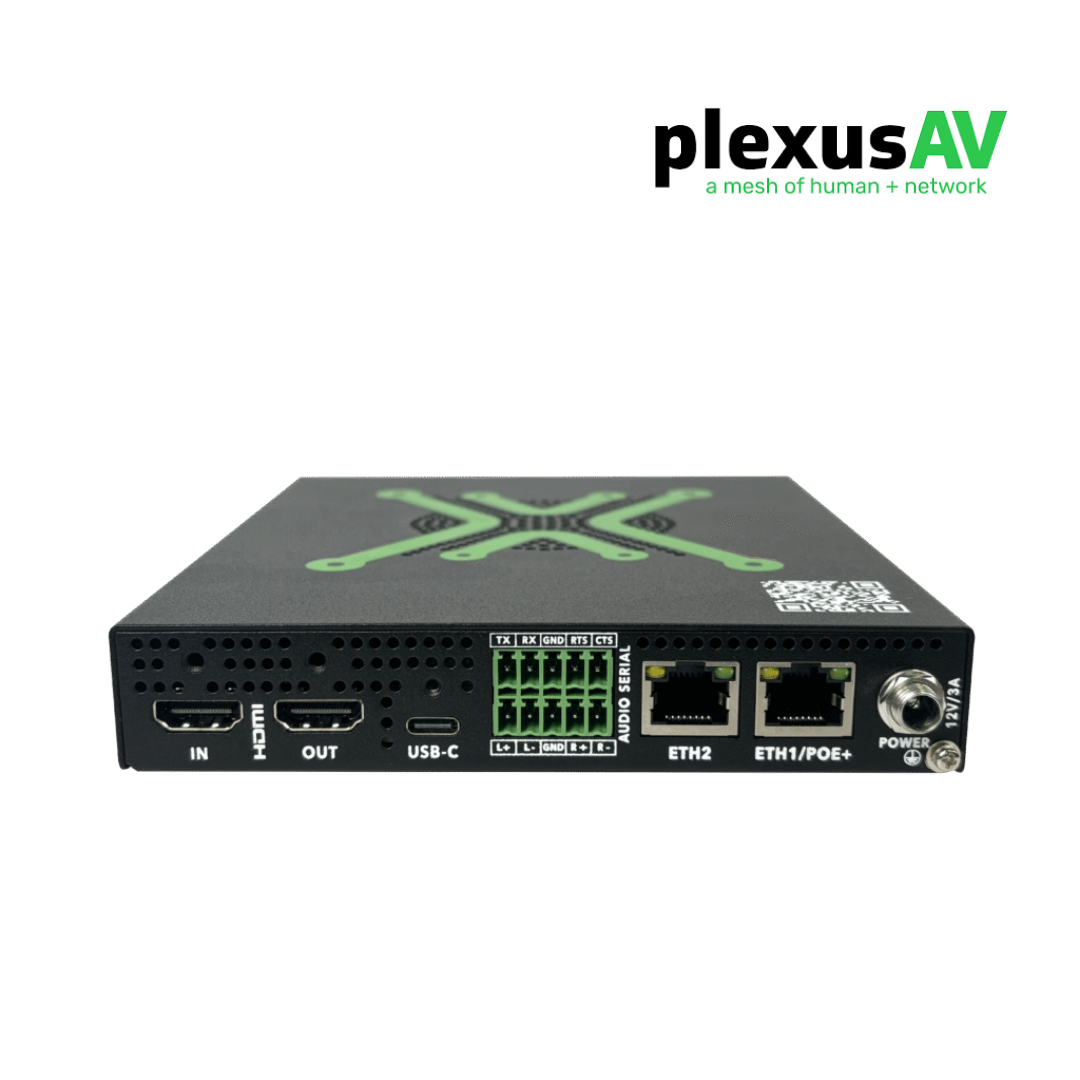

| HDMI Output | Content Protection – up to HDCP 2.3; Consumer Electronics Control (CEC); EDID Control – Auto, Presets or Manual; Type-A Female, HDMI 2.1, 1.4b |
| Analog Audio Input Support | Connector: 5-Pin Phoenix; Channels: Stereo Pair, Balanced or Unbalanced; Volume Adjust: Slider in web-interface (+/- volume); Pinouts: Printed on chassis silk screen |
| Serial Communication | Connector: 5-Pin Phoenix; Protocol: RS-232 “Serial”; Pinouts: Printed on chassis silk screen |
| Network Interfaces | Ethernet 1: RJ-45/PoE+ (100/1000 Auto-Negotiating); Ethernet 2: RJ-45 (100/1000 Auto-Negotiating); Cable Type: CAT6 or CAT6A shielded cable recommended |
| Power Port | Power Specifications: 12V/3A DC; Polarity: Center-Positive |
| Infra-Red (IR) Ports | Audio Jack: 3.5mm (tip-ring-sleeve); IR IN: Receives IR signal from attached dongle/adapter; IR OUT: Transmits IR signal to attached dongle/adapter |
| USB-C Ports | USB-C (1): USB 2.0 – Keyboard/Mouse/UVC Webcam Extension; USB-C (2): USB 2.0 – Keyboard/Mouse/UVC Webcam Extension; Power Delivery (1/2): 5W Max. (Not for charging laptop or video input) |
| ID Button | ID Push Button: One-Click; ID Light: When ID mode is on, LED is lit and HDMI output shows system information |
| Factory Reset | Press and hold recessed button for 10 seconds |
| IPMX Support | TR-10-1: System Timing and Definitions; TR-10-3: PCM Digital Audio; TR-10-5: HDCP Key Exchange Protocol; TR-10-7: Compressed Video; TR-10-8: NMOS Requirements; TR-10-11: Constant Bitrate Compressed Video |
| Video Scaling | Video Scaling: Upscale up to 3840×2160; Aspect Ratio Adjustment: Maintain Aspect Ratio (no change), Stretch (fill screen) |
| Audio Support | Audio Signal Type: Linear PCM, AAC-LC, AAC-Main, Pass-Through; AAC Bitrate Range: 96/112/128/160/192/224/256 Kbps; Sample Rate: 44.1/48 KHz |
| Video And Audio Specifications | Dynamic Range: HDR10 Pass-Through, SDR (Standard Dynamic Range); Color Formats: HDMI/USB-C Output: 8/10-bit, YUV 4:2:0 / 4:2:2; Color Gamut: BT.2020, BT.709, BT.601; Codec Support: Video Codecs: H.264 (MPEG-4), H.265 (HEVC); Audio Codecs: AAC-LC, AAC-Main |
| Video Output Formats | HDMI Decoded Output Formats: 3840x2160P @ 60, 50, 30, 25fps; 1920x1080P @ 60, 50, 30, 25; 1280x720P @ 60, 50 |
| Video Input Formats | IPMX Stream Formats: 3840x2160P @ 60, 50, 30, 25fps; 1920x1080P @ 60, 50, 30, 25; 1280x720P @ 60, 50 |

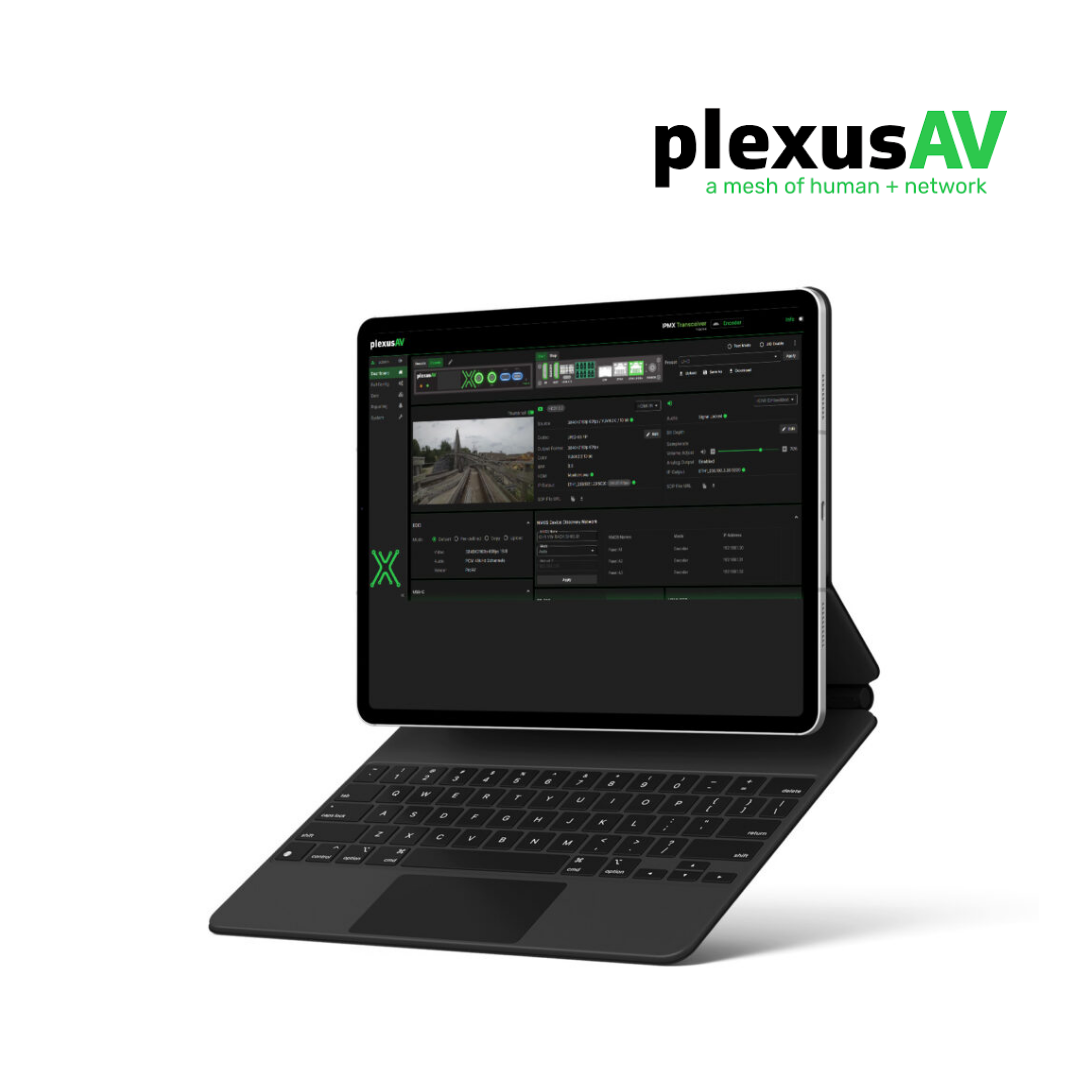

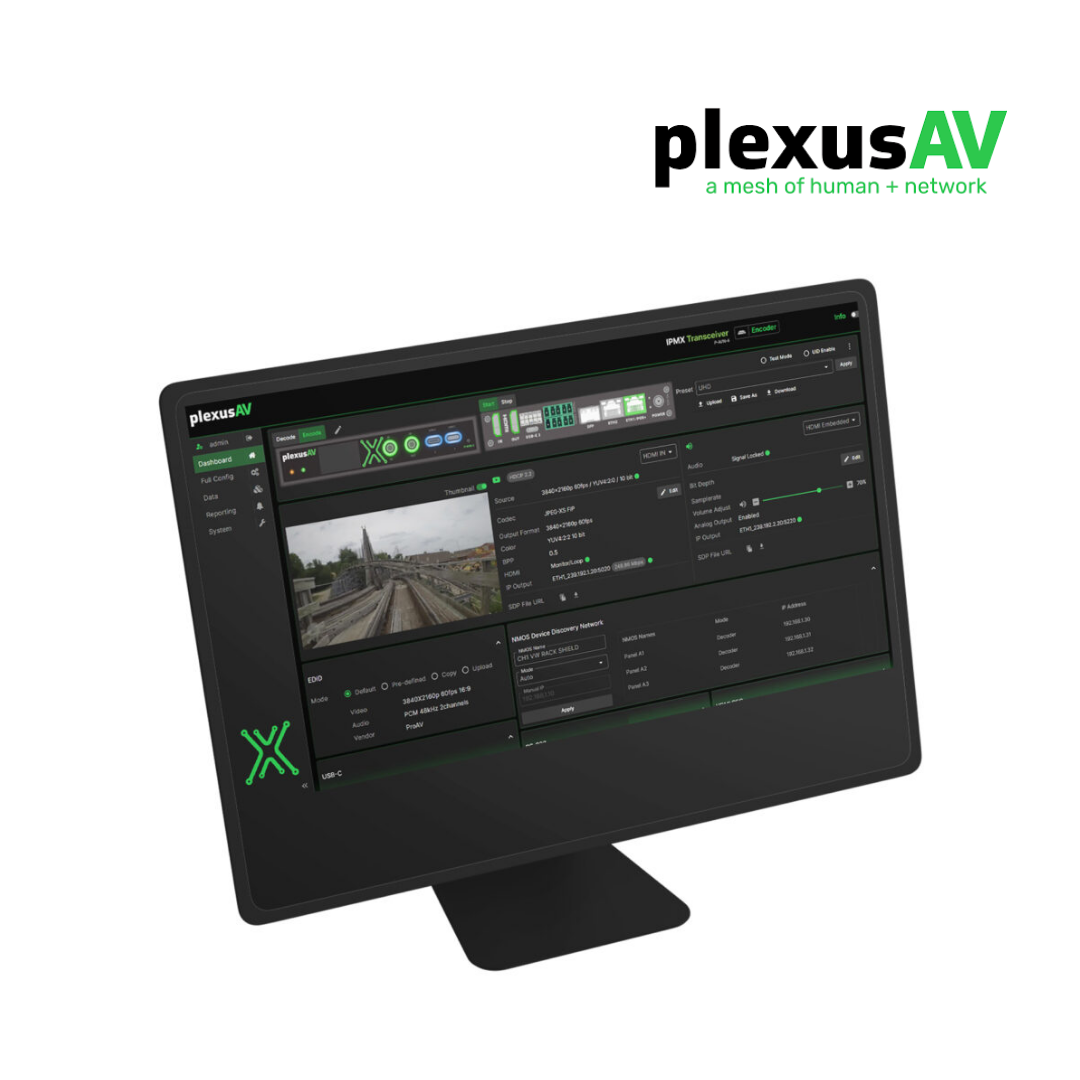

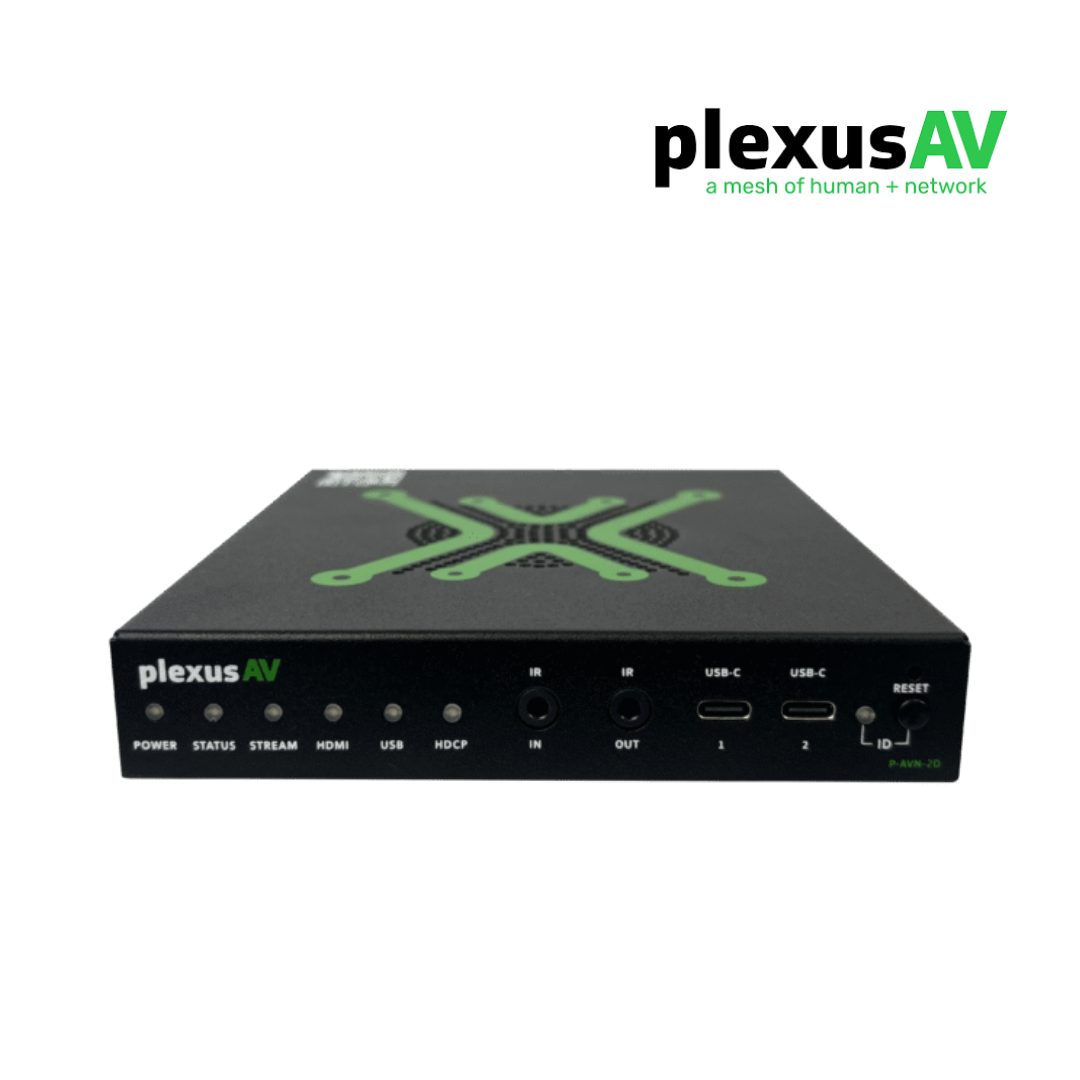

| Management And Control | Web Interface: Browser-based HTTPS Web-UI and Control; HTTPS API: GraphQL, REST API*; NMOS Support: IS-04, IS-05, BCP-003; LED Indicators: (1) Power, (2) Status, (3) Stream, (4) HDMI-IN, (5) USB, (6) HDCP |
| Dimensions And Power | Size: 162mm x 143mm x 26mm (6.37” x 5.63” x 1.02”); Weight: 1.3 lbs (0.6kg); PoE+: IEEE 802.3at Type 2 Class 4 compliant; External: 12V DC/3A (optional, sold separately); Power Consumption (Operational Mode): 15W Typical; Power Consumption (Eco Mode) FW 1.4: 11.4W |
| Environmental Conditions | Operating Temperature: -13° to 113° F (-25° to 45° C); Storage Temperature: -40° to 113° F (-40° to 45° C); Operating Humidity: Less than 95% (non-condensing); Acoustic Noise: 33 dBA (normal operation) |
| Dante Audio (Optional) | Dante Stereo License Option: 1x Input + 1x Output; Dante Features: Dante Controller Detects P-AVN-2D; 1x Dante Stereo PCM Support; 1x Dante Stereo IP Input; 1x Dante Stereo IP Output |
| Mounting Accessories | P-AVN-M-1RU-KIT: 3x P-AVN-2E 1RU Rackmount Kit Frame; P-AVN-M-4RU-KIT: 14x P-AVN-2E 4RU Rackmount Kit Frame |
| Power Accessories | P-AVN-PSU-TYPE-A-US: Type A Power Supply; P-AVN-PSU-TYPE-C-EU: Type C Power Supply; P-AVN-PSU-TYPE-G-UK: Type G Power Supply; P-AVN-PSU-TYPE-I-AUS: Type I Power Supply |
| Future Features (Planned Updates) | IR Input and Output |
| Warranty | 3-year warranty: The P-AVN-2D comes standard with a 3-year limited warranty. |
