P-AVN-CL100 (ChargeLink)
The PlexusAV P-AVN-CL100 (ChargeLink) is a compact USB-C and HDMI source interface designed to simplify connectivity across professional AV environments. Delivering a one-cable USB-C solution that combines video, data, ethernet, and up to 100W of power, the ChargeLink streamlines BYOD workflows while maintaining pro-grade reliability and seamless integration within the PlexusAV ecosystem.
• Direct Signal Path: HDMI and USB-C switching with no compression, no buffering, and no perceptible delay
• Real-Time Operation: Suitable for live presentations, collaboration, and interactive environments
• Small Form Factor: 162mm x 143mm x 26mm, optimized for podiums, meeting rooms, and presentation furniture
• LED Status Indicators: Clear visibility for power, HDMI, USB-C, and auto-select input modes
• Locking USB-C Power Connector: Prevents accidental disconnects in active environments
• Universal Power Supply: 100-240V, 5-60Hz, 1.9A input for global deployments

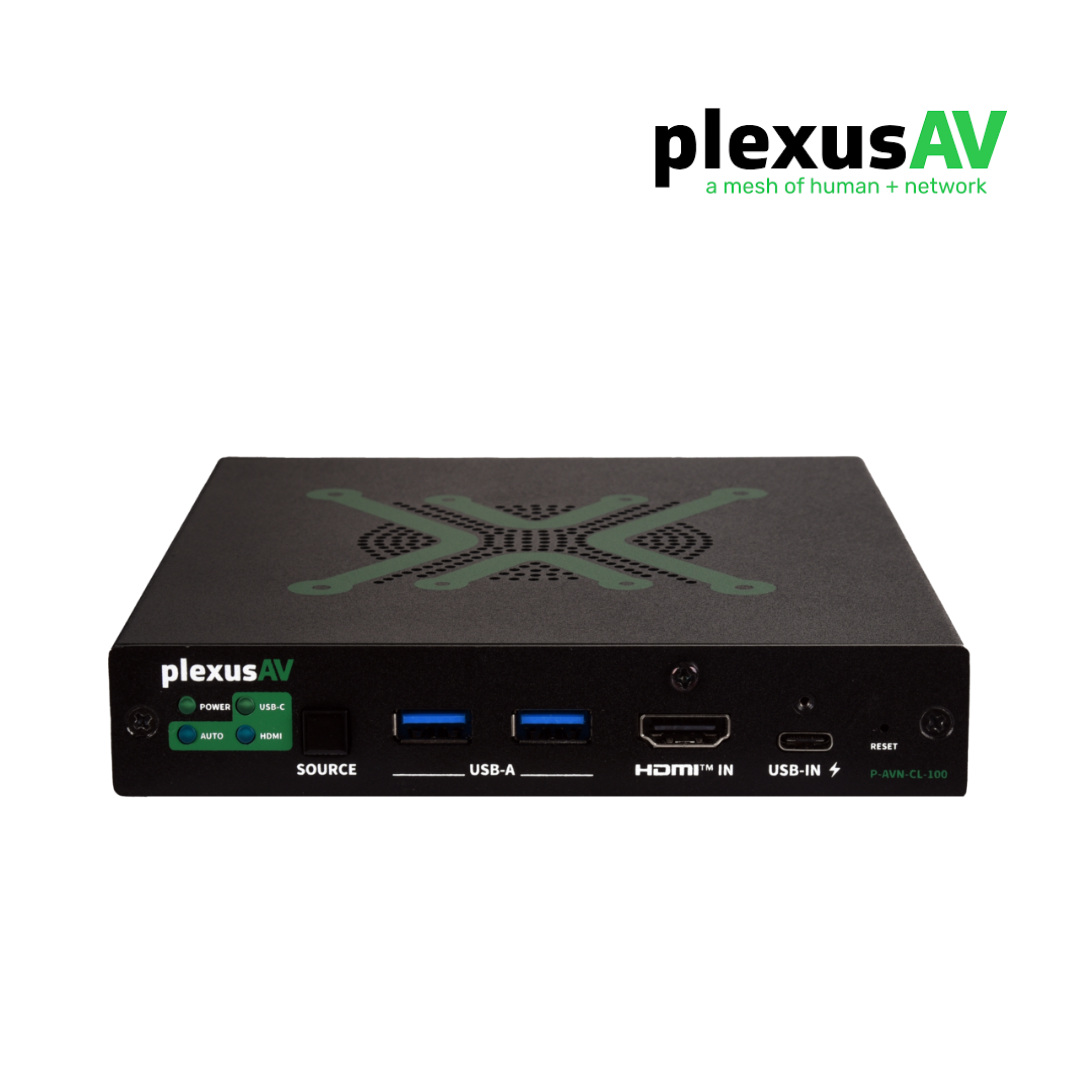

• Front Panel: USB-A x2 (USB 3.0), HDMI input (HDMI 2.1/1.4b), USB-C input (Display-ALT)

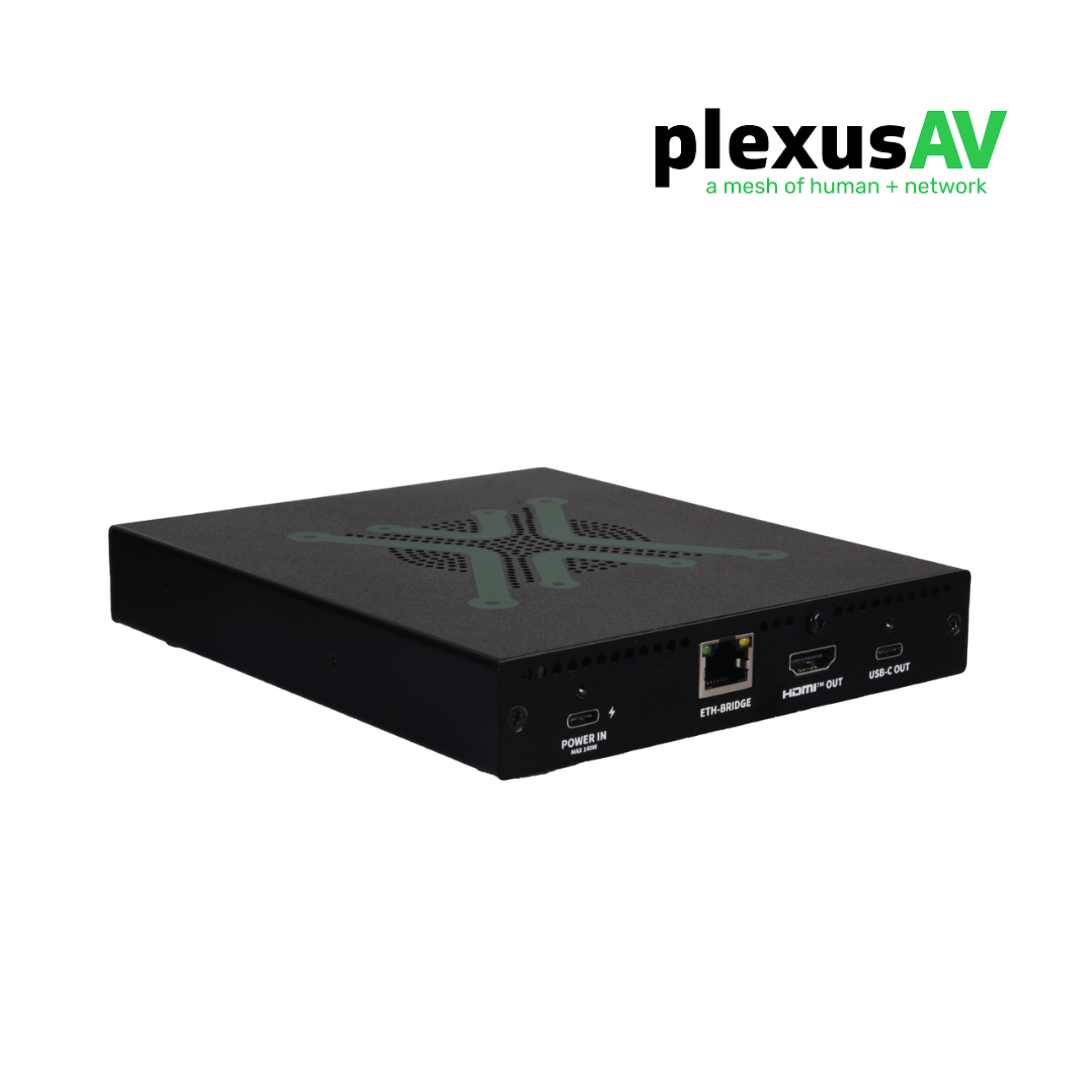

• Rear Panel: HDMI output (HDMI 2.1/1.4b), USB-C output (Display-ALT), ETH-BRIDGE RJ45 (100/1000 Auto-Negotiating), USB-C output, and locking USB-C power input
• Video, Data, and Ethernet: Combines display output, USB data, device charging, and network connectivity over a single USB-C connection
• Up to 100W Power Delivery: Supports high-performance laptops and devices without external chargers
• Front-Panel Push-Button Switching: Toggle between USB-C and HDMI inputs, or enable auto-priority to automatically select the active source
Banquet Halls
Casinos
Auditoriums
Houses of Worship
Educational Facilities
Convention Centres
Corporate Environments
Restaurant
Bars

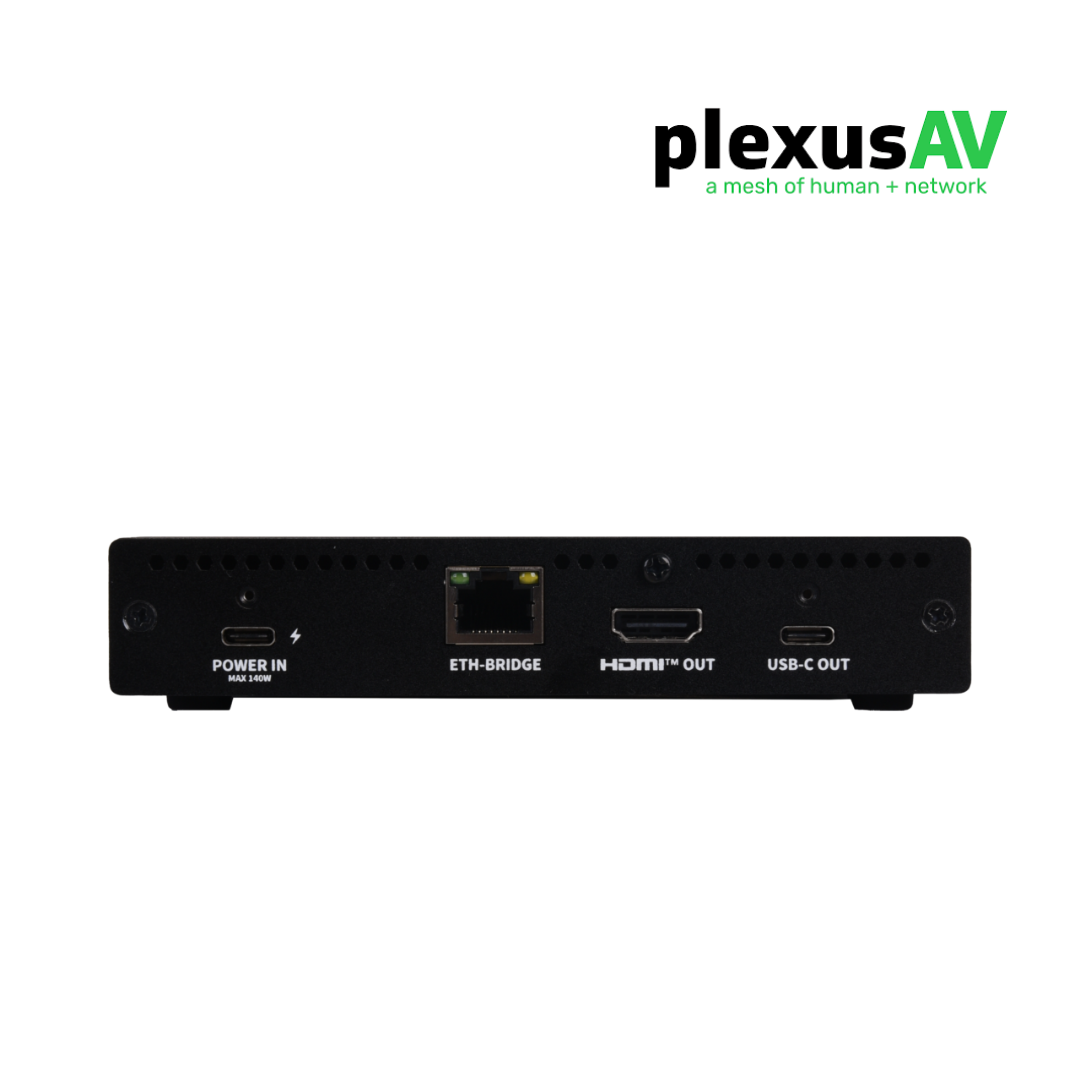

| REAR PANEL PHYSICAL PORTS AND INTERFACES | |
| HDMI Output | Type-A transmit port, HDMI 2.1/1.4b, with locking connector point |
| USB-C Output | USB-C Display-ALT transmit port with locking connector point |
| ETH-BRIDGE | RJ-45 (100/1000 Auto-Negotiating) |
| USB-C Power | PD 3.1 USB-C connection to included power supply |

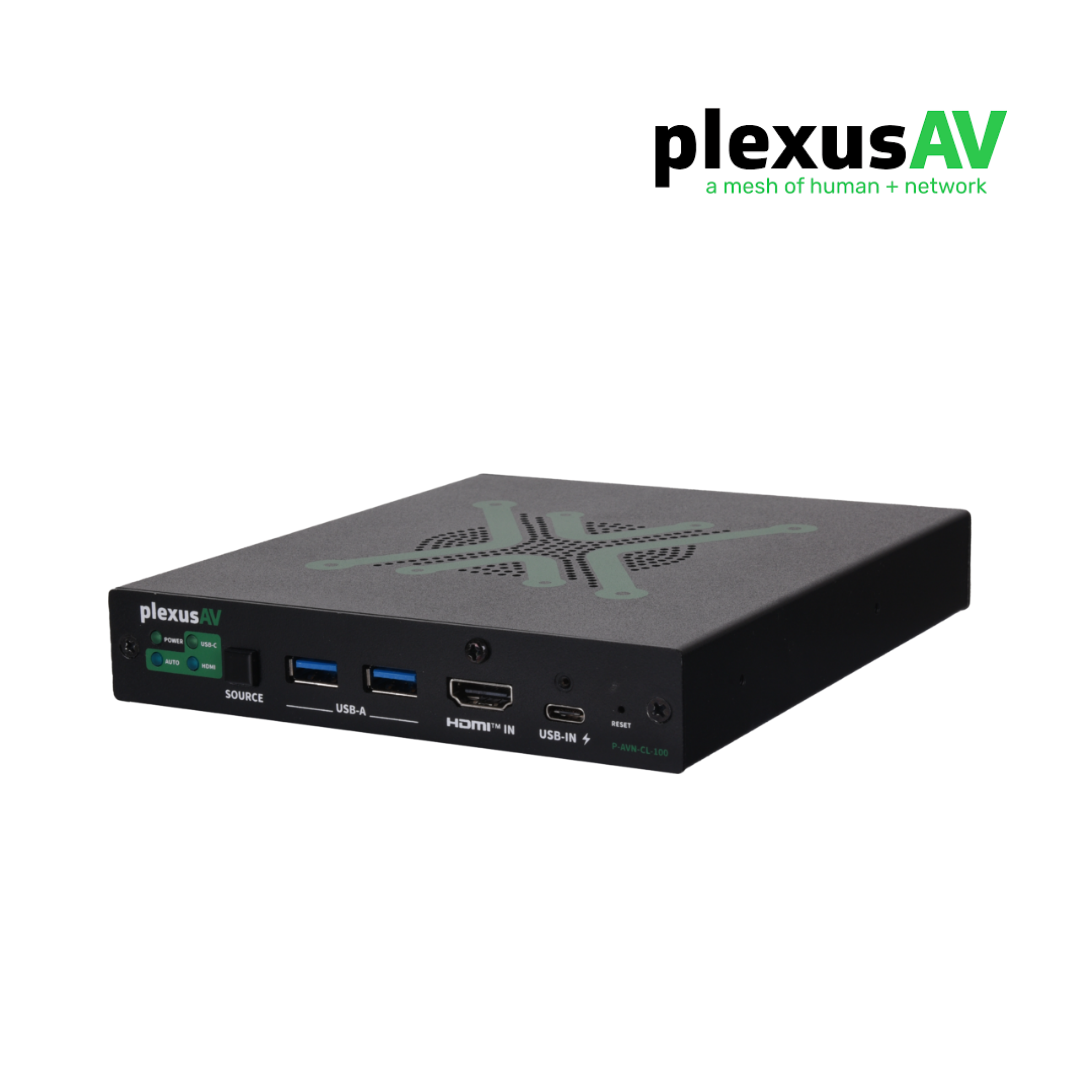

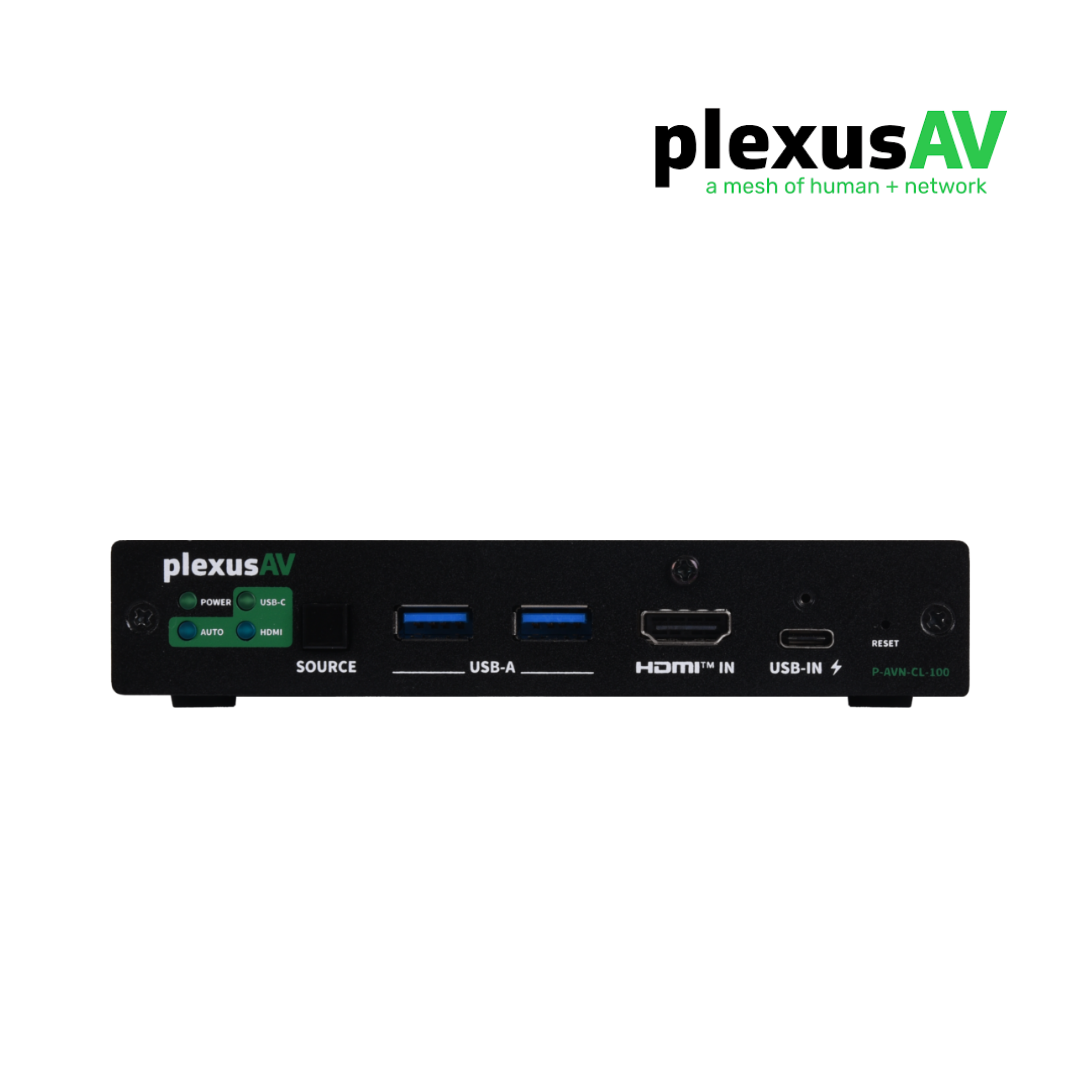

| FRONT PANEL PHYSICAL PORTS AND INTERFACES | |
| SOURCE Button | Push-button selection switch (hold 3 seconds to enable/disable auto) |
| HDMI Input | Type-A receive port, HDMI 2.1/1.4b with locking connector point |
| USB-C Input | USB-C Display-ALT receive port with locking connector point |
| USB-A Ports (2) | USB 3.0 ports / hub connection to wired device on USB-C input |
| Factory Reset | Recessed “paperclip” style factory reset button (hold 10 seconds) |
| VIDEO AND AUDIO SPECIFICATIONS | |
| HDMI IN/USB-C | 4096x2160P @ 60, 59.94, 50, 30, 29.97, 25fps |
| 3840x2160P @ 60, 59.94, 50, 30, 29.97, 25fps | |
| 1920x1080P @ 60, 59.94, 50, 30, 29.97, 25fps | |
| 1280x720P @ 60, 59.94, 50, 30, 29.97, 25fps | |
| 720x576P @ 60, 59.94, 50, 30, 29.97, 25fps | |
| 2560x1600P @ 60fps | |
| DIMENSIONS AND POWER | |
| Size | 162mm x 143mm x 26mm (6.37” x 5.63” x 1.02”) |
| Weight | 2.0 lbs (0.907kg) |
| Power | 140W Power “Brick” |
| Auto Ranging Power Supply | 100-240V 5-60Hz 1.9A (50/60 Hz) |
| Detachable Cable | IEC 320 C13 to NEMA 5-15 (standard US power cable) |
| Power Brick | USB-C end for unit power connection |
| IEC 320 C14 port for datable power cable to outlet | |
| No load power/voltage/current: 24 V / 0.15 A / 3.6 W | |
| Full load power/voltage/current: 24 V / 2.91 A / 69.84 W | |
| ENVIRONMENTAL CONDITIONS | |
| Operating Temperature | 32° to 104° F (0° to 40° C) |
| Storage Temperature | -4° to 140° F (-20° to 60° C) |
| Operating Humidity | Less than 90% (non-condensing) |
| WARRANTY | |
| Warranty | 3-year warranty: The P-AVN-CL100 (ChargeLink) comes standard with a 3-year limited warranty |
