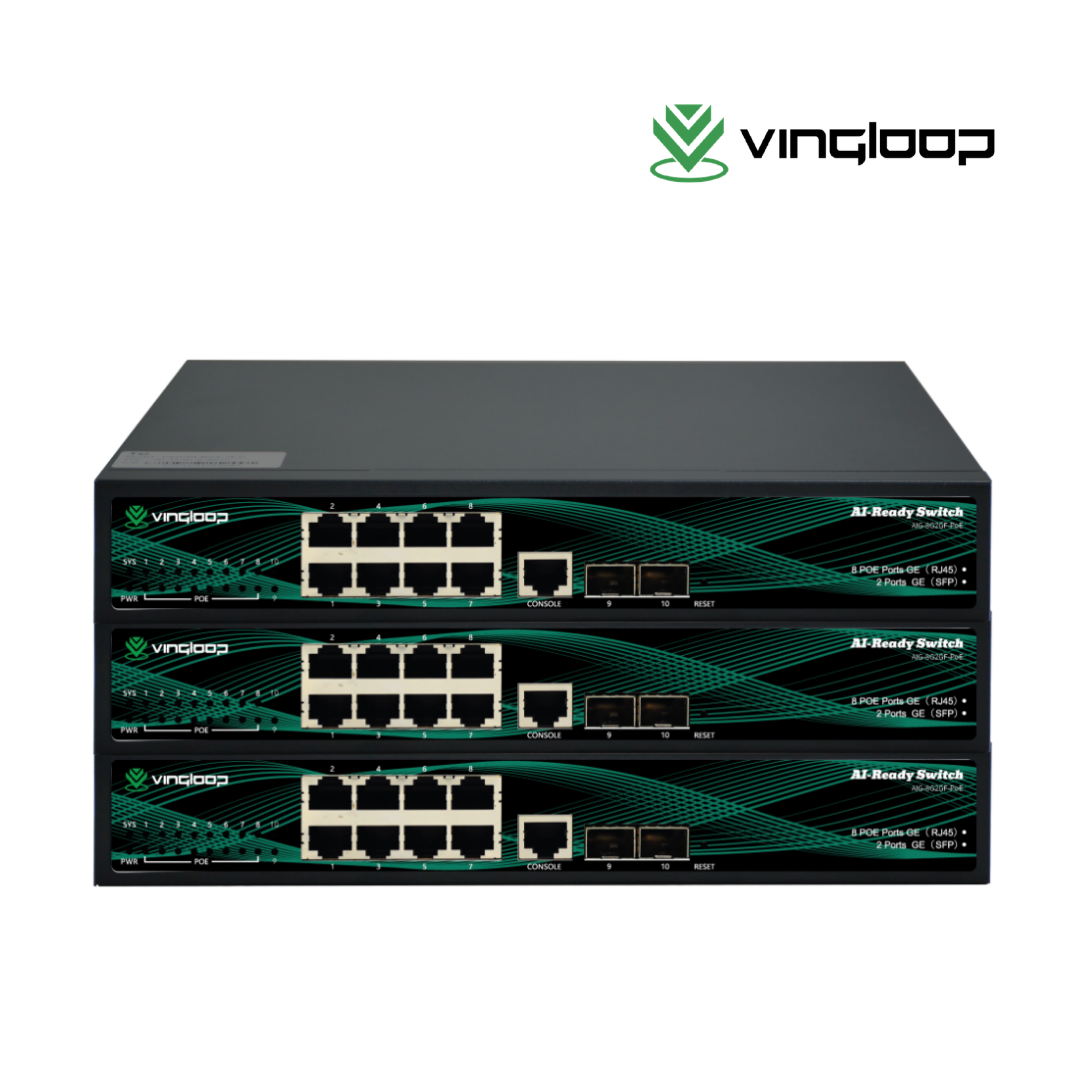

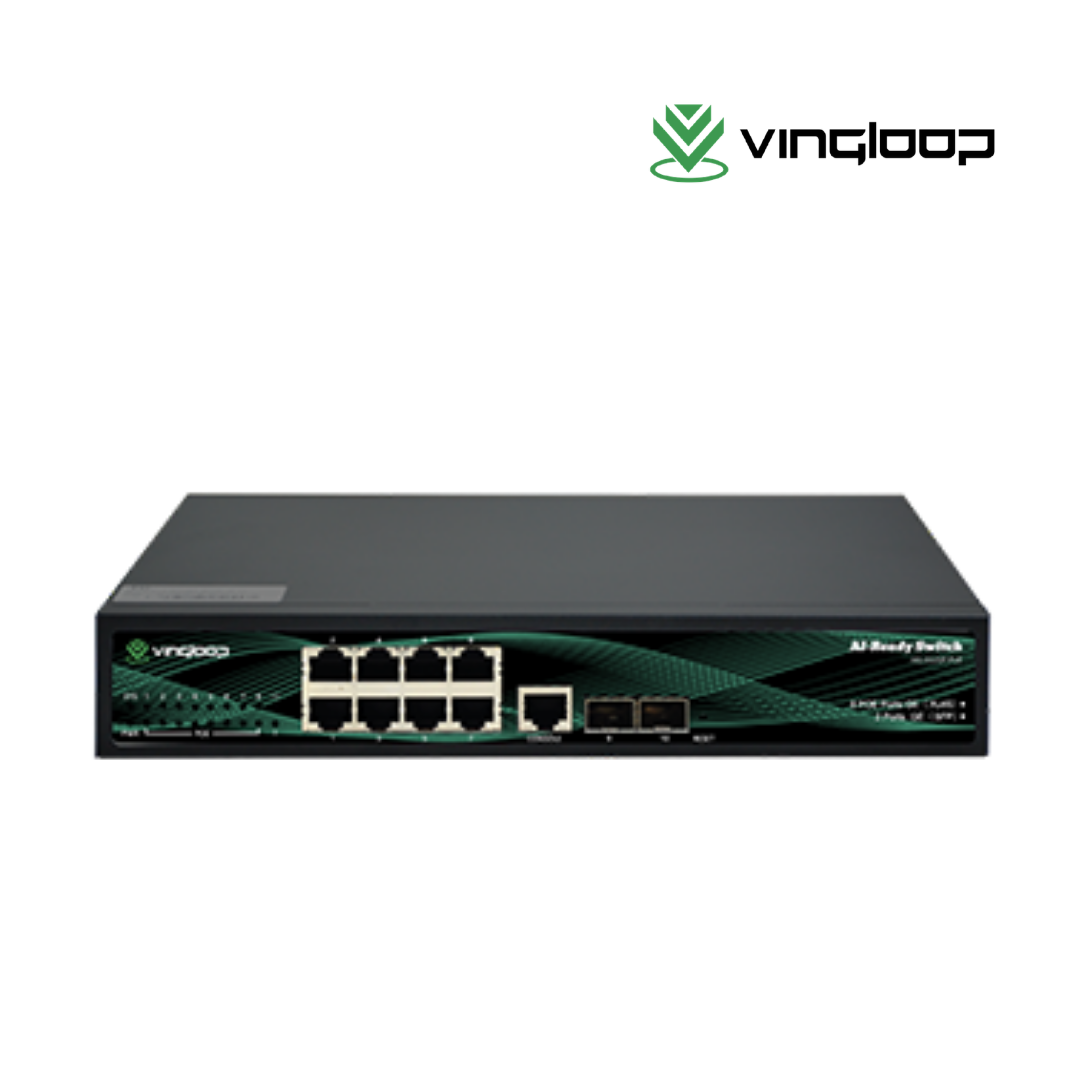

AIG-8G2GF-PoE
AIG-8G2GF-PoE is an L2 managed PoE+ switch, featuring 8 100M/1000Mbps Ethernet electrical ports, 2 1Gbps SFP fiber ports, and one Console port. It supports the IEEE802.3af/at standards and can act as a Power over Ethernet (PoE) sourcing equipment, providing a total power output of 125W. It can automatically detect and identify standard-compliant powered devices (PDs) and supply power to them via network cables.
Description
Banquet Halls
Casinos
Auditoriums
Houses of Worship
Educational Facilities
Convention Centres
Corporate Environments
Restaurant
Bars
| Interface | 8 x 1G PoE RJ45 (Support POE/POE+) 2 x SFP 1G Port |
| Management Port | 1 x Console |
| Factory Default | 1 x Reset Button |
| PoE Standard | IEEE802.3af/at Standard PoE |
| Maximum PoE Output | 30W |
| Total PoE Power | 125W |
| PoE Pin | 1/2(+)，3/6(-)； |
| Switch Capacity | 20Gbps |
| Packet Forwarding | 14.8Mpps |
| Working Temperature | 0~50°C |
| Storage Temperature | -40~70°C |
| Operating Humidity | 10%～90% No condensation |
| Storage Humidity | 5%～95% No condensation |
| Dimension | 270(L) * 180(W) * 44(H)mm |
| Weight | <2.5Kg |
| Lightning Protection | 6KV |
| Input voltage | AC:100～240V/50～60Hz |
| Power Consumption | <150W Maximum Load |
| SKU | AIG-8G2GF-PoE |
