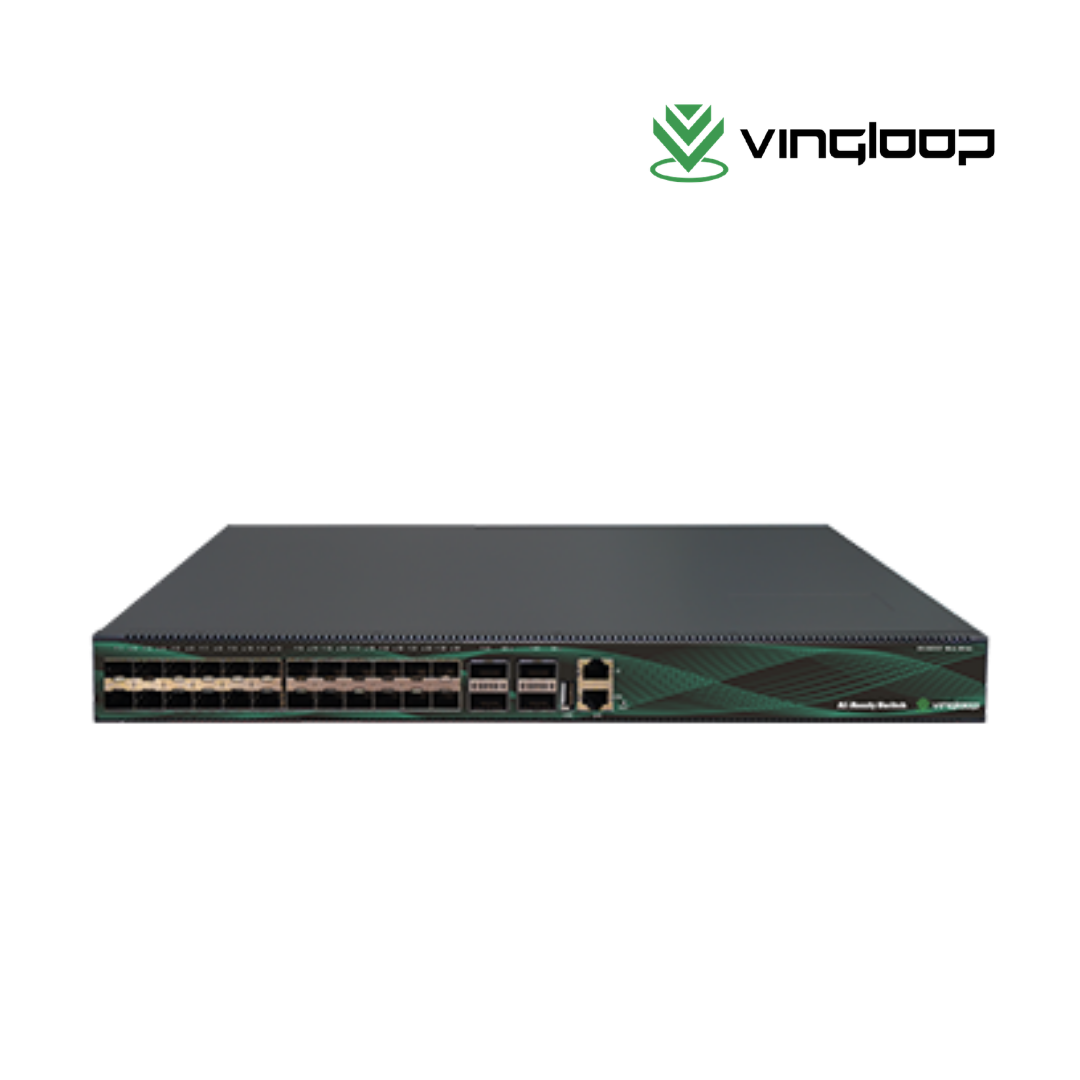

AIX-24XF4CF
AIX-24XF4CF is a Layer 3 managed 10G/100G switch, equipped with 24 1G/10G Ethernet SFP+ fiber optic interfaces, 4 10G/100G QSFP28 uplink ports, and one Console port. It adopts store-and-forward technology combined with dynamic memory allocation to ensure that bandwidth is effectively allocated to each port. It comes with a built-in 10G AV-over-IP switching system and natively supports 10G/100G solutions. It also supports the transmission of multiple 10G streams across switches.
Description
Banquet Halls
Casinos
Auditoriums
Houses of Worship
Educational Facilities
Convention Centres
Corporate Environments
Restaurant
Bars
| Interface | 24 x 10G SFP+ Port 4 x 100G QSFP28 Port |
| Management Port | 1 x Console |
| Factory Default | 1 x Reset Button |
| Switch Capacity | 2.56Tbps |
| Packet Forwarding | 960Mpps |
| Working Temperature | 0~50°C |
| Storage Temperature | -40~70°C |
| Operating Humidity | 10%～90% No condensation |
| Storage Humidity | 5%～95% No condensation |
| Dimension | 440(L)×410(W)×44(H)mm |
| Weight | <8Kg |
| Lightning Protection | 6KV |
| Input voltage | AC:100～240V/50～60Hz |
| SKU | AIX-24XF4CF |
