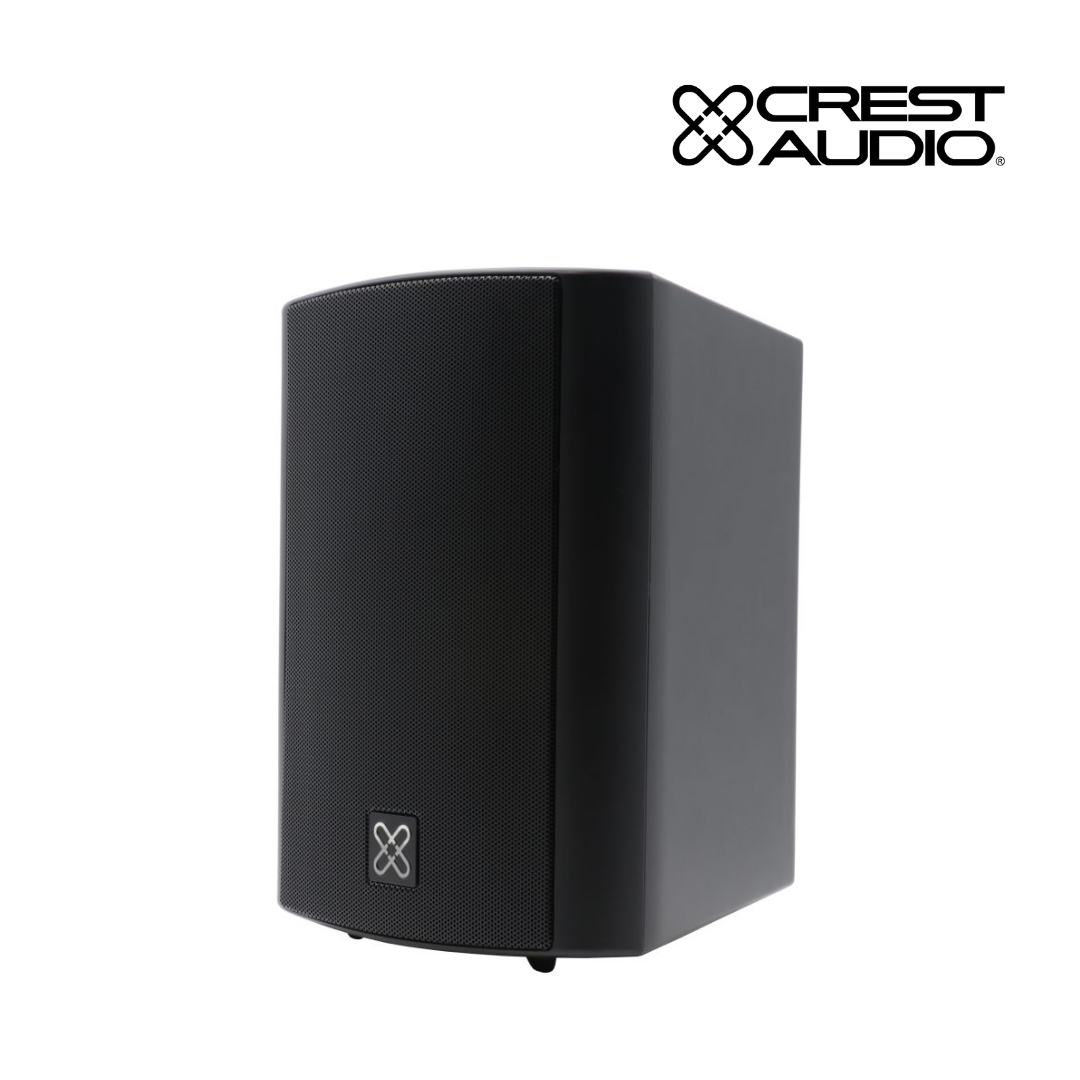

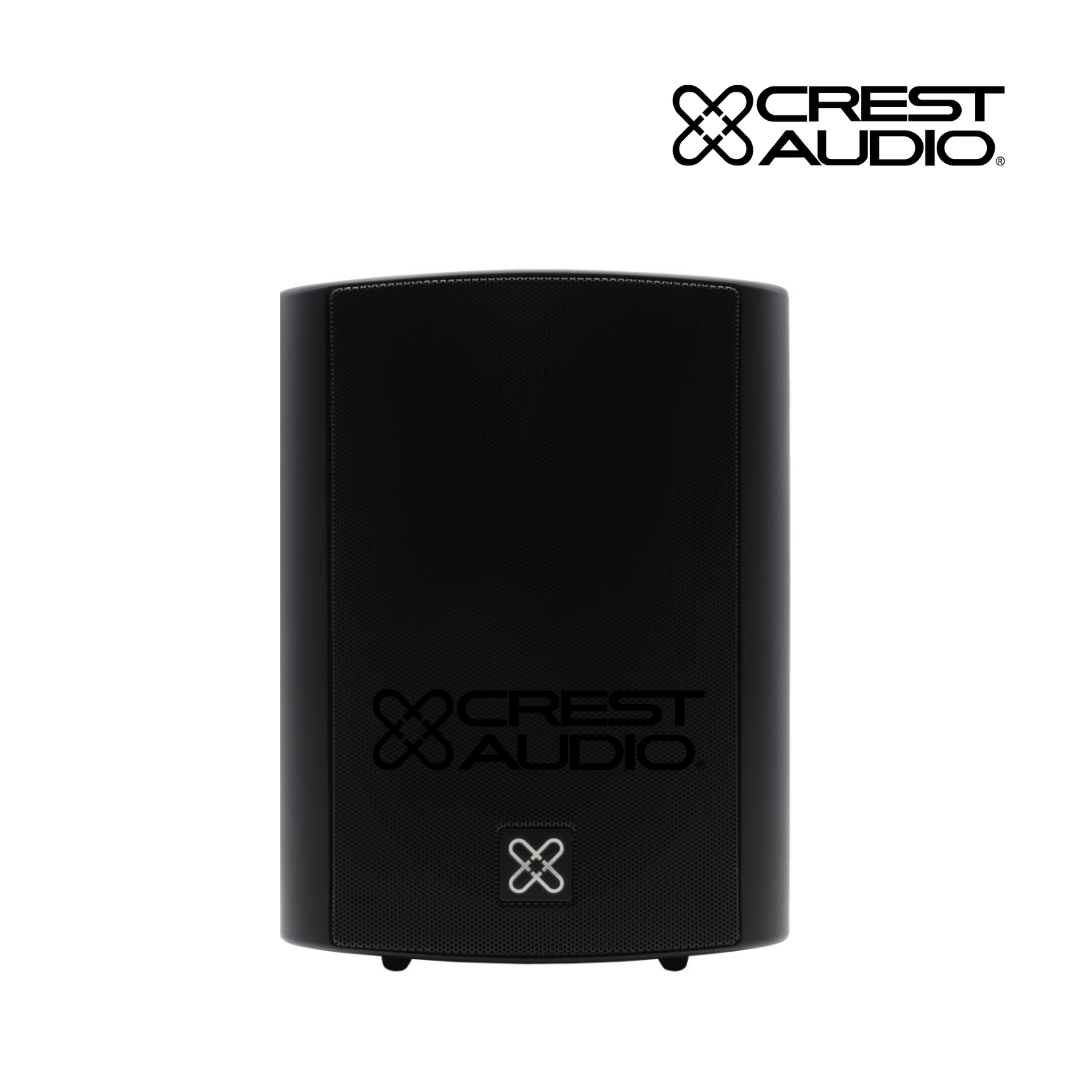

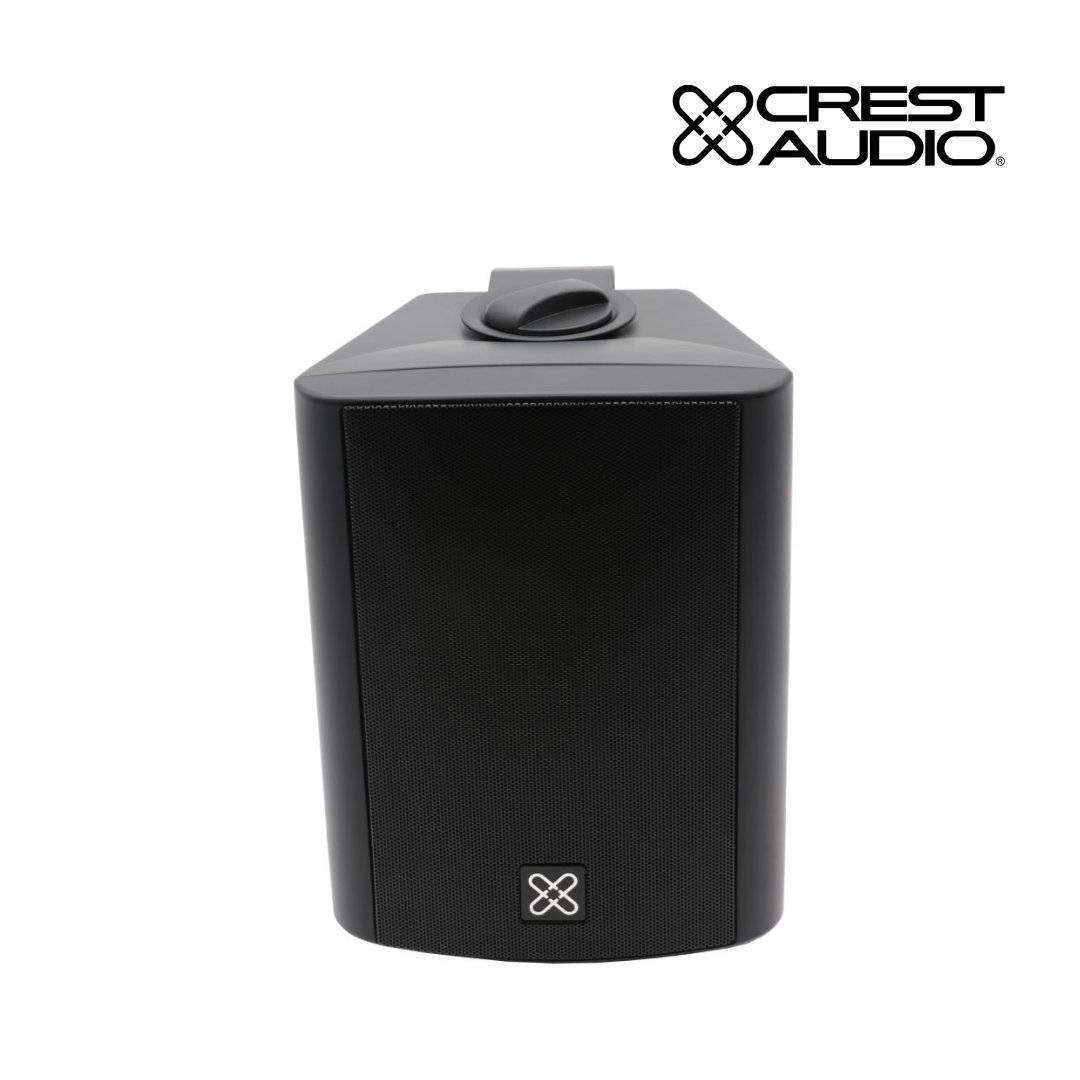

CIP™ 5
The CIP 5 pairs a 5.25-inch high-performance woofer with a 0.78-inch dynamic tweeter to deliver clarity across the full frequency range — from the cinematic weight of film soundtracks to the rhythmic punch of hip-hop, the raw energy of hard rock, and the nuance of jazz and modern pop.
Built on Dante audio networking, the CIP 5 connects via a single RJ45 port with full AES67 compatibility — stable, low-latency digital audio transmission across any compliant network. Power over Ethernet (PoE++) eliminates separate power runs entirely: one cable carries both audio and power, cutting install time and cable clutter.
High efficiency. Versatile mounting. One cable. The CIP 5 is purpose-built for professional networked audio environments where performance and installation simplicity both matter.
• Compact two-way PoE++ powered loudspeaker
• Audio over IP: Dante® (AES67 compliant)
• Premium 5.25” woofer, 1“ voice coil
• 0.78” Ferrofluid cooled dynamic tweeter, 0.78“ voice coil
• Continuous power handling: 30 Watts
• Nominal impedance: 8 Ohms
• Coverage pattern (HxV): 90° x 60°
• Supports Power over Ethernet (PoE++ IEEE 802.3bt Type 3)

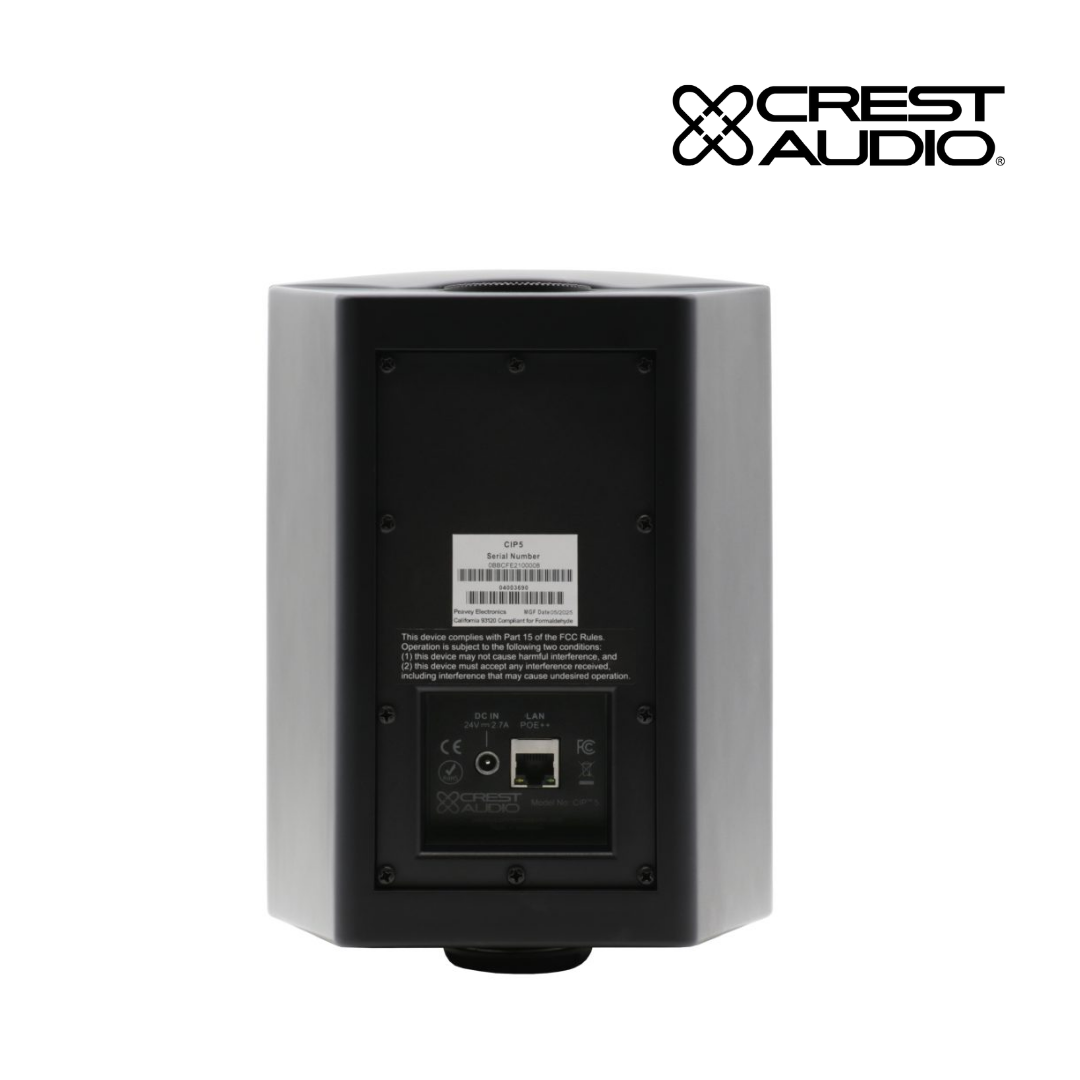

• Connectors: 1 x RJ45
• UL94V0 Flame-rated injection-molded plastic enclosure

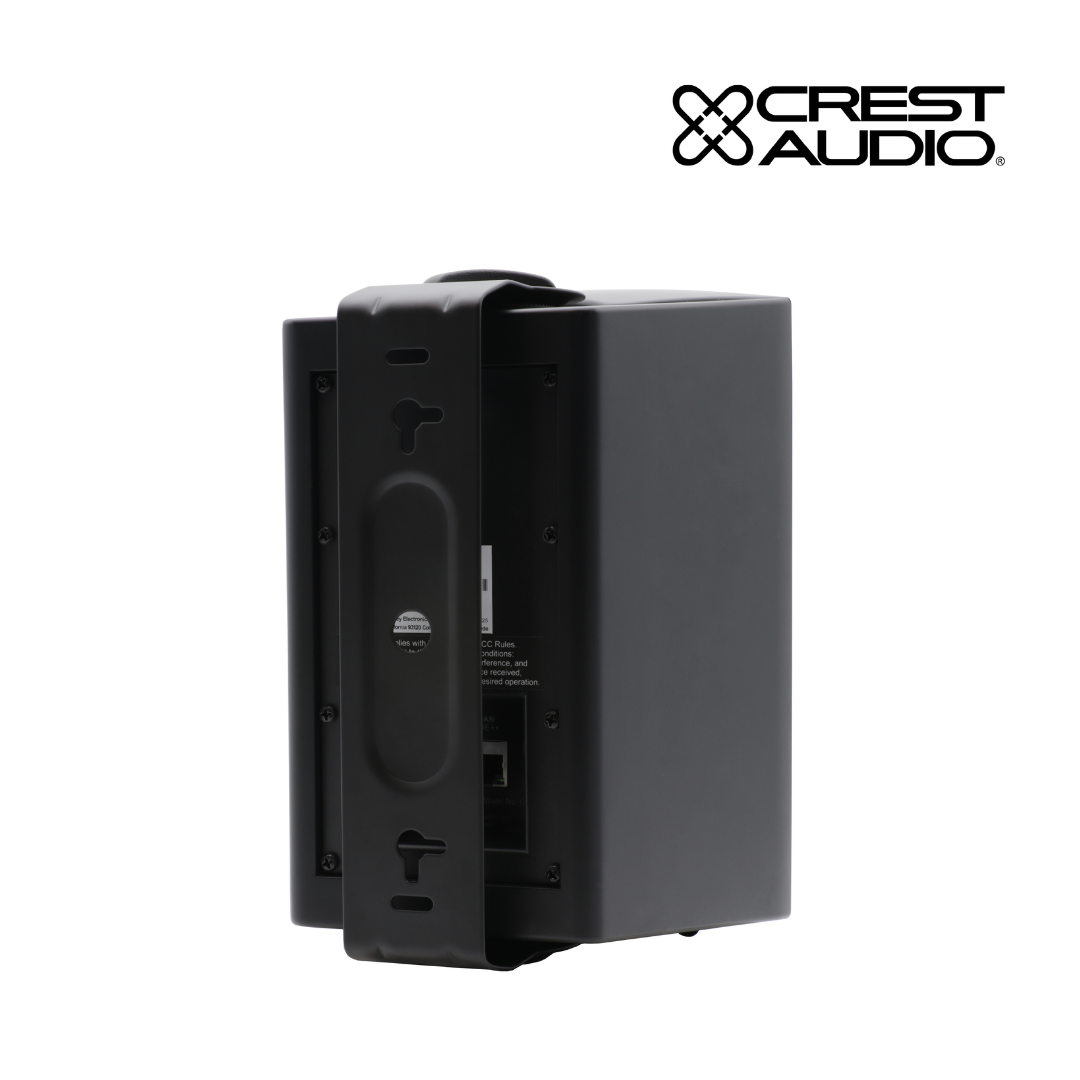

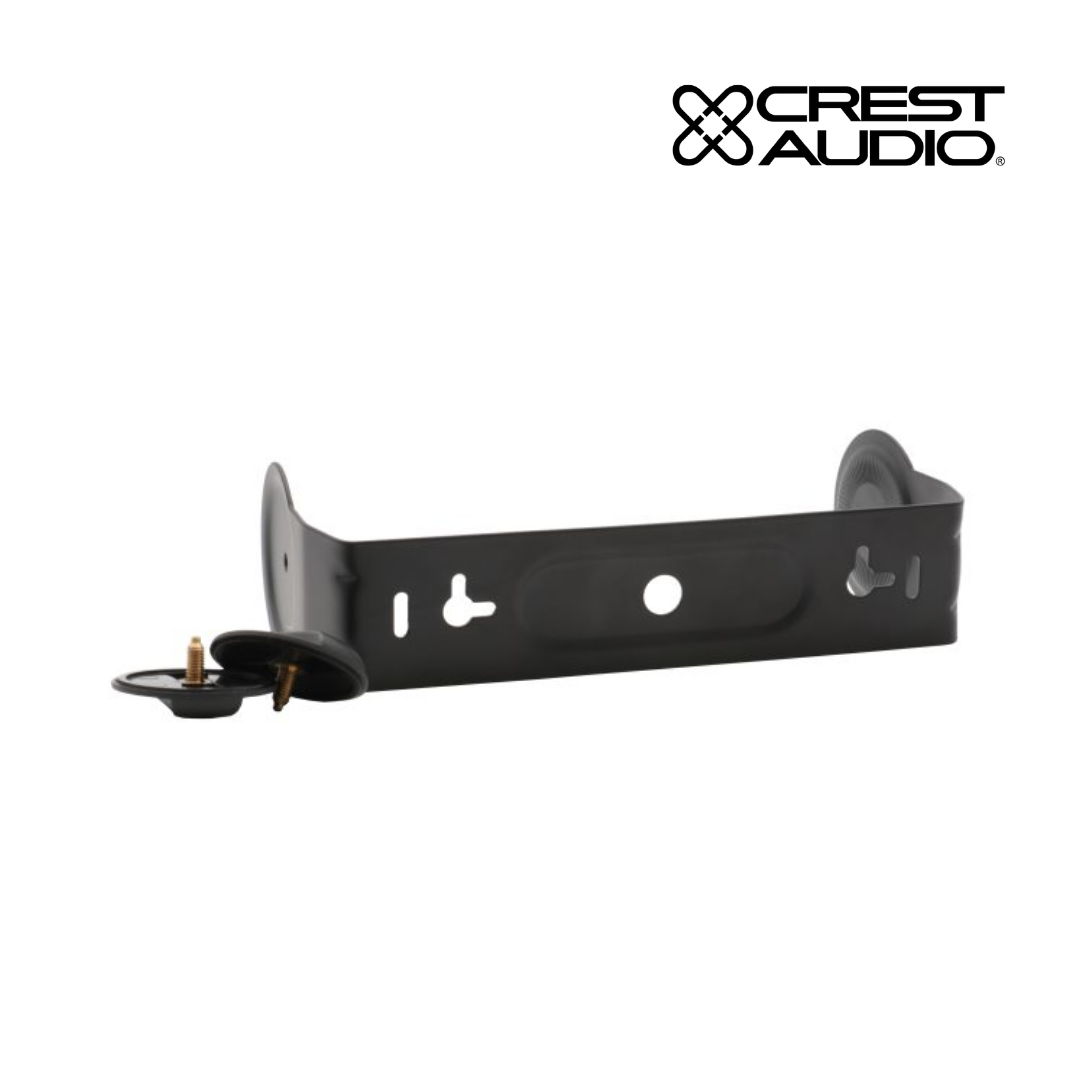

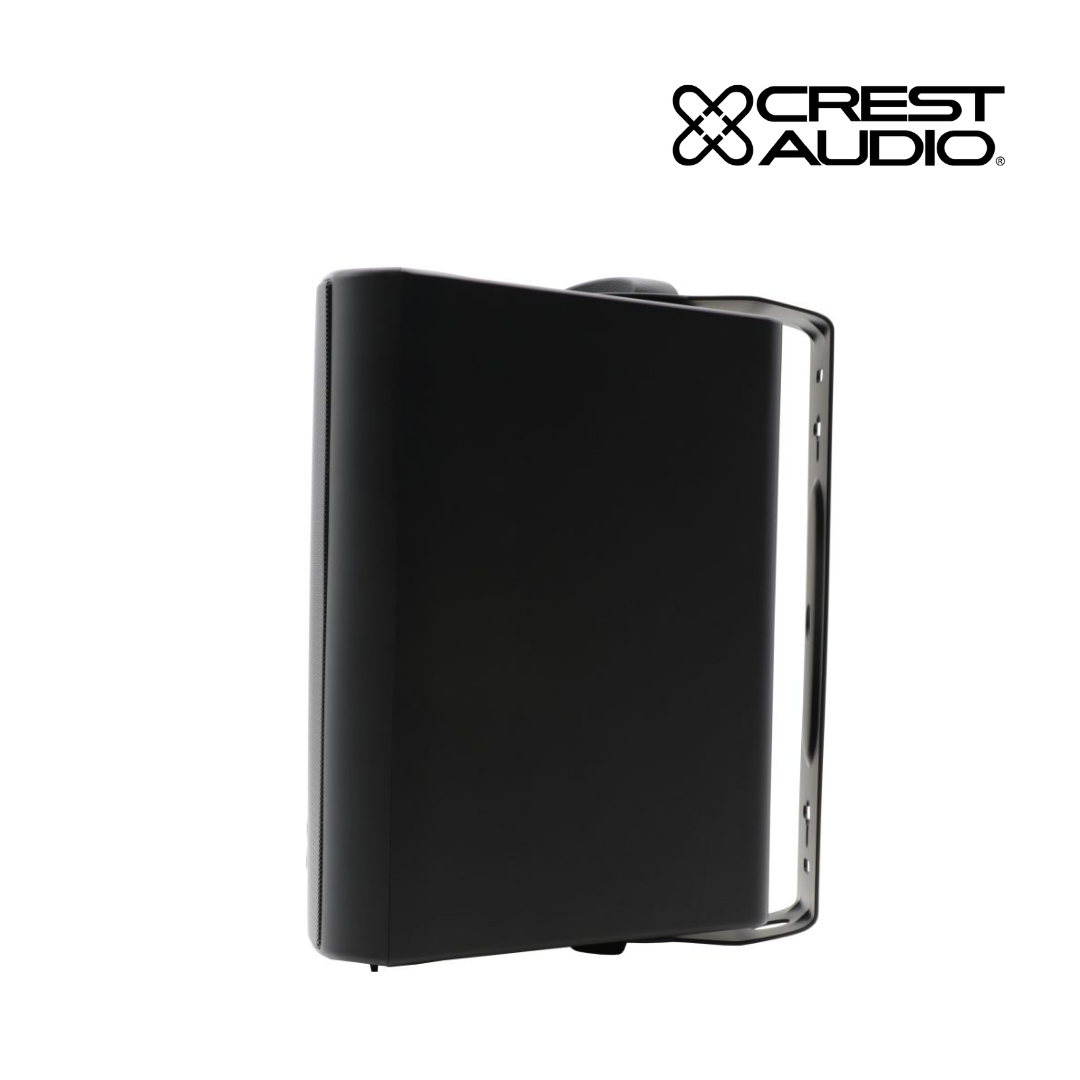

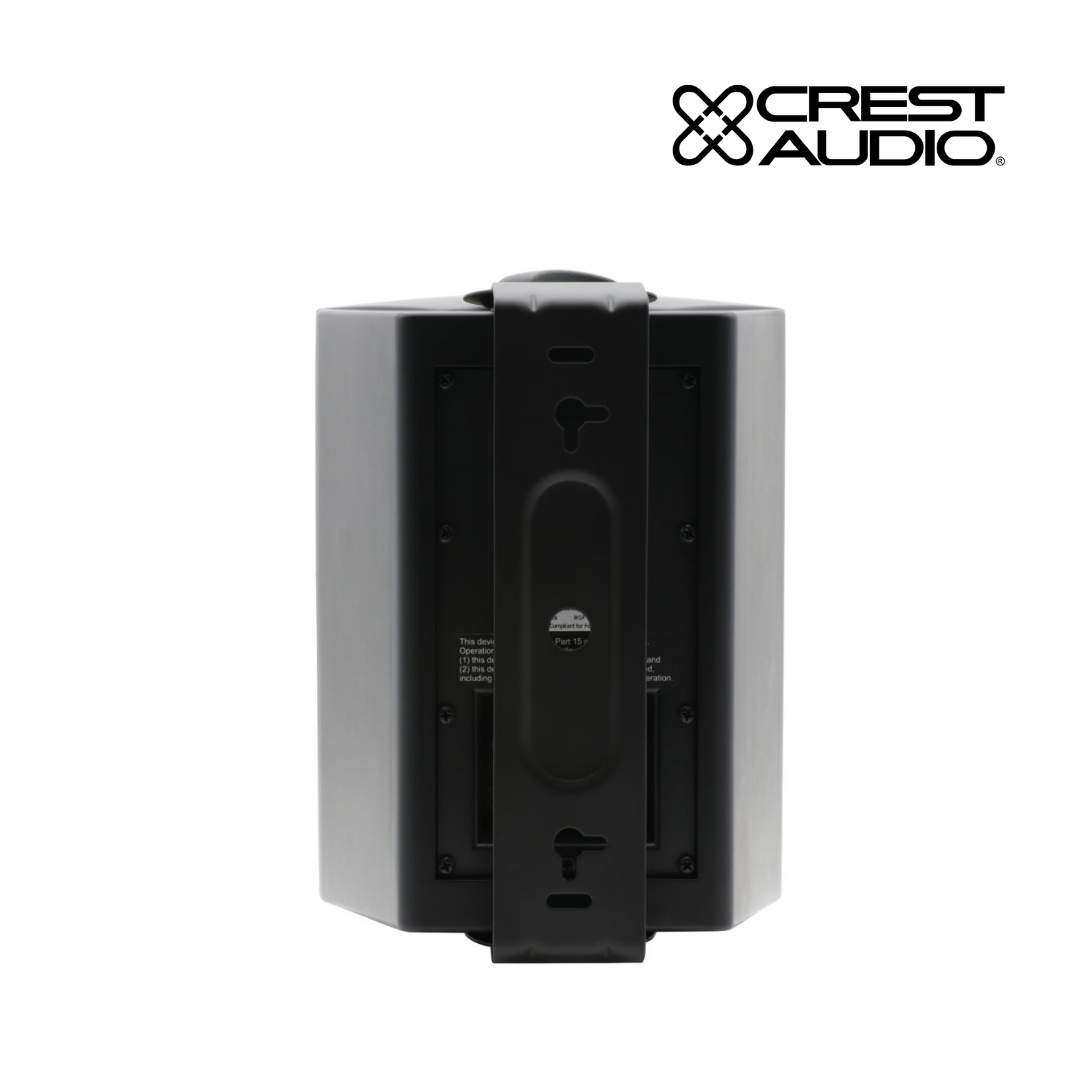

• U-Bracket included
• Available in Black
Banquet Halls
Casinos
Auditoriums
Houses of Worship
Educational Facilities
Convention Centres
Corporate Environments
Restaurant
Bars
| Configuration | 2-way PoE++ Powered Speaker |
| Power Continuous (Watts) | 30 |
| Power Peak (Watts) | 60 |
| Sensitivity (1 W / 1 m) | 85 dB |
| Max SPL Peak | 101 dB |
| LF Driver | 1 × 5.25″ (133 mm) |
| Woofer Voice Coil | 1″ (25 mm) |
| HF Driver | 1 × 0.78″ (20 mm), Ferrofluid Cooled, PEI Diaphragm |
| HF Voice Coil | 0.78″ (20 mm) |
| Nominal Coverage (HxV) | 90° × 60° |
| Frequency Range (-10 dB) | 55 Hz – 20 kHz (wall mounted) / 63 Hz (free space) |
| Frequency Response (±3 dB) | 65 Hz – 20 kHz (wall mounted) / 81 Hz (free space) |
| Nominal Impedance | 8 Ohms |
| Input Connector | 1 × RJ45 |
| Power Source | PoE++ IEEE 802.3bt Type 3 |
| Audio over IP | Dante® (AES67 compliant) |
| IP Mode | DHCP (Default) or Static |
| External Power Supply | DC In – 24 V, 2.7 A (optional) |
| Cat Cable Specification | Cat6a recommended |
| Amplifier | Class D, bi-amped |
| Internal DSP | Yes |
| Mounting Points for U-Bracket | 2 × M6 (1 × top & 1 × bottom) |
| U-Bracket | Included |
| Enclosure Design | Trapezoidal Sealed Enclosure |
| Enclosure Material | UL94V0 Flame-rated Injection-molded Plastic |
| Black Finish | Matte Black Spray Paint |
| RAL # (Black) | 9004 |
| White Finish | n/a |
| RAL # (White) | n/a |
| Operating Temperature | -4°F – 140°F (-20°C – 60°C) |
| Logo Position on Grille | Bottom Center |
| Logo Size | 25 × 25 mm |
| Grille Material | Aluminum, Liquid Coating |
| Grille Foam Backing | n/a |
| Grille Mesh Size (mm) | Φ1.2 × P1.7 |
| Net Weight | 5.7 lbs (2.6 kg) |
| Dimensions w/o U-Bracket (HWD) | 9.65″ × 7.28″ × 6.50″ (245 × 185 × 165 mm) |
| Dimensions with U-Bracket (HWD) | 9.96″ × 7.28″ × 7.44″ (253 × 185 × 189 mm) |
