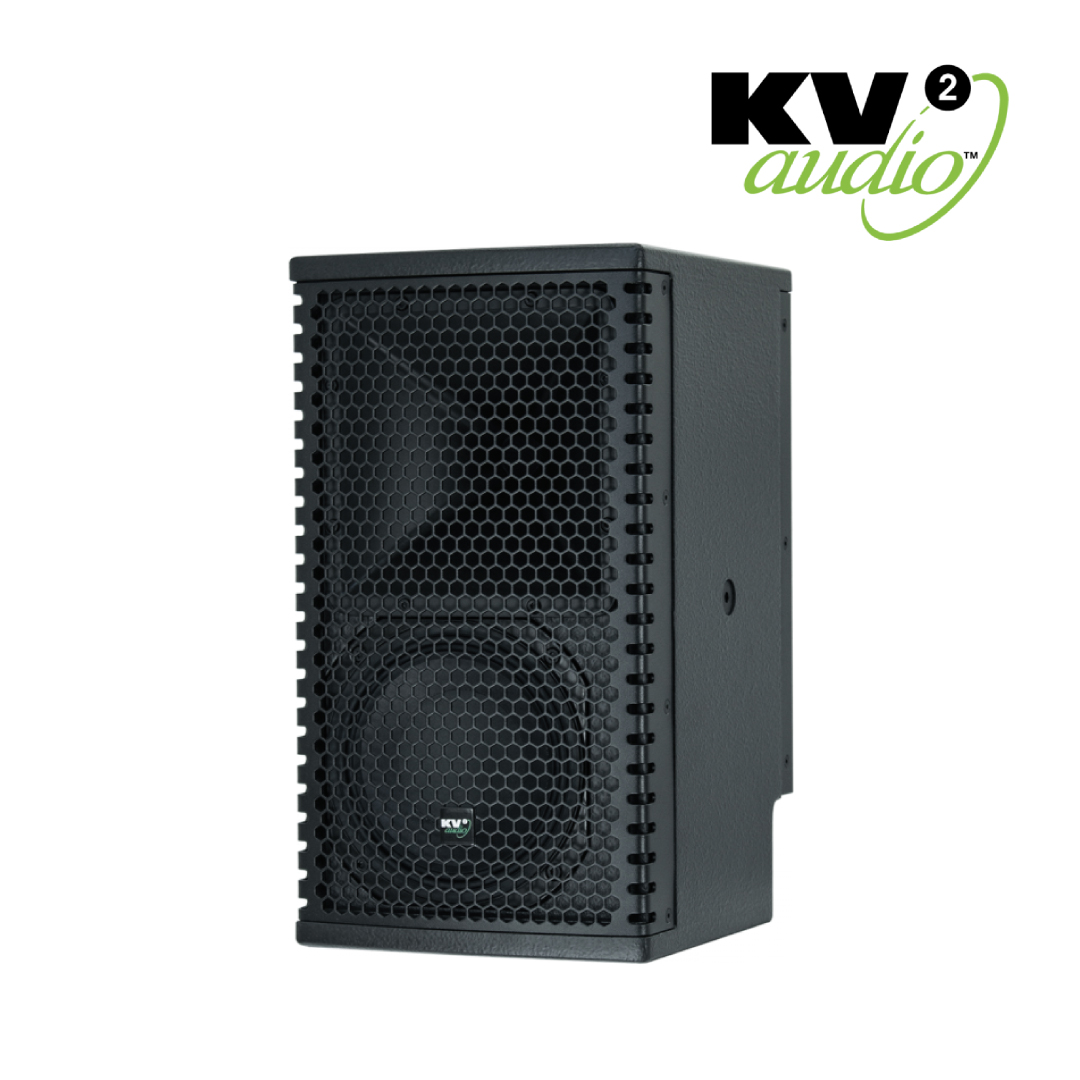

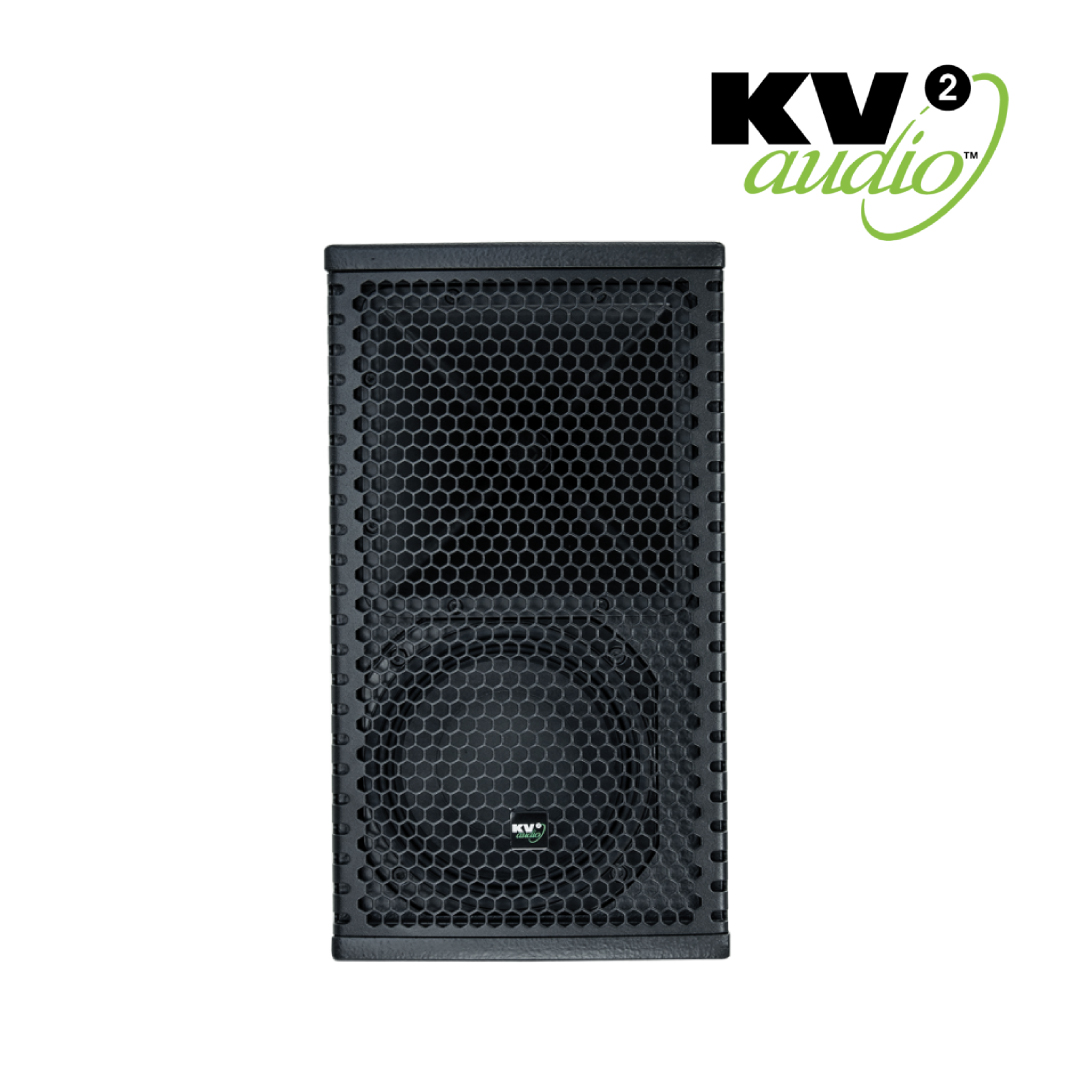

EX6
The EX6 is a very high quality compact speaker system producing a 2-way full range solution, which defies its size. With amazing clarity for musical reproduction, the EX6 is perfect for discreet installations or audio visual presentations where sound quality is paramount but size also matters. The EX6 features state of the art components including NVPD compression driver, 6″ woofer and complete on-board control with electronic crossovers, phase alignment, equalization and speaker protection integrated into the EX6’s amplifier module.
Description
- Professional, Baltic birch construction with wear resistant polymer coating
- 117dB sustained output, 120dB peak with very high dynamic range and low noise floor
- 200W of total power with complete on-board speaker management system
- 180W high efficiency, current enhancing, switching low frequency amplifier
- Very high quality 20W, low IM distortion, Class AB, high frequency amplifier with transformer balanced output
- Compact design allows use with high pass filter to adjust equalization and phase response
- Wide dispersion 100° H x 100° V horn
- New patent pending 1.75″ (44 mm) Nitride Titanium diaphragm compression driver with complex geometry phase plug for higher output, exceptionally low distortion, extended frequency response and neodymium magnet structure
- 6″ woofer with revolutionary Active Impedance Control (AIC) voice coil technology and neodymium magnetic motor structure dramatically increases force, lowers distortion and provides increased frequency response linearity
- Proprietary top handle design for simplified handling and carrying, integrates one M10 suspension point, Omnimount™ bracket point and four M6 points

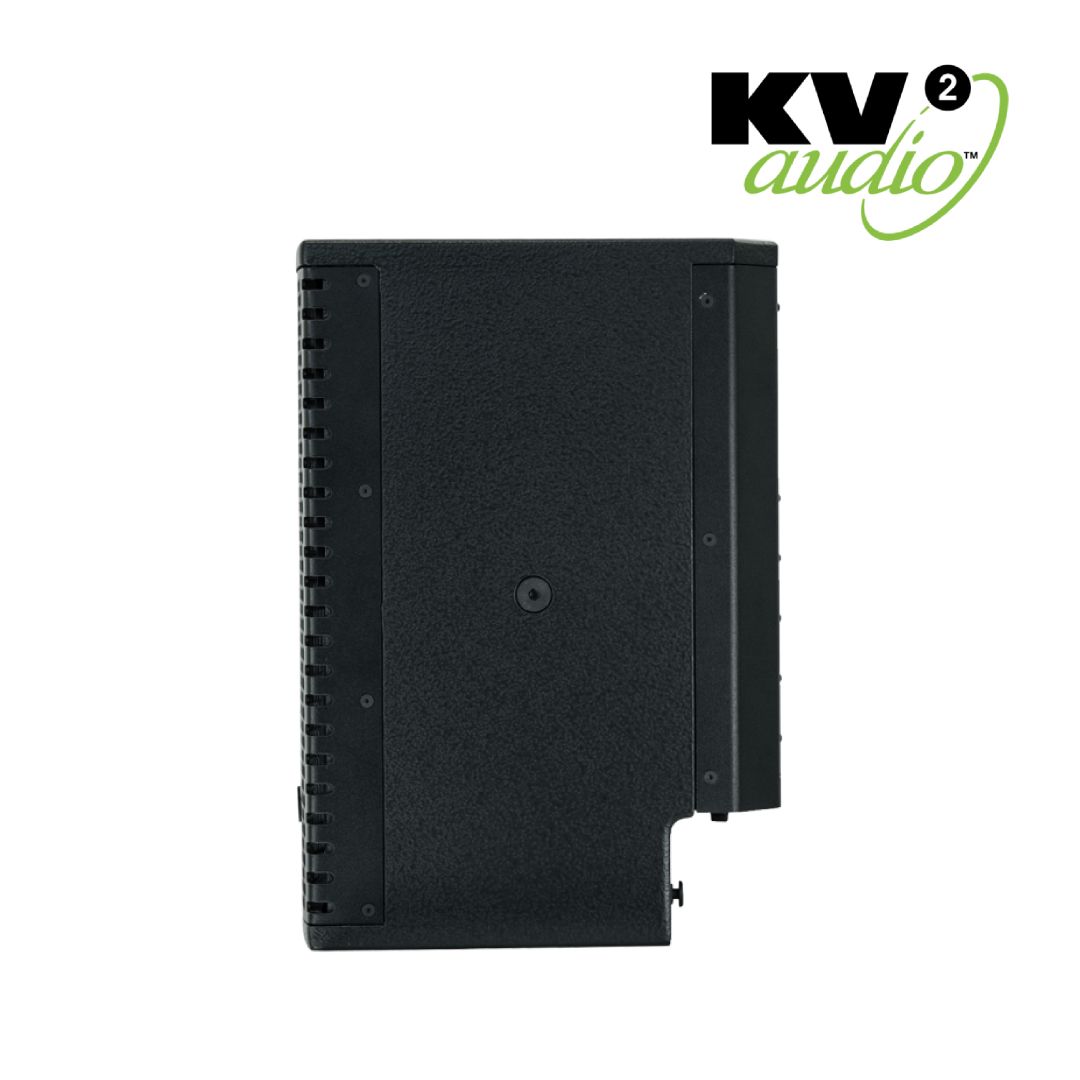

- Additional side and bottom M10 points for flexible bracket, rigging, and installation options

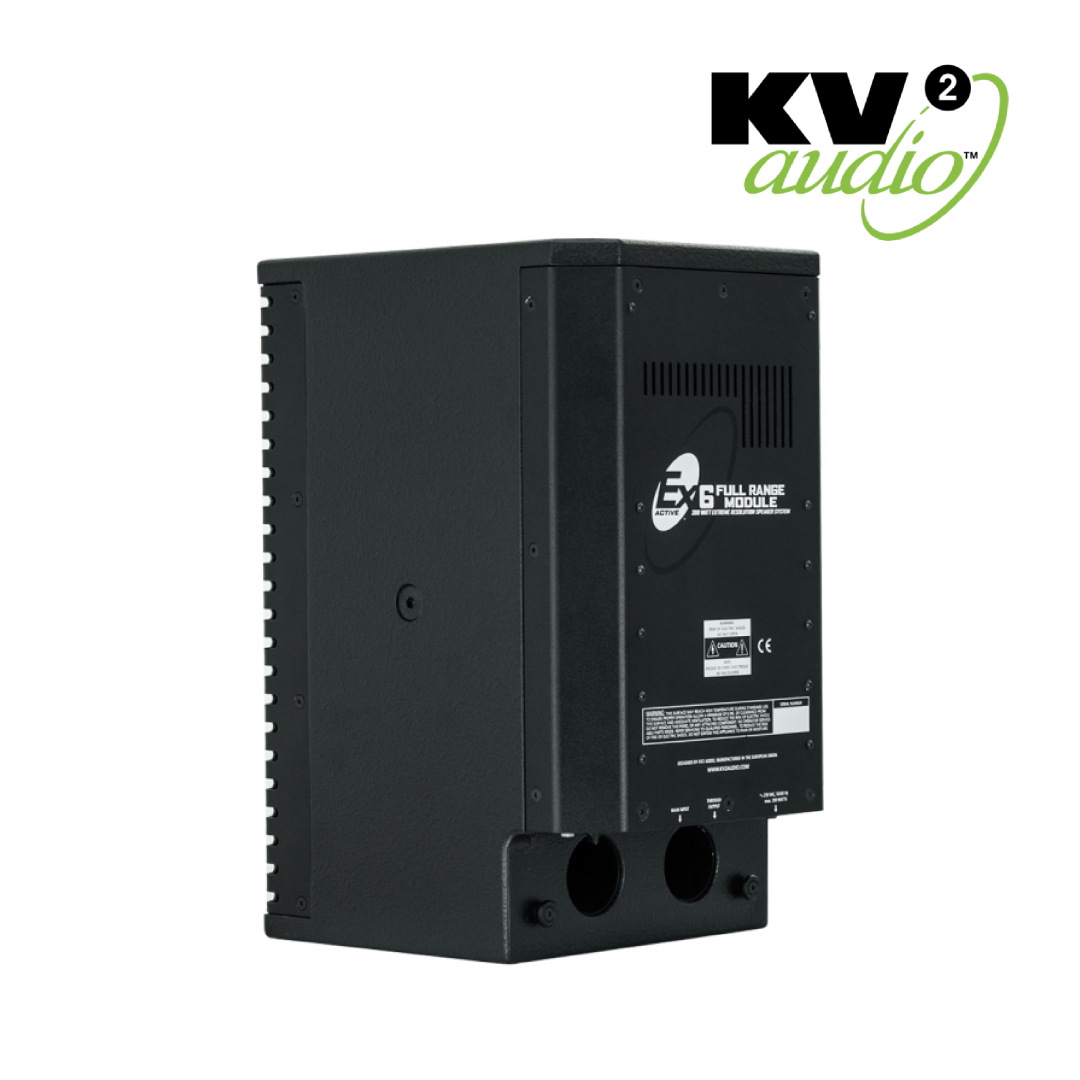

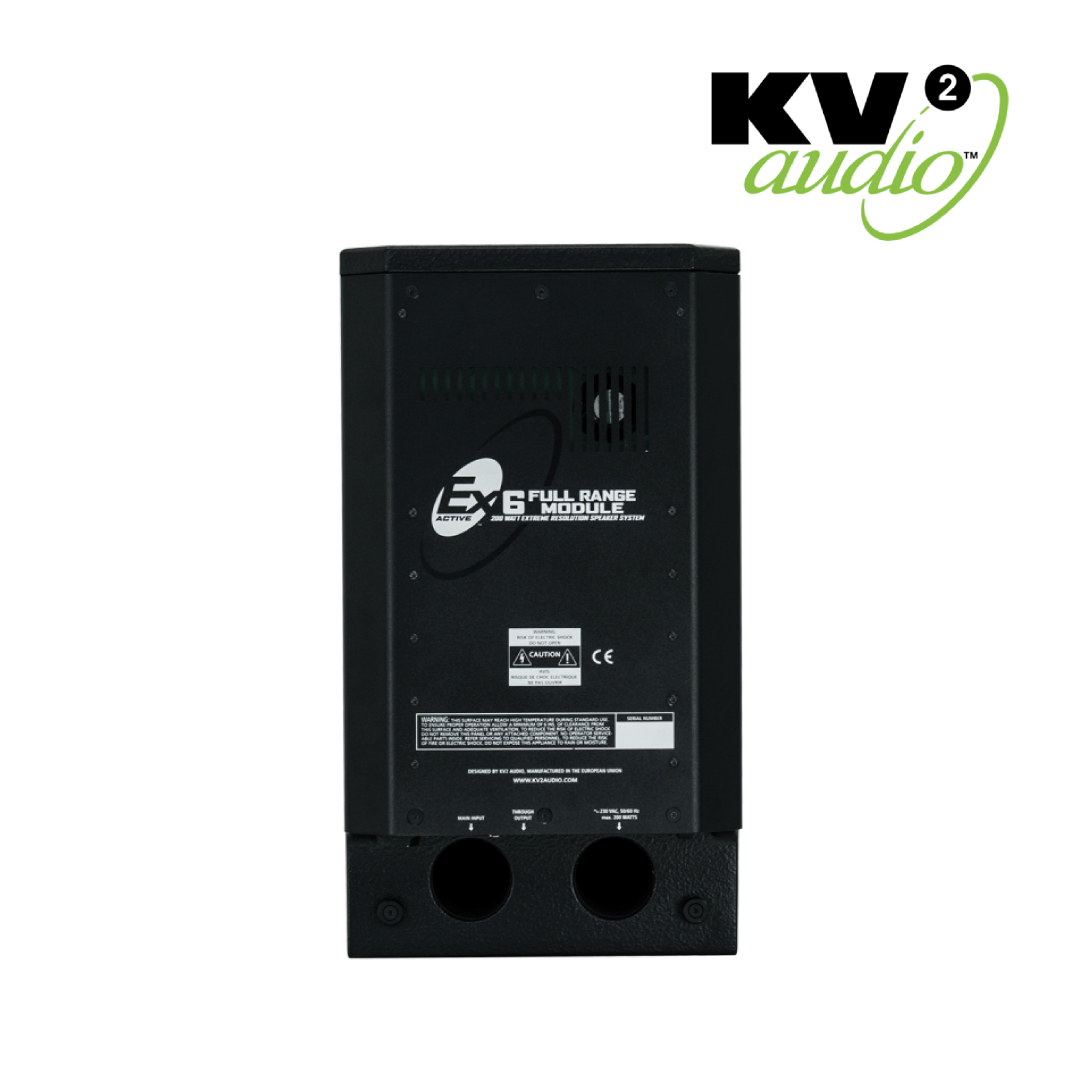

- Easy fix pole mounting accessory fastens into the back of the unit
- LED indicators for signal present, limiter, thermal condition and power ON status
Discreet installations / AV rooms
Multimedia presentation spaces
Compact floor-monitoring on stage
Studio near-field listening / control rooms
Infill / peripheral reinforcement in larger KV2 systems
Portable PA setups in bars, shops, or restaurants
| Max SPL Long-term | 117dB |
| Max SPL Peak | 123dB |
| -3dB Response | 68Hz to 20kHz |
| -10dB Response | 62Hz to 28kHz |
| Crossover Point | 2.0kHz |
| Horn Coverage Horizontal / Vertical | 100° x 100° |
| Throat Exit Diameter / Diaphragm Size | 1″ / 1.75″ |
| Diaphragm Material | Nitride Titanium |
| Magnet Type | Neodymium |
| Type | Class AB Push-Pull |
| Rated Continuous Power | 20W |
| Distortion | <0.05% |
| Operating Bandwidth | 2.0kHz to 28kHz |
| Acoustic Design | Front Loaded, Bass Reflex |
| Woofer Size / Voice Coil Diameter | 6″ / 1.75″ / Trans Coil |
| Diaphragm Material | Epoxy Reinforced Cellulose |
| Magnet Type | Neodymium |
| Type | High efficiency, Current-Enhancing, Switched-Rail Amplifier |
| Rated Continuous Power | 180W |
| Distortion | <0.05% |
| Operating Bandwidth | 62Hz to 2.0kHz |
| Input Sensitivity | 1V RMS |
| Input Impedance | 20 kΩ |
| Power Connector | Neutrik PowerCon® |
| Operating Voltage Range | 100 to 120V @ 60Hz | 230 to 250V @ 50Hz | |
| Recommended Amperage | 2.5A 115V | 1.25A 230V |
| Cabinet Material | Baltic birch |
| Handles | 1 |
| Pole Mount | Optional – Stand Adapter EX6 |
| Color | “Orange peeled” Matt Black or any RAL |
| Height | 395 mm (15.55″) |
| Width | 220 mm (8.66″) |
| Depth | 274 mm (10.78″) |
| Weight | 12 kg (26.4lbs) |
