CPL™ 6T

Designed to provide high performance wide distributed audio coverage in an elegant discrete package with a low recessed profile, the Crest Audio® CPL™ T series of ceiling mounted enclosure appeal to both systems designers and architects.

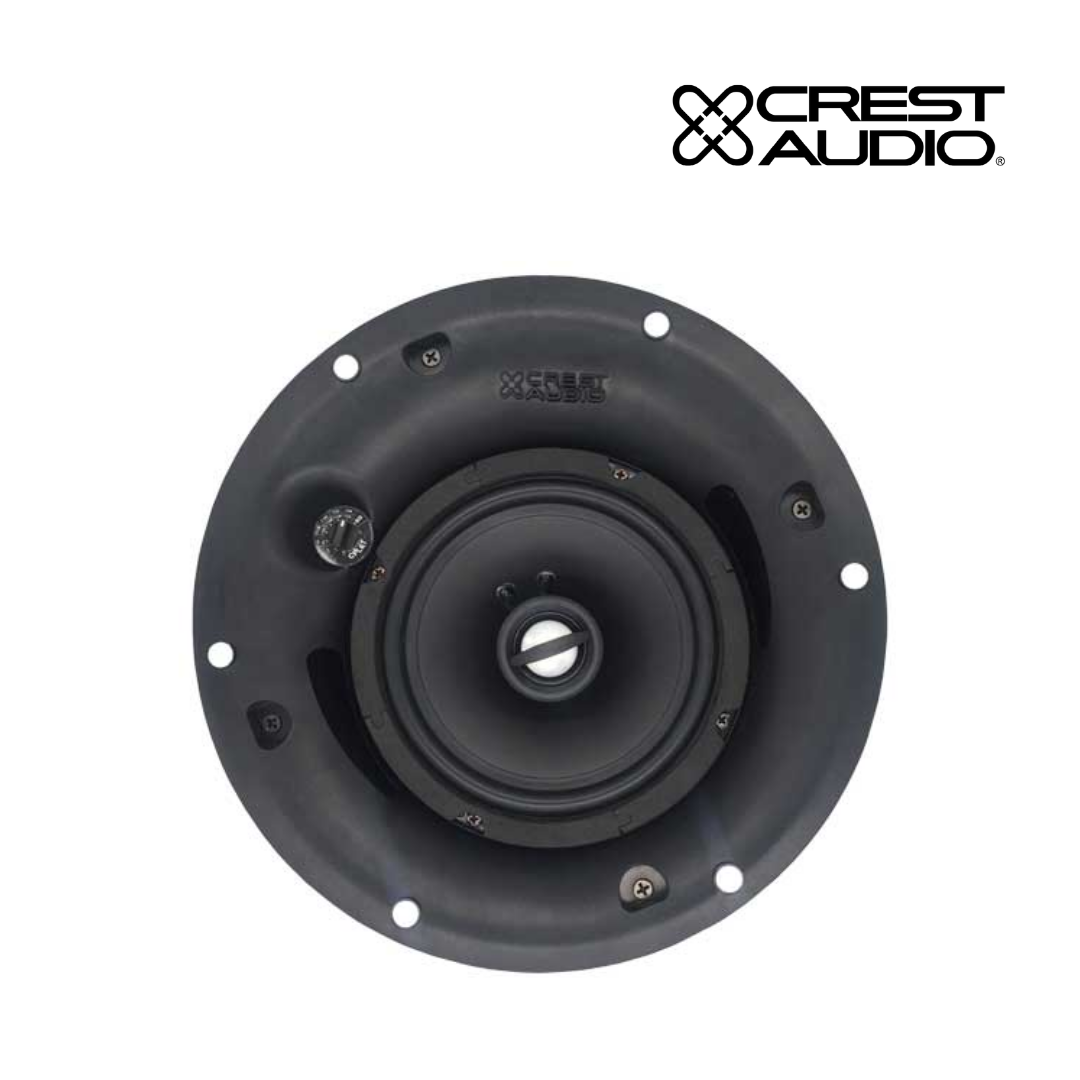

A five (5) step Tap selectable switch, at the speaker face and behind the front grill, allows for easy adjustment before and after installation, for both 70V or 100V Hi-Z distributed speaker lines and up to 90W selectable (model dependent). For Lo-Z speaker connectivity an 8 Ohms transformer bypass setting is included for maximum versatility.

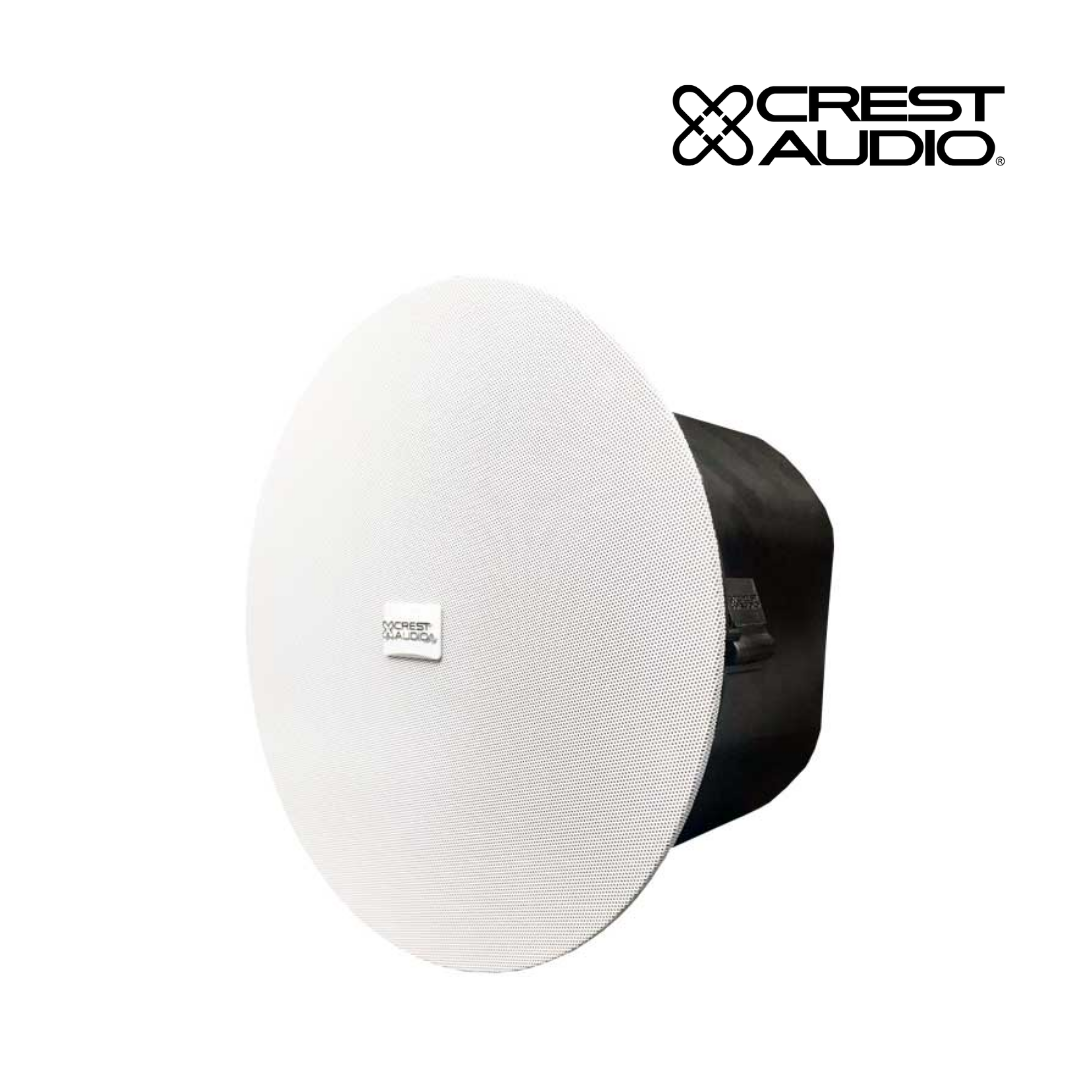

The enclosure is constructed of high-impact injection moulded plastic. The front grill is magnetically attached and can be painted to suite any interior finish.

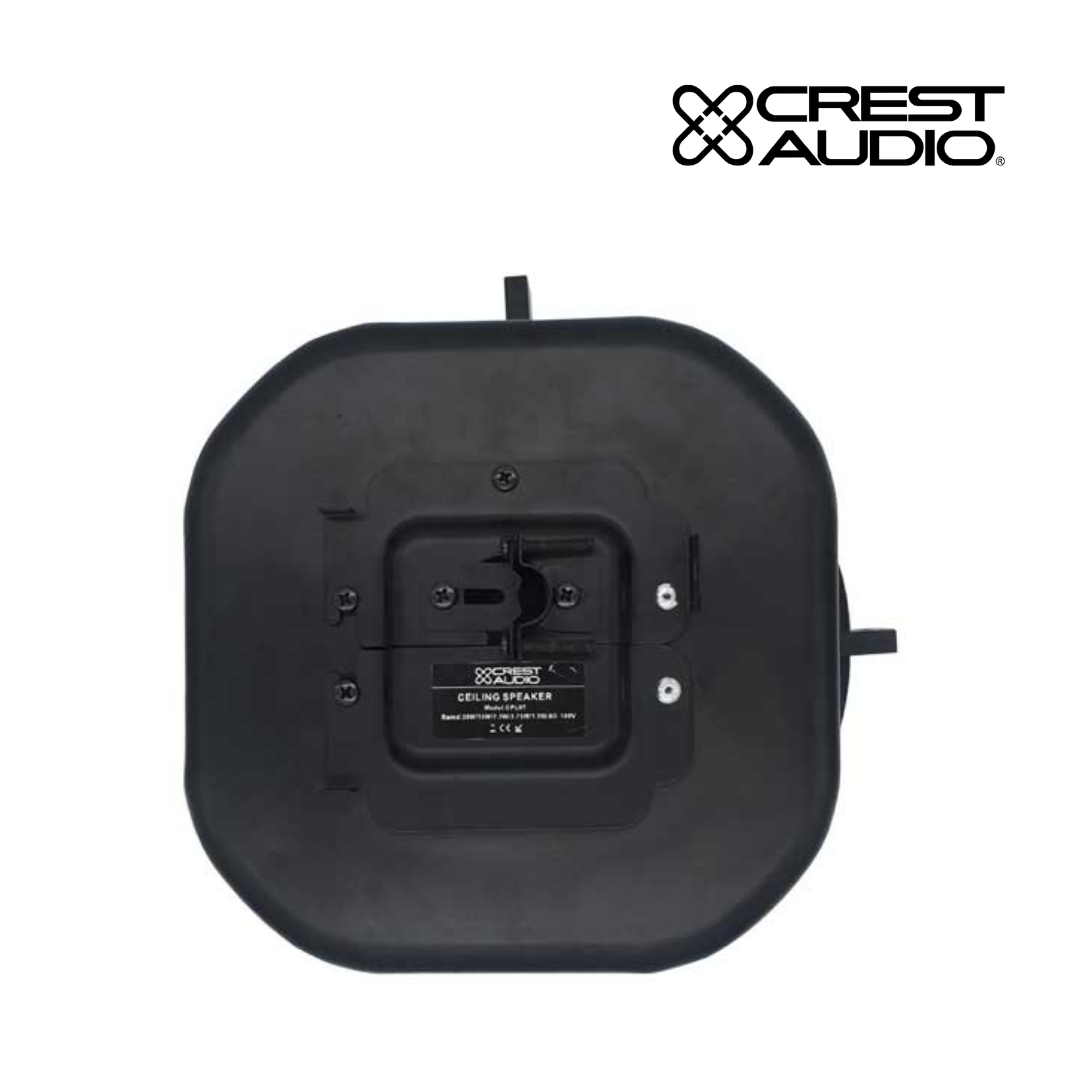

Further more the CPL T series of ceiling speakers are housed in a steel fire rated backcan including a 4-pin screw terminal to allow for easy daisy-chain wiring terminations.

• Frequency Response: 80 Hz to 20 kHz, – 10 dB

• Power Handling: 50 Watts

• Nominal Impedance: 8 Ω

• Sensitivity: 88 dB ±3dB ,1m,1W

• Advanced crossover network

• Combined 70/100V and low impedance operation

• Transformer Taps 15W, 7.5W, 3.75W, 1.9W, 1W @ 70V

• Transformer Taps 30W, 15W, 7.5W, 3.75W, 1.9W @ 100V

• 6.5″ Woofer, PP cone and rubber surround

• 1″ Soft dome tweeter with Titanium membrane

• Tweeter can be aimed towards listening area

• Crossover Frequency: 4 kHz

• Recommended filter type and point: 24 dB/oct. Linkwitz-Riley at 80 Hz

• Outside Dimensions (Diameter x Depth): 10.83″ (275 mm) x 7.84″ (199 mm)

• Cutout Diameter: 9.57″ (243 mm)

• Connectors: 4-pin screw terminal

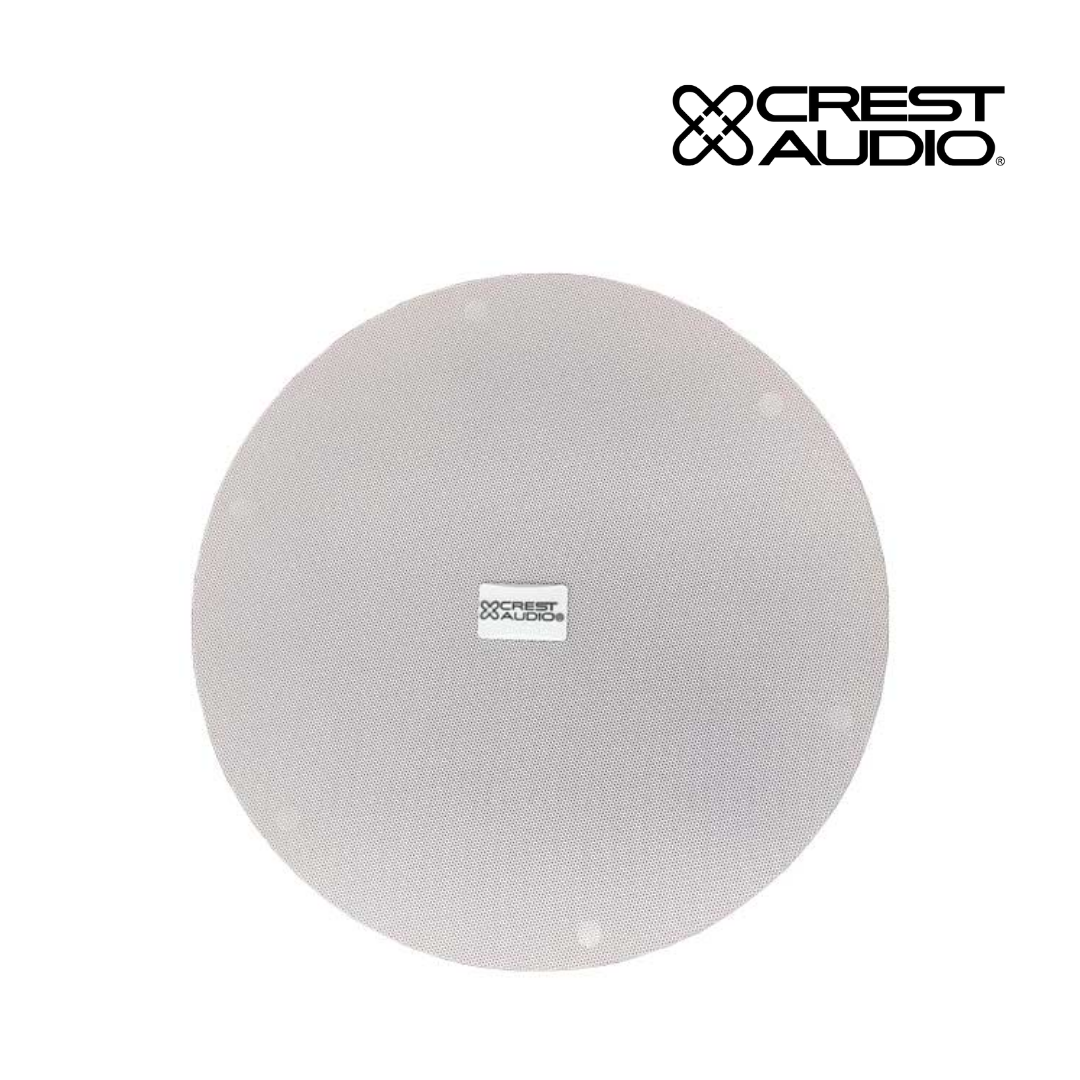

• Magnetic front grille

• Logo can rotate 360°

• Steel backcan

• Available in White

Banquet Halls

Casinos

Auditoriums

Houses of Worship

Educational Facilities

Convention Centres

Corporate Environments

Restaurant

Bars

Speaker Configuration	Ceiling Speaker 2-way
Speaker Type	Non-Powered
Power RMS	Selectable taps – 1, 1.9, 3.75, 7.5, 15W, 30W @ 70/100V, or 50 W @ 8 Ω
Nominal Impedance	8 Ω
Sensitivity (1W/1m)	88 dB
Speaker Frequency Response	80 Hz – 20 kHz (-10 dB)
HF Driver	1″ Soft Dome Tweeter
LF Driver	6.5″ Woofer
Enclosure Material	ABS Housing & Steel Backcan
Net Weight	6.17 lbs (2.80 kg)
Product Width	max. Ø 10.83″ (275 mm)
Product Depth	7.84″ (199 mm)
SKU	4001610
