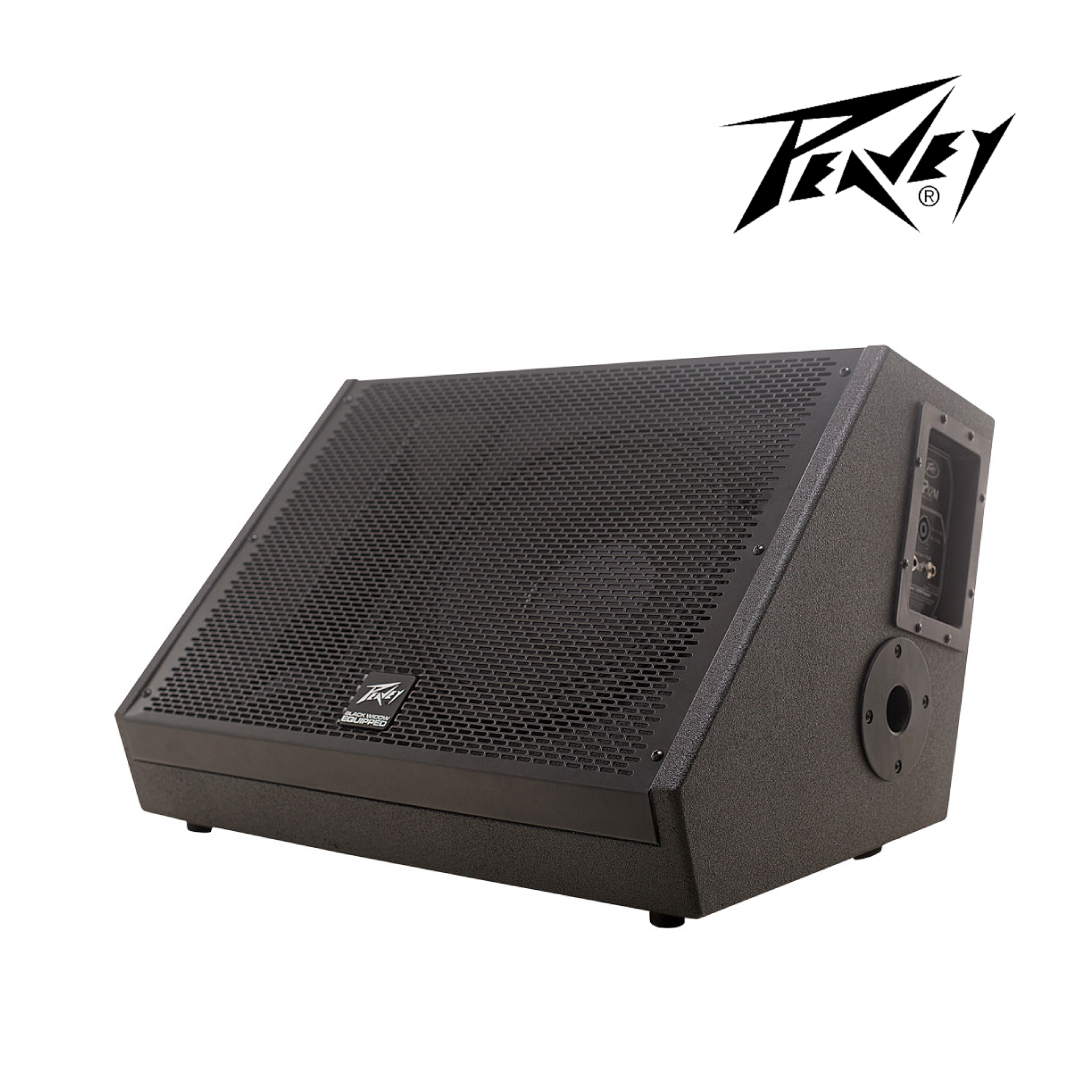

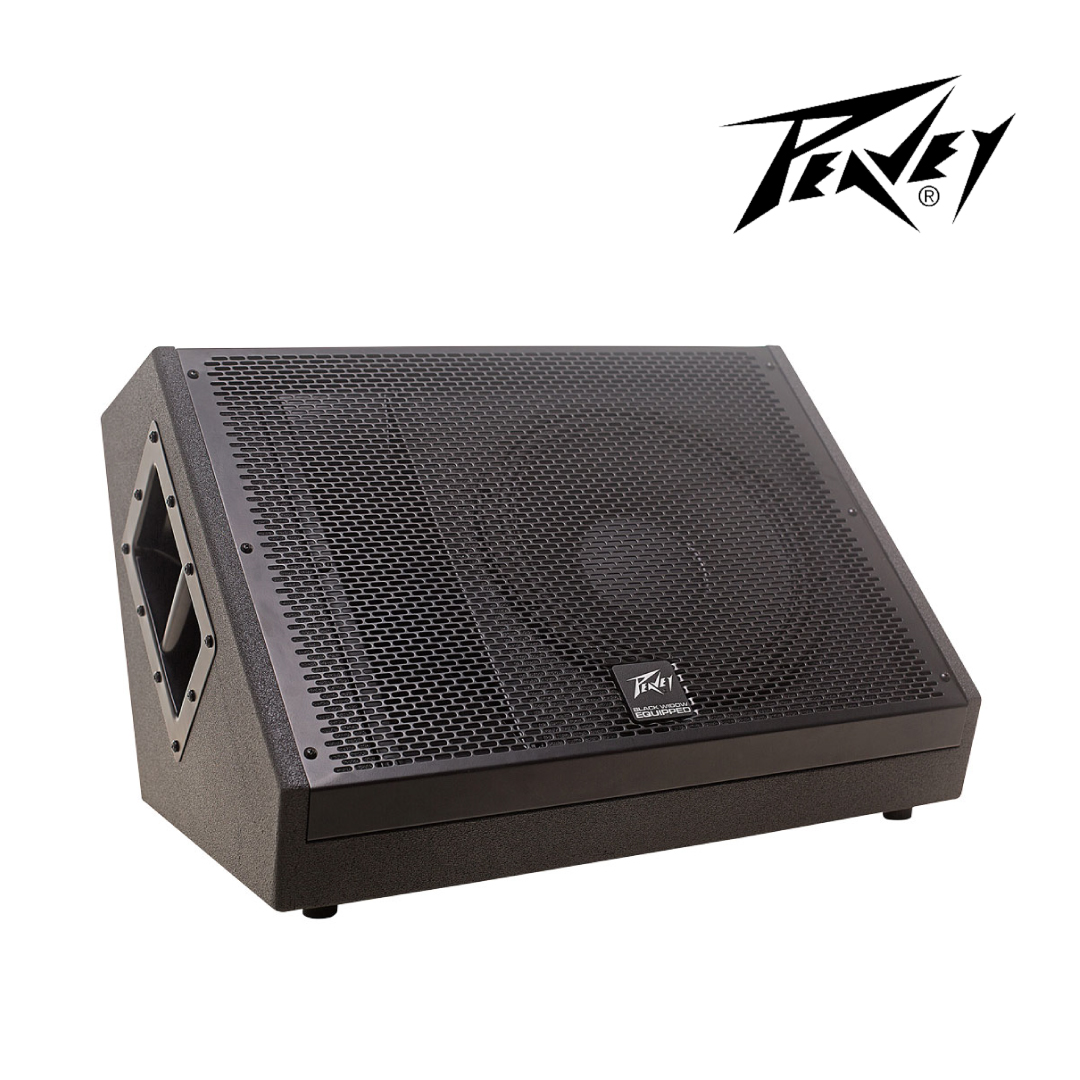

Peavey SP® 12M
The SP® 12M two-way, full-range floor monitor features a 12″ BWX Black Widow® 4″ diameter VC woofer with a field-replaceable basket, RX™ 22CT compression driver with titanium diaphragm, and Sound Guard™ III tweeter protection. The unit includes dual-baffle angles of 45° or 30° and two 1/4″ full-range phone-jack inputs in parallel with a four-pin twist lock connector.
- Quasi‑three way, full‑range / bi‑ampable Sound Reinforcement system
- Frequency Response: 69 Hz to 17 kHz
- Two 15″ BWX Black Widow® 4″ diameter VC woofers
- RX 22CT compression driver
- Exclusive Quadratic Throat Waveguide™ technology
- Power Handling: 1000 Watts continuous, 2000 Watts program, 4000 Watts peak
- Sensitivity: 98 dB (1 W/1 m)
- 133 dB SPL peak
- Full‑range inputs include two ¼″ phone jacks, one four‑pin, twist lock connector & one Neutrik® NL4 Speakon® switching jack (bi‑amp only)
- Asymmetrical horn aims the sound down 10° (at the audience, not over their heads)
- Full length black powder coated metal grille
- M8 threaded mounting suspension points (3 top, 3 bottom and 2 each side & 1 each top rear and bottom rear)
- Sound Guard III tweeter protection
- Four large rubber feet on bottom for floor use
- Trapezoidal plywood enclosure finished in black textured paint
Auditoriums
Live Venues
Houses of Worship
| Enclosure Materials & Finish | Hardwood panel coated with Peavey’s HammerHead™ polyurea finish. |
| Mounting Provisions | Not designed for overhead suspension, Metal stand mount adapter incorporated, Eight rubber feet on two sides for dual-angle use. |
| Dimensions (H × W × D) | 45° baffle orientation: 15.75″ × 24.25″ × 18.75″ 30° baffle orientation: 15.94″ × 24.25″ × 17.63″ |
| Net Weight | 51 lbs (23.13 kg) |
Frequency Response (1 meter on-axis, swept-sine in anechoic environment) | 108 Hz to 14 kHz (±3 dB) |
| Usable Low Frequency Limit (-10 dB point) | 77 Hz |
| Power Handling | 500 watts continuous, 1,000 watts program, 2,000 watts peak |
Sound Pressure Level (1 Watt / 1 meter, in anechoic environment) | Full range: 98.0 dB SPL (2.83 V input) |
| Maximum Sound Pressure Level (1 meter) | Full range: 125 dB SPL continuous, 131 dB SPL peak |
Radiation Angle (measured at -6 dB point of polar response) | 40° horizontal by 90° vertical |
| Transducer Complement | Low Frequency Section: One 12″ woofer (1208-8 HE BWX) High Frequency Section: One 0.875″ exit / 51 mm voice coil RX™22 compression driver on a CH-3™ horn |
| Box Tuning Frequency | Low frequency section: 73 Hz |
| Crossover Frequency (internal passive) | Low frequency → high frequency: 1,700 Hz |
| Impedance (Ω) | Nominal: 8.0 Ω Minimum: 6.4 Ω |
| Input Connections | Two 1/4″ phone jacks, One four-pin twist-lock connector |
