Peavey SP® 4

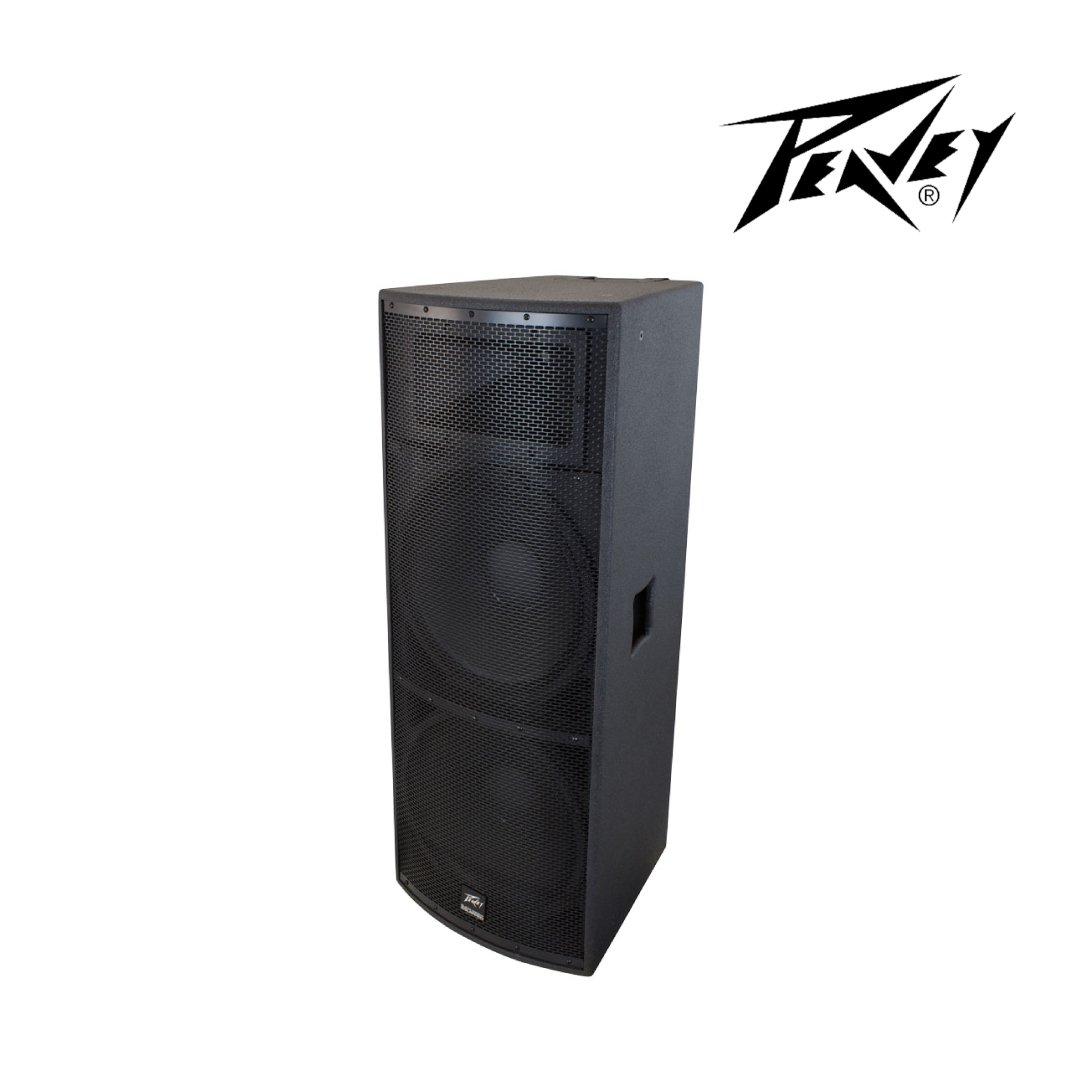

The SP 4 is a quasi‑three‑way, full‑range, bi‑ampable sound‑reinforcement system. It features two premium 15″ Black Widow® woofers with 4″ voice coils, an RX 22CT compression driver and utilizes Peavey’s exclusive “Quadratic Throat Waveguide™” asymmetrical horn design. The horn is engineered to aim coverage 15° upward and 35° downward to better focus the sound toward the audience rather than over their heads.
Description
- Quasi‑three way, full‑range / bi‑ampable Sound Reinforcement system
- Frequency Response: 69 Hz to 17 kHz
- Two 15″ BWX Black Widow® 4″ diameter VC woofers
- RX 22CT compression driver
- Exclusive Quadratic Throat Waveguide™ technology
- Power Handling: 1000 Watts continuous, 2000 Watts program, 4000 Watts peak
- Sensitivity: 98 dB (1 W/1 m)
- 133 dB SPL peak

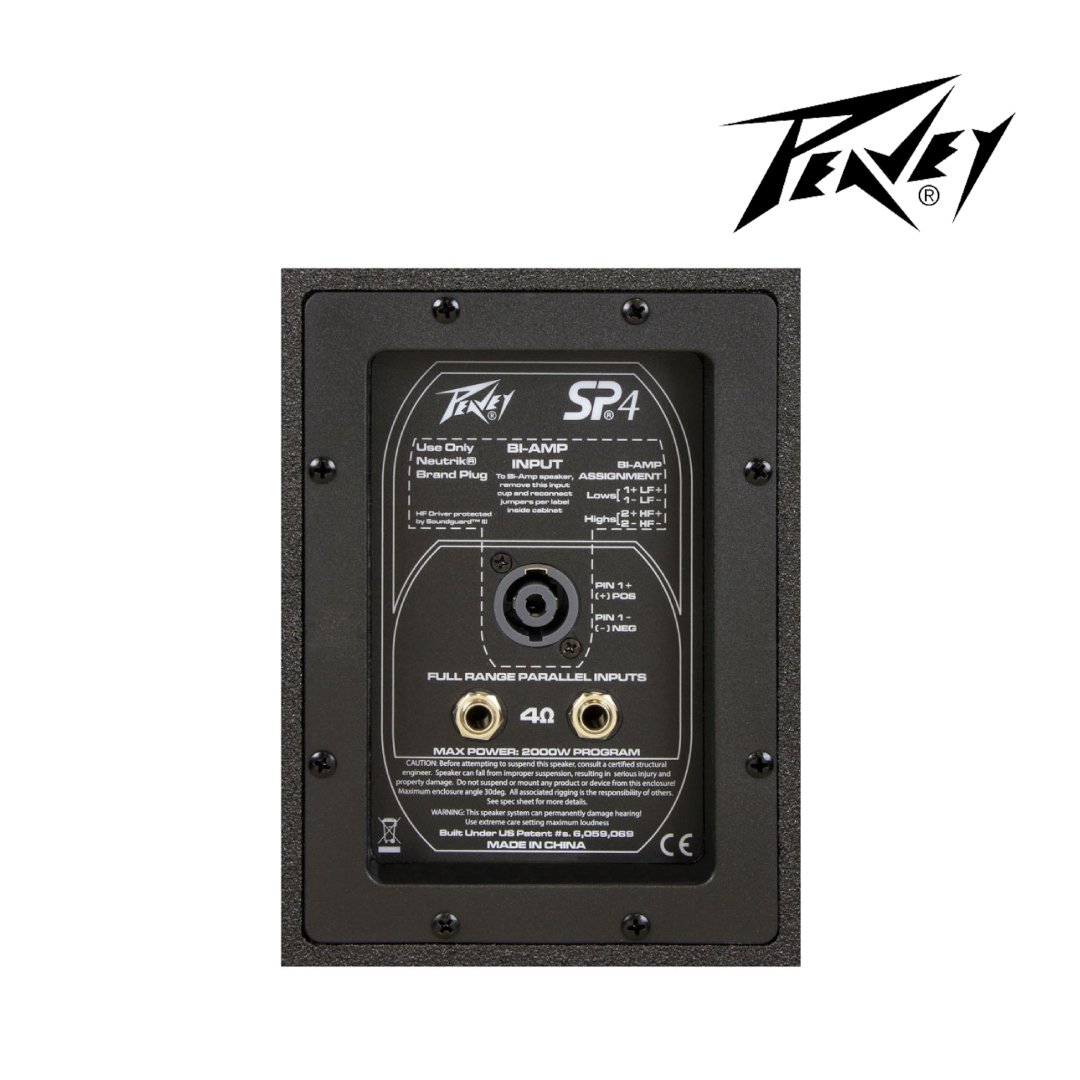

- Full‑range inputs include two ¼″ phone jacks, one four‑pin, twist lock connector & one Neutrik® NL4 Speakon® switching jack (bi‑amp only)
- Asymmetrical horn aims the sound down 10° (at the audience, not over their heads)

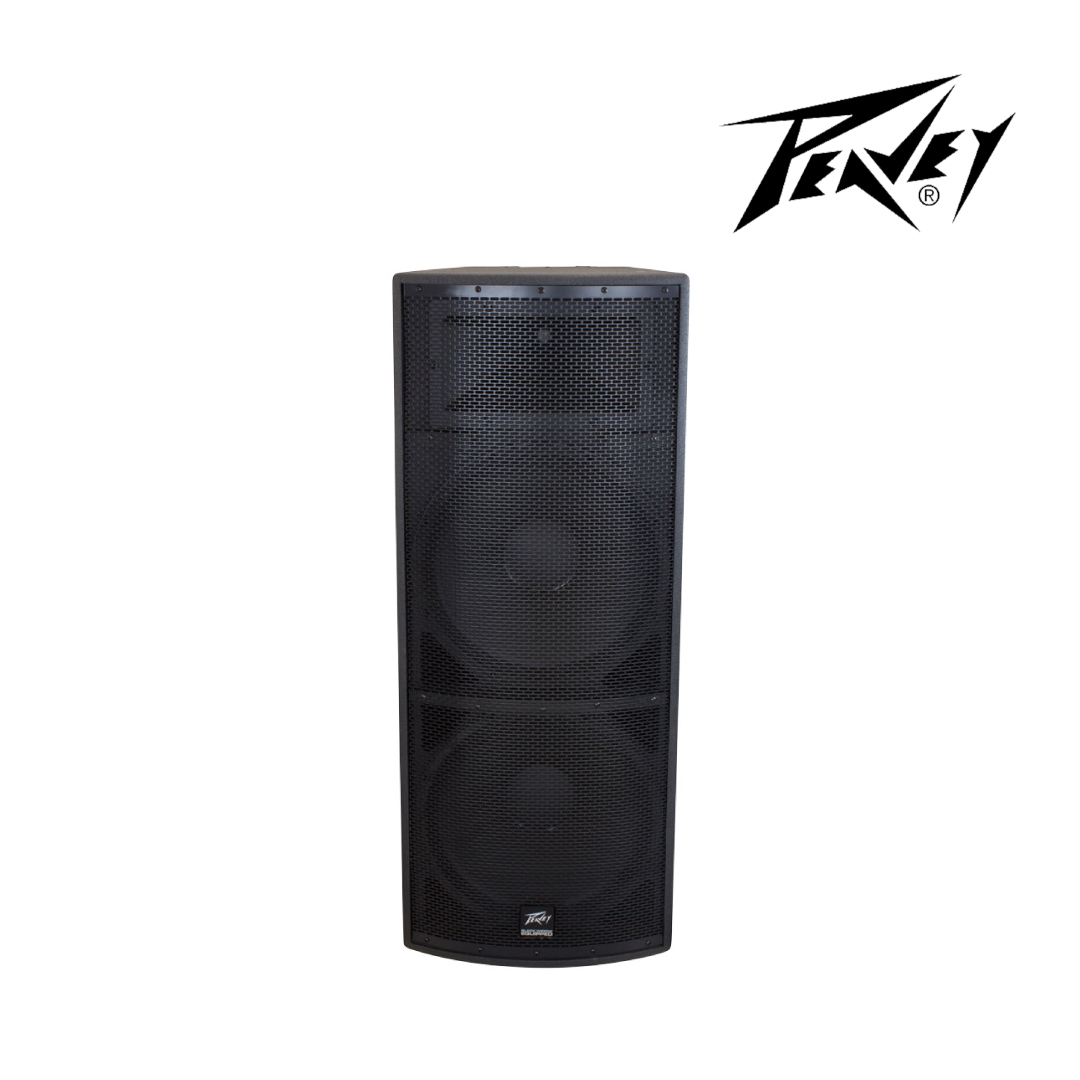

- Full length black powder coated metal grille
- M8 threaded mounting suspension points (3 top, 3 bottom and 2 each side & 1 each top rear and bottom rear)
- Sound Guard III tweeter protection
- Four large rubber feet on bottom for floor use
- Trapezoidal plywood enclosure finished in black textured paint
Auditoriums
Live Venues
Touring Rigs
Houses of Worship
| Operating Bandwidth | 69 Hz – 17 kHz |
| Nominal Output Level | 98 dB (1 W/1 m) |
| Nominal Impedance | 4 Ω |
| Maximum Continuous Power Handling | 1000 W |
| Program Power | 2000 W |
| Peak Power | 4000 W |
| Amplifier Headroom | 3 dB |
| Radiation Geometry (Horizontal) | 100° symmetrical |
| Radiation Geometry (Vertical) | +15° / –35° about center axis |
| Fly Point Inserts | 10 (total): 2 top, 2 bottom, 2 each side, 1 top rear, 1 bottom rear |
| Dimensions (H × W × D) | 43.5″ × 16.75″ × 16.85″ |
| Rear Width | 11.58″ |
| Weight | 87 lbs (39.5 kg) |
| Frequency Response (±3 dB) | 69 Hz – 17 kHz |
| Usable Low Frequency Limit (–10 dB) | 54 Hz |
| Full Range Power Handling | 1000 W continuous / 2000 W program / 4000 W peak |
| Low Frequency Section Power Handling | 1000 W continuous / 2000 W program / 4000 W peak |
| High Frequency Section Power Handling | 50 W continuous / 100 W program / 200 W peak |
| Radiation Angle | 100° H × 50° V |
| Main Polar Lobe | Angled down 10° relative to straight ahead |
| Vertical Coverage | +15° / –35° |
| Low Frequency Drivers | 2 × 15″ Black Widow® 1508-8 SPS (vented) |
| High Frequency Driver | 1 × 1.0″ exit / 50 mm VC RX22CT compression driver (on asymmetrical Quadratic Throat CD horn) |
| Box Tuning Frequency | 64 Hz |
| Internal Passive Crossover | 1,800 Hz |
| Recommended Active Crossover (24 dB/oct LR) | 2.0 kHz |
| Time Offset (LF/HF) | 0.0 ms / 0.31 ms |
| Full Range Impedance (Nominal / Min) | 4.0 Ω / 3.4 Ω |
| Low Frequency Impedance (Nominal / Min) | 4.0 Ω / 3.2 Ω |
| High Frequency Impedance (Nominal / Min) | 8.0 Ω / 7.9 Ω |
| Input Connections (Full Range) | Two ¼″ jacks + one 4-pin twist-lock |
| Input Connections (Bi-amp) | Via swappable header through 4-pin twist-lock |
| Enclosure Material | Plywood |
| Finish | Black textured polyurethane coating |
| Grille | Full-length black powder-coated metal |
| Mounting Points | 10 × M8 threaded (2 top, 2 bottom, 2 each side, 1 top rear, 1 bottom rear) |
| Feet | 4 large rubber feet (on bottom) |
| Rigging Hardware Spec | M8 metric thread eyebolts per DIN 580 / ASTM A489 (26 mm min shank, ≥ 1,000 lb rating) |
