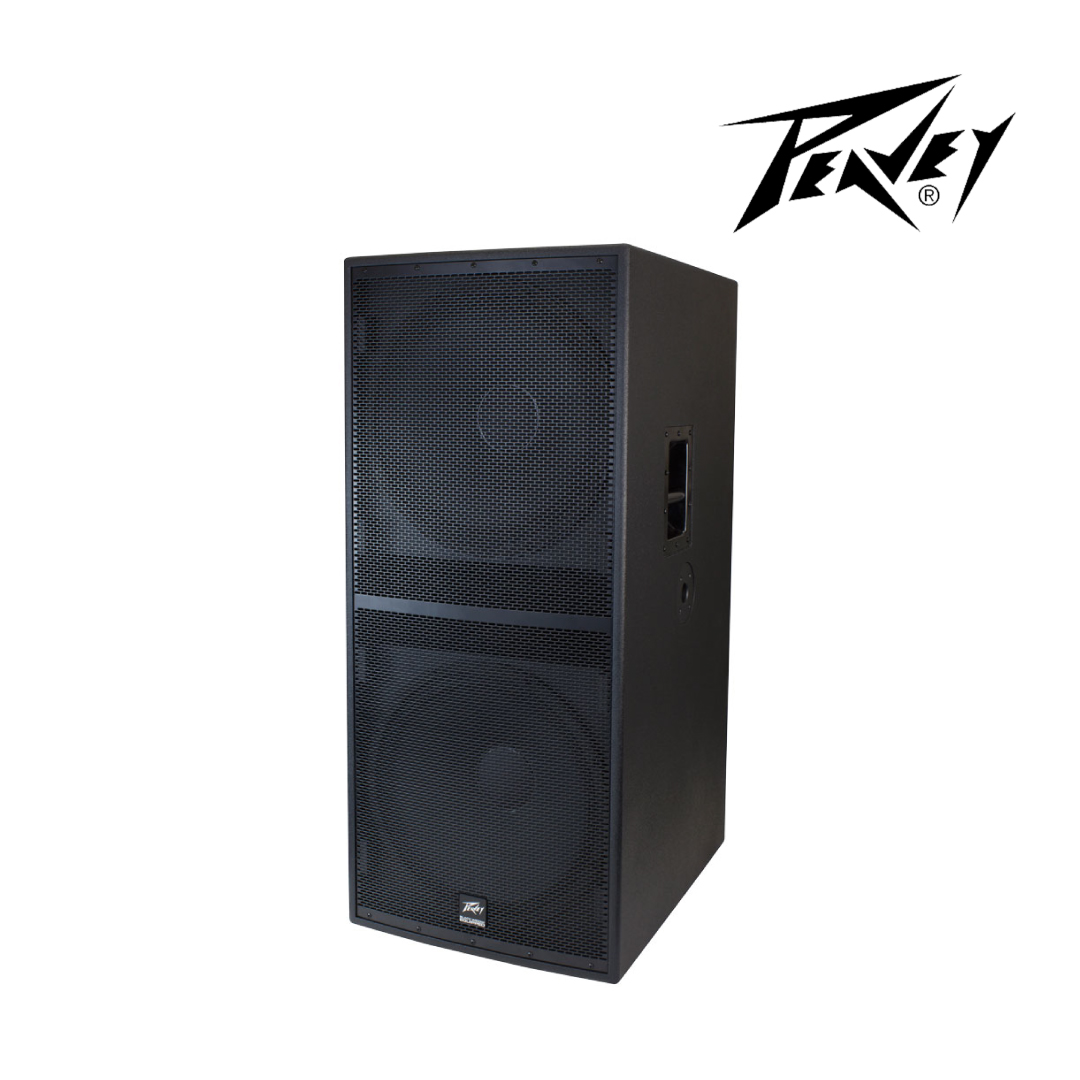

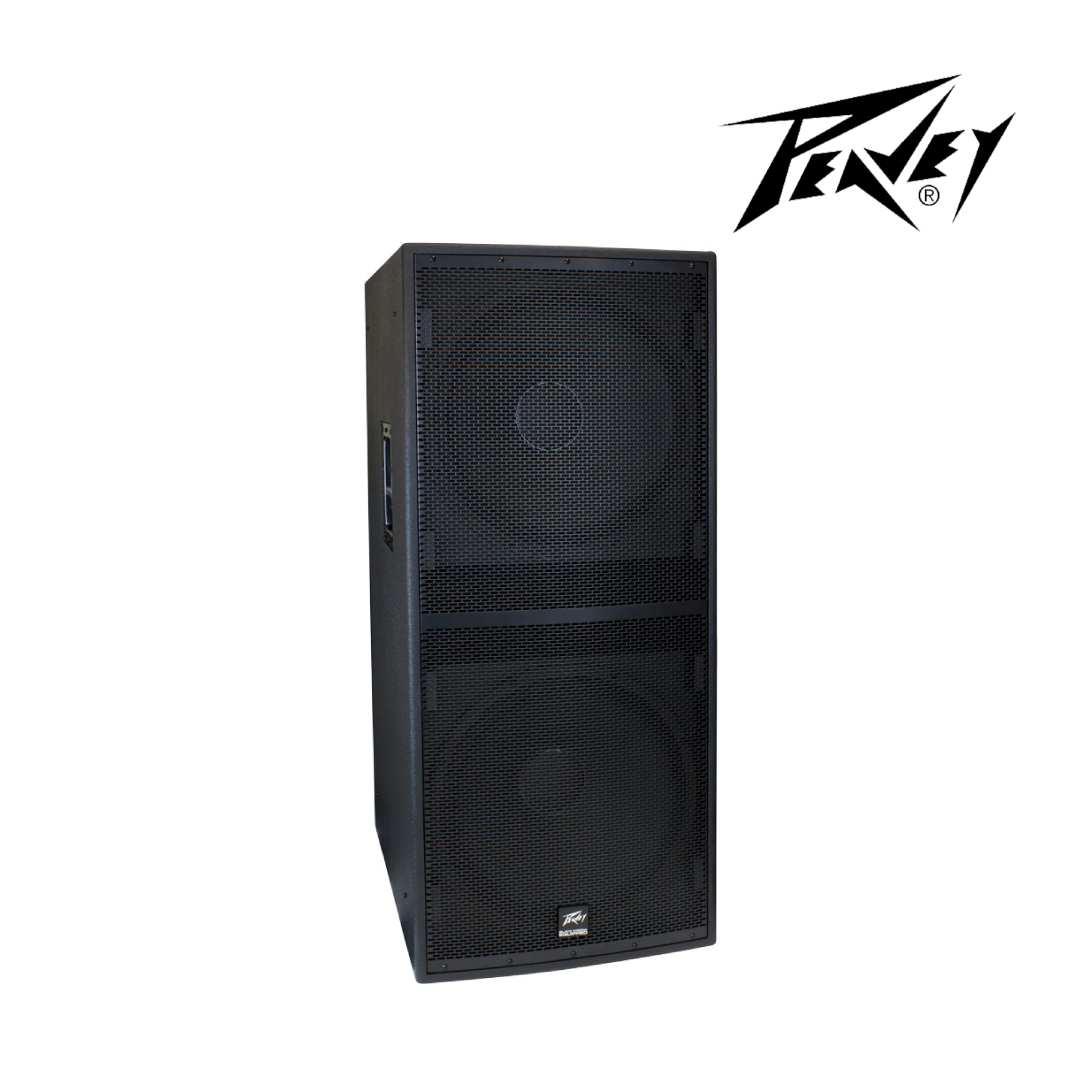

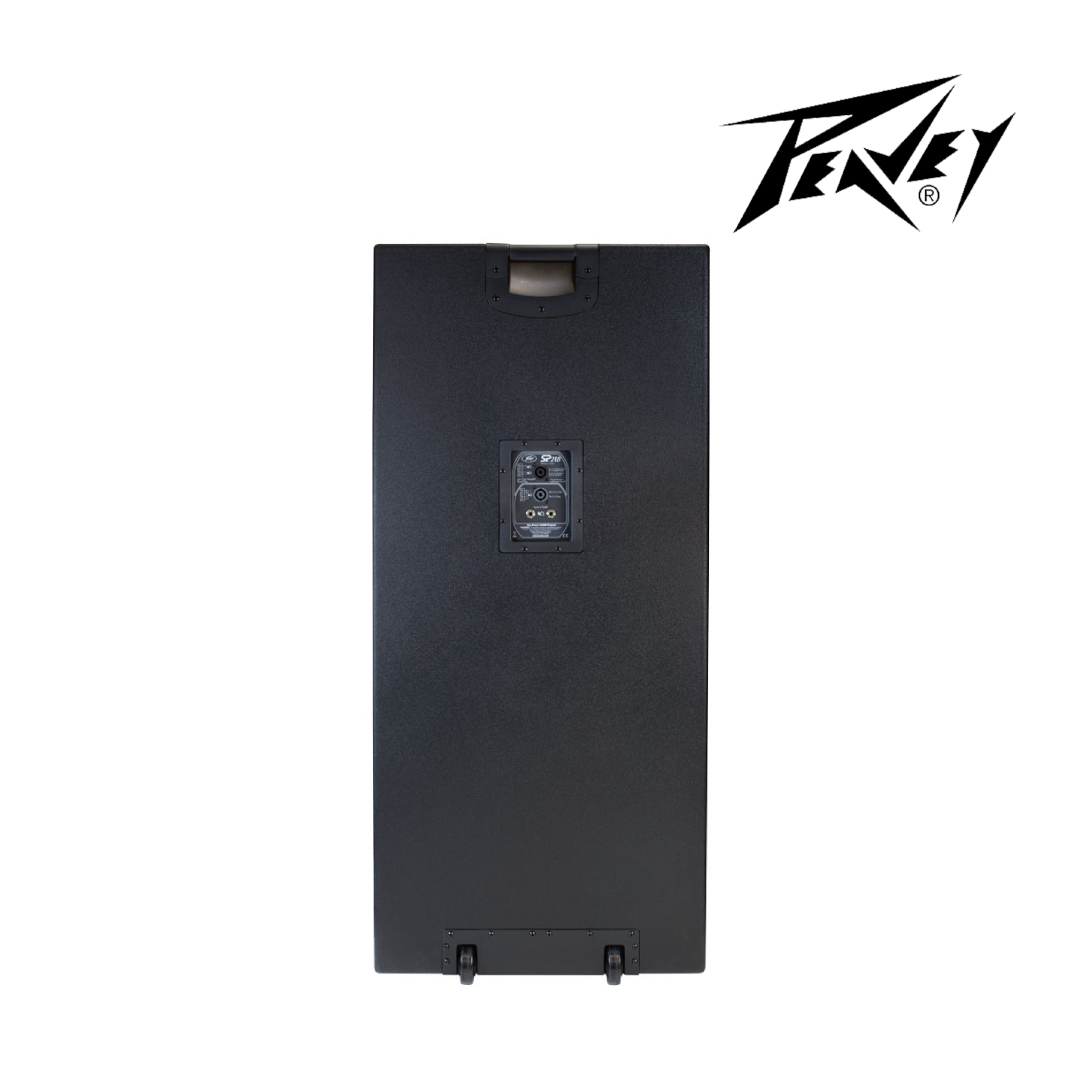

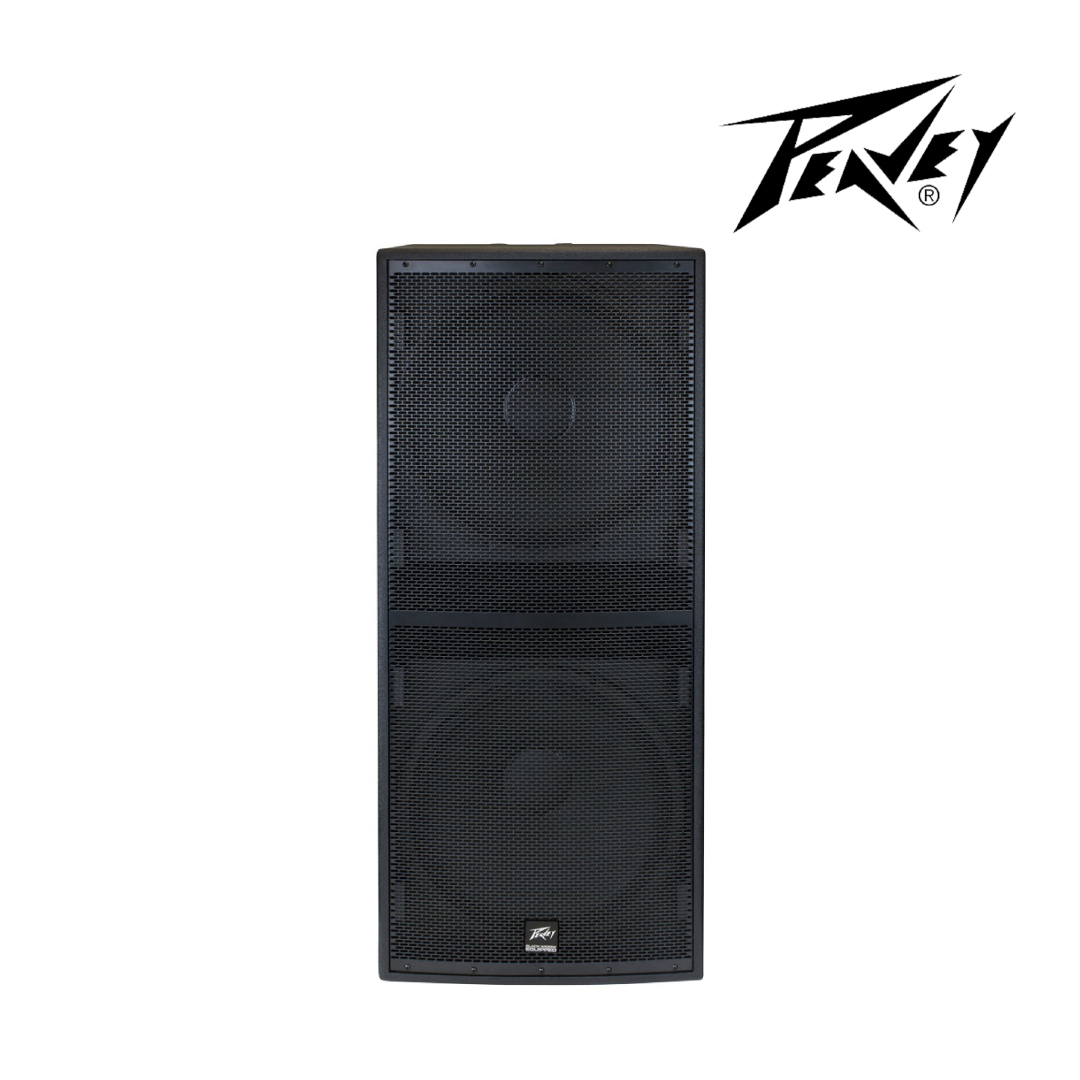

Peavey SP® 218
The SP® 218 subwoofer features two 18″ 1808-8 AL CP Pro Rider® woofers. Power handling is 2400 Watts program and 4800 Watts peak, with low frequency response down to 41 Hz. Inputs include one four-pin twist lock connector and two ¼″ phone jacks. Threaded pole for mount is included
Description
- Two 18″ 1808-8 AL CP Pro Rider woofers
- Power Handling: 1200 Watts continuous / 2400 Watts program / 4800 Watts peak
- Low frequency response down to 41 Hz
- Inputs: one four-pin twist lock connector and two ¼″ phone jacks (switchable for dual woofer operation)
- Exclusive Quadratic Throat Waveguide™ technology
- Built-in threaded pole mount plate
- Full-length wrap-around perforated steel grille
- Tilt-back casters and large rubber feet for portability
Auditoriums
Live concert venues and touring sound systems
Theatres and performance spaces
Large indoor or outdoor events requiring full-range PA coverage
Houses of Worship
| Frequency response, 1 meter on-axis, swept-sine in anechoic environment | 51 Hz to 210 Hz (±3 dB) |
| Usable low frequency limit (-10dB point): | 41 Hz |
| Power handling | 1,200 watts continuous 2,400 watts program 4,800 watts peak |
| Sound pressure level, 1 watt, 1 meter in anechoic environment | 99 dB SPL (2.00 V parallel input) |
| Maximum sound pressure level (1 meter): | Anechoic: 129 dB SPL continuous 135 dB SPL peak Half-space: 135 dB SPL continuous 141 dB SPL peak |
| Radiation angle measured at -6 dB point of polar response | Essentially omnidirectional |
| Transducer complement: | 2 x 18” woofer, vented Pro Rider® 1808-8 ALCP |
| Box tuning frequency | 38 Hz |
| Minimum recommended active crossover frequency and slope for bi¬amping | 100 Hz at 24 dB/octave Linkwitz-Riley Low pass filter |
| Recommended Infra-sonic Filter | 36 Hz (-6 dB point) 24 dB/octave Linkwitz-Riley High-pass. |
| Impedance ( Z ) | Parallel input: nominal 4.0 Ω, minimum: 3.1 Ω Dual-woofer input: nominal 2 x 8.0 Ω, minimum: 2 x 6.2 Ω |
| Input connections | Full range: two 1/4” phone jacks, one four-pin, twist lock jack, one four-pin Neutrik® SpeakOn® switching jack for independent access to each woofer. |
| Enclosure materials & finish | Plywood with internal bracing finished in black textured paint. Full length black powder coated metal grille. |
| Dimensions (H x W x D) | Height: 47.28 “ / 1201 mm Width: 20.38” / 518 mm Depth: 26.81” / 681 mm |
| Net Weight | 135 lbs. (61.3 kg) |
