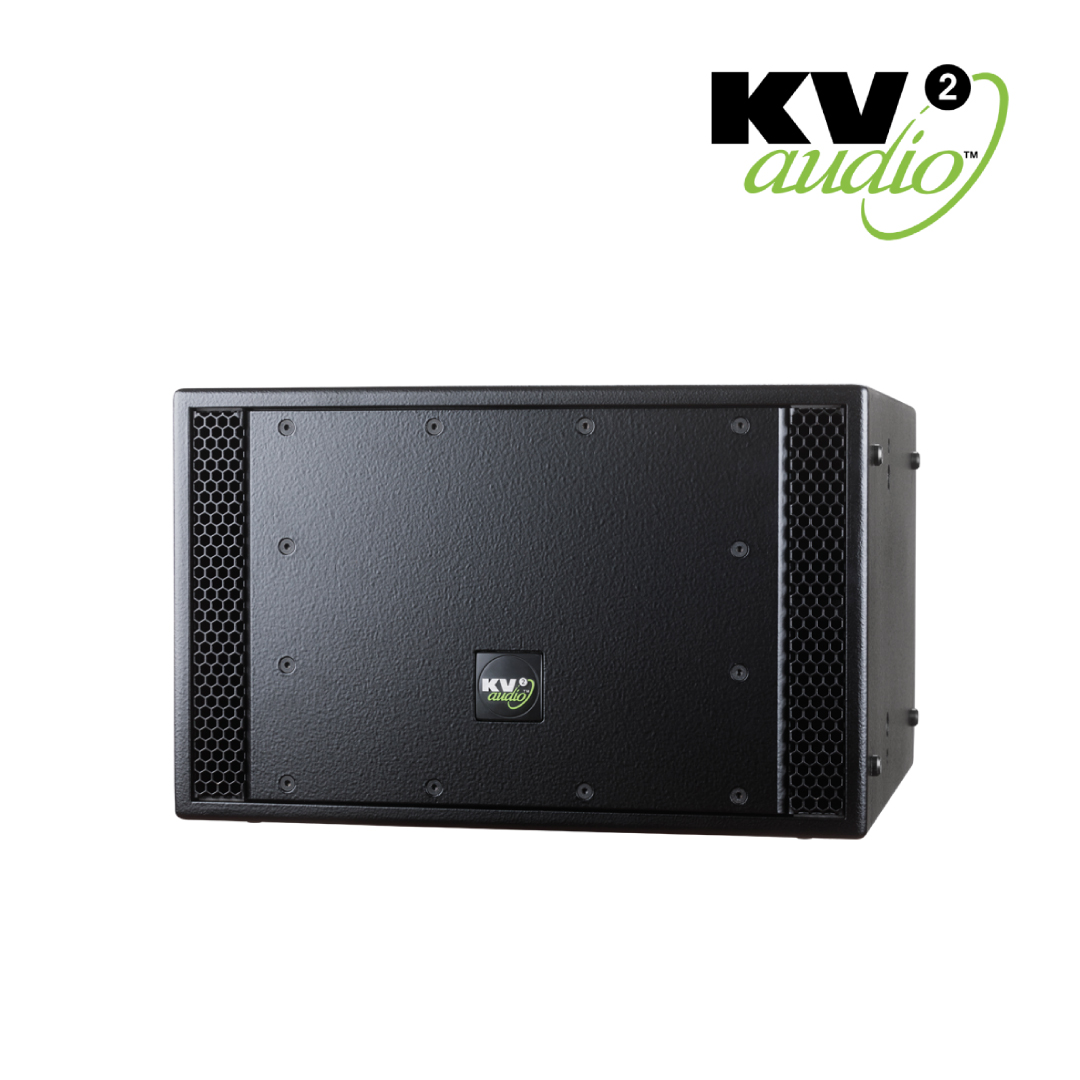

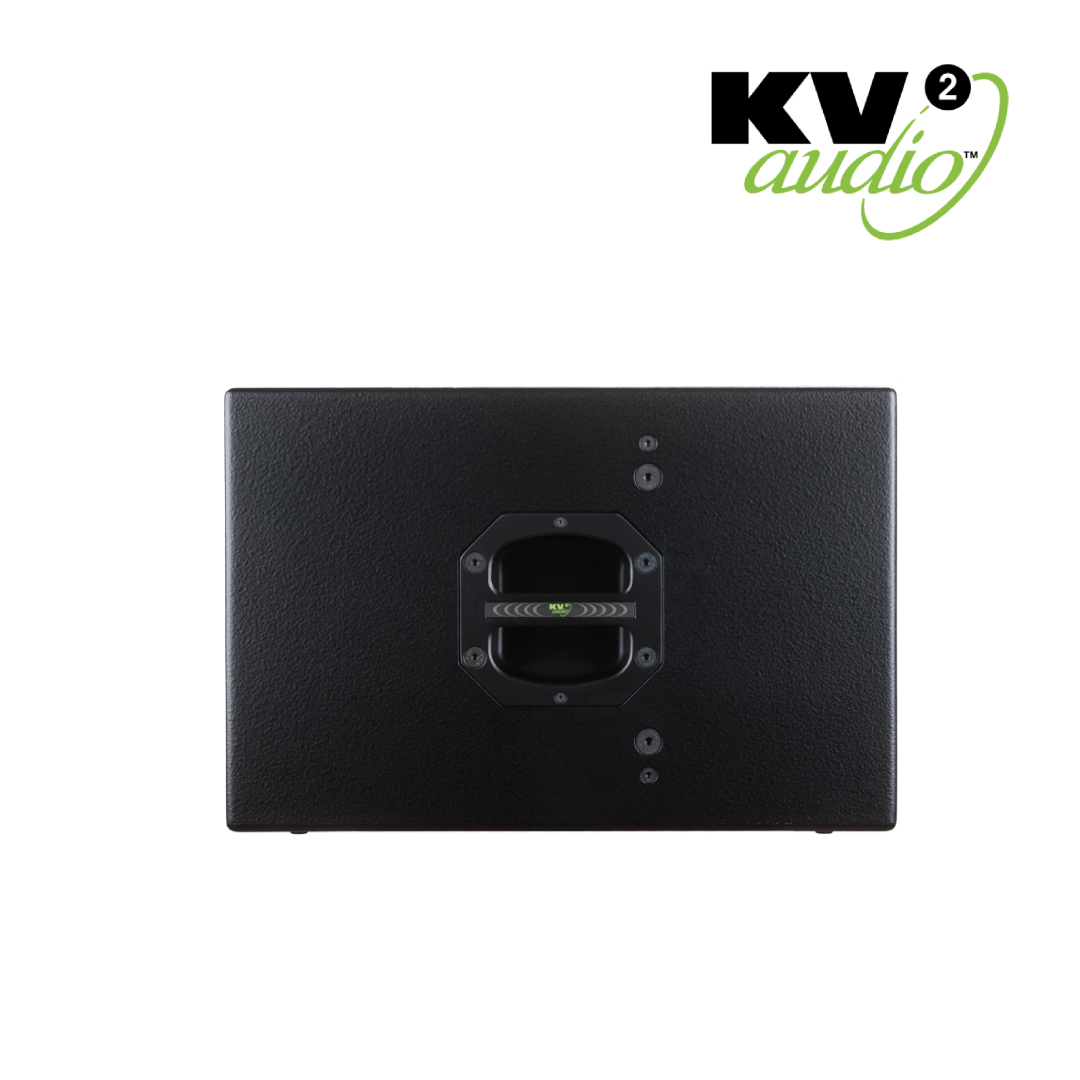

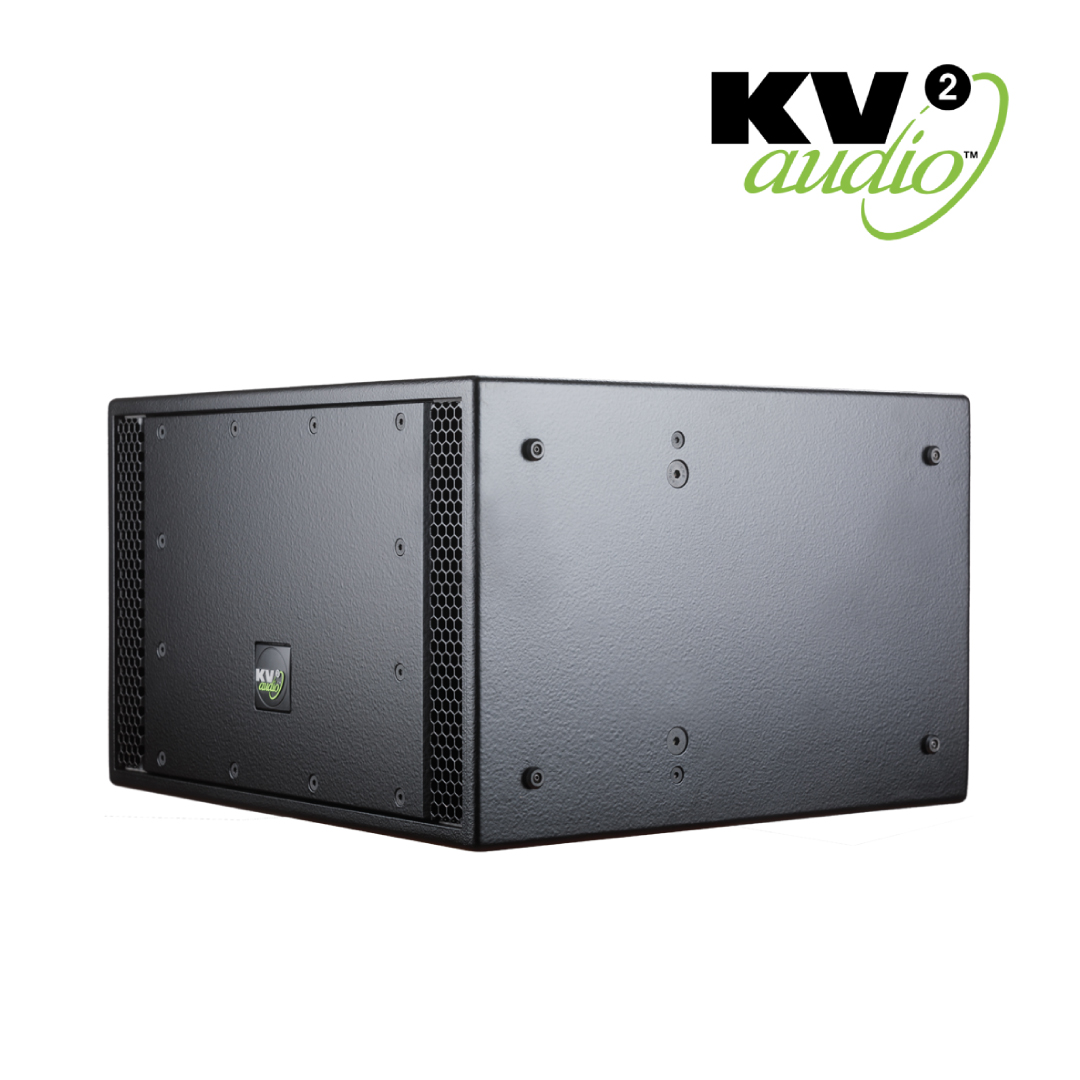

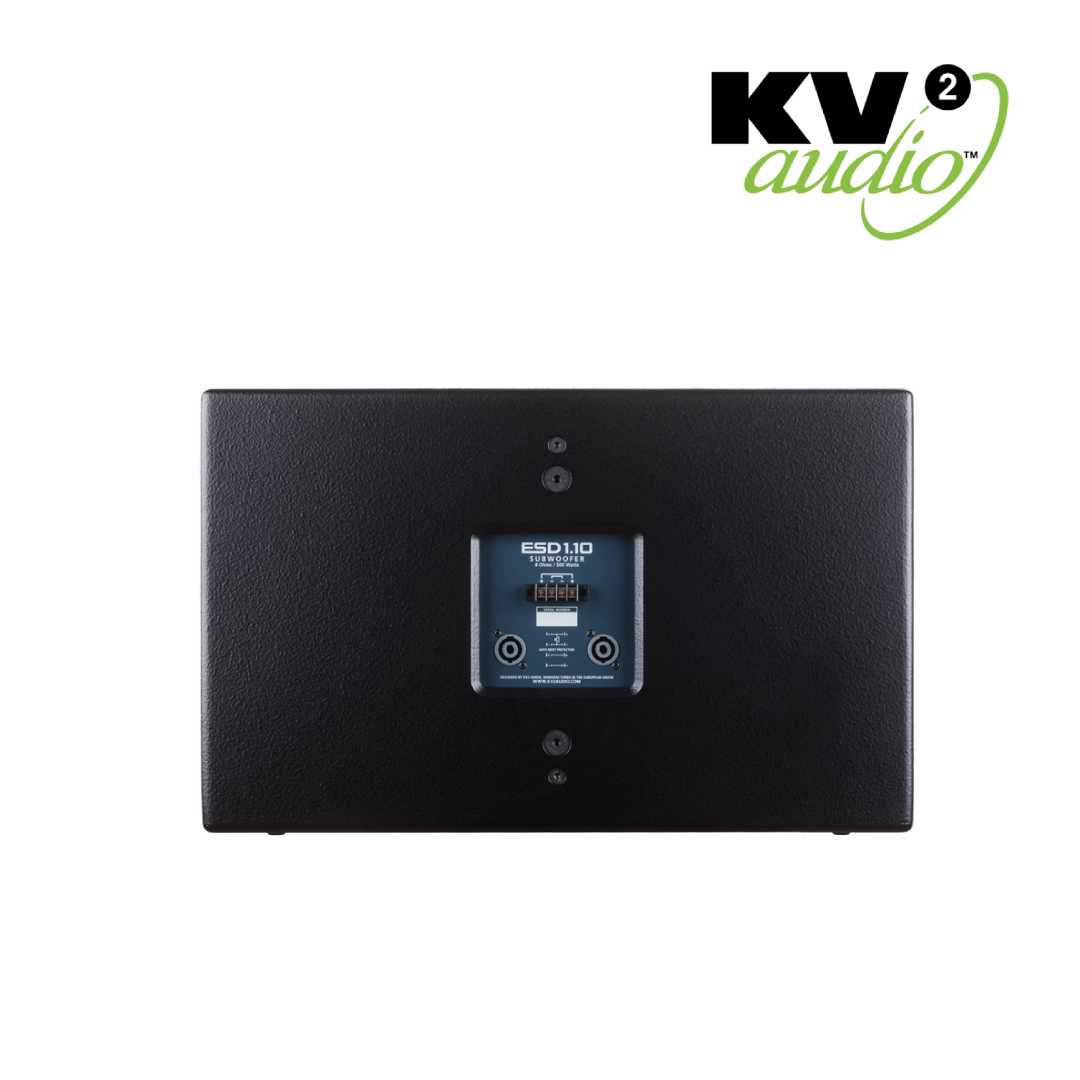

ESD 1.10
The ESD1.10 is a compact passive 10″ subwoofer featuring a high quality neodymium transducer. The smallest subwoofer within the KV2 range, it has been designed to compliment the ESD Cube Ultra compact Passive loudspeaker, creating a full range system solution when partnered with the Cube and ESP1000 amplifier. With power handling of 500 watts the ESD1.10 is capable of delivering tight, fast and controlled bass response, at high output levels from a very compact cabinet and is ideal for any discreet low frequency applications alongside other KV2 Audio products.
Description
- Professional, Baltic birch construction with wear resistant polymer coating
- 121dB sustained output, 124dB peak
- Excellent reproduction of bass frequencies with high transient content at high output levels
- 10″ high efficiency low frequency woofer with a 3″ (75 mm) inside/outside, epoxy baked, high temperature, voice coil
assembly and neodymium magnetic structure
Fixed installations (e.g., permanent venue installs)
Bars and small entertainment projects
Museums or theme-park audio systems
Space-limited setups — can be placed under seating or fixtures thanks to its compact footprint
| Max SPL Long-term | 121dB |
| Max SPL Peak | 127dB |
| -3dB Response | 40Hz – 150Hz |
| -10dB Response | 37Hz to 170Hz (with ESP1000 equalization) |
| Recommended Power | 500W |
| Sensitivity | 94dB |
| Impedance | 8Ω |
| Crossover Point | 80Hz to 150Hz |
| Acoustic Design | Twin Asymetrical Loading |
| Number of Drivers | 1 |
| Woofer Size / Voice Coil Diameter | 10″ / 3″ / Inside outside |
| Magnet Type | Neodymium |
| Diaphragm Material | Epoxy Reinforced Cellulose |
| Protection | Thermal breaker – autoreset |

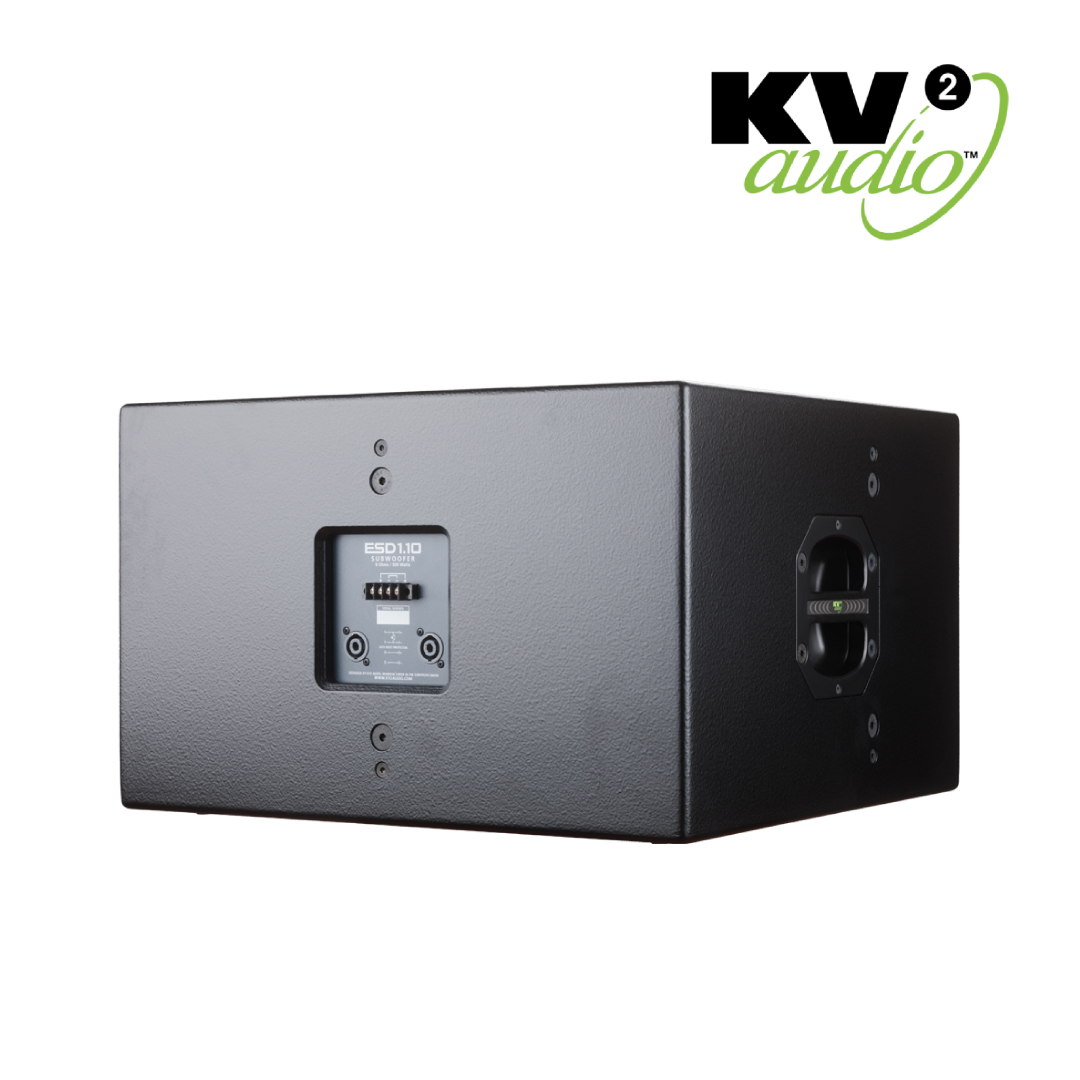

| Speaker Input | 2x Neutrik Speakon®, Terminal Block |
| Cabinet Material | Baltic birch |
| Handles | 1 |
| Pole Mount | M20 |
| Color | “Orange peeled” Matt Black or any RAL |
| Height | 335 mm (13.2″) |
| Width | 530 mm (20.9″) |
| Depth | 500 mm (19.7″) |
| Weight | 21,3 kg (46.96 lbs) |
