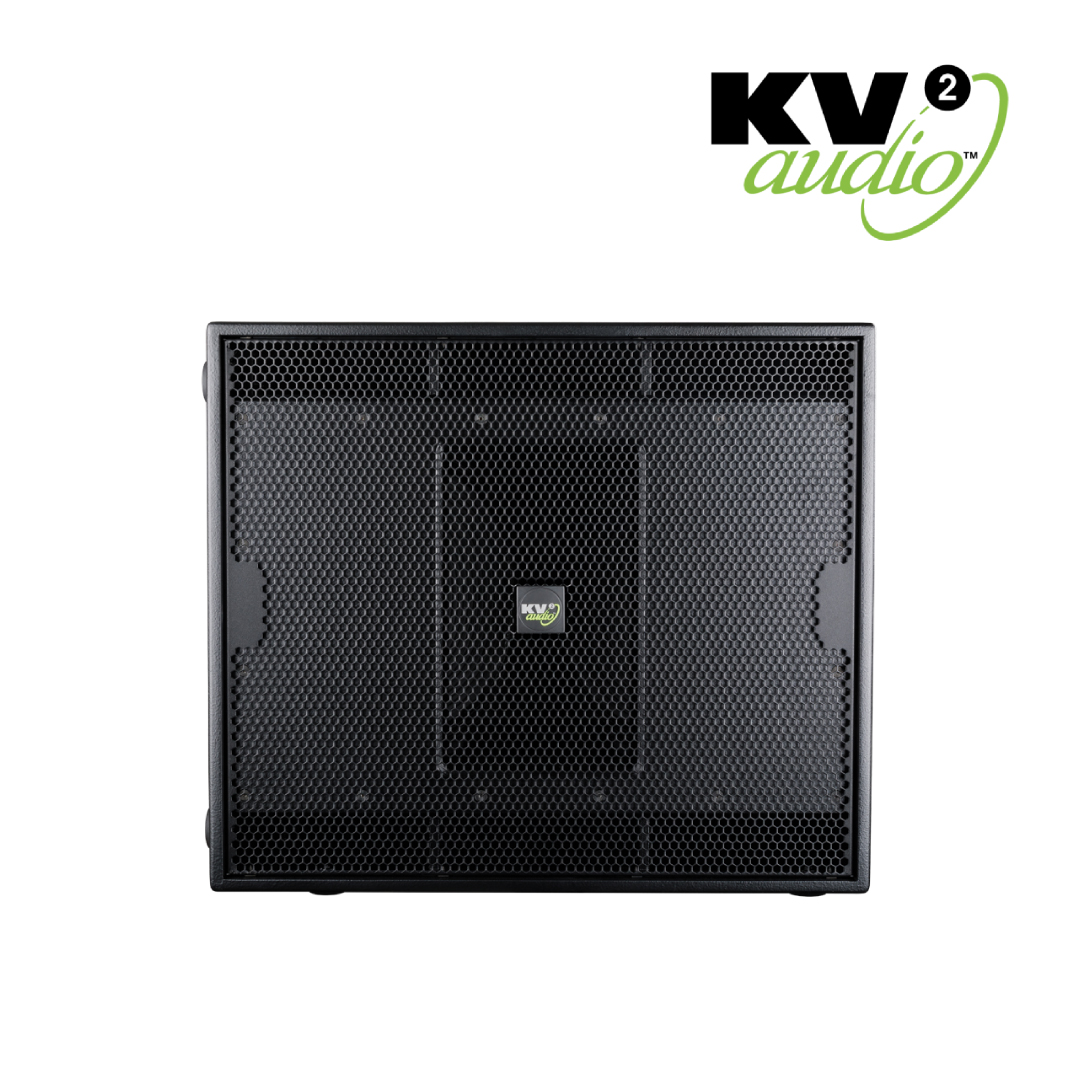

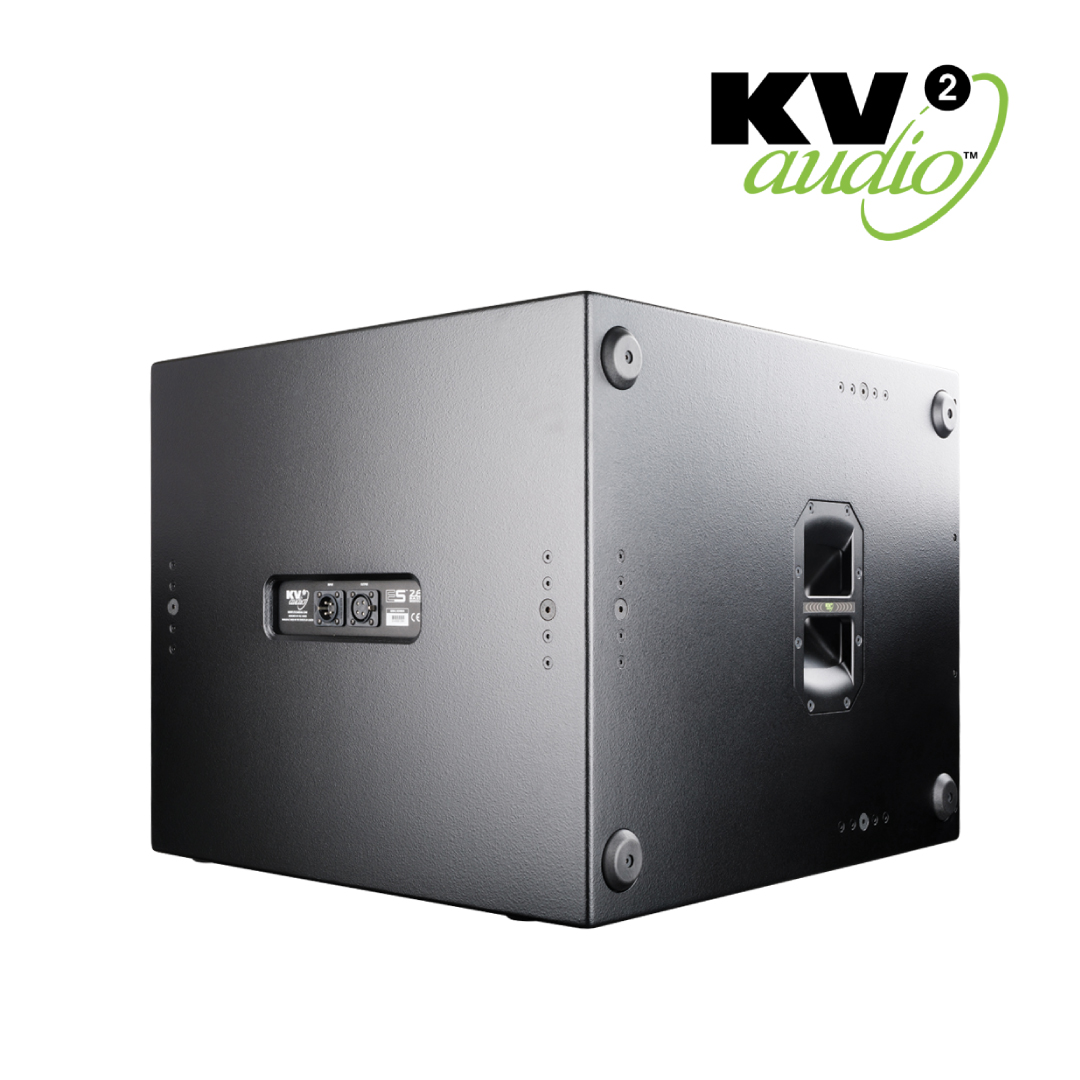

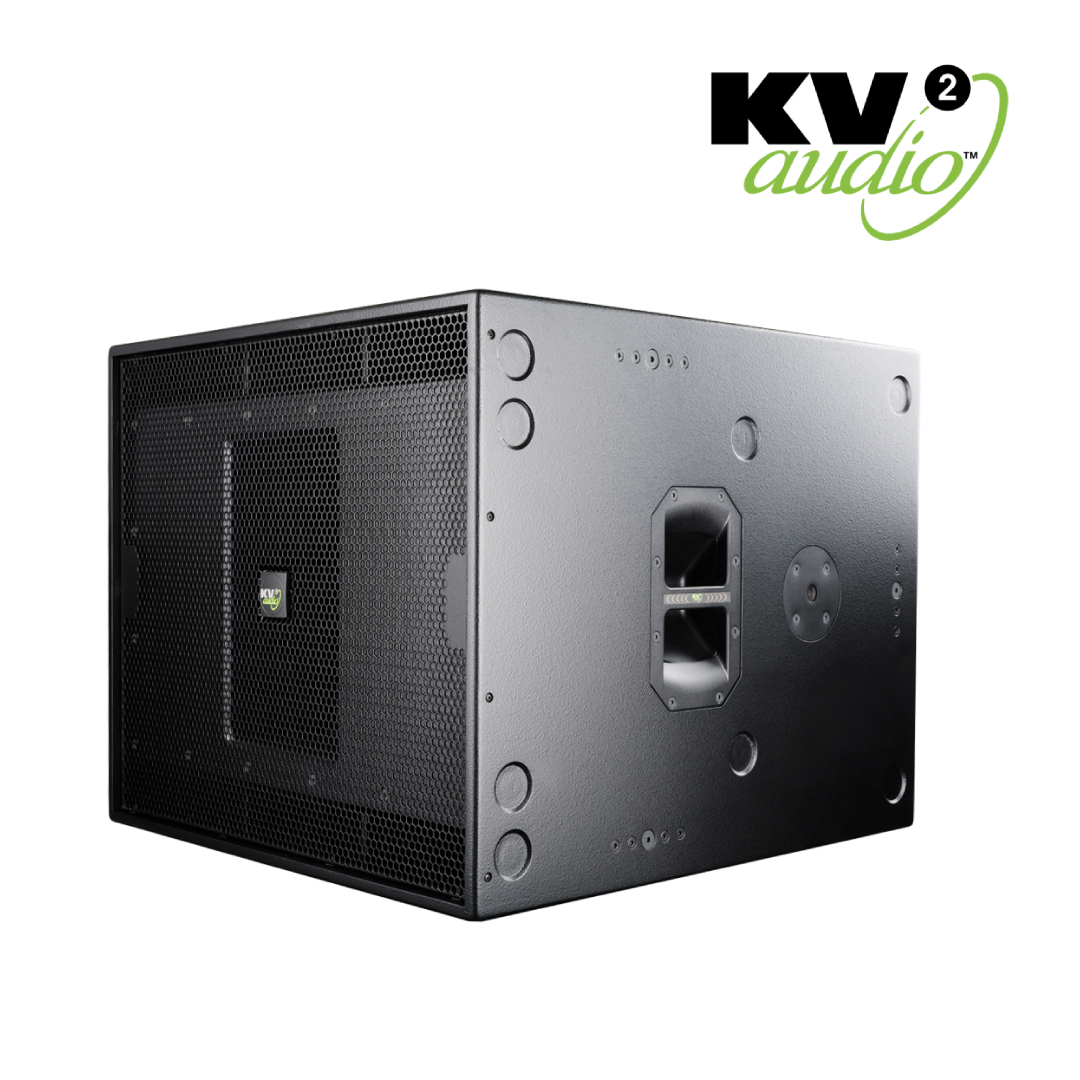

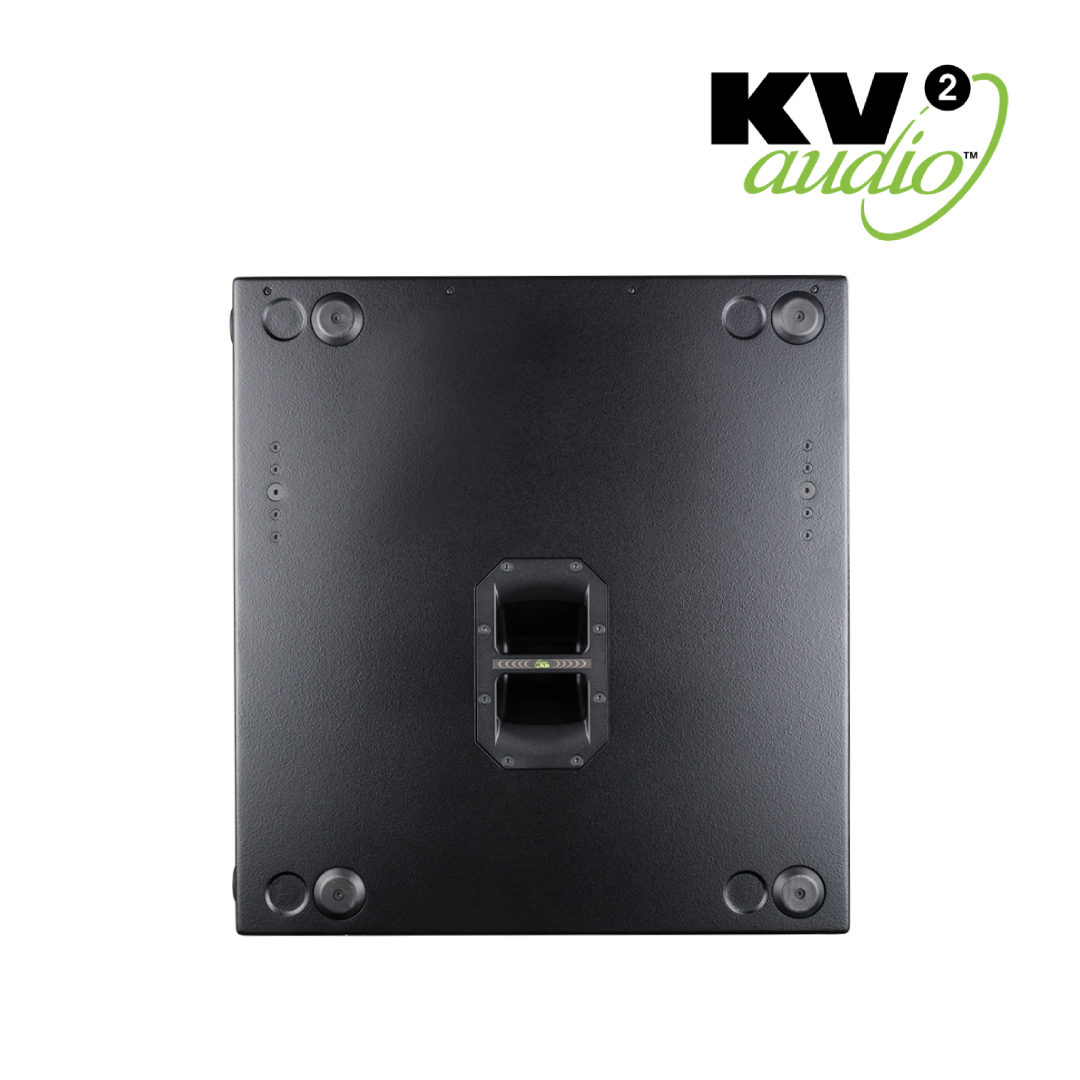

ES 2.6
The ES2.6 (8 ohms) is a double 15″, high output subwoofer designed for the ES Series speaker system. Using new concepts in twin asymmetrical acoustic chambers they deliver very highspeaker loading and intense output from a relatively small cabinet footprint. Reproducing low frequencies with very high transient content, they are ideal for use in live applications or as part of a five way ES system utilising VHD1.21 and 2.21 subwoofers. Together with the ES1.0 and EPAK2500/R, the ES2.5/2.6 delivers the highest dynamic range of any other comparable system providing new levels of clarity, depth and resolution.
Description
- Professional, Baltic birch construction with highly resistant polymer coating
- 137dB sustained output 140dB peak (when using 2 units of ES2.6)
- High acoustic loading via twin asymmetrical chambers
- Two 15″ low frequency drivers with 4″ (100 mm) inside/outside, epoxy baked, high temperature voice coil assembly
- Four proprietary side handles for simlified handling and carrying
- Heavy duty front grille to work with the innovative new ES series magnetic carts
- High-impact, low friction feet are asymmetrically located on two sides allowing vertical or horizontal system set up, lock-in and easy cabinet movement
- Six industrial grade internal corner braces with twelve M10 suspension points
- M20 top hat for pole mounting applications
- Weather proofing option and special paint finishes available on request
Small to medium concert halls / theatres
Houses of worship (churches, chapels)
Live event stages (paired with subwoofers)
Corporate events / conference rooms
Outdoor event setups (portable PA)
Touring systems for live performance
| Max SPL Long-term | 132dB (137dB – 2x ES2.6) |
| Max SPL Peak | 138dB (140dB – 2x ES2.6) |
| -3dB Response | 38Hz to 130Hz |
| -10dB Response | 34Hz to 130Hz |
| Impedance | 8Ω |
| Crossover Point | 70Hz to 130Hz |
| Acoustic Design | Twin Asymmetrical loading |
| Low Frequency Amplifier Requirement | 800W / ES2.6 from EPAK2500/R |
| Number of Drivers | 2 |
| Woofer Size / Voice Coil Diameter | 15″ / 4″ / Inside Outside |
| Magnet Type | Ferrite |
| Diaphragm Material | Epoxy Reinforced Cellulose |
| Speaker Input | AP4 |
| Speaker Output | AP4 |
| Cabinet Material | Baltic birch |
| Handles | 4 |
| Pole Mount | M20 |
| Color | “Orange peeled” Matt Black or any RAL |
| Height | 600 mm (23.62″) |
| Width | 700 mm (27.55″) |
| Depth | 750 mm (29.52″) |
| Weight | 74,7 kg (163.1lbs) |
