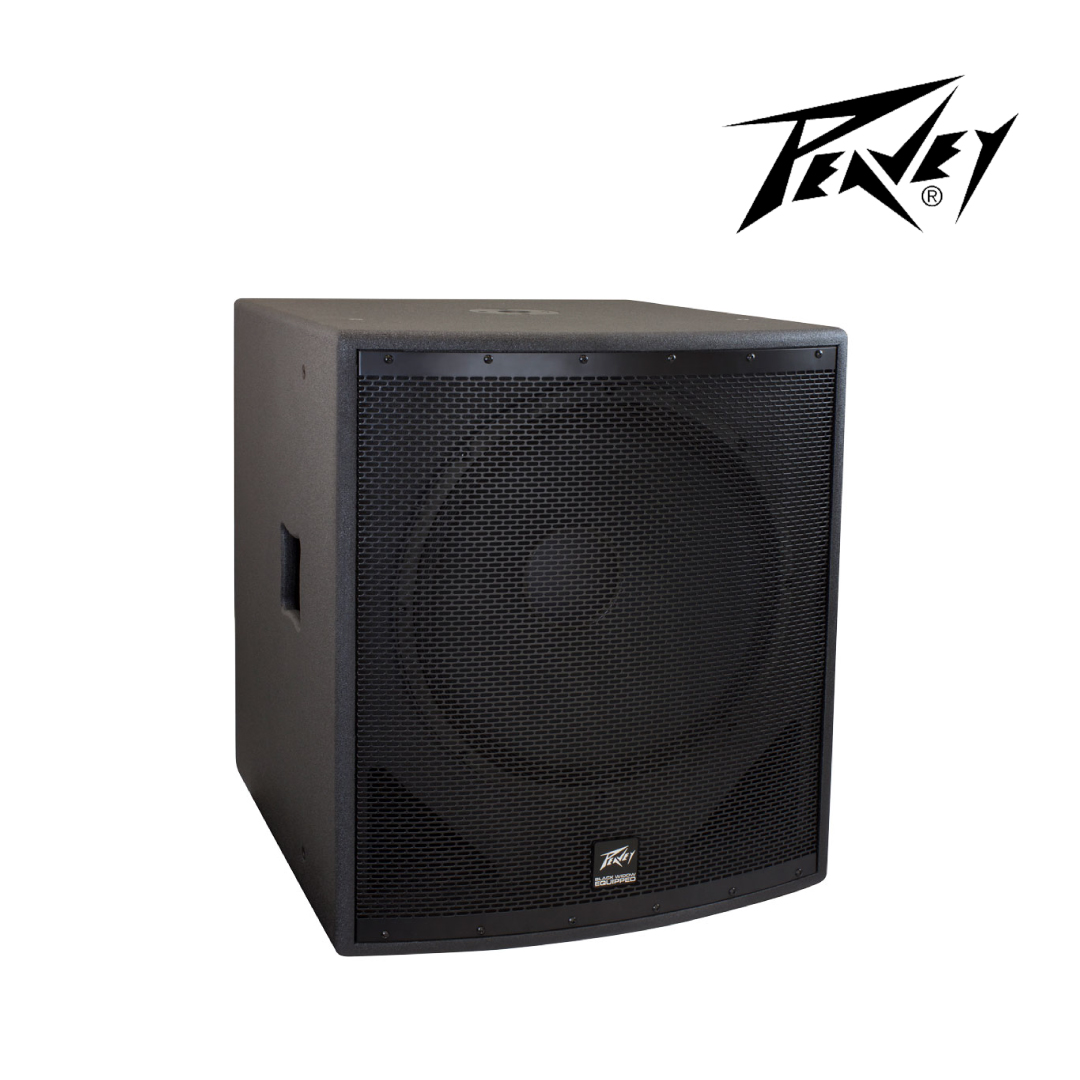

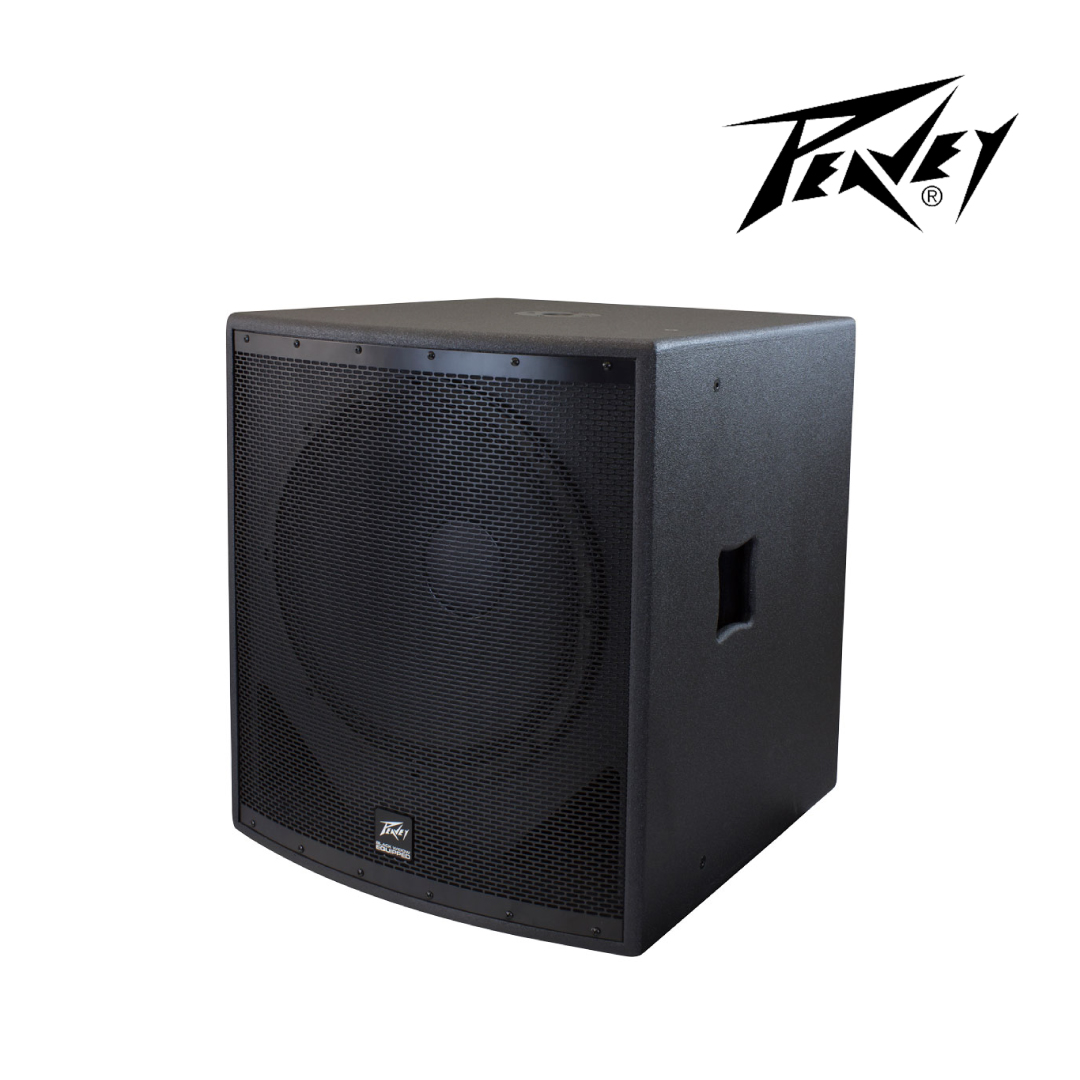

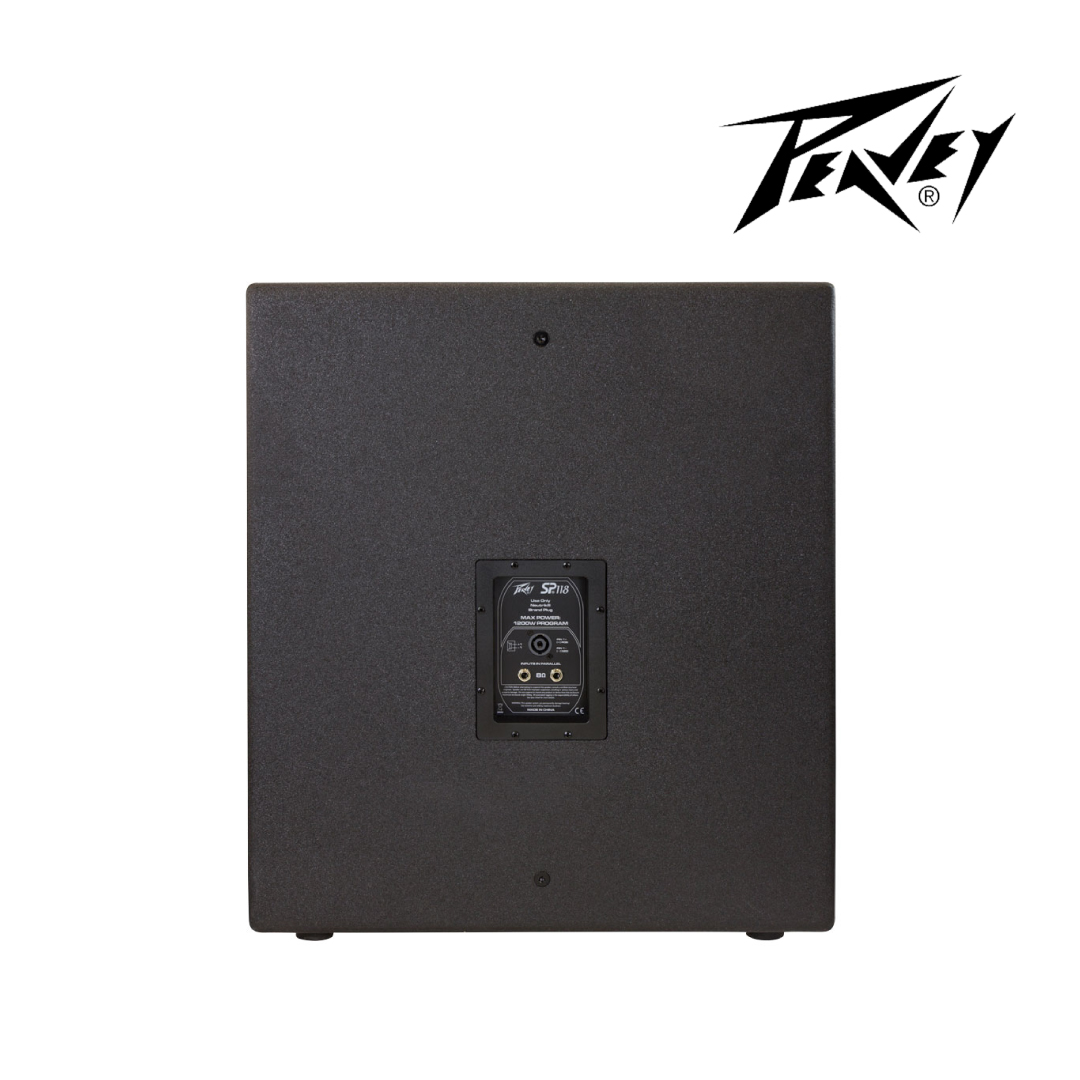

Peavey SP® 118 Sub
The SP® 118 subwoofer features an 18″ 1808-8 AL CP Pro Rider® woofer. Power handling is 1200 Watts program and 2400 Watts peak, with low frequency response down to 41 Hz. Inputs include one four-pin twist lock connector and two 1/4″ phone jacks. Threaded pole for mount is included.
Description
- 18” 1808-8 AL CP Pro Rider® woofer
- 1200 watts program, 2400 watts peak
- Inputs include one four-pin twist lock connector and two 1/4” phone jacks
- Pole mount plate built-in, threaded for positive pole support
- Threaded pole for mount included
- Multiple Fly Points
Auditoriums
Live Concert
Nightclubs, Bars, Dance Venues
Outdoor Event Space
Large Corporate Events
Trade Shows
| Frequency Response (1m, on-axis, anechoic environment) | 51 Hz – 320 Hz (±3 dB) |
| Usable Low Frequency Limit (-10 dB point) | 41 Hz |
| Power Handling (Low Frequency Section) | 600 W continuous, 1,200 W program, 2,400 W peak |
| Sound Pressure Level (SPL) | 1W / 1m (anechoic): 98 dB SPL (2.83 V input) Maximum SPL (1m): 126 dB continuous, 132 dB peak |
| Transducer Complement | 1 × 18” woofer (vented), Model: 1808-8 AL CP Pro Rider® |
| Box Tuning Frequency | 43 Hz |
| Recommended Active Crossover Frequency | 120 Hz at 24 dB/octave (Linkwitz-Riley) |
| Recommended Infrasonic (High-Pass) Filter | 40 Hz or higher at 24 dB/octave (Linkwitz-Riley) |
| Impedance (Low Frequency) | Nominal: 8 Ω, Minimum: 5.7 Ω |

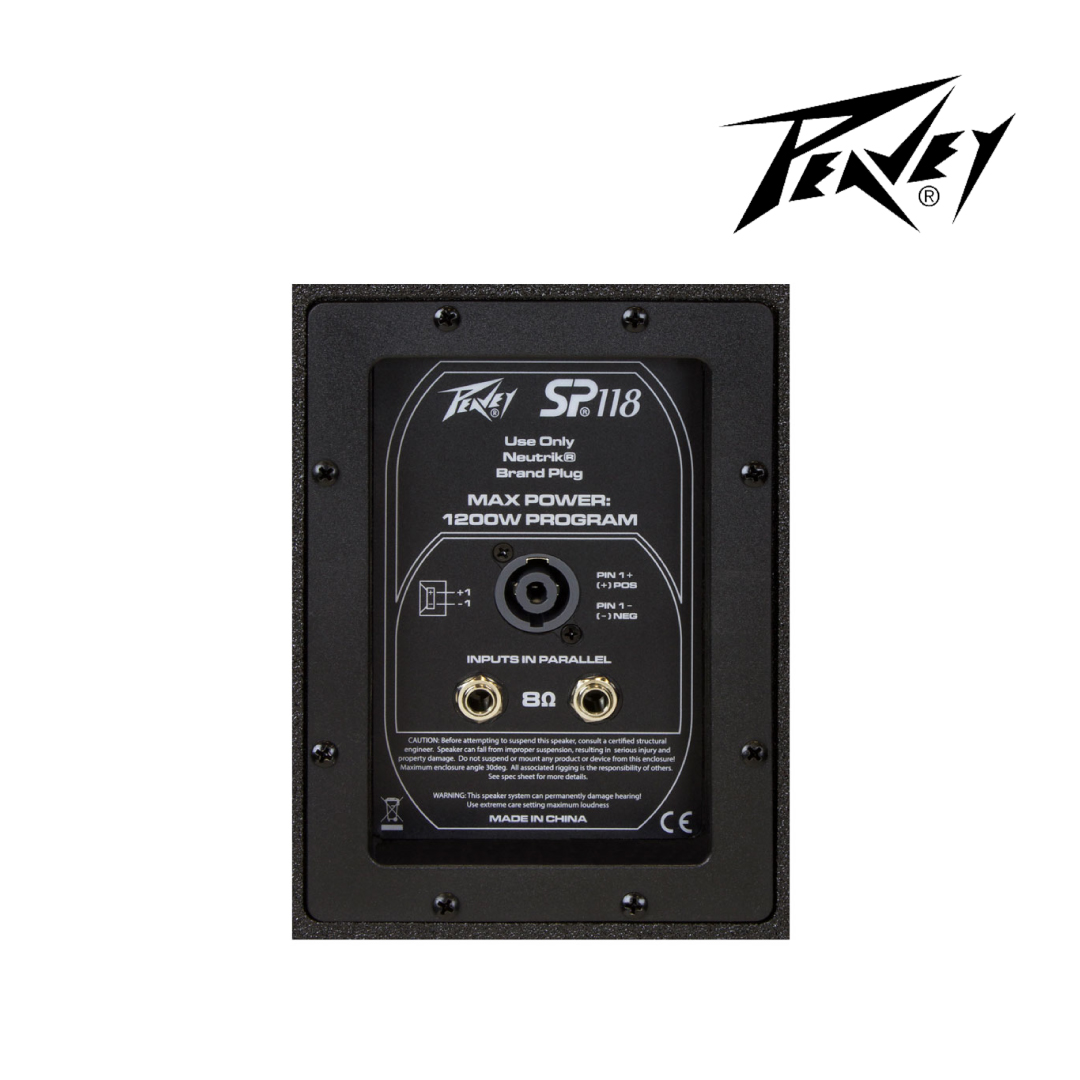

| Input Connections | Two ¼” phone jacks, One four-pin twist-lock jack |
| Enclosure Material & Finish | Plywood cabinet with black textured polyurethane coating, Full-length black powder-coated metal grille |
| Mounting Provisions | Top box stand pole mount (M20 threaded), 12 × M8 threaded mounting/suspension points, 3 top, 3 bottom, 2 each side, 1 top rear, 1 bottom rear, Four large rubber feet for floor use |
| Dimensions (H × W × D) | 26.38” × 22.84” × 24.5” |
| Net Weight | 77 lbs (35.0 kg) |
