ESD Cube

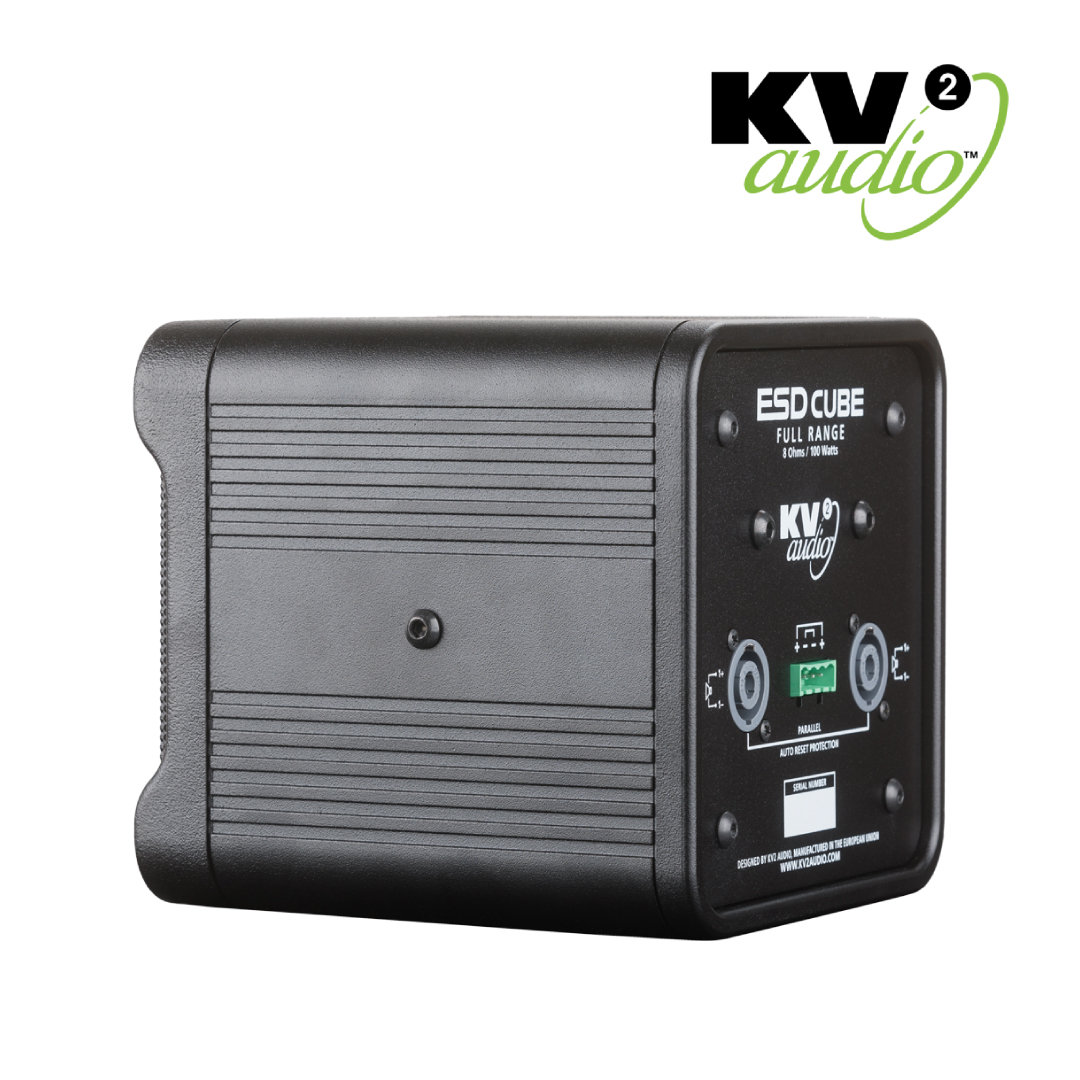

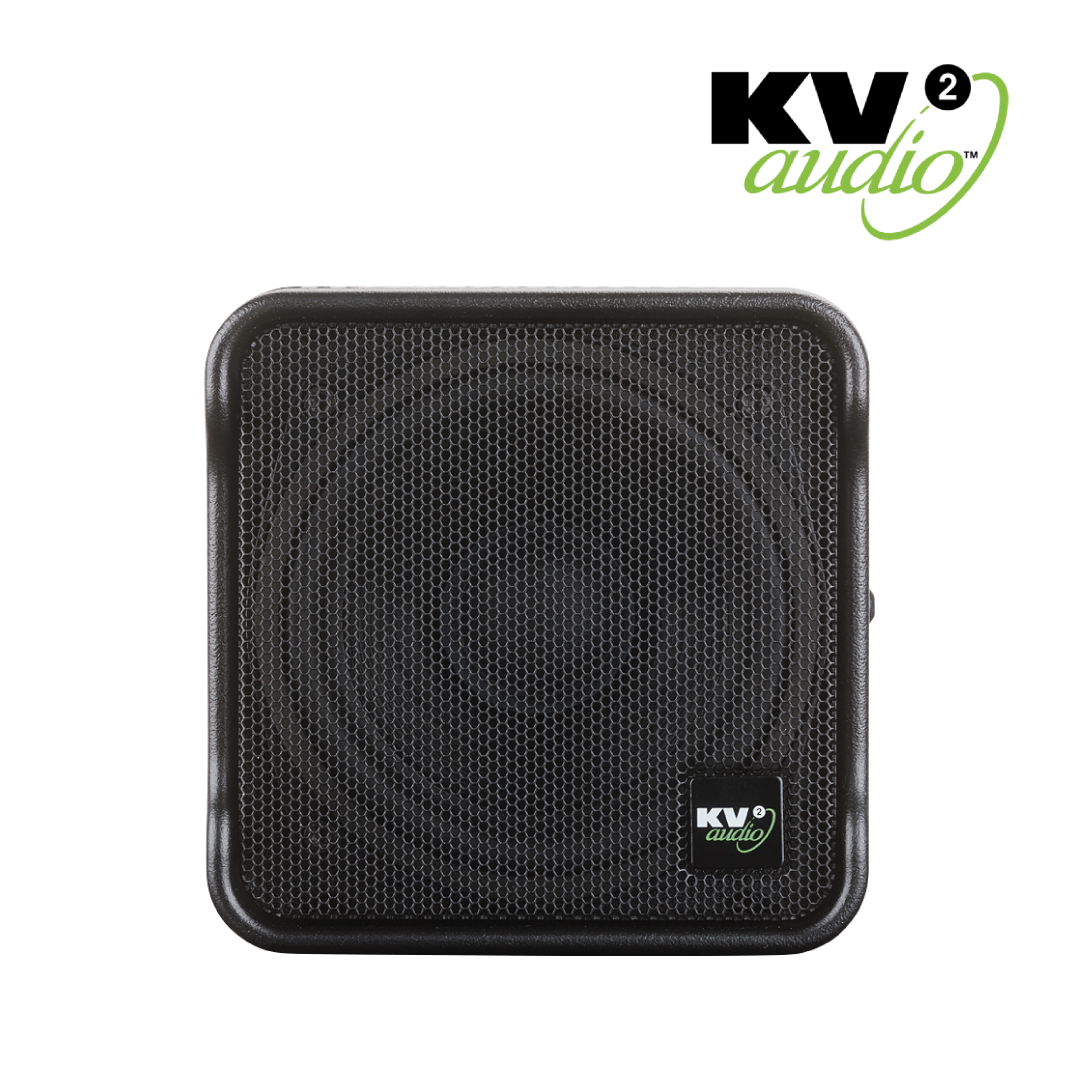

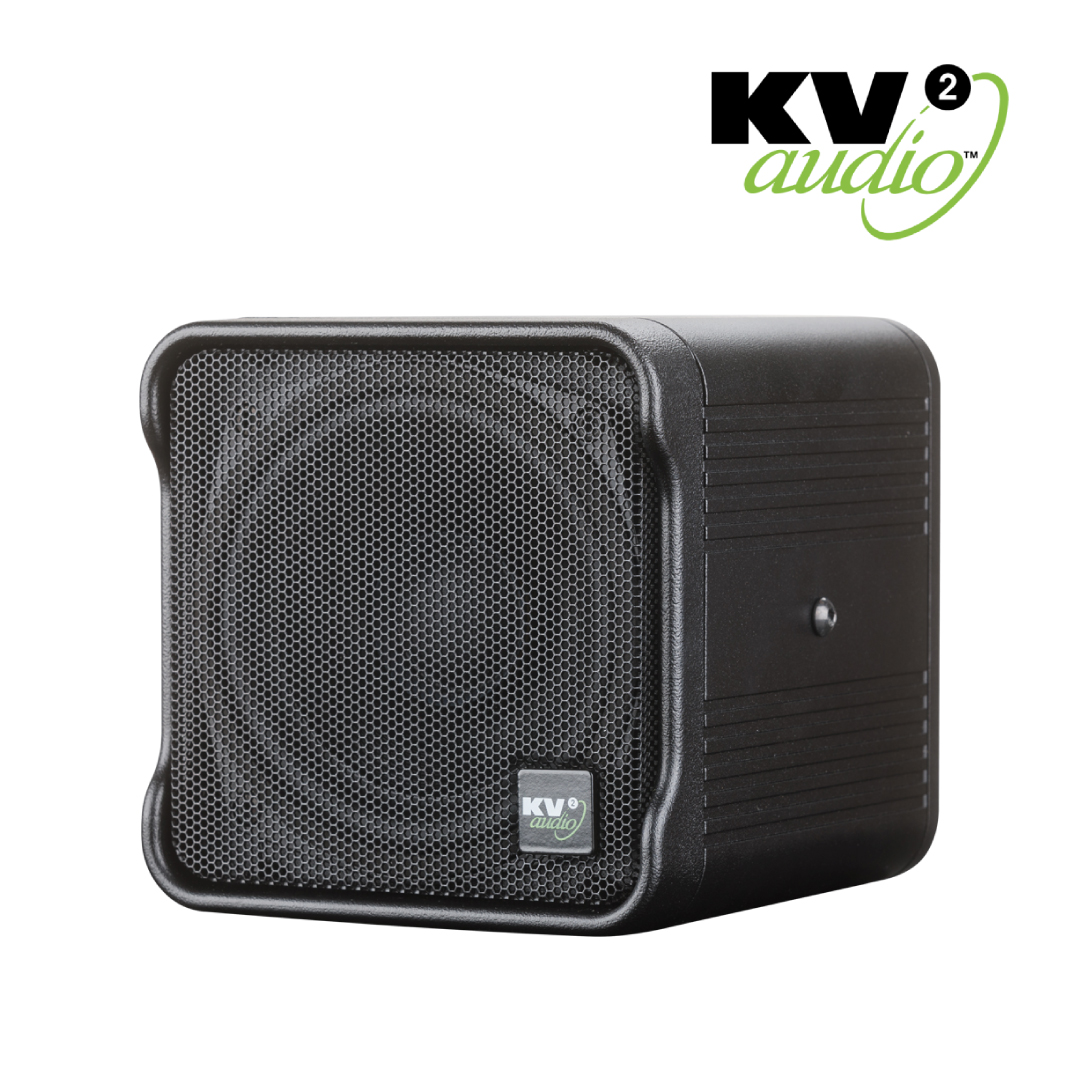

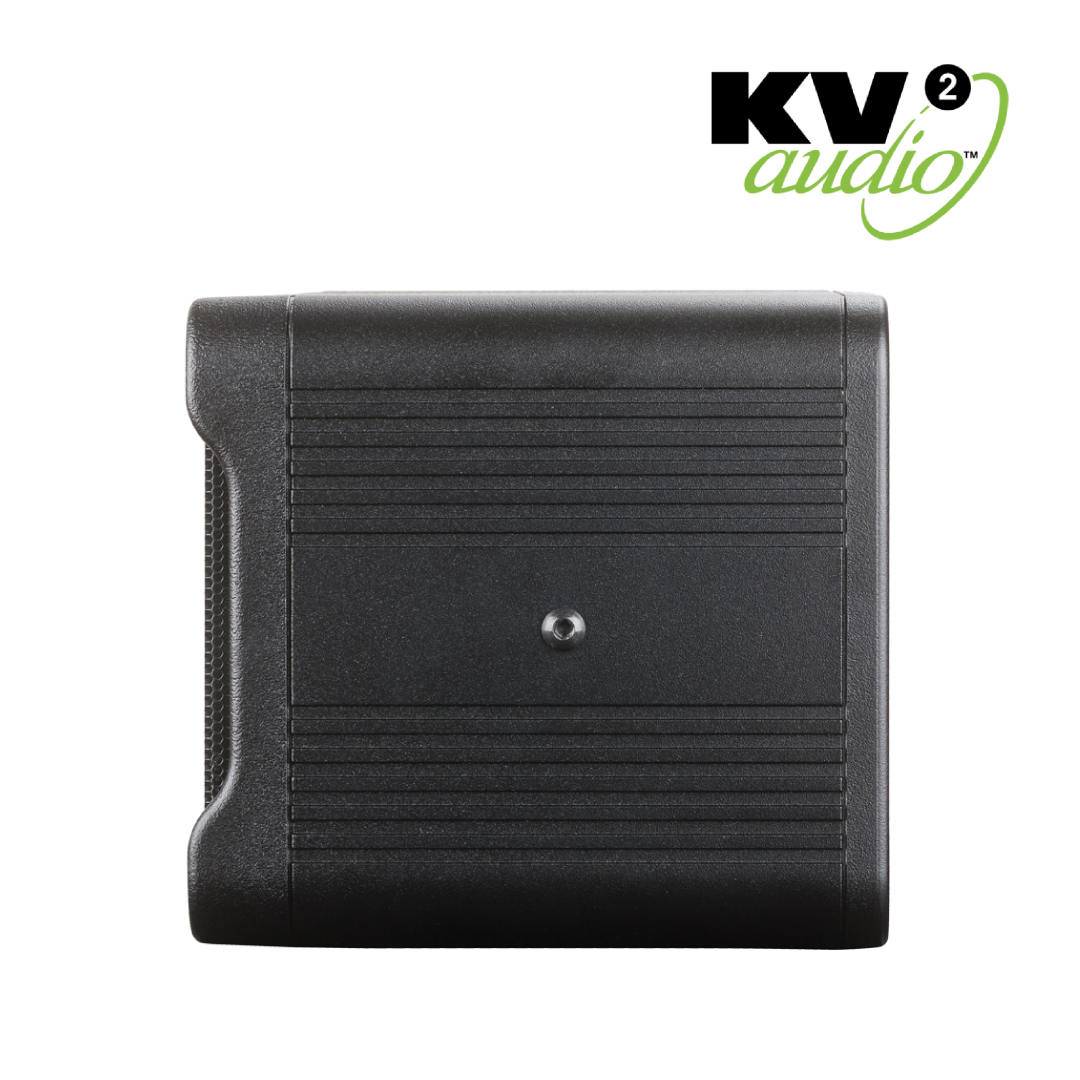

The ESD Cube is a very high quality ultra compact low profile 5” passive loudspeaker utilising a unique trans-coil design for superior vocal reproduction, extended high frequency response, increased dynamic range and the lowest distortion of any comparable speaker in its class. Housed in an aluminium enclosure its compact dimensions make it extremely discreet for peripheral reinforcement in theaters, bars, clubs, churches, museums or Tourist attractions. Along with our new ESP1000 amplifier a combination of up to 8 ESD Cube units, or 4 Cube units with either one or two ESD1.10 subwoofers can be run – learn more about the combinations. A simple proprietary flying bracket completes the system for a low profile look and easy installation and it’s included with the box.
- Tough, durable aluminium construction with wear resistant polymer coating
- 116dB sustained output, 119dB peak with very high dynamic range
- Ultra Compact enclosure design allows for use as ceiling mount, front fill, in-fill or under balcony applications
- Wide dispersion 80° x 80° – 5″ woofer featuring Trans-coil AIC technology for superior vocal reproduction, high frequency
extension and dramatically reduced distortion. - Neodymium motor structure and Lightweight voice coil technology dramatically increases force and lowers distortion
further - Proprietary hanging design for simplified mounting
Restaurants and cafés
Retail shops and boutiques
Museums and galleries
Hotels and lobbies
Corporate meeting rooms and boardrooms
Houses of worship (side-fill / under-balcony)
Bars and lounges
Small theatres
Tourist attractions / exhibition spaces
As front-fill or delay speakers in performance venues
| Max SPL Long-term | 110dB |
| Max SPL Peak | 116dB |
| -3dB Response | 90Hz to 18kHz (with ESP1000 equalization) |
| Recommended Power | 100W |
| Sensitivity | 90dB |
| Impedance | 8Ω |
| Crossover Point | no – full range |
| Acoustic Design | Closed box, Front Loaded |
| Magnet Type | Neodymium |
| Protection | Thermal breaker – autoreset |
| Number of drivers | 1 |
| Woofer Size | 5″ AIC Trans-coil |
| Diaphragm Material | Epoxy Reinforced Cellulose |
| Output channels | 1 |

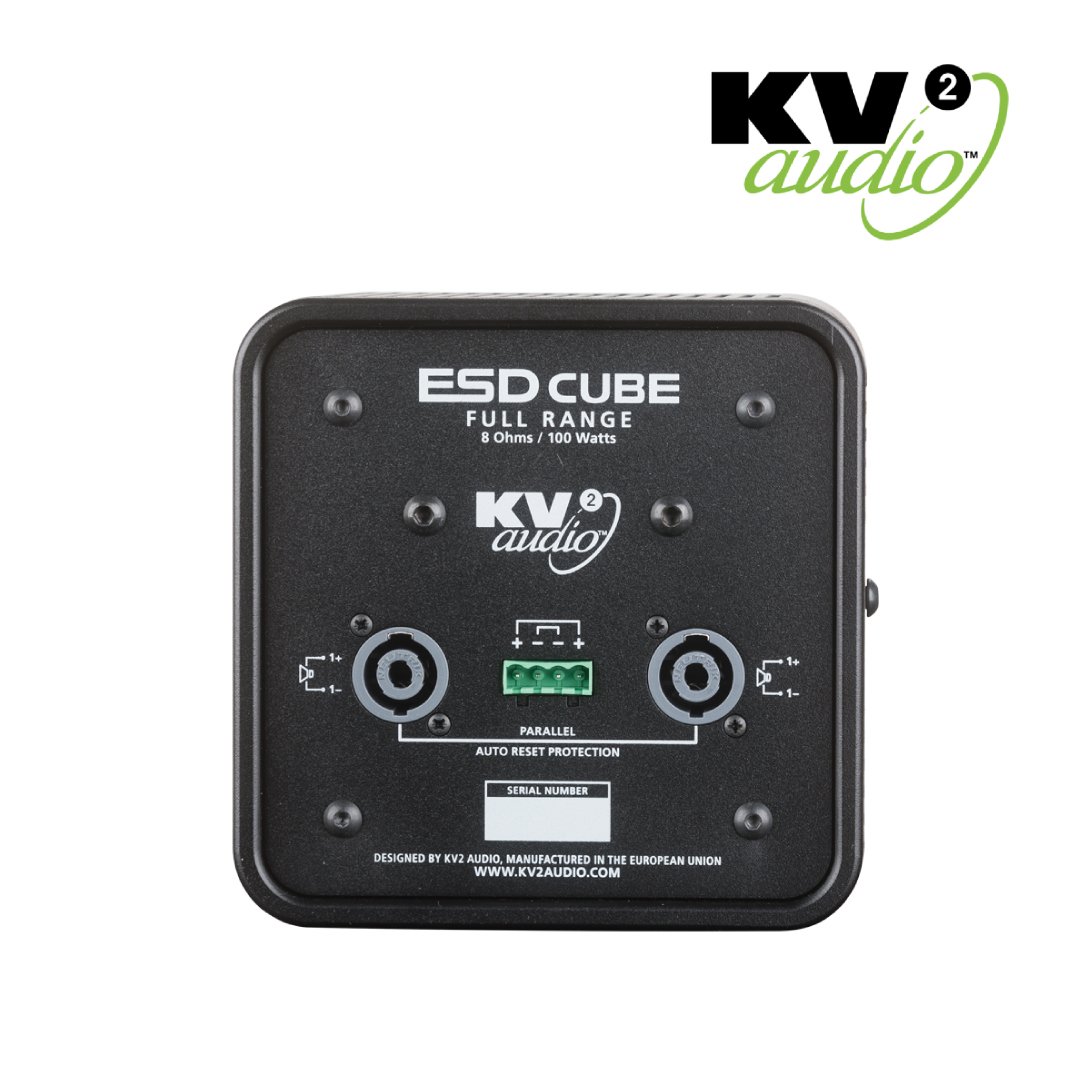

| Speaker Input | 2x Neutrik Speakon®, Terminal Block |
| Cabinet Material | Extruded Aluminium |
| Color | Matt Black or any RAL |
| Height | 154 mm (6″) |
| Width | 154 mm (6″) |
| Depth | 163 mm (6.4″) |
| Weight | 3 kg (6,6 lbs) |
