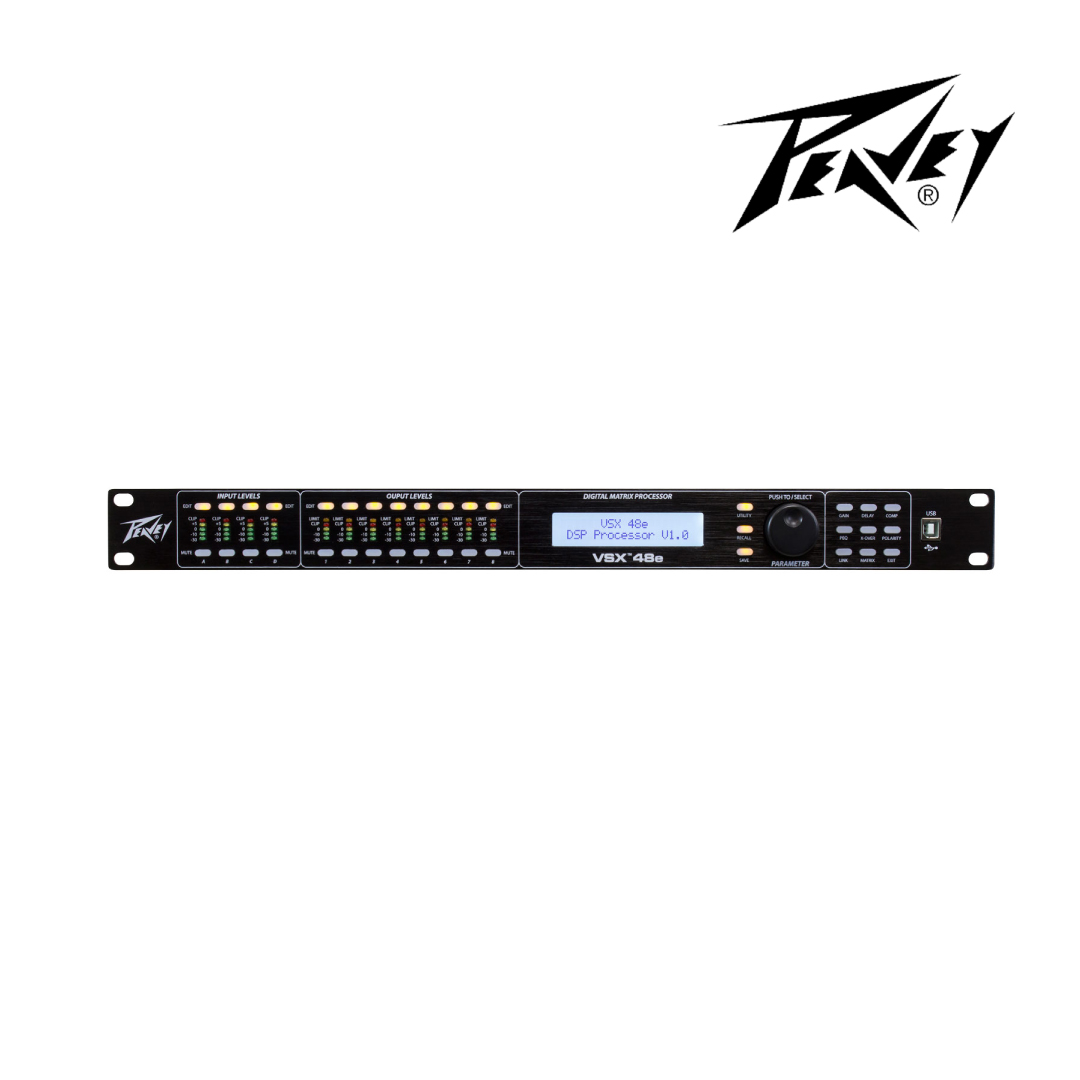

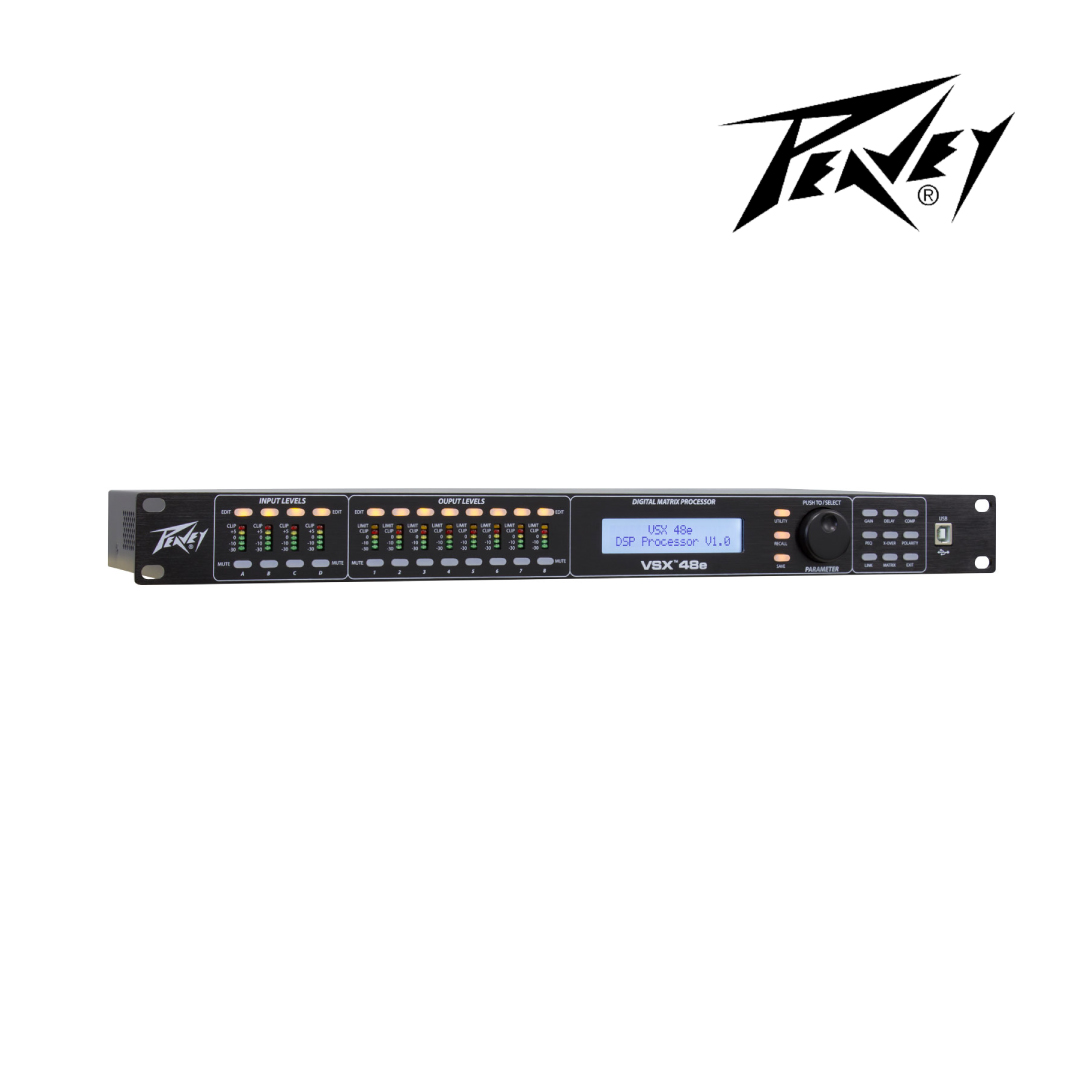

Peavey VSX® 48e
The VSX® 48e processors is a DSP-based, loudspeaker management system that boast a 96 kHz sample rate and a floating point DSP processor for quiet accurate filter response. The crossover filters are fully adjustable and any input can be routed to any output. The VSX Editor Software for PC allows complete remote setup and operation via the front panel USB port or by the rear panel Ethernet network connection. Files can also be saved and loaded using this interface software.
Description

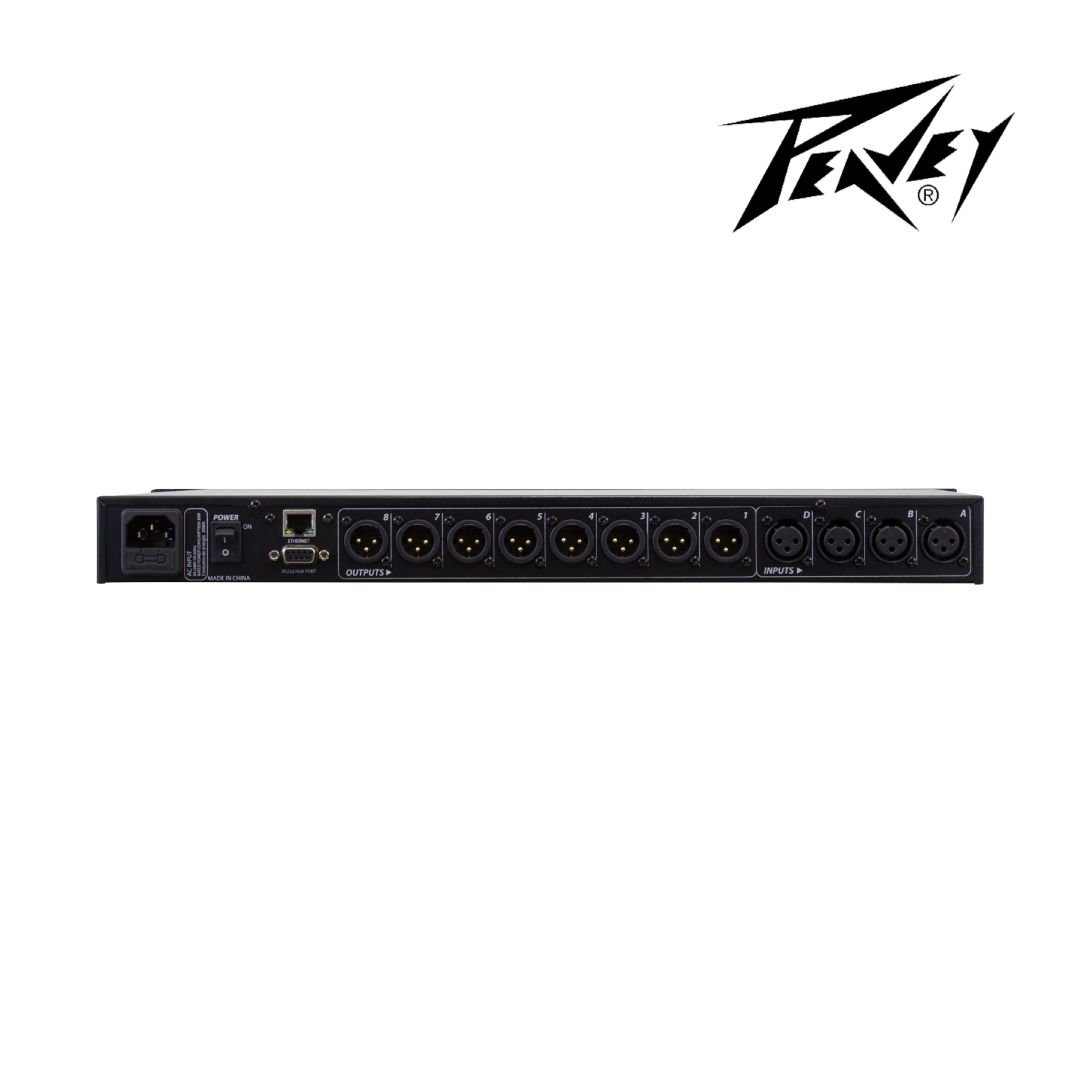

- Balanced Inputs: 4 x XLR
- Balanced Outputs: 8 x XLR
- EQ filter types include: PEQ, Low-Shelf, Hi-Shelf, Low-Pass, High-Pass, All-Pass1 and All-Pass2
- Crossover/Band-pass filters feature Butterworth, Bessel or Linkwitz-Riley alignments from 1st order (6 dB/Oct) to 8th order (48 dB/Oct)
- Signal generator (sine, white noise, pink noise)
- Channels can be linked for simplified stereo operation
- Every output features: 9-band PEQ, gain, compressor/limiter, polarity, Delay (680 ms), mute, and crossover/band-pass filters
- 5-segment LED meters with limit indication on each output
- 5-segment LED meters on each input
- Maximum input and output level +20 dBu, XLR balanced inputs and outputs
- Every input features Gain, Mute, HP and LP filters, 8-band PEQ, polarity and Delay (680 ms)
- Security lock
- Dynamic range input to output greater than 109 dB (A-weighted) or 107 dB (unweighted)
- 24-bit Delta-Sigma A/D and D/A converters
- Ethernet & USB “B” port for setup and control
- 96 kHz Sample rate
- PC Editor Software allow complete remote setup and operation via USB or Ethernet
Hospitality or Retail Areas
Theatres
Casinos
Conference Centres
Houses of Worship
Educational Facilities
| Channels (Input) | 4 |
| Channels (Output) | 8 |
| DSP On-Board | Yes |
| Network Control | Yes |
| Frequency Response | 10 Hz – 21 kHz; +0 / -0.5 dB |
| Mute Groups | Yes |
| Front Panel Control | Yes |
| Input Connectors | 4 x XLR |
| Output Connectors | 8 x XLR |
| Color | Black |
| Rack Mount (19″) | Yes (1U) |
| Net Weight | 5.3 lbs (2.39 kg) |
| Product Height | 1.75″ (45 mm) |
| Product Width | 19.00″ (483 mm) |
| Product Depth | 8.25″ (210 mm) |
| AC Power Input | Universal Power Supply 95-240VAC 50/60 Hz |
| SKU | 4000130 |
