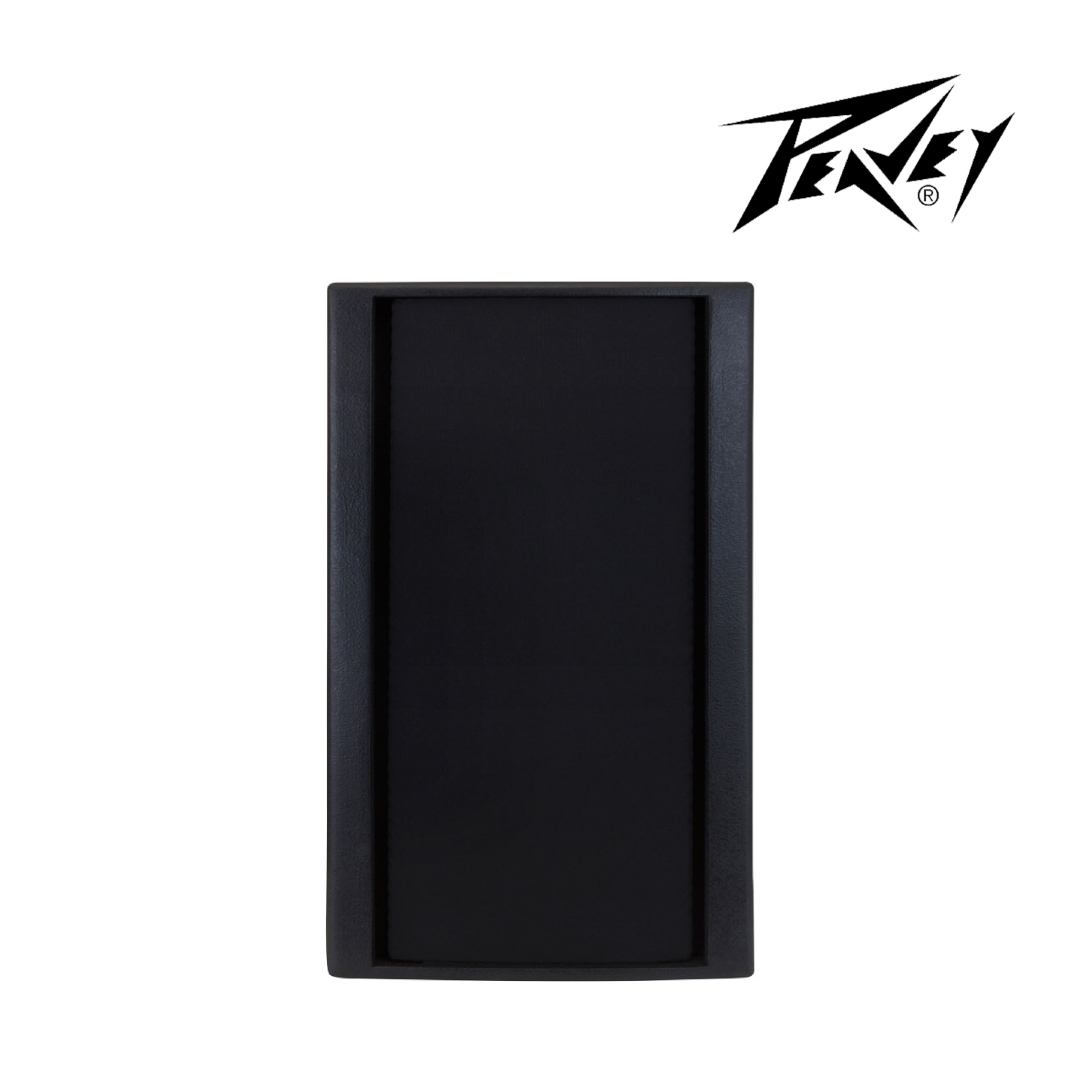

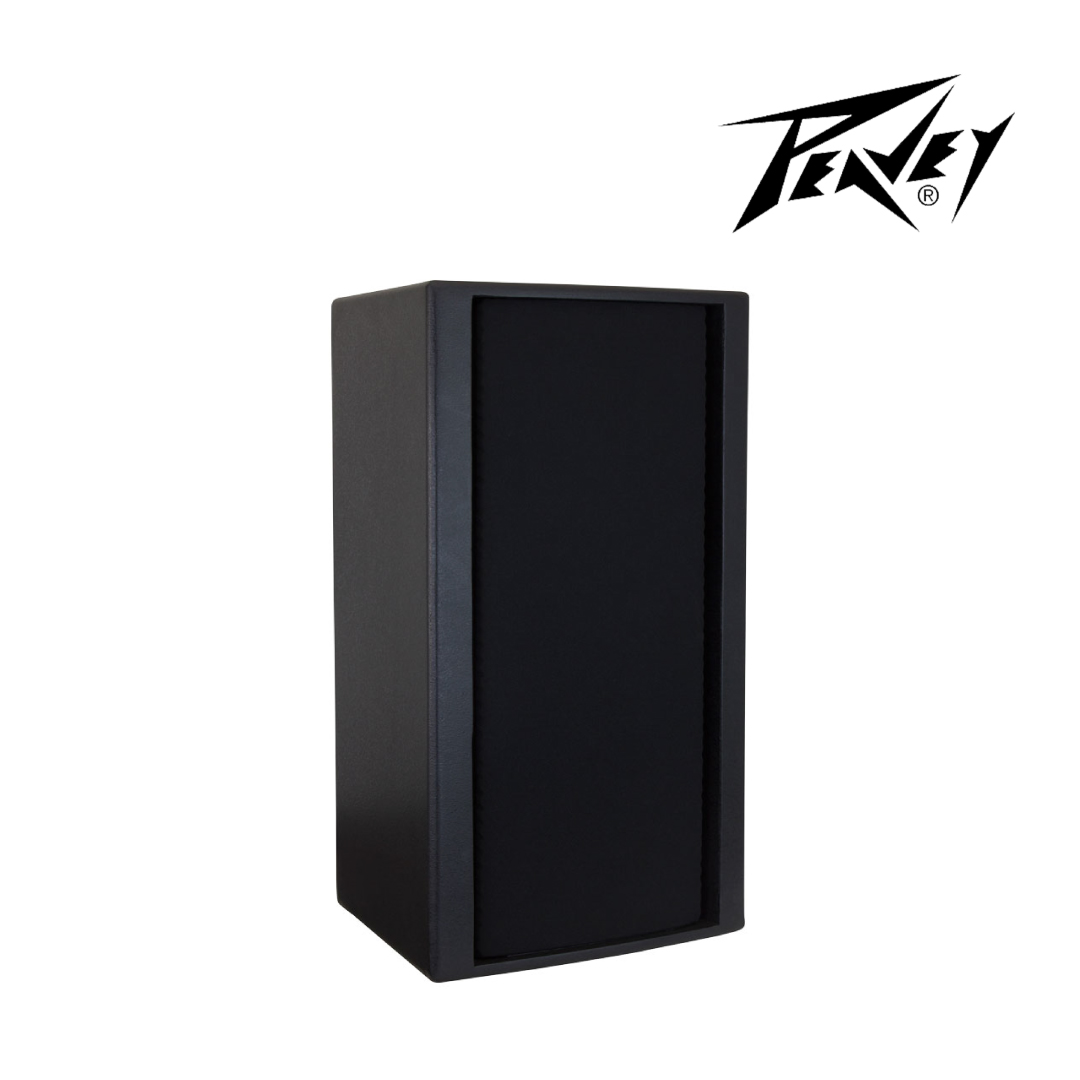

Peavey SSE 6
The SSE™ 6 is a two-way system featuring the highly acclaimed Peavey 14XT™ titanium compression driver with a Sound Guard™ IV tweeter protection network and a maximum-performance 6.5″ woofer.
It is rated at 150 Watts program and 300 Watts peak. This lightweight speaker system is ideal for smaller venues where space is at a premium. Connections include a four-pin Neutrik® Speakon® or a paralleled two-position terminal block for additional cabinets.
- Two-way sound reinforcement enclosure
- Premium 6.5″ woofer
- Peavey 14XT titanium compression driver
- Sound Guard IV tweeter protection network
- Designed for permanent installation
- Mounting point for VersaMount™ 35 bracket
- Power Handling: 150 Watts program / 300 Watts peak
- Frequency Response: 100 Hz to 17 kHz
- Sensitivity: 90 dB (1W/1m)
- Impedance: 8 Ω
- Color: Black
Restaurants and Cafes
Retail Stores and Boutiques
Hotels and Lobbies
Houses of Worship
Fitness Centers and Studios
Museum and Galleries
| Frequency Response (1m, on-axis, anechoic environment) | 100 Hz – 17 kHz (±3 dB) |
| Usable Frequency Range (-10 dB point) | 80 Hz – 21 kHz |
| Power Handling (Full Range) | 150 W program, 300 W peak |
| Sound Pressure Level (SPL): | 1 W / 1 m (anechoic): 90 dB SPL (2.83 V input), Maximum SPL (1 m): 108.8 dB SPL continuous, 114.8 dB SPL peak |
Radiation Angle (-6 dB point of polar response) | 500 Hz – 1.6 kHz: Horizontal: 145° ± 55°, Vertical: 165° ± 100° 1.6 kHz – 5 kHz: Horizontal: 115° ± 65°, Vertical: 110° ± 70° 5 kHz – 16 kHz: Horizontal: 95° ± 15°, Vertical: 95° ± 15° |
| Directivity | Directivity Factor (Q): 5.93 ± 3.06, Directivity Index (Di): 7.03 dB ± 2.65 dB |
| Transducer Complement | Low Frequency: One 6.5″ premium Peavey woofer. High Frequency: Peavey 14T™ titanium diaphragm compression driver on a 90° H × 90° V conical horn |
| Box Tuning Frequency | 100 Hz |
| Harmonic Distortion | 1% rated power: 2nd Harmonic: 100 Hz = 0.54% | 1 kHz = 0.25%, 3rd Harmonic: 100 Hz = 1.97% | 1 kHz = 0.46% 10% rated power: 2nd Harmonic: 100 Hz = 0.98% | 1 kHz = 0.66%, 3rd Harmonic: 100 Hz = 2.45% | 1 kHz = 0.66% |
| Crossover Frequency (Internal Passive) | 2.4 kHz |
| Impedance (Full Range) | Nominal: 8 Ω, Minimum: 8.5 Ω |

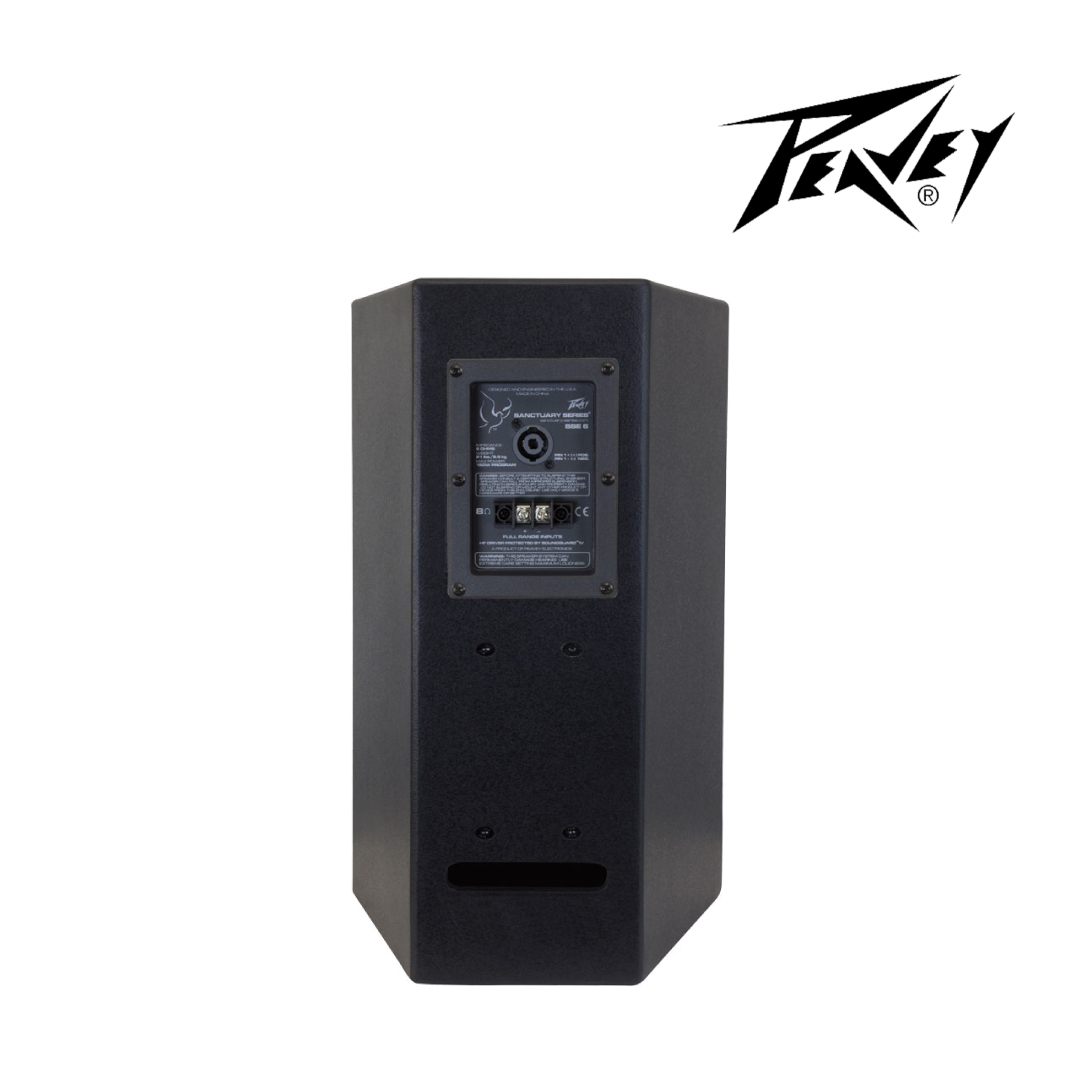

| Input Connections | One 4-pin twist-lock connector (parallel), One two-position terminal strip |
| Enclosure Material & Finish | Trapezoidal, dado-joined 13 mm birch plywood, Textured acrylic polyurethane finish (black or white), Full-length metal grille with acoustical-grade cloth |
| Mounting Provisions | Includes mounting bracket and hardware for horizontal wall or ceiling mounting, Bolts: M6 × 1.0 mm × 30 mm, (4) M6 threaded mounting points on rear for Versamount™ 35 adjustable bracket |
| Dimensions (H × W × D) | Front: 16.41″ × 9.95″ × 9.47″ (417 mm × 253 mm × 240 mm) Rear: 16.41″ × 5.23″ × 9.47″ (417 mm × 133 mm × 240 mm) |
| Net Weight | 21 lbs (9.5 kg) |
