Cuboid 15
Cuboid 15 is a full range, two-way, passive, 15” loudspeaker designed to perform. For any applications requiring big output, it effortlessly delivers rich and detailed sound with extra punch and precision.

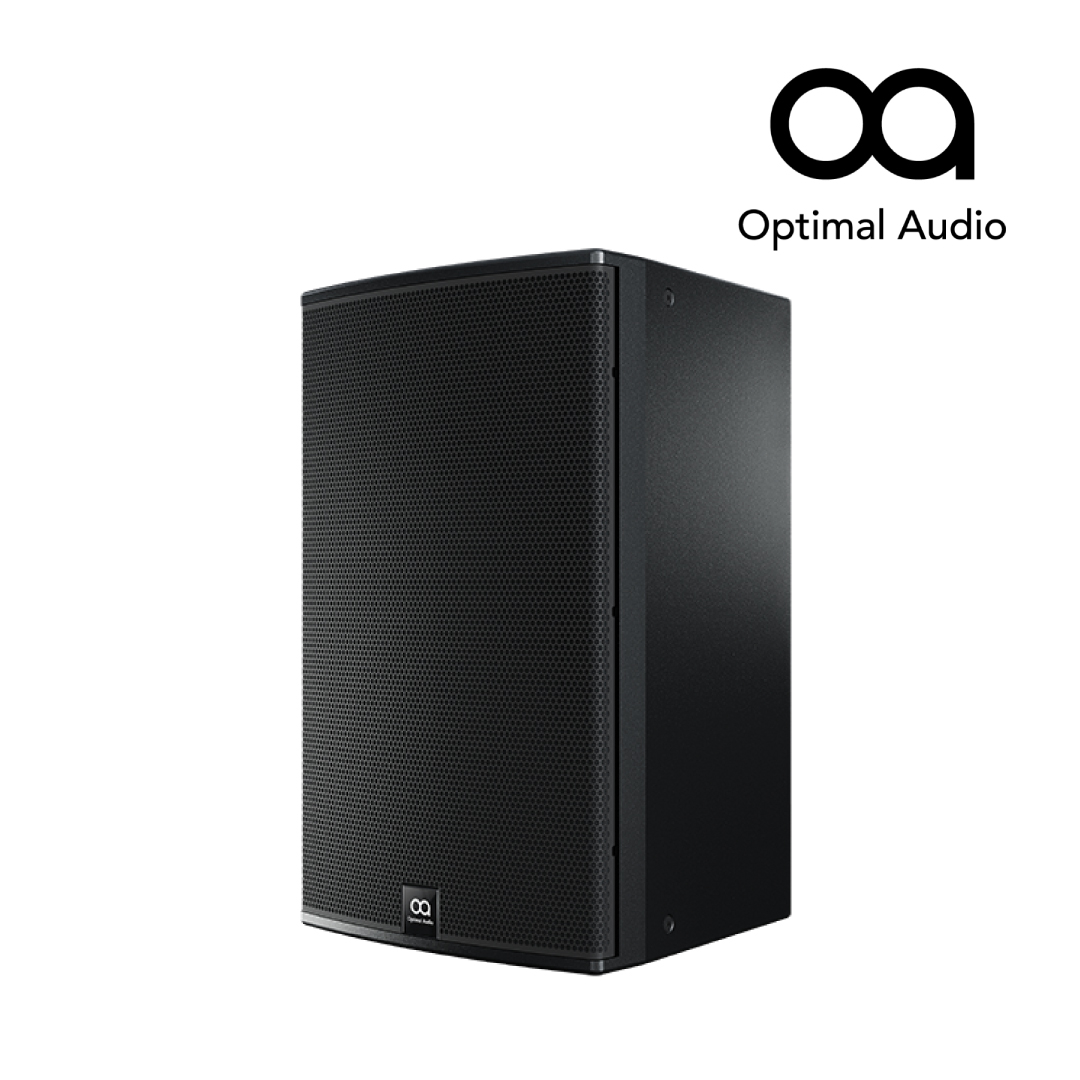

With its wooden cabinet, steel grille and optional mounting hardware the professionally presented Cuboid 15 can be fixed in either portrait or landscape mode for a flexible, simple installation.
Cuboid 15 features a 15” (380mm) low frequency (LF) driver for extra bass and midband with a 1″ (25mm) exit high frequency (HF) compression driver for clarity of vocal and high frequency projection. The HF section delivers consistent coverage in either plane from a user-rotatable horn.
For enhanced bass performance, Cuboid 15 can be teamed with Sub 15.
When teamed with Zone and WebApp, system set up and end user control is straight forward, and can be further supplemented by ZonePad wall controllers.
- Wooden cabinet
- Portrait or landscape mounting options
- Rotatable high-frequency horn
- 58Hz – 18kHz frequency response ±3dB
- Maximum SPL 126dB (continuous), 132dB (peak)
- 80° horizontal x 50° vertical coverage
Bar/Restaurants
Wedding Venues
Hotels
Educational Facilities
House of Worship
Fitness Studios
| TYPE | Two-way, full range, passive loudspeaker |
| FREQUENCY RESPONSE (with preset) | 58Hz – 18kHz ± 3dB -10dB @ 40Hz |
| DRIVERS | LF: 15” (380mm), ferrite motor system |
| HF: 1” (25mm) exit/1.75” (44mm) voice coil, polymide dome compression driver | |
| RATED POWER | 500W (AES) 2000W (Peak) |
| NOMINAL IMPEDANCE | 8 Ohms |
| SENSITIVITY (1W/1m) | 99dB |
| MAXIMUM SPL | 126dB (cont), 132dB (peak) |
| CROSSOVER | 2.3kHz passive |
| DISPERSION (-6dB) | 80˚ H x 50˚ V (user-rotatable) |

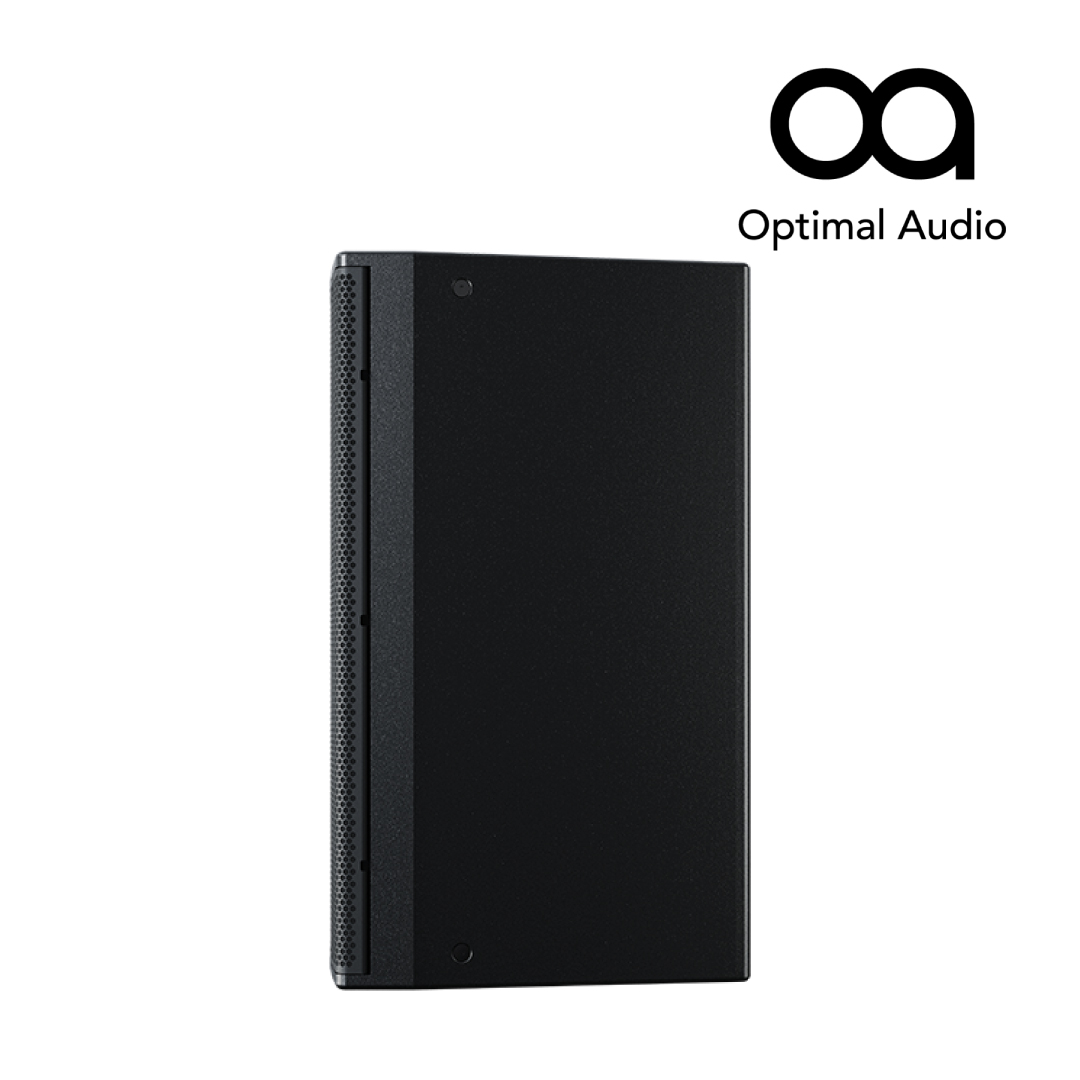

| ENCLOSURE | Trapezoid wooden cabinet |
| FINISH | Black textured paint |
| PROTECTIVE GRILLE | Black perforated steel with scrim cloth backing |

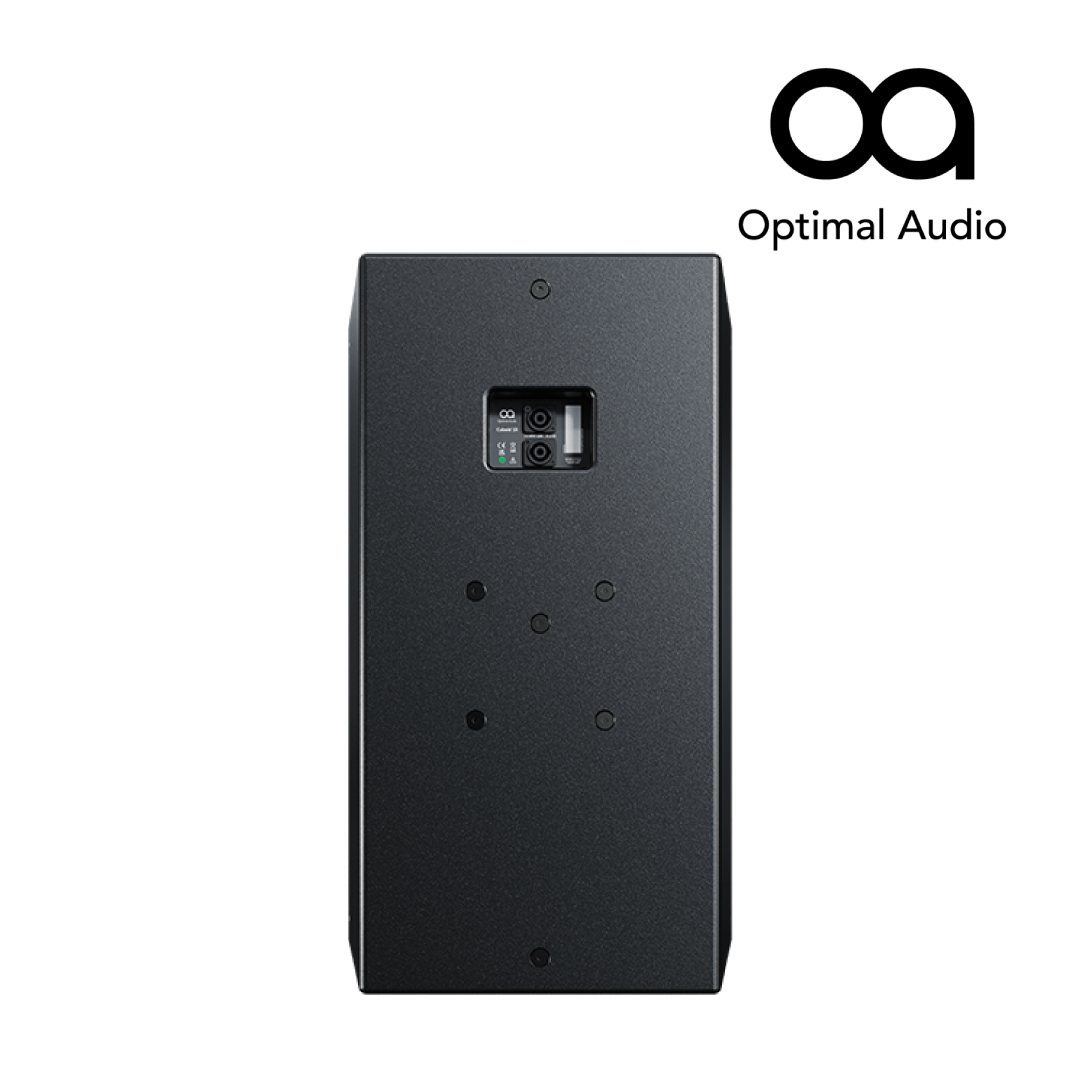

| CONNECTORS | 1x NL4, 1x 4 pin Euroblock |
| PIN CONNECTIONS | NL4 Input only 1+/1-, 4-pin Euroblock with +/- for input and +/- for link connections |
| FITTINGS | 19 x M8, inset bolts |
| DIMENSIONS | (W) 426.5mm x (H) 691.5mm x (D) 416mm ( W) 16.79” x (H) 27.22” x (D) 16.38” |
| WEIGHT | 28kg (61.73lbs) |
