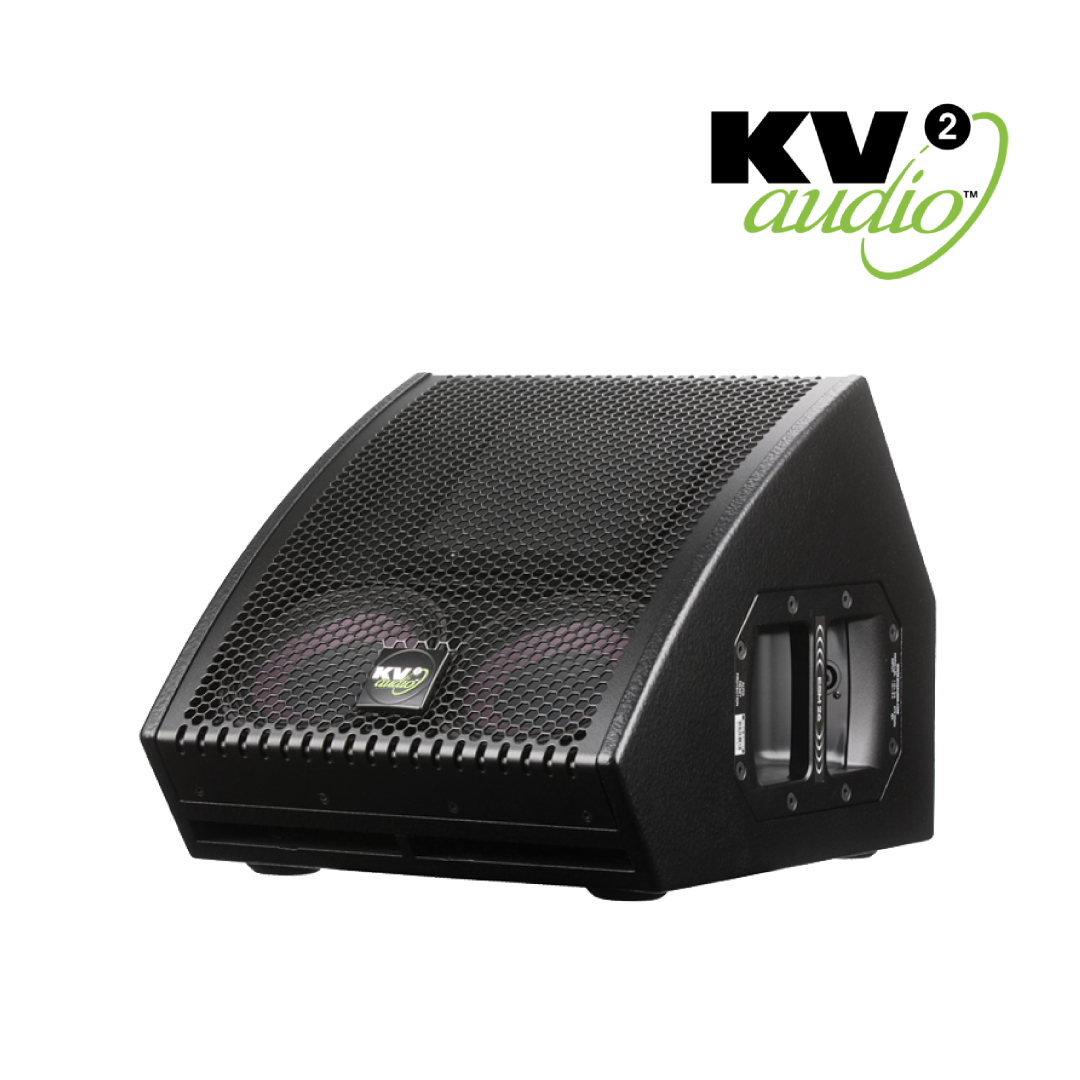

ESM 26

The ESM26 is a purpose built stage monitor with incredible clarity and presence, especially in the all important vocal range. Incorporating two high quality 6″ drivers and a 1.75″ compression driver on a 100 x 100 degree horn flare. The ESM26 utilises KV2’s revolutionary delay line technology for optimum output and feedback rejection. A full width bass port along the bottom of the cabinet couples with the floor to deliver bass response comparable to monitors twice its size. Under 400mm wide this small monitor takes up minimal room on stage and is ideal for visually critical applications like TV and theatre.

The ESM26 is a high quality professional stage monitor. Compact in size the ESM26 at just 374 mm wide and 340 mm high and weighing only 15 kgs delivers incredible clarity and high output that defies it’s small dimensions. With a sensitivity of 98dB@1 watt the ESM26 can deliver a peak output of 126dB while retaining pristine sound reproduction
The ESM26 incorporates KV2’s unique analog delay line technology as utilised in their popular new ESD range of speakers. This circuit, incorporated into the speakers crossover network provides the monitor with perfect time alignment and phase correction, without the need for external processors and bi amping. The savings this feature provides are substantial, halving amplifier costs and the need for expensive processors
With perfect phase control inbuilt, the ESM26’s rejection to feedback is superb, and absolutely minimal EQ, if any, is needed to create amazing results with this little powerhouse. The ESM26 incorporates two low inductance, long excursion high quality six inch drivers in a bass reflex cabinet with auto reset protection. A full width port along the bottom of the cabinet provides direct coupling with the floor for enhanced bass response. The new patent pending 1.75″ titanium diaphragm compression driver incorporates a complex geometry phase plug for higher output, exceptionally low distortion and extended frequency response. It is connected to a 100 x 100 degree horn for wide and deep dispersion, so the performer has a good coverage regardless of movement

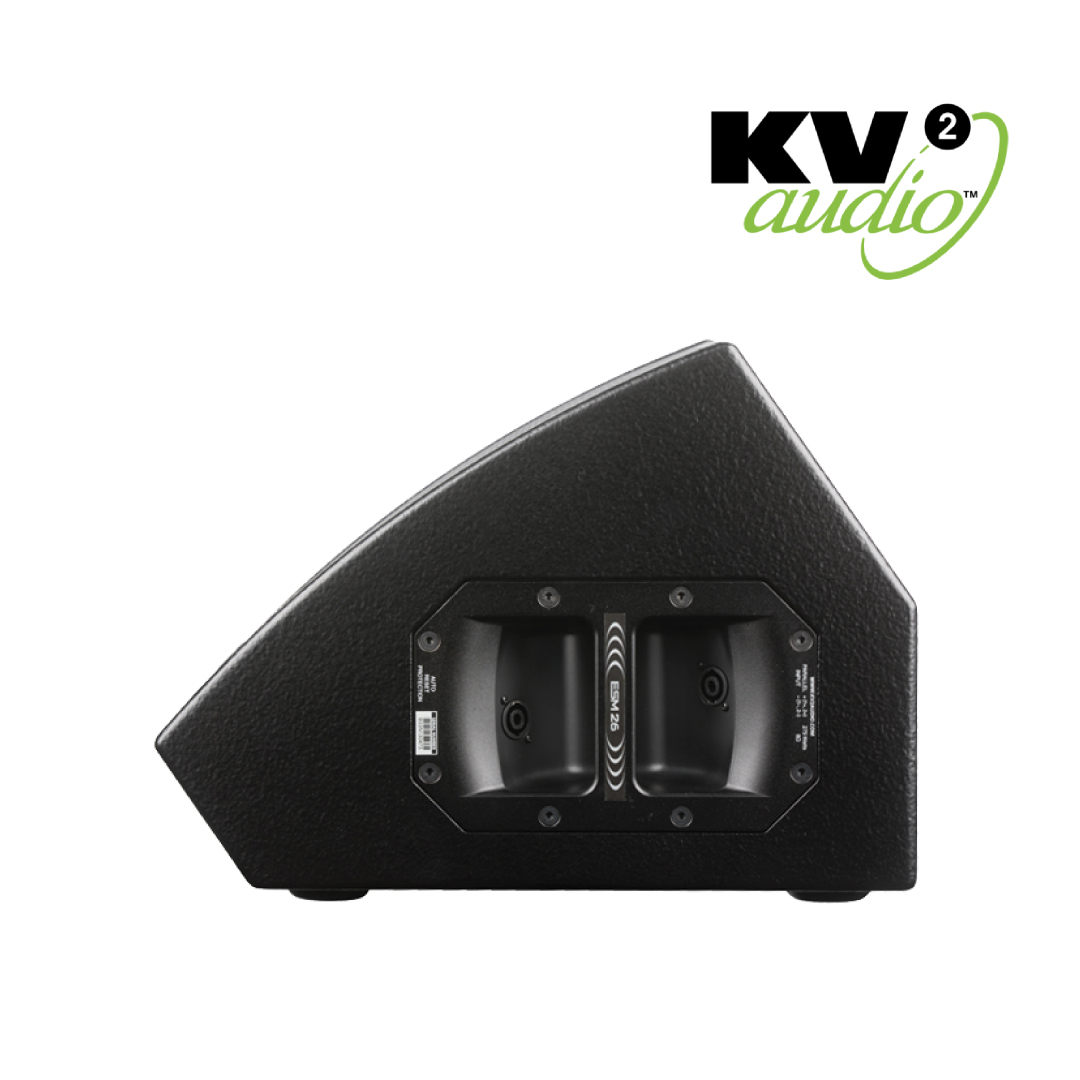

Unlike many of today’s stage monitor designs which use very shallow angles for aesthetic appeal, the ESM26 incorporates a steeper angle to ensure sound is directed at the performer and rear of stage, rather than up into the ceiling. Again this provides for much more practical longer throw applications in television studios or theatres while still retaining a total height of just over 300 mm. The ESM26’s connector panel is cleverly concealed into it’s side handle to ensure an attractive, unobtrusive appearance on stage
The simplicity and ease of use of the ESM26 is only complimented by it’s extraordinary performance. Through innovative engineering with real world applications in mind, KV2 has delivered a world class stage monitor at an affordable and accessible price. Ideal for all applications where high quality stage monitoring is required

Live performance

Concert venues

Fixed installations

Outdoor event setups (portable PA)

Max SPL Long-term	123dB
Max SPL Peak	129dB
-3dB Response	70Hz to 16kHz
-10dB Response	54Hz to 28kHz (half space)
Recommended Power	275W
Sensitivity	98dB
Impedance	8Ω
Crossover Point	2.5kHz
Acoustic Design	Horn Loaded
Horn Coverage Horizontal / Vertical	100° x 100°
Throat Exit Diameter / Diaphragm Size	1″ / 1.75″
Diaphragm Material	Nitride Titanium
Magnet Type	Neodymium
Acoustic Design	Front Loaded, Bass Reflex
Number of Drivers	2
Woofer Size / Voice Coil Diameter	6″ / 1.75″
Magnet Type	Neodymium
Diaphragm Material	Epoxy Reinforced Cellulose
Speaker Input	2x Neutrik Speakon®
RMS Limiter	autoreset
Cabinet Material	Baltic birch
Handles	1
Color	“Orange peeled” Matt Black or any RAL
Height	337.3 mm /13.28″
Width	370 mm /14.57″
Depth	454.5 mm /17.89″
Weight	15 kg (33.8 lbs)
