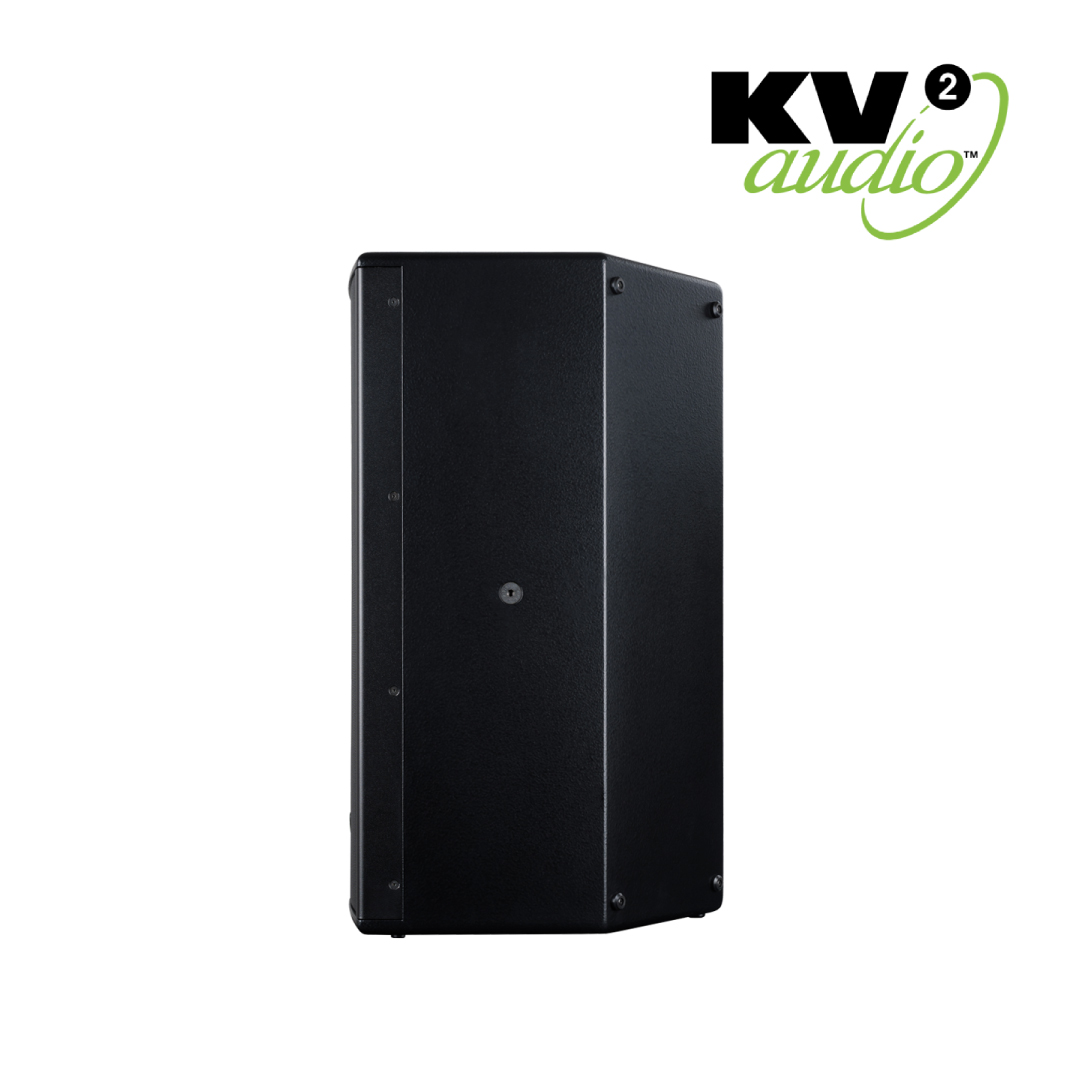

ESD 12

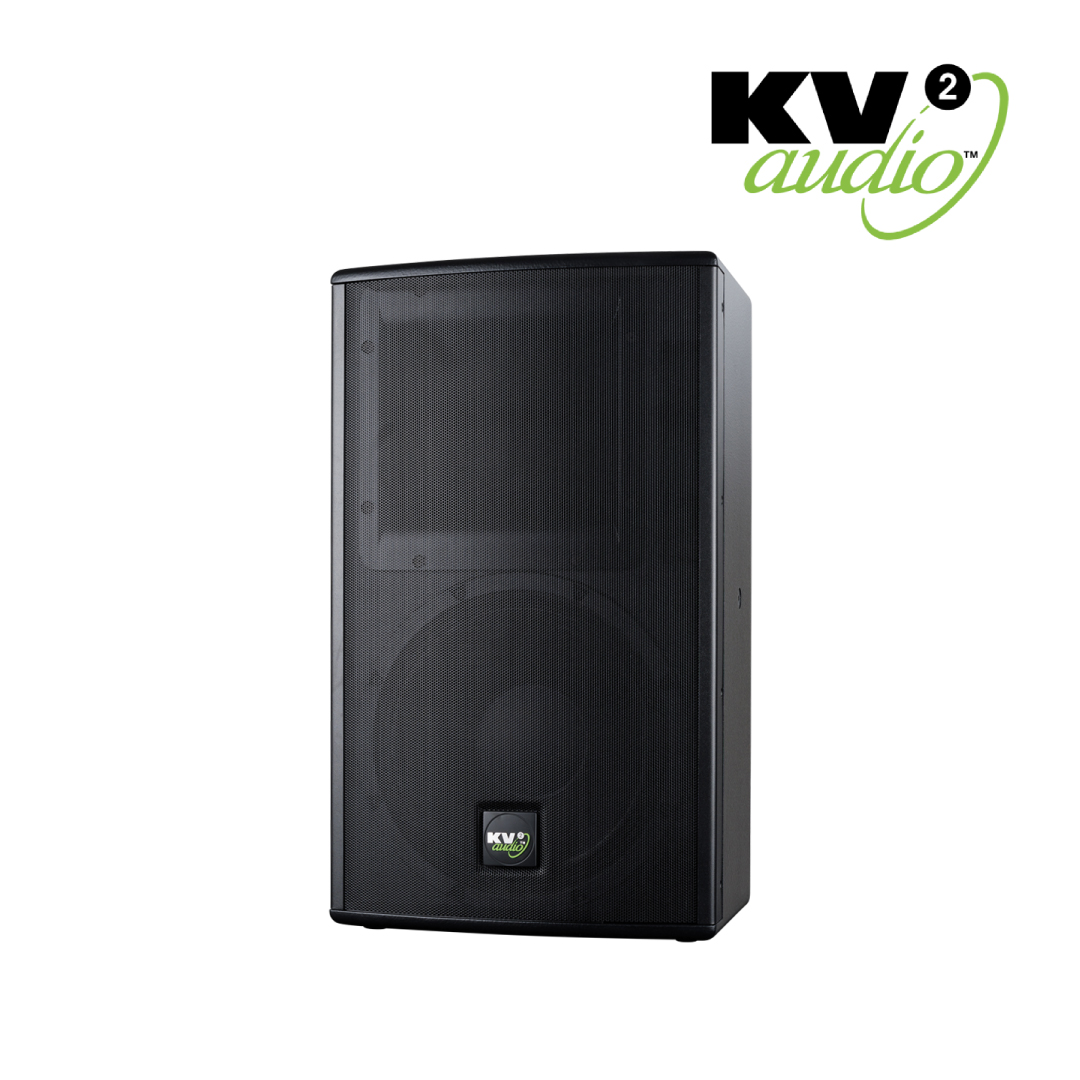

The ESD12 is a high quality 2-way, passive full range loudspeaker that provides unmatched clarity and definition in a simple elegant package. The ESD12 utilizes a 12″ Trans Coil woofer and the same 3″ NVPD large format compression driver found in our flagship VHD products, which has one of the lowest distortion ratings on the planet.Combined with our unique delay line technology the ESD12 delivers a beautifully balanced, phase coherent and accurate compact, 2-way passive solution that is adaptable to a wide range of applications.
Description
- Professional, Baltic birch construction with wear resistant polymer coating
- 127dB sustained output, 130dB peak with very high dynamic range
- Compact, asymmetrical, trapezoidal cabinet design allows for use in stage monitor and under balcony applications
- Rotatable wide dispersion 80° H x 40° V horn
- Revolutionary passive delay line
- State of the art 3″ (76 mm) Nitride Titanium diaphragm compression driver with complex geometry phase plug and
neodymium magnetic structure for higher output, exceptionally low distortion and extended frequency response - 12″ woofer with Super Acoustic Active Impedance Control (AIC) voice coil technology and neodymium magnetic motor
structure dramatically increases force, lowers distortion and provides increased frequency response linearity - Proprietary top handle design for simplified handling and carrying, integrates one M10 suspension point, Omnimount™ bracket point and four M6 points
- Additional side and bottom M10 points for flexible rigging and installation options

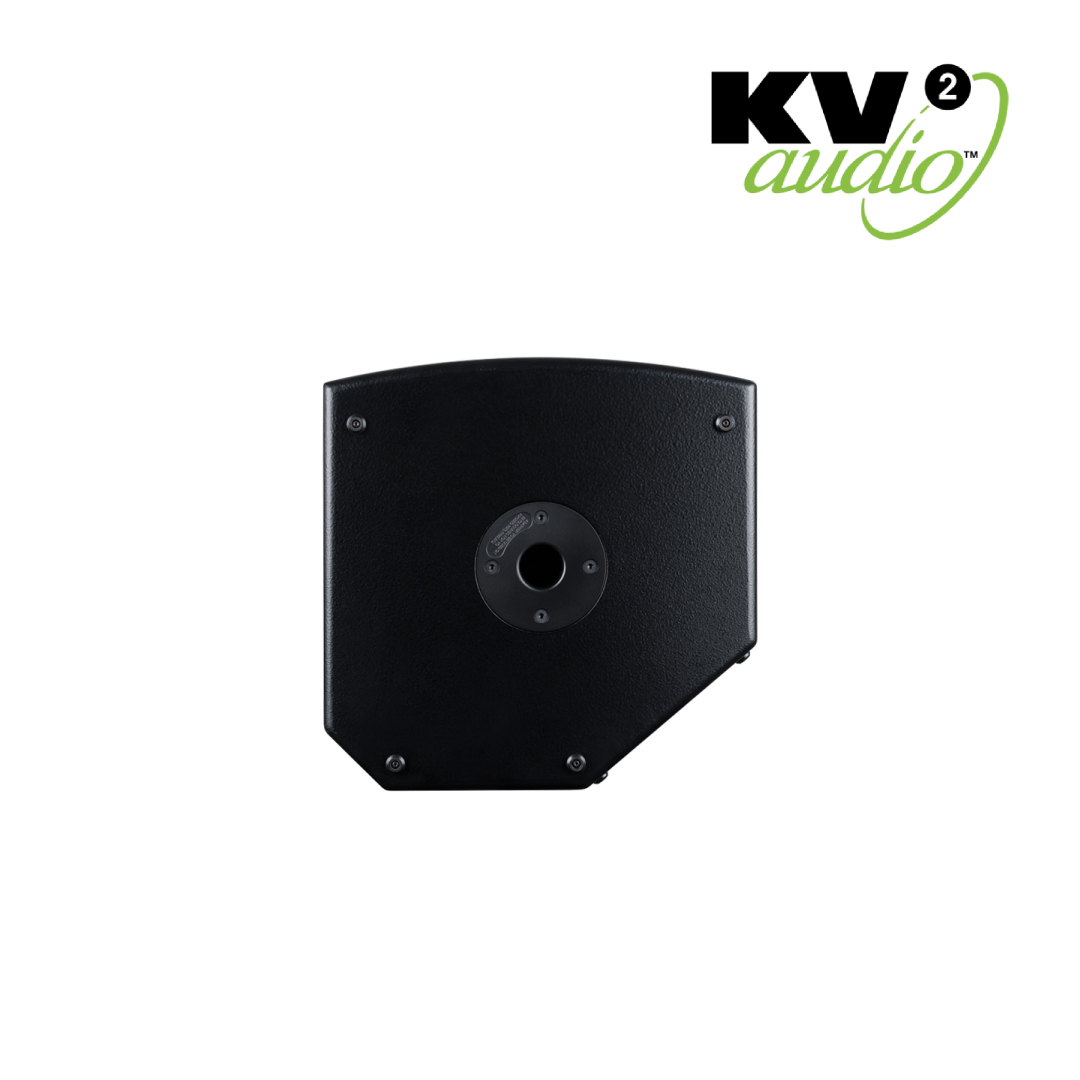

- “Top-hat” for pole mounting applications
Medium to large conference rooms
Theatres / small-to-medium scale concert venues
Houses of worship (churches, chapels)
Stage monitoring (as a floor / wedge monitor)
Scalable systems: can be paired with subwoofers to make a full-range system
| Max SPL Long-term | 127dB |
| Max SPL Peak | 133dB |
| -3dB Response | 55Hz to 22kHz |
| -10dB Response | 50Hz to 30kHz |
| Recommended Power | 500W |
| Sensitivity | 98dB |
| Impedance | 4Ω |
| Crossover Point | 1.2kHz |
| Acoustic Design | Horn Loaded |
| Horn Coverage Horizontal / Vertical | 80° x 40° |
| Rotatable Horn | YES |
| Throat Exit Diameter / Diaphragm Size | 1.4″ / 3″ |
| Diaphragm Material | Nitride Titanium |
| Magnet Type | Neodymium |
| Protection | RMS Limiter |
| Acoustic Design | Front Loaded, Bass Reflex |
| Woofer Size / Voice Coil Diameter | 12″ / 2.5″ / Trans Coil |
| Diaphragm Material | Epoxy Reinforced Cellulose |
| Magnet Type | Neodymium |
| Protection | Thermal breaker – autoreset |

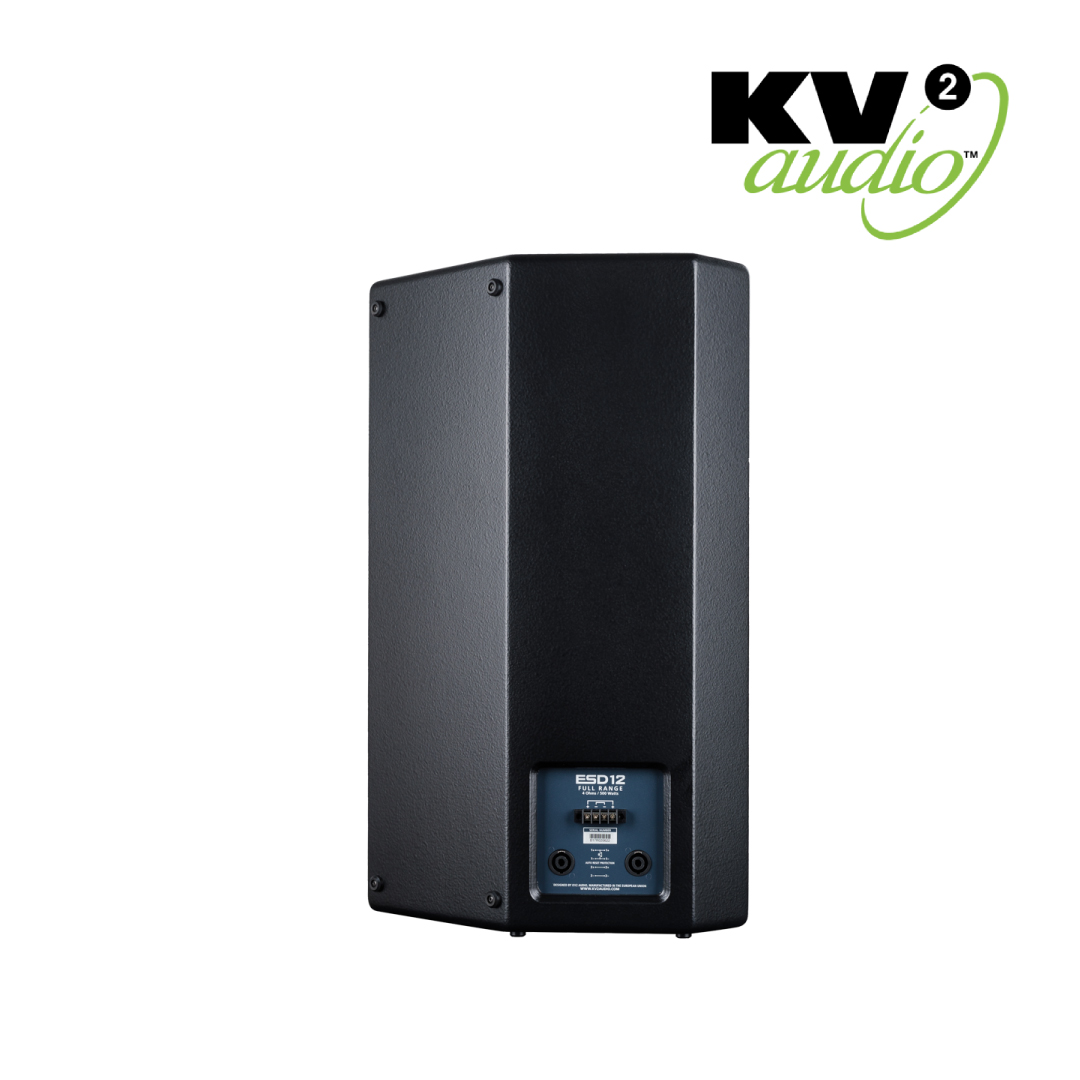

| Speaker Input | 2x Neutrik Speakon®, Terminal Block |
| Cabinet Material | Baltic birch |
| Handles | 1 |
| Pole Mount | 35 mm |
| Color | “Orange peeled” Matt Black or any RAL |
| Height | 619 mm (24.37″) |
| Width | 368 mm (14.48″) |
| Depth | 368 mm (14.48″) |
| Weight | 23 kg (50.7lbs) |
