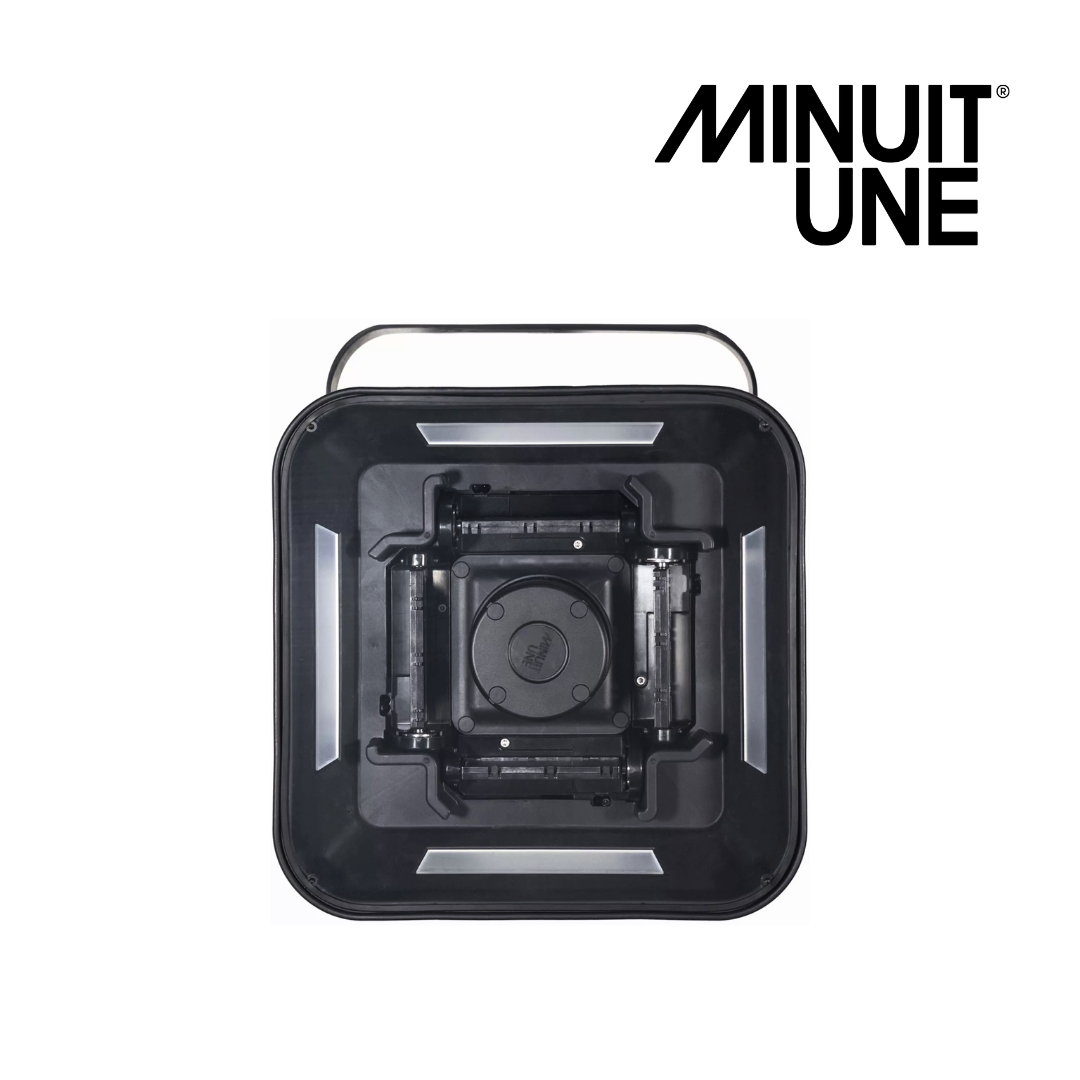

IVL Dice

A very wide space coverage with a very small footprint, opening limitless possibilities for captivating lighting installations in small- and mid-sized venues.

Fill the space with a Minuit Une IVL Dice setup, surrounding the artist and audience in a symphony of mesmerizing beams, enveloping shapes, smooth movements, and vivid colors — all constantly evolving. Whether above a stage or a dance floor, the IVL Dice is very easy to install at multiple points and in various configurations. An IVL Dice installation creates strong geometric shapes, structuring your space in ways similar to larger setups, but without the need for extensive volume, rigging, or large quantities of fixtures.

With no moving head and a lightweight design of just 10 kilograms, the IVL Dice fits easily into a wide range of venue configurations. Featuring four independent light planes, created by four motorized mirrors arranged closely together, the IVL Dice provides exceptional space coverage from a compact footprint, making the room or stage appear larger. With a 90-degree aperture per tilt, IVL Dice units combine effortlessly to further enhance the range of perspectives.

On the back side of the tilt, there’s a movable frosted output capable of illuminating a small venue. When the tilt goes flat, it reveals static frosted edges, offering even more creative possibilities.

Its DMX control provides access to 9 beam patterns through an electronic gobo system: 1 beam, 2 beams, 4, 8, 16, 32, 64, 128, and up to 256 beams — with control over beam size, indexing, and rotation for each pattern. Featuring 2 dimmers per tilt and 2 RGB parameters per tilt, complemented by a shutter, an IVL Dice setup never ceases to amaze.

A wide range of vivid colors, smooth waves of beams, and transforming shapes creates the sensation that a much greater number of fixtures are in action.

The IVL Dice sets a new scale for volumetric lighting.

Category:
Description

Banquet Halls

Casinos

Auditoriums

Houses of Worship

Educational Facilities

Convention Centres

Corporate Environments

Restaurant

Bars

Total dimensions of the fixture (adjustable yoke included)384 x 433 x 238 mm³
Weight10.6 kg
Protection ratingIP20
Menu displayLCD colour screen
Class 3R laser productExtended source
Wavelengths450 nm, 520 nm, 635 nm
ColoursSmooth RGB spectrum
Nominal Beam Diameter (1/e) at Scanning Vertex17 ± 1 mm
Beam Divergence≥ 1.8 mrad
Nominal Scan Rate330 Hz
Distance from Scanning Vertex to Closest Point of Human Access (NPHA)155 mm
Maximum Output38 μJ
Scanning Angle360°
MirrorR > 98%
SafeguardCertified Fail-Safe
Mirror Side of the Tilt115 × 50 mm²
4 Independent MirrorsProducing 4 independent light planes
Aperture by Mirror84° linear aperture by tilt
Operating Angle105°
Motorization4 stepper motors – 16-bit non-linear resolution
MovementVery smooth at low speed and extremely reactive
Maximum SpeedFrom mirror to frost side in 0.25 sec
Power supply unit100 to 240 Volts – 50/60Hz
Power200 Watt maximum
Nominal operating temperature of the laser source+25°C
Maximum ambient temperature40°C (104°F)
Minimum ambient temperature0°C (32°F)
SafetyCB IEC60825-1:2014, 21CFR 1040, ANSI Z136.1 “Standard for Safe Use of Lasers”, CB IEC62368
EMCEN55032, EN55035, EN61000-3-2, EN61000-3-3, FCC Part15sDoc, ICES-003, AS/NZS CISPR32, 35
