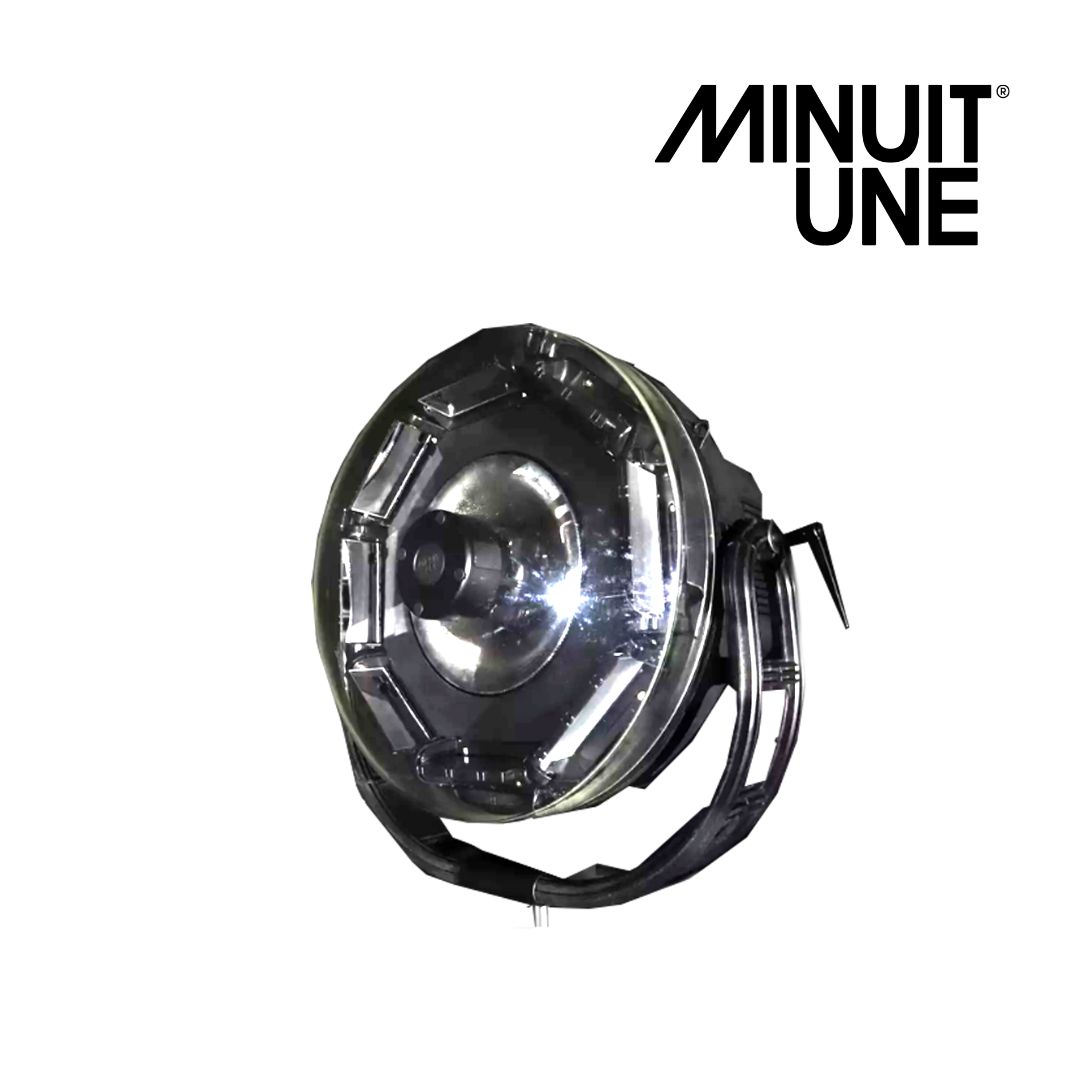

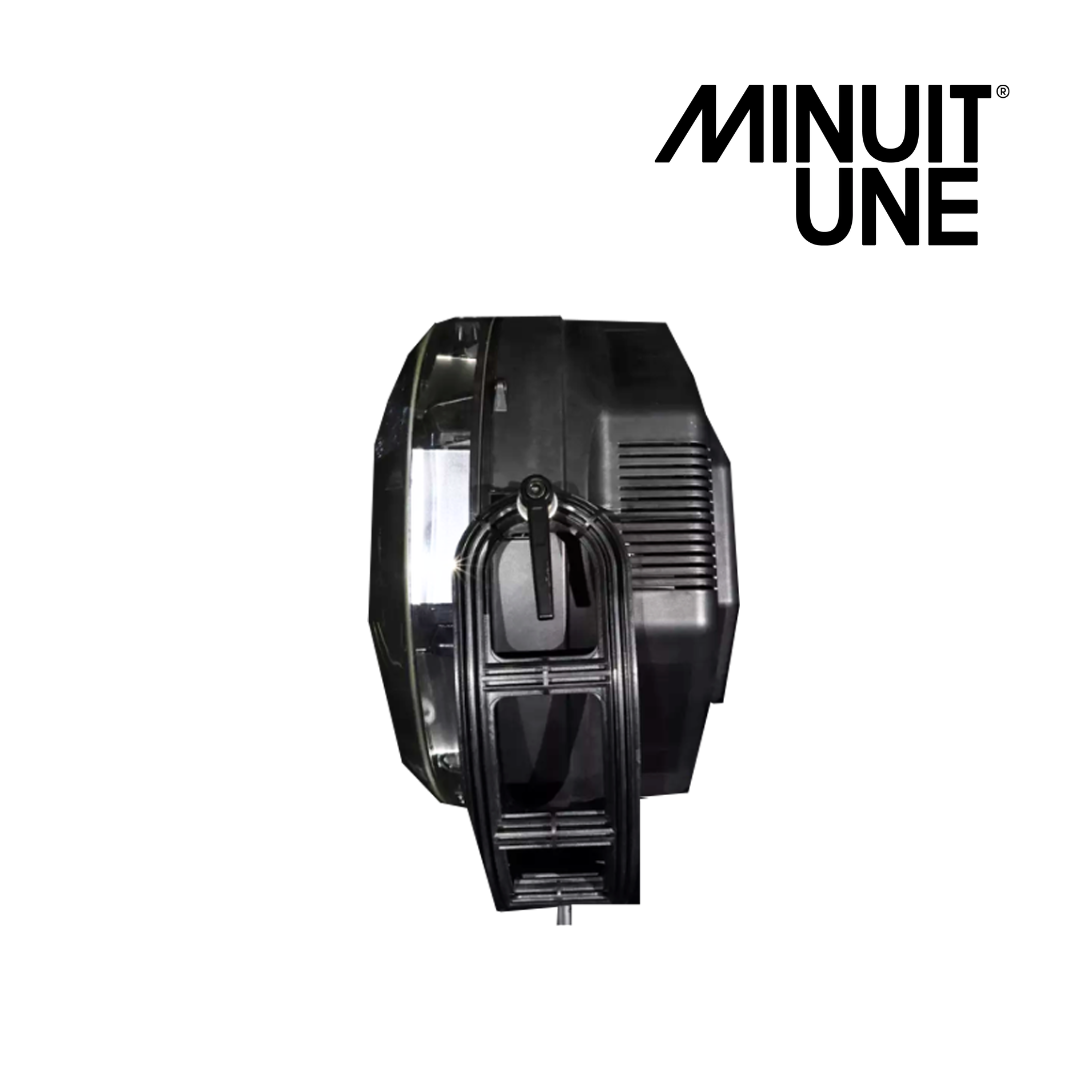

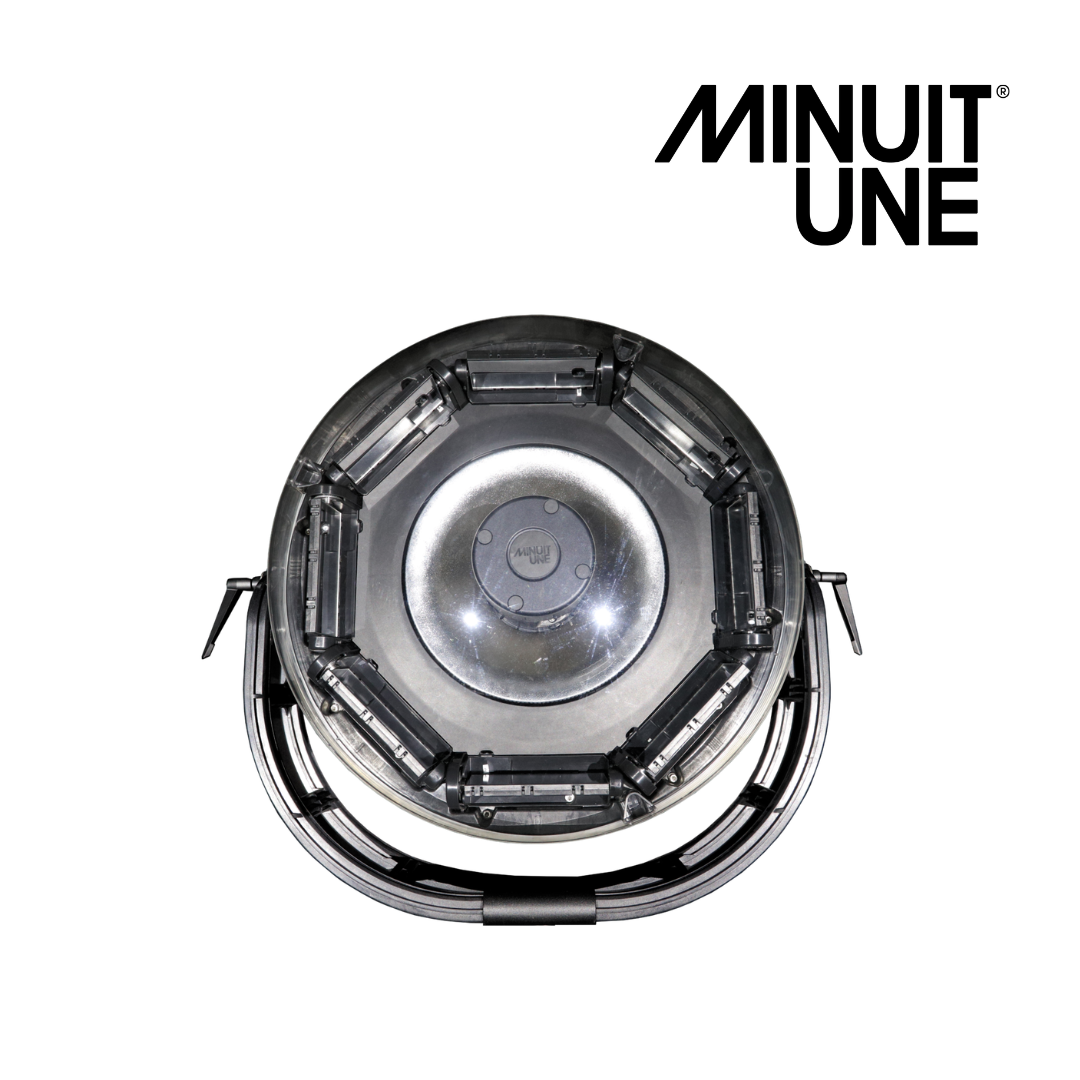

IVL Photon
This is what the IVL Photon brings to the industry: immersive beam shapes in mid-sized venues with only a few units, and endless looks from a single source.
This technology-packed luminaire is the result of five years of R&D dedicated to giving smaller productions the magnitude of big arena experiences. With its innovative moving core combined with the renowned 8-tilt system (2 sides with tilt, mirror, and frost), the IVL Photon has 3 main outputs: immersive (mirror), decorative (frost), and creative punch (moving core).
Standard DMX control provides endless possibilities for customizing the outputs for every moment: 9 gobos (creating from 1, 2, 4, 8, 16, 32, 64, 128, up to 256 beams), dimmer and RGB control for each of the 8 mirror tilts, and an electronic shutter. Never before has a luminaire allowed such a level of creativity while remaining so easy to use.
The IVL Photon can be incorporated into any kind of show or event thanks to its compact design, extreme versatility, and low logistical requirements.
Banquet Halls
Casinos
Auditoriums
Houses of Worship
Educational Facilities
Convention Centres
Corporate Environments
Restaurant
Bars
| Total dimensions of the fixture (adjustable yoke included) | 649 x 556 x 327 mm³ |
| Weight | 16kg |
| Protection Rating | IP20 |
| Menu Display | LCD color screen |
| Low Cleaning Care | Optical parts isolated from the haze |
| Wavelength | 448 nm, 518 nm, 638 m |
| Colours | Smooth RGB spectrum |
| Beam diameter (1/e) at scanning vertex | >14 mm |
| Beam divergence | >1.5 mrad |
| Scan rate | 330 Hz |
| Distance from scanning vertex to closest point of human access (NPHA) | 240 mm |
| Maximum output | 23.2 μJ |
| Typical average power at 1 m | <1 mW |
| Scanning Motor | Extensive lifetime brushless motor |
| Scanning Angle | 360° |
| Mirror | R > 98% |
| Safeguard | Certified fail-safe |
| Mirror Size (Tilt Side) | 11.5 × 5 cm PMMA mirror |
| Number of Mirrors | 8 independent mirrors (producing 8 independent light planes) |
| Aperture by Mirror | 42° linear aperture by tilt |
| Operating Angle | 180° |
| Motorization | 8 stepper motors – 16-bit non-linear resolution |
| Movement | Very smooth at low speed and extremely reactive |
| Maximum Speed | From mirror to frost side in 0.25 s |
| Power Supply Unit | 100–240 V, 50/60 Hz |
| Power Consumption | 200 W (maximum) |
| Maximum Ambient Temperature | 40°C (104°F) |
| Minimum Ambient Temperature | 0°C (32°F) |
| Safety | CB IEC60825-1:2014, 21CFR 1040, ANSI Z136.1 “Standard for Safe Use of Lasers”, CB IEC62368 |
| EMC | EN55032, EN55035, EN61000-3-2, EN61000-3-3, FCC Part15sDoc, ICES-003, AS/NZS CISPR32, 35 |
