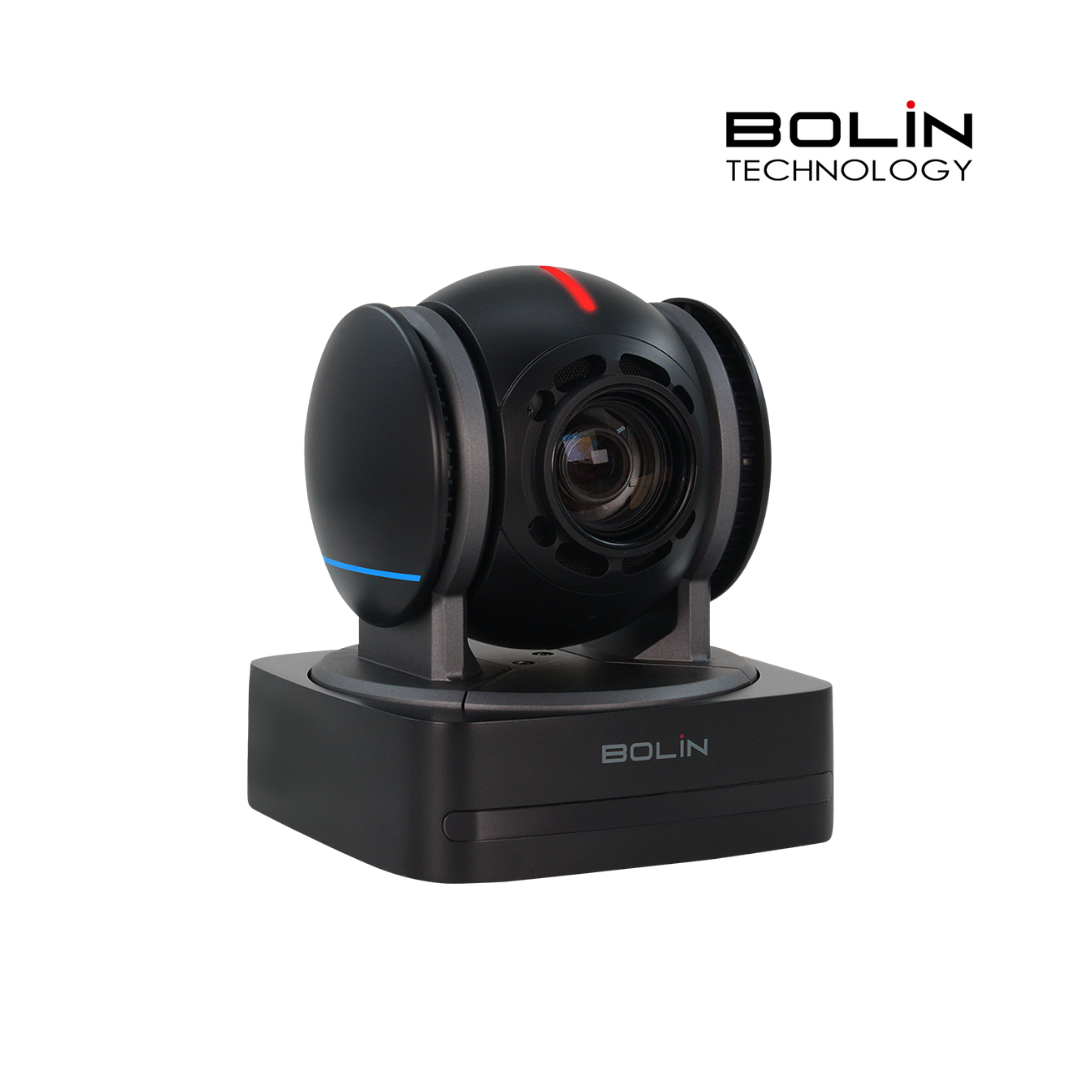

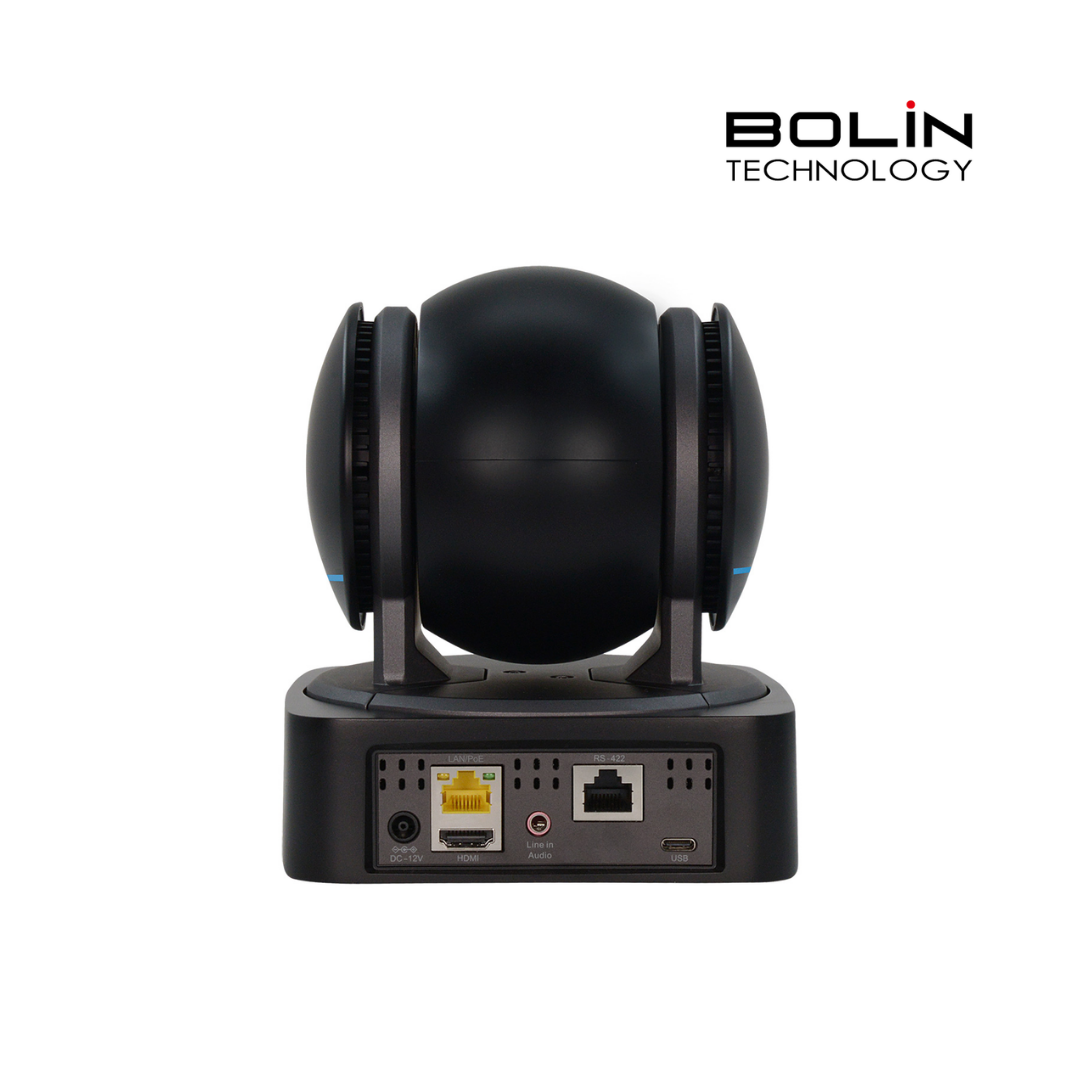

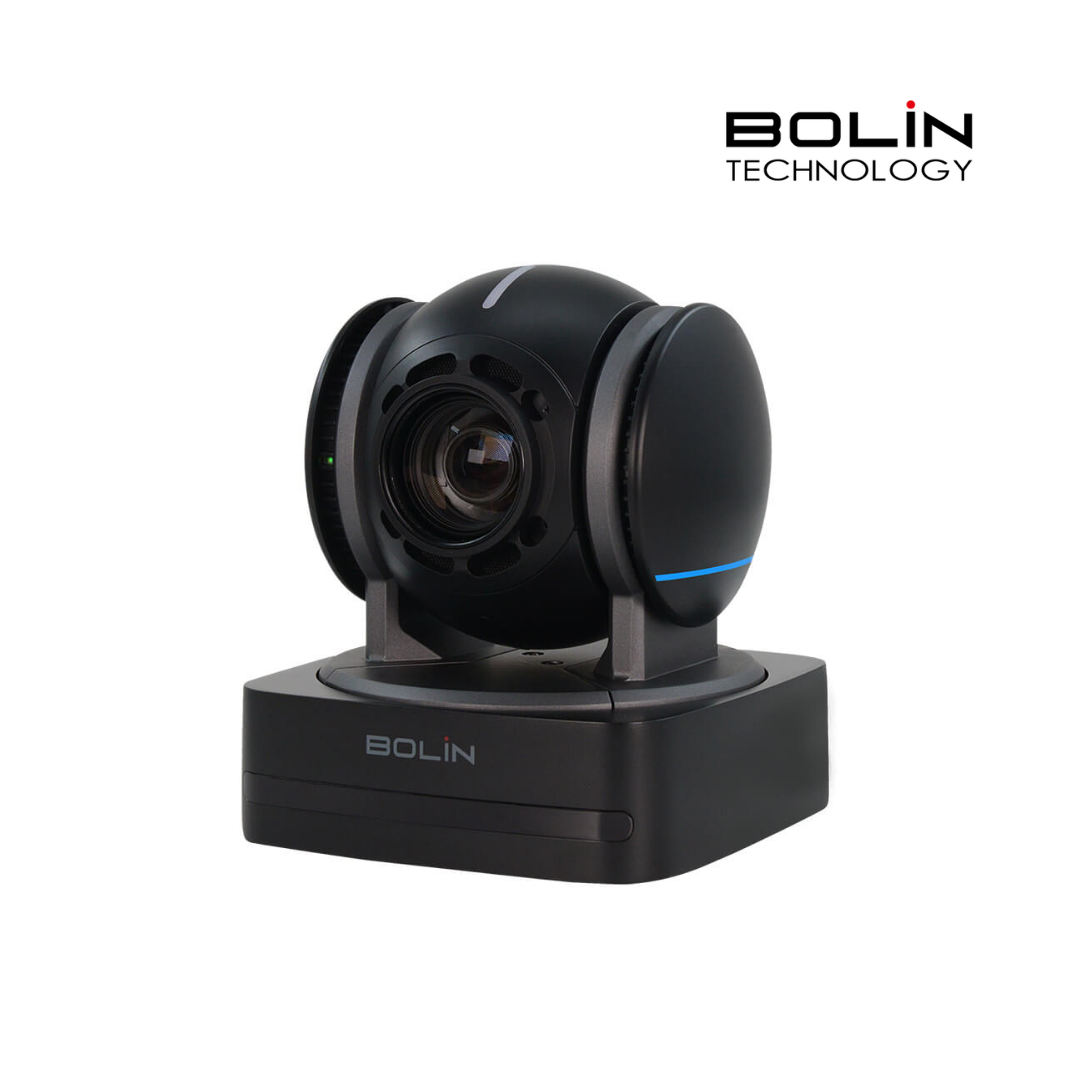

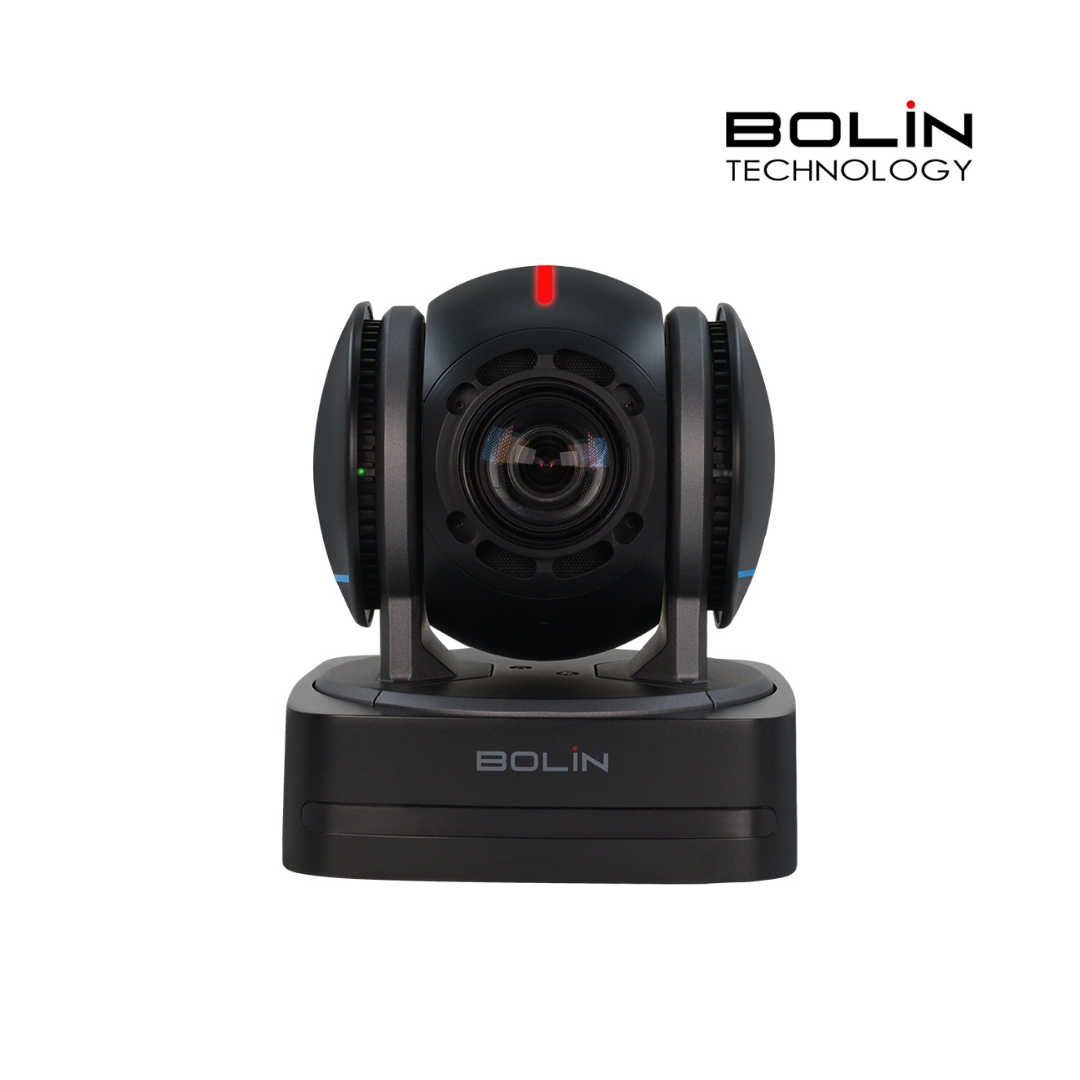

B2-220 Full HD PTZ Camera

The Bolin B2-220 FHD PTZ Cameras provide high-quality Full HD video in a compact and budget-friendly design, making them an excellent choice for live production, video conferencing, visualized radio, Pro AV applications, and houses of worship. Built on Bolin’s Blue Line platform, these cameras offer professional features at an affordable price, without compromising on image quality, industry standards, or smooth PTZ control.

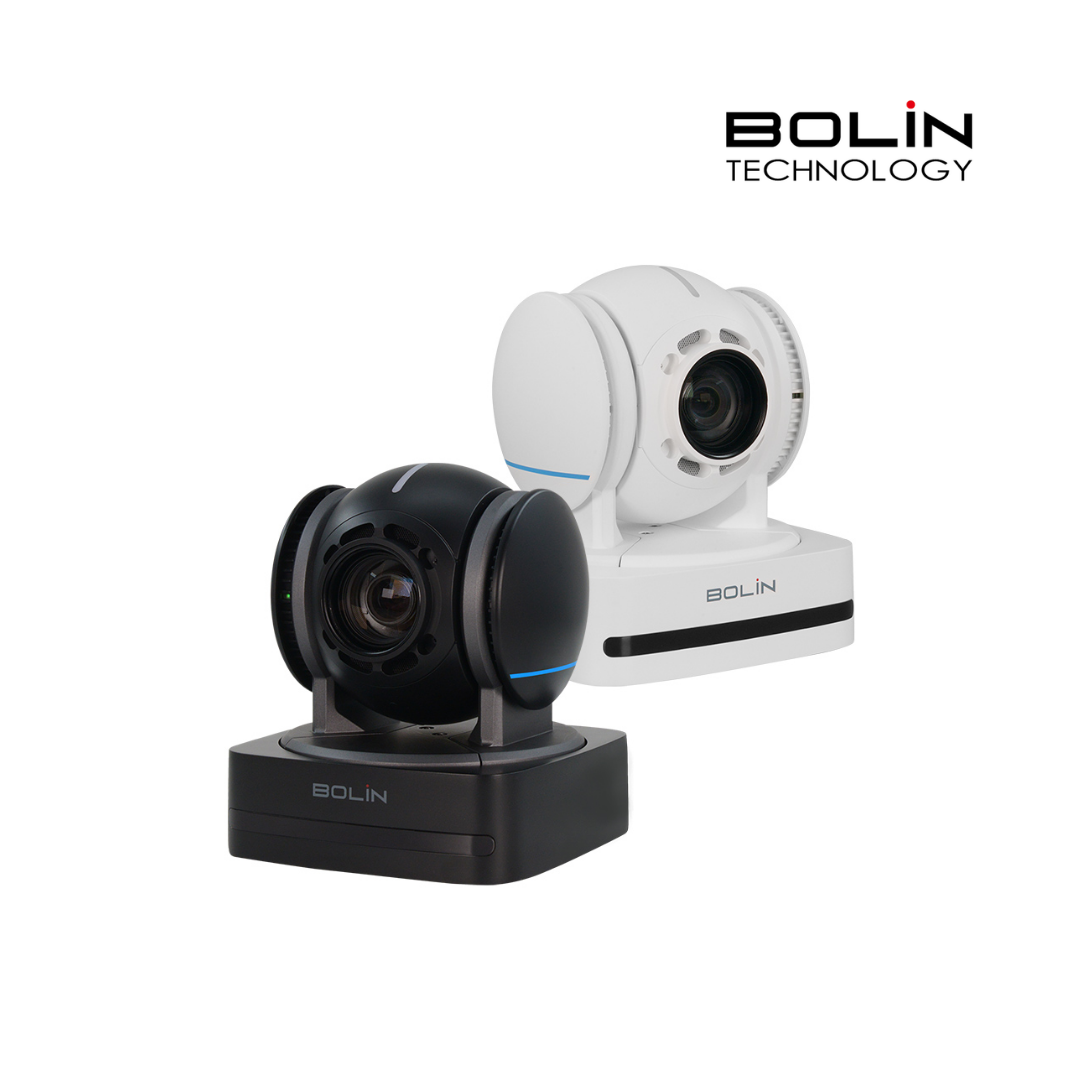

Both B2-210 and B2-220 models support HDMI, USB, and IP streaming, with the B2-220 also featuring 3G-SDI output for expanded connectivity. The B2-210 offers a 10x zoom, providing wide-angle shots ideal for conference rooms and collaborative workspaces, while the B2-220 features a 20x zoom for capturing subjects at greater distances, perfect for lecture halls, event spaces, and mid-sized venues. The built-in color matrix allows users to fine-tune color settings for precise image customization and color matching across multi-camera productions. Both models maintain consistent image quality across all outputs, delivering sharp detail, accurate colors, and smooth motion, whether used for live events, streaming, or professional video calls.

Designed for versatility in any setup, these cameras are compact enough to fit into tight spaces while offering precise PTZ movement for controlled, professional framing. Support for RTSP, RTMP, SRT, ONVIF, and MPEG-TS ensures efficient, high-quality IP video transmission, reducing bandwidth demands without sacrificing performance.

IEC 60601-certified, ensuring electromagnetic safety for use in clinical and surgical environments.

The B2-210 and B2-220 provide a cost-effective solution for professionals looking for reliable, high-quality video, flexible connectivity, and smooth PTZ operation in a compact, well-built design.

Category:
Description
  • Zoom: Optical 10X, 20X
  • Video Output: HDMI, SDI, IP, USB C
  • Horizontal Angel of View: 69°
  • Video Resolution up to Full HD
  • UVC/UAC supported for video conference use
  • IP resolution up to 1080P60.
  • RTSP, RTMP, SRT IP streaming
  • Control: RS232, RS422/485, IP/Onvif/Visca Over IP
  • AI Exposure, AI Focus
  • Power: 12VDC, PoE

Banquet Halls

Casinos

Auditoriums

Houses of Worship

Educational Facilities

Convention Centres

Corporate Environments

Restaurant

Bars

Model No.B2-220
Camera20X Full HD
Image SensorSony Progressive Scan CMOS Image Sensor, 1/2.8 type
Number of Effective Pixels1920 × 1080 (2.13 MP)
ZoomOptical Zoom 20X, Digital Zoom 16X
Focal Lengthf = 5.2 mm (Wide) to 104 mm (Tele)
ApertureF1.6 (Wide) to F3.0 (Tele)
Horizontal Angle of View55.8° (Wide) – 3.2° (Tele)
Vertical Angle of View
Minimum Object Distance10 mm (Wide)
Minimum Illumination0.5 lux (Color), 0.1 lux (Black & White)
Shutter Speed1/25 – 1/1000 sec
FocusAuto, Manual, One Push
White BalanceAuto, Indoor, Outdoor, OPW, ATW, Manual, SVL USER
ExposureAuto, Manual, Shutter/Iris Priority
Image AdjustmentBrightness, Color (Saturation), Contrast, Sharpness, Hue
Back Light CompensationOn/Off
E-FlipOn/Off
WDROn/Off
Image Stabilizer
DefogYes
MirrorHorizontal
Day/NightOn/Off
ContrastYes
Color GainYes
Color HueYes
Color MatrixYes
Black Level
GammaYes, 4 Levels (0.45, 0.50, 0.55, 0.63)
High SensitivityYes
SceneDefault, Clear, Bright, Soft
Focus ZoneFace Priority, All Area, Upper Area, Central Area, Lower Area
AI Face Detection FocusYes
AI Face Auto ExposureYes
Noise Reduction2D / 3D (Level 0–100)
S/N Ratio≥50 dB
OSDEditable
