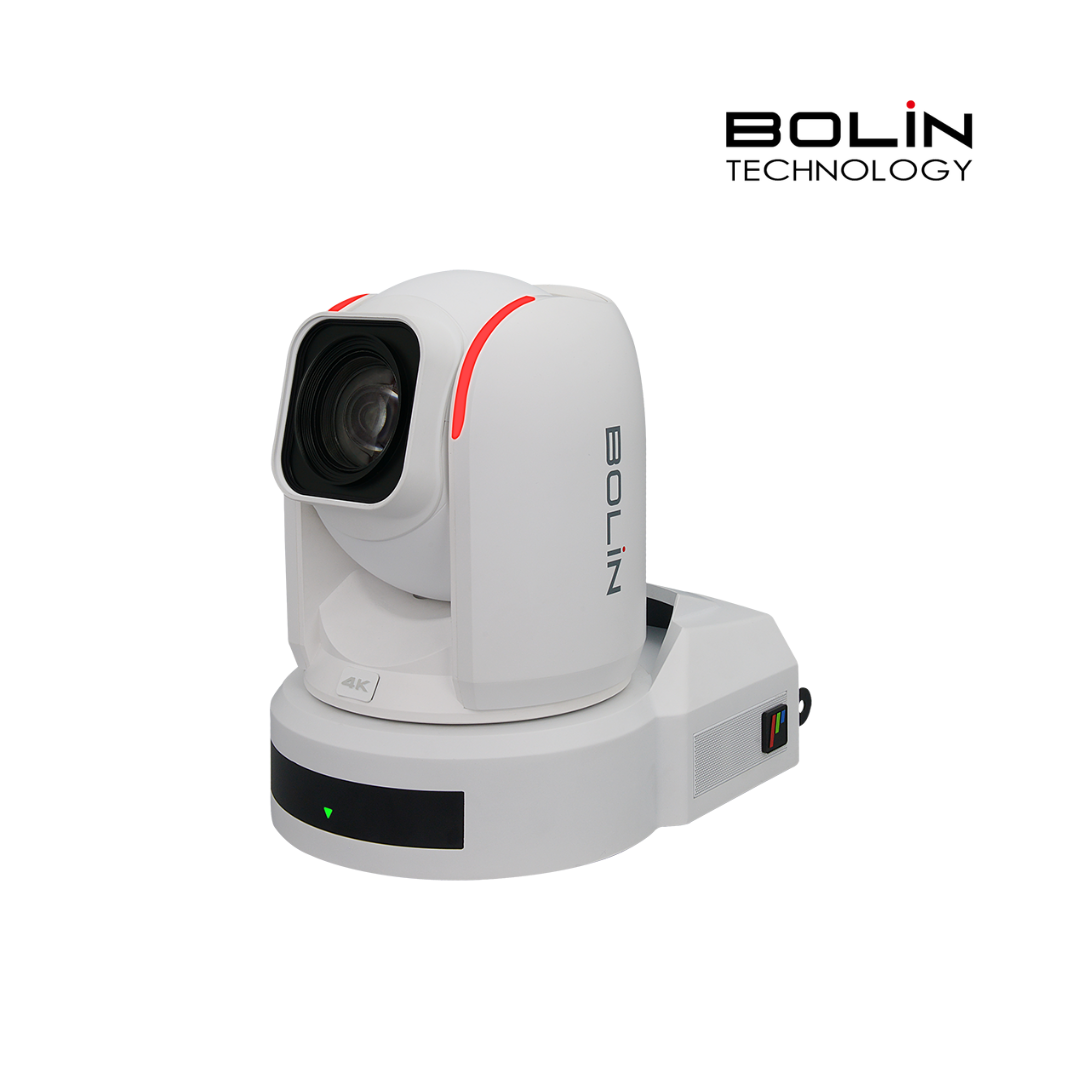

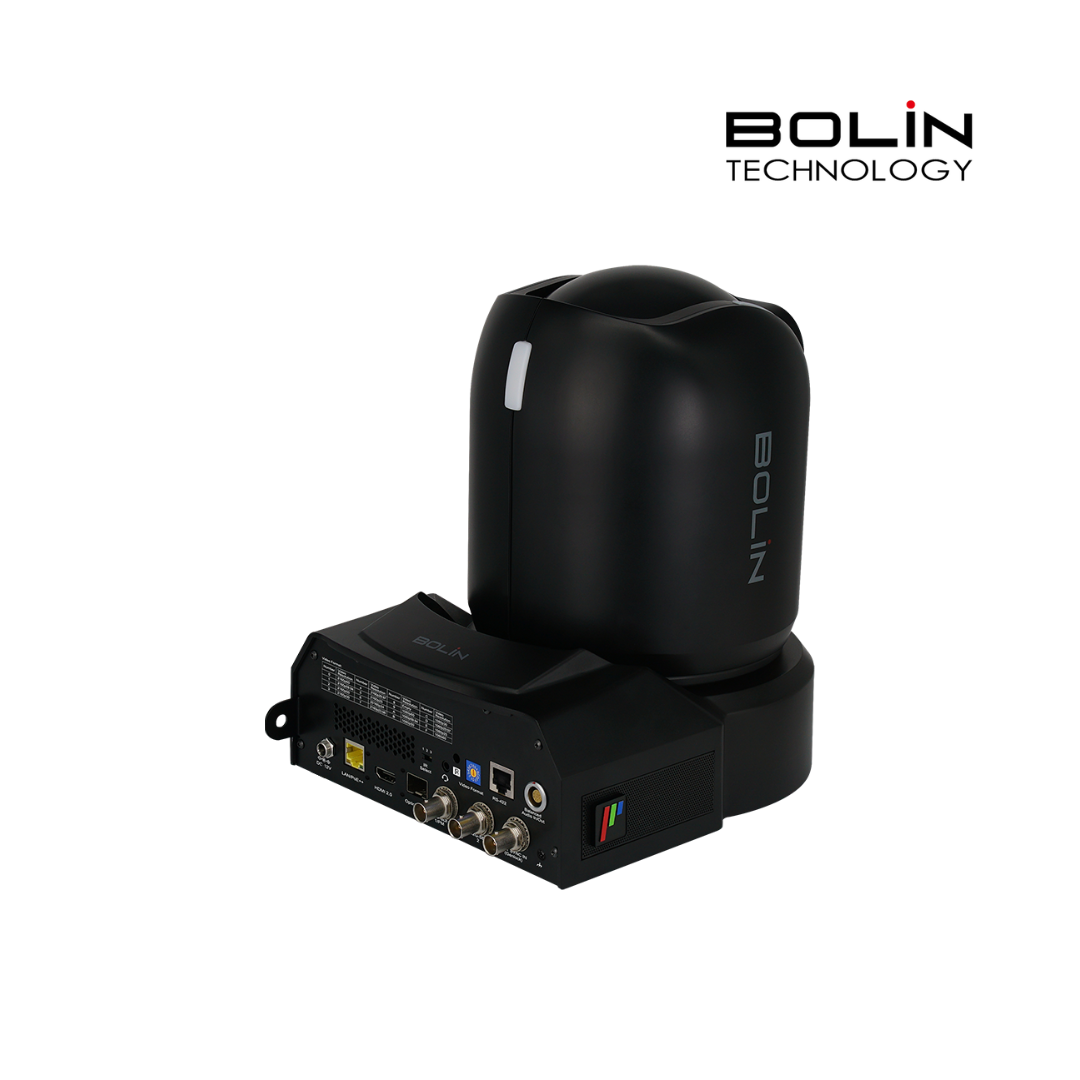

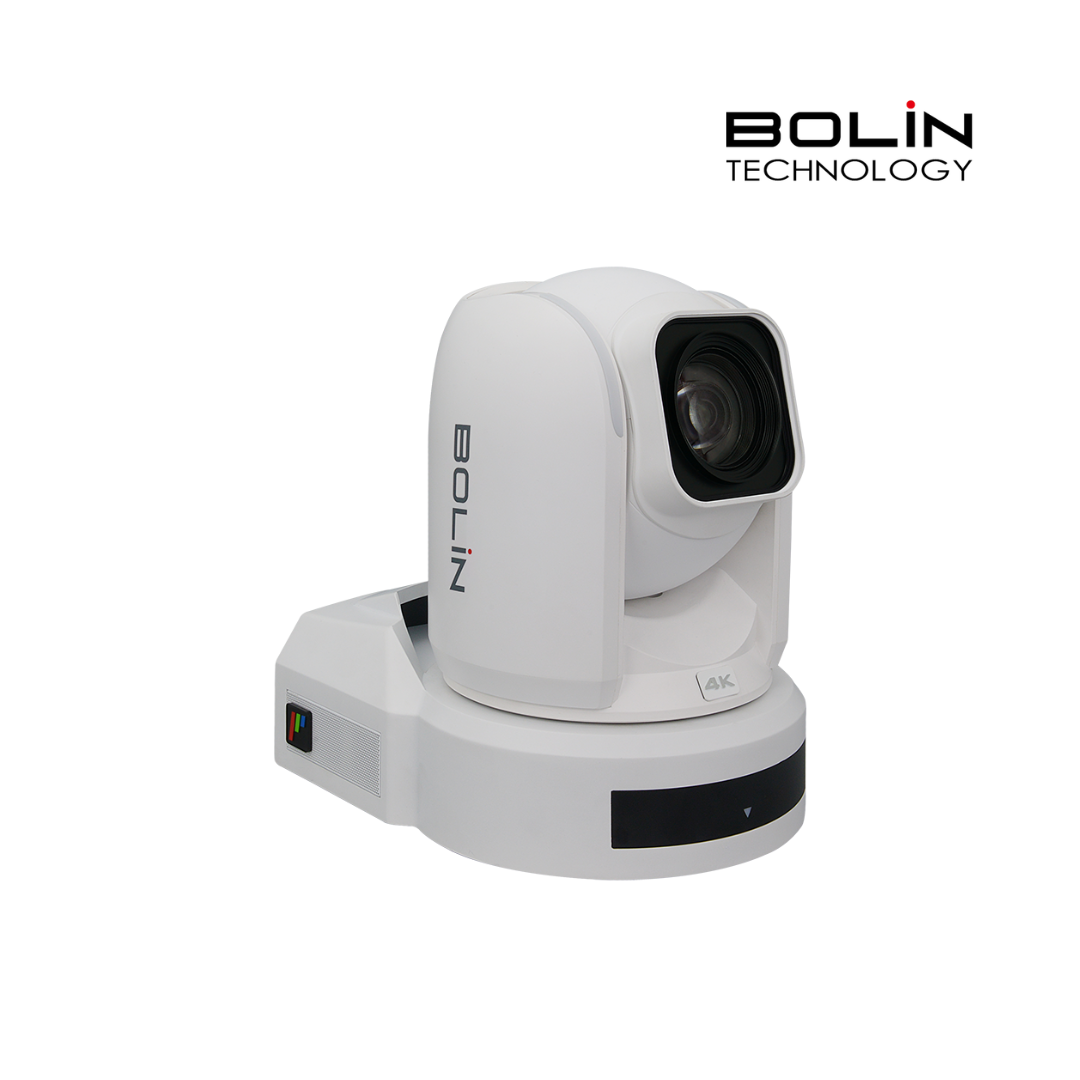

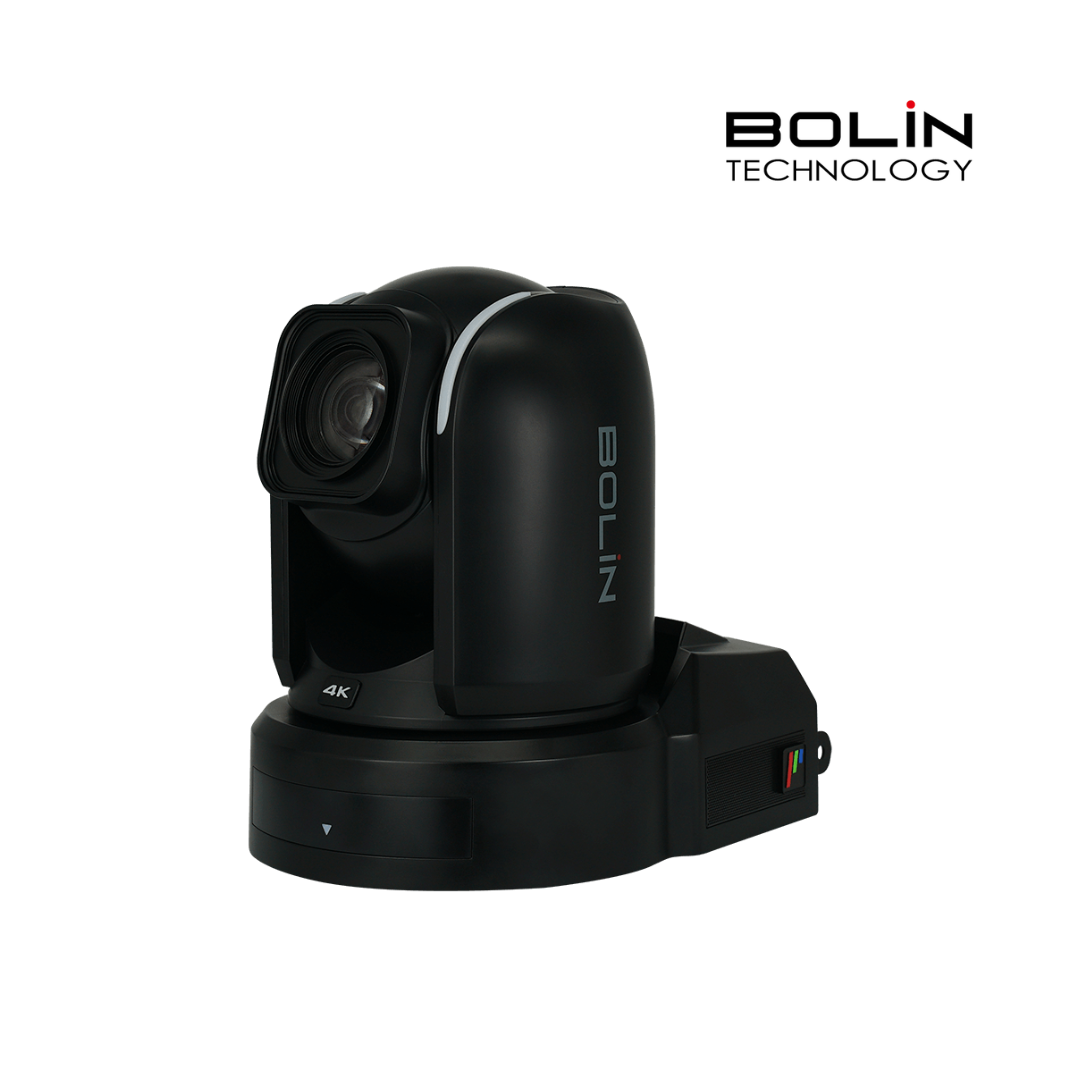

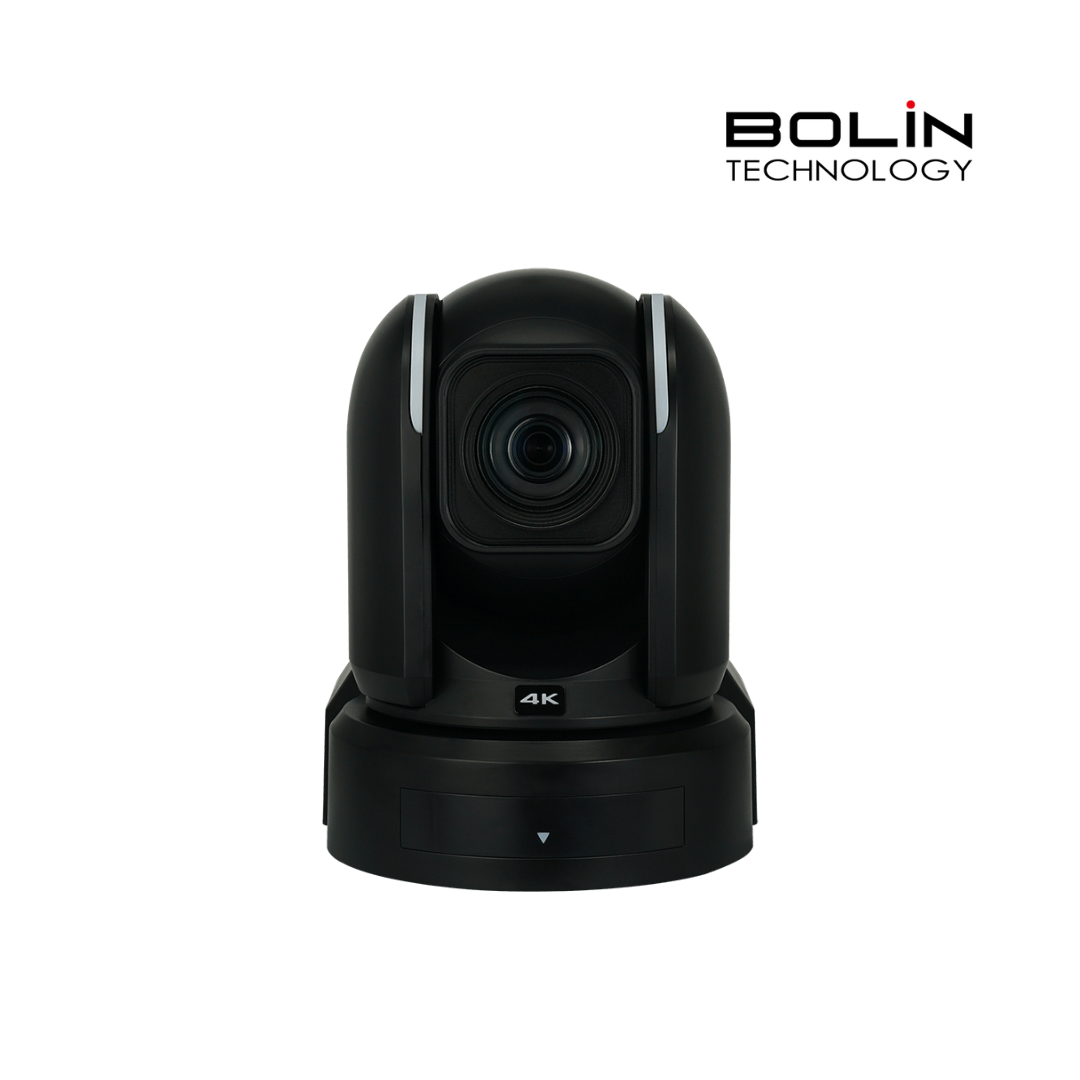

R9-418F 1 Inch 4K PTZ Camera
The Bolin R9-418F 1 Inch 4K PTZ camera is engineered for broadcast, live production, and professional AV applications, delivering high-resolution 4K image quality with clarity and depth. Built around a Sony 1-inch CMOS sensor, the R9-418F excels in low-light conditions, ensuring true-to-life colors and exceptional detail even in challenging environments. With 18x zoom and built-in ND filters, it is a perfect fit for broadcast studios, live events, theaters, houses of worship, and corporate productions, where precision and flexibility are essential. Its robust design easily integrates into baseband and AV over IP workflows, with multiple simultaneous outputs, including dual 6G-SDI, HDMI 2.0, Optical SDI, and IP streaming, ensuring professional-grade reliability in any production setting. FPGA hardware FAST HEVC codec provides high-quality, low latency and low bandwidth IP streams include RTSP, RTMP, SRT, ONVIF, and MPEG-TS.
Designed for high-end production environments, the R9-418F features a built-in SFP+ slot for optional 12G-SDI fiber expansion, enabling long-distance, high-bandwidth video transmission. Additionally, FreeD protocol support allows for real-time tracking data output to AR/VR graphics systems, making it a powerful tool for virtual sets and immersive productions. The camera’s industry-leading 255-step precise PTZ movement, optical image stabilization, and flexible mounting options allow for easy installation and operation in studios, auditoriums, and professional live venues.
From studio broadcasts to live productions, the Bolin R9-418F delivers high-quality 4K video, flexible connectivity, and precision PTZ functionality, ensuring every moment is captured with professional-grade quality and reliability.
IEC 60601 certification for use in medical spaces where signal integrity and electromagnetic safety are essential.
- Sony image block with 1 Inch large 4K sensor
- Zeiss Vario-Sonnar T lens with 18X zoom range
- Resolution 4K 2160p29.97, 1080i59.94, 1080p60
- IP Video Resolution: Up to 2160p30, 1080p60

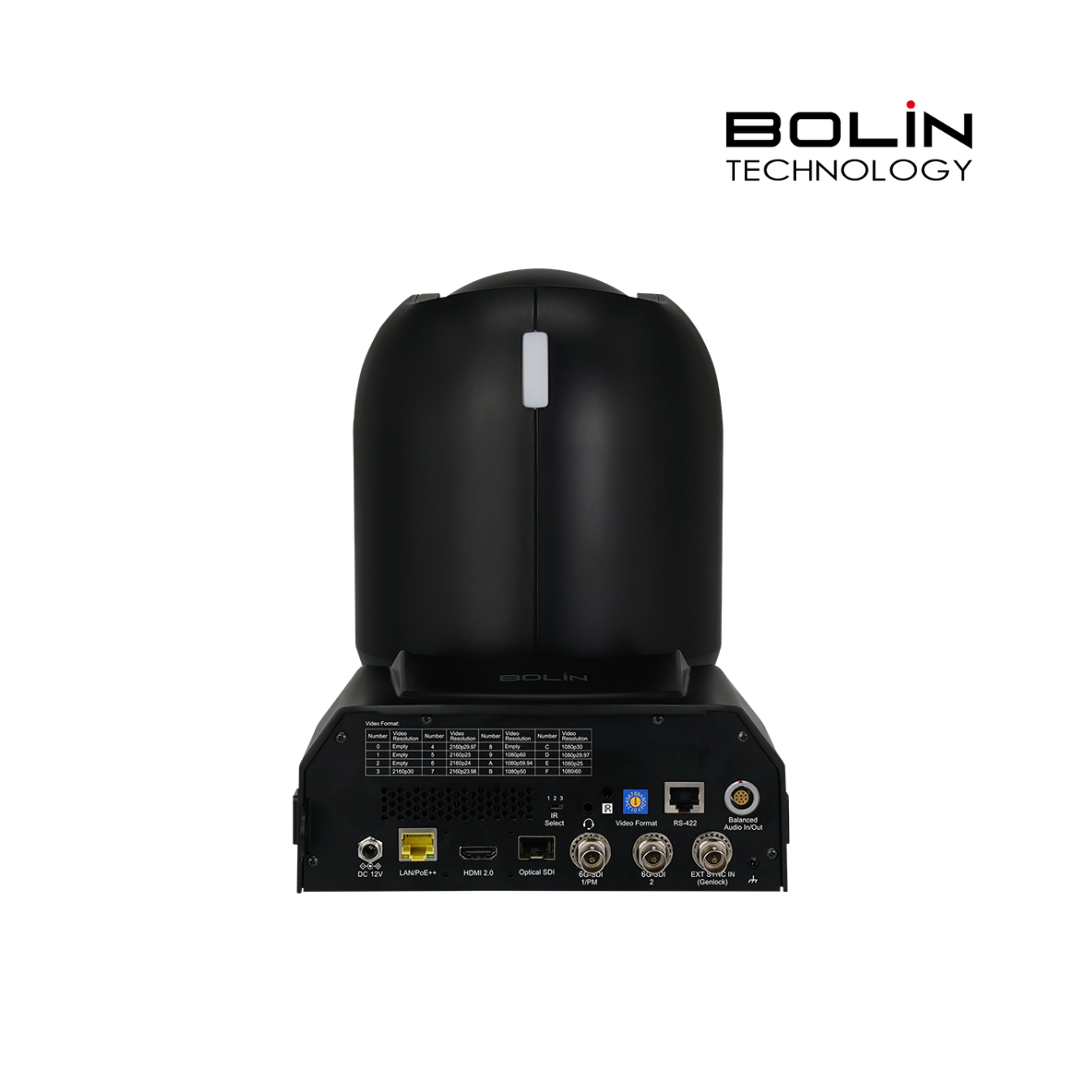

- Video Output: Simultaneous 6G-SDI, HDMI, IP
- FPGA FAST HEVC Ultra Low Lantency
- SFP Optical SDI video output
- Black Level, Color Matrix, Image Stabilizer
- RTSP. RTMP, SRT Supported
- Visca Over IP, Onvif, FreeD, Serial Control Supported
Banquet Halls
Casinos
Auditoriums
Houses of Worship
Educational Facilities
Convention Centres
Corporate Environments
Restaurant
Bars
| Operating Temperature | −10°C to 50°C (14°F to 122°F) |
| Operating Humidity | ≤80% (Suitable for use, no condensation) |
| Power Input | DC12V, PoE++ (IEEE 802.3bt Type 4 Class 7) |
| Power Consumption | Min: 40W (Static state with no movement) |
| Max: 46W (Fully loaded operation) | |
| Installation Method | Stand-alone (Upright), Suspended (Pendant), or Tripod |
| Mount | Ceiling Mount, Wall Mount, Tripod |
| Handle | Built-in for portable use application |
| Tripod Screw Hole Size | 1 × 1/4″ safety bond point |

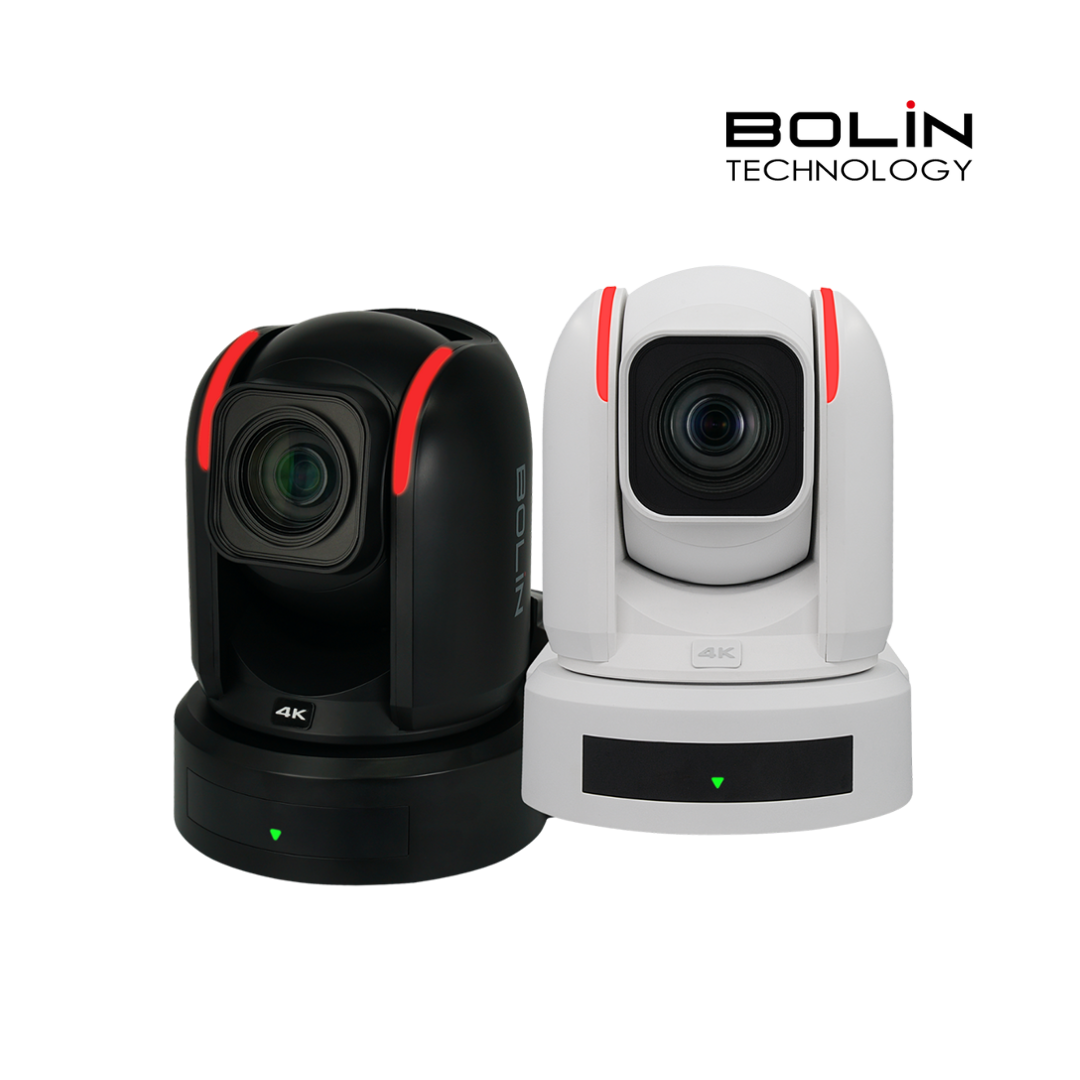

| Body Color | Black, White |
| Camera Dimensions | 201 × 253 × 249 mm (W × D × H) |
| 201 × 253 × 256 mm (with feet mats) | |
| Net Weight | 3.8 kg (8.36 lb) |
| Accessories Included | IR Remote Controller ×1, Power Adapter & Power Cord (US, EU, UK), Mounting Screws ×3, RJ45 to RS422 Extension Cable |
| Certifications | CE, FCC, IC, UKCA, RoHS, WEEE |
| Camera Image | 18X 4K30/FHD |
| Image Maker | Sony Image Block |
| Image Sensor | 1.0-type back-illuminated Exmor R CMOS sensor |
| Number of Effective Pixels | 14.2 MP |
| Picture Elements | 3840 × 2160 (8.29 MP) |
| Lens | Zeiss Vario-Sonnar T Lens, Zoom Range: 18X (4K) / 24X (FHD) |
| Horizontal Angle of View | 64.6° (Wide) – 6.1° (Tele) |
| Vertical Angle of View | 39.2° (Wide) – 3.4° (Tele) |
| Focal Length | f = 9.3 mm to 111.6 mm, F2.8 (Wide) to F4.5 (Tele) |
| Minimum Object Distance | 80 mm (Wide), 1000 mm (Tele) |
| Aperture | F2.8 (Constant, Wide–F4.5 (Tele), 16 steps) |
| Minimum Illumination | High Sensitivity On: 0.5 lx (1/30 sec, 50%)High Sensitivity Off: 2.0 lx (1/30 sec, 50%) |
| Shutter Speed | 1/1 sec to 1/10,000 sec (28 steps) |
| Focus | Spot Focus, Auto Focus (Trigger/Interval), Manual Focus (Variable Speed), One Push Trigger, Near Limit |
| White Balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Exposure | Full Auto, Gain, Shutter Priority, Iris Priority, Manual, Bright |
| Features | High Sensitivity, Backlight Compensation, HLC, E-FLIP, Mirror, Day/Night |
| WDR | Yes (130 dB), shown as Visibility Enhancer in OSD |
| ND Filter | Yes |
| Image Stabilizer | Yes, Optical Image Stabilizer |
| Color Gain | Yes (15 steps) |
| Color Hue | Yes (15 steps) |
| Gamma | Standard / Straight / Pattern |
| Gamma Level | Yes (15 steps) |
| Black Level | Yes (97 steps) |
| Black Gamma | Yes (15 steps) |
| Color Matrix | Off / Standard / High Saturation / FL Light |
| Noise Reduction | On/Off (Levels 5 to 1 / Off, 6 steps), 2D / 3D |
| S/N Ratio | ≥50 dB |
| HLC | Yes |
| E-Flip | Yes |
| Defog | Yes (Off, Low, Mid, High) |
| High Sensitivity | Yes |
| Slow AE Response | Yes |
| Day/Night | Yes |
| Backlight Compensation | Yes |
