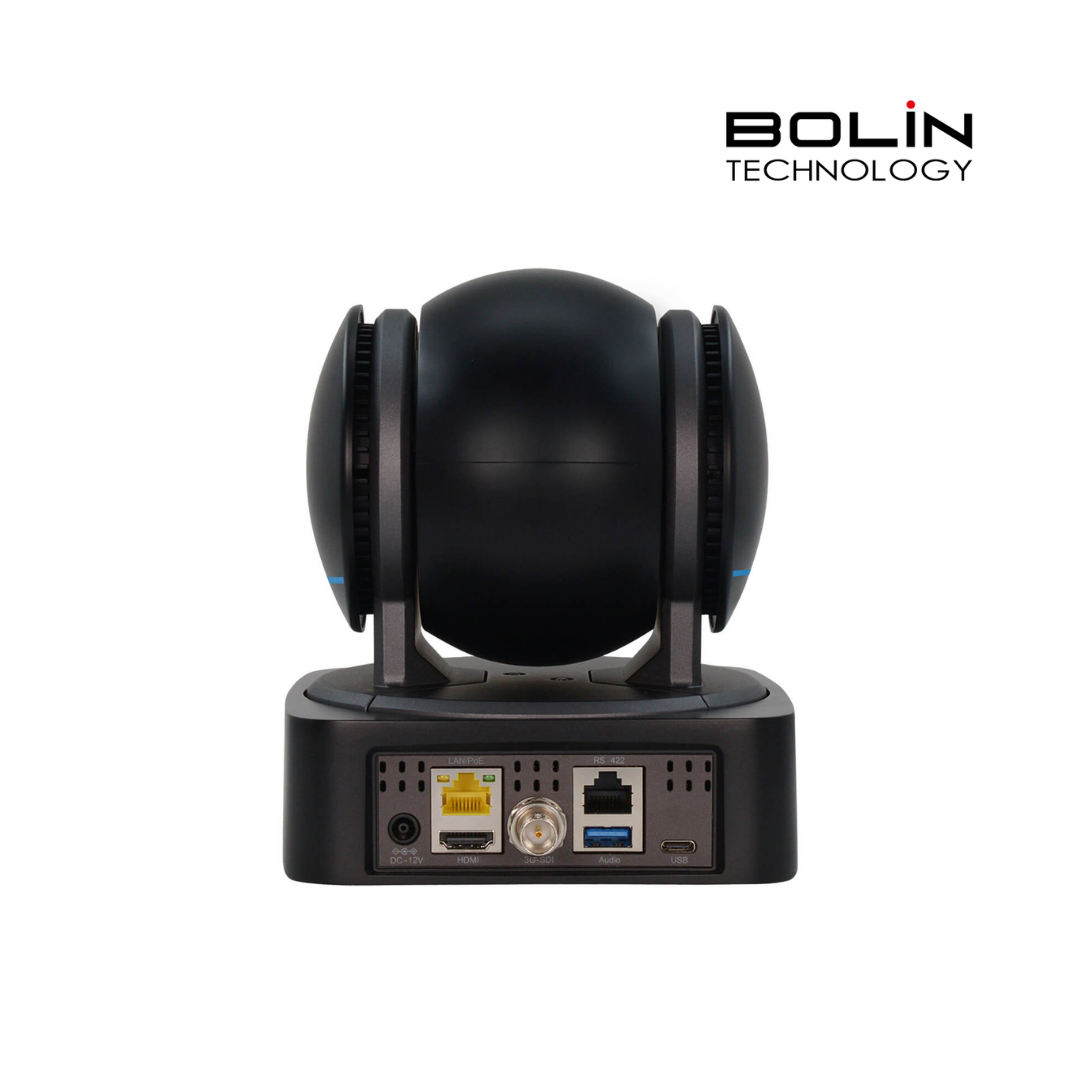

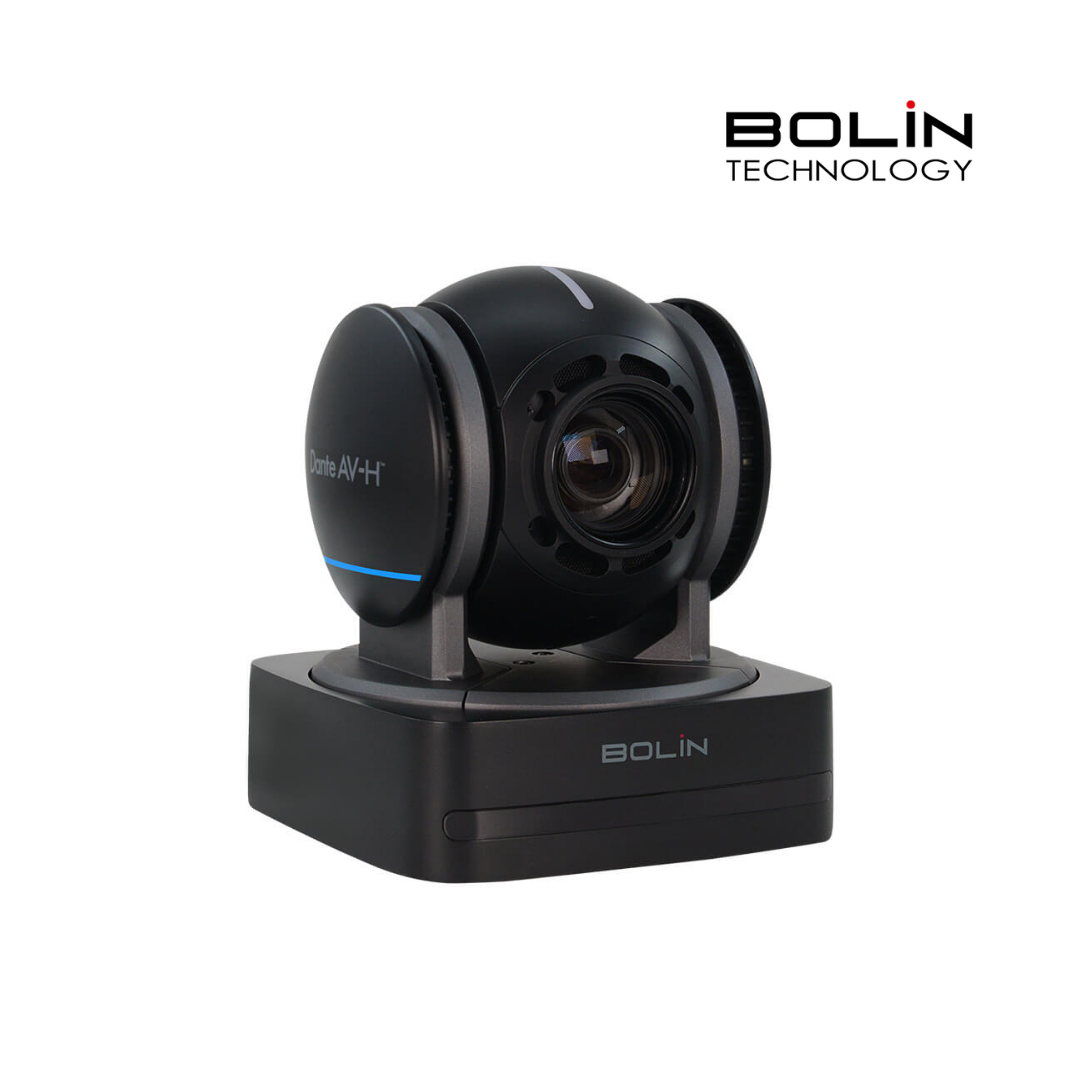

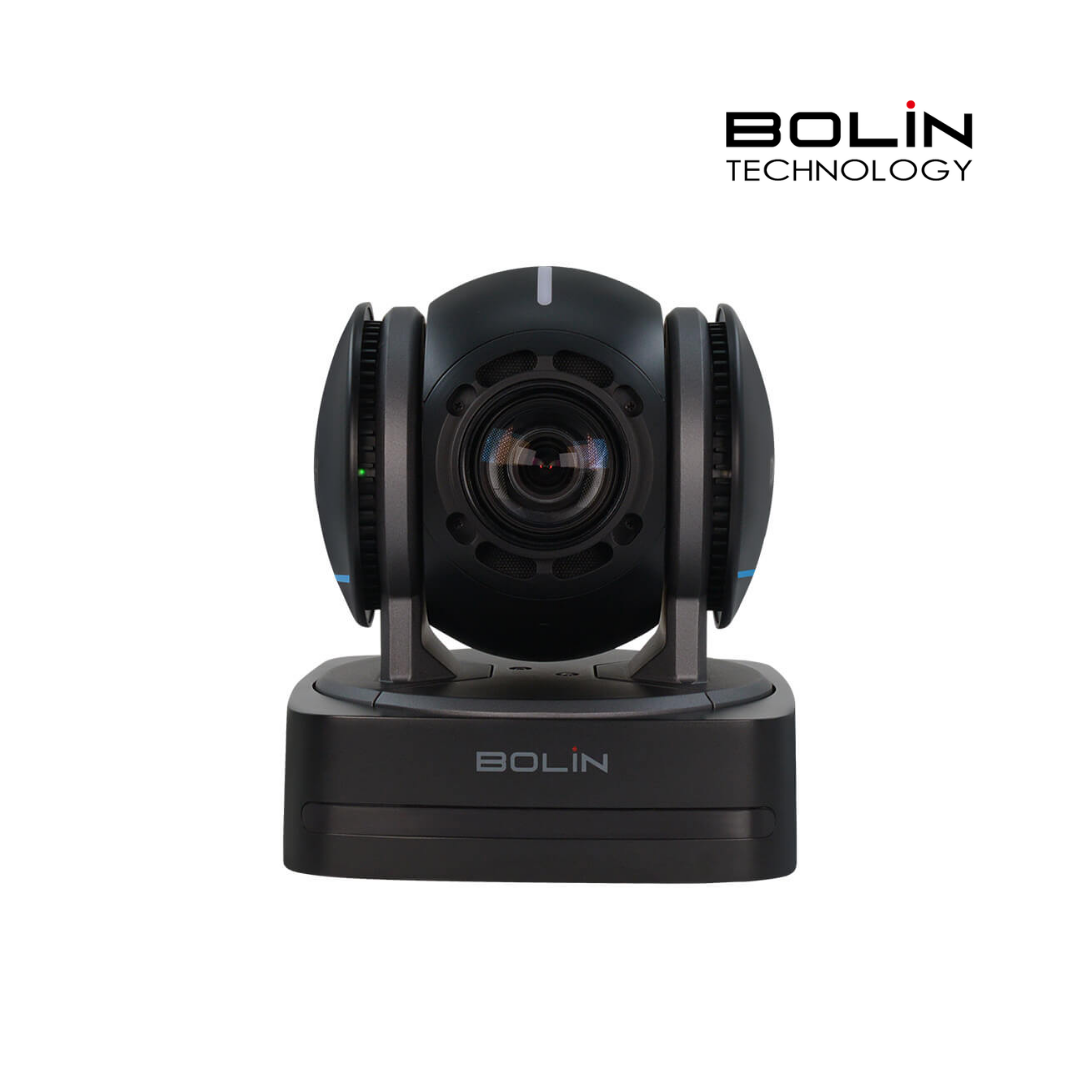

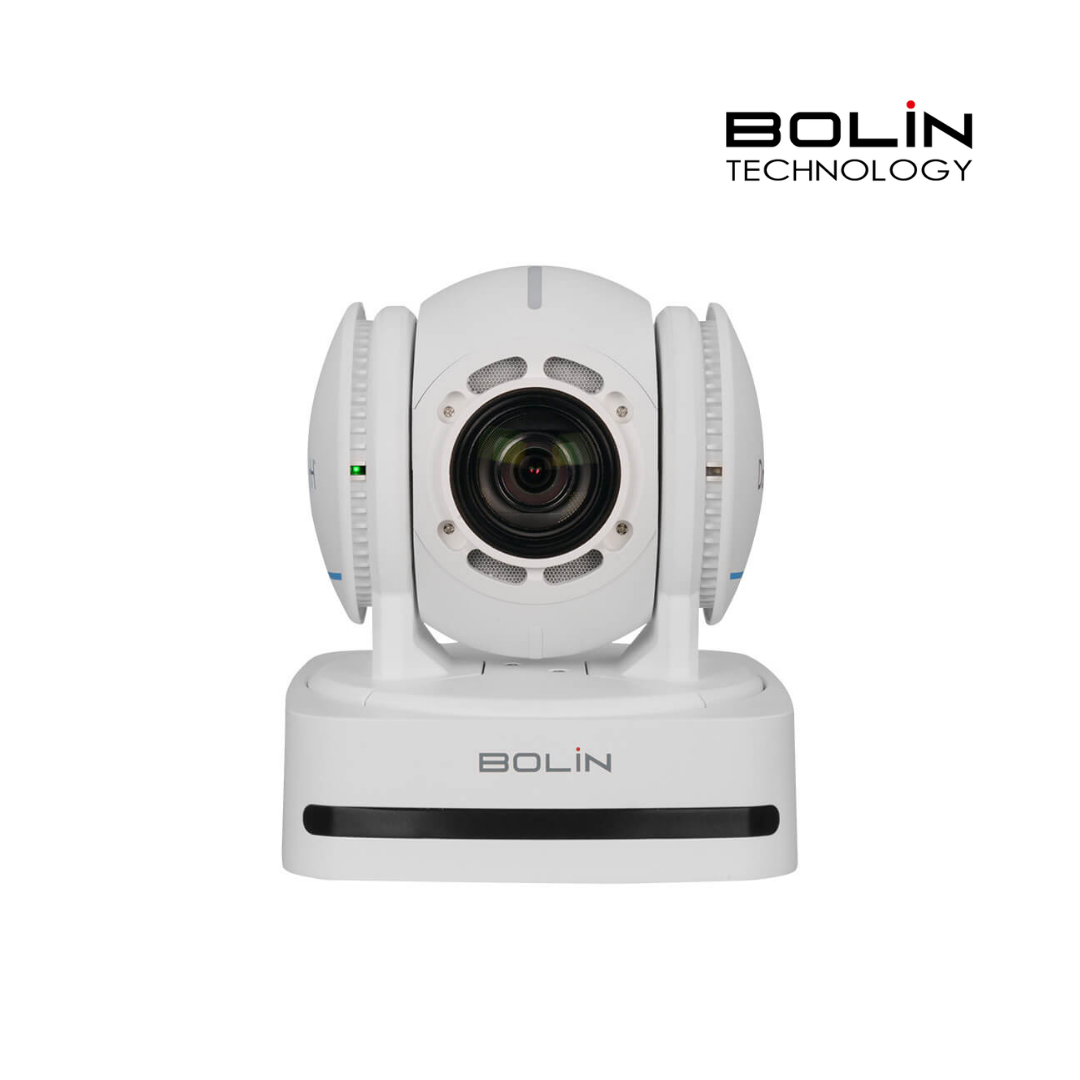

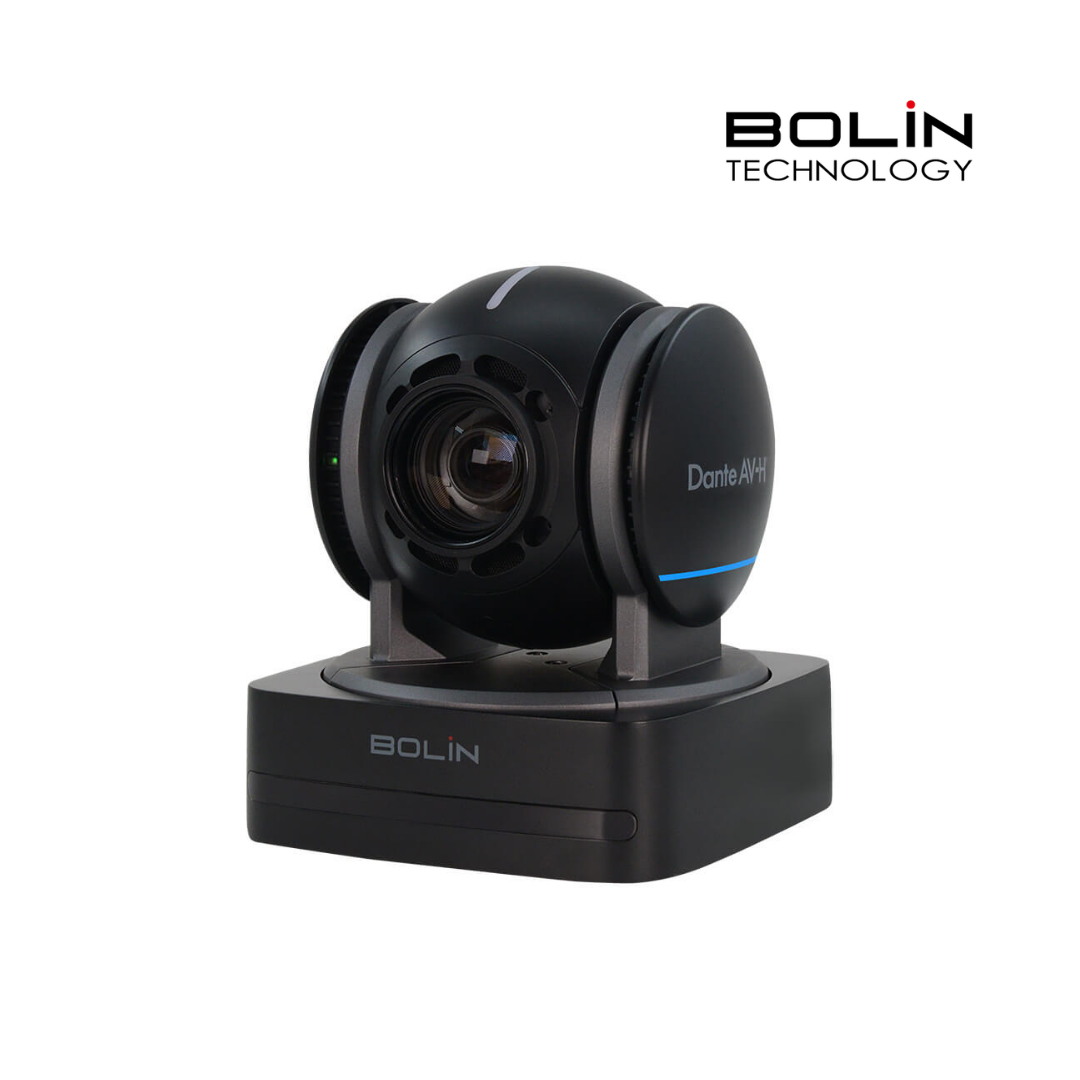

D2-220H Dante AV-H PTZ Camera
The Bolin D2-220H Dante AV-H PTZ Cameras provide high-quality Full HD video in a compact and budget-friendly design, making them an excellent choice for live production, video conferencing, Pro AV applications, and houses of worship. Built on Bolin’s Blue Line platform, these cameras offer professional features at an affordable price, without compromising on image quality, industry standards, or smooth PTZ control.
Both D2-210H and D2-220H models support Dante AV-H, HDMI, USB, and IP streaming, with the D2-220H also featuring 3G-SDI output for expanded connectivity. The D2-210H offers a 10x zoom, providing wide-angle shots ideal for conference rooms and collaborative workspaces, while the D2-220H features a 20x zoom for capturing subjects at greater distances, perfect for lecture halls, event spaces, and mid-sized venues. Both models maintain consistent image quality across all outputs, delivering sharp detail, accurate colors, and smooth motion, whether used for live events, streaming, or professional video calls.
Designed for versatility in any setup, these cameras are compact enough to fit into tight spaces while offering precise PTZ movement for controlled, professional framing. With Dante AV-H support, it’s easy for facilities already using Dante audio networks to add high-quality video to their workflow. With efficient, low-bandwidth IP transmission over standard 1GbE, these cameras integrate directly into existing Dante ecosystems, allowing for simplified routing, easy device discovery, and flexible video distribution without the need for specialized infrastructure.
IEC 60601-certified, meeting medical safety and electromagnetic standards for use in clinical and surgical environments.
The D2-210H and D2-220H provide a cost-effective solution for professionals looking for reliable, high-quality video, flexible connectivity, and smooth PTZ operation in a compact, well-built design.
- Zoom: Optical 10X, Digital 16X
- Image Sensor: 1/2.8″ Sony Progressive Scan CMOS (2.13MP)
- Video Output: HDMI, Dante AV-H (IP), USB Type-C
- Horizontal Angle of View: 68.8° (Wide) to 8.8° (Tele)
- Video Resolution: Up to Full HD 1080p60
- USB Video: UVC/UAC supported for plug-and-play video conferencing
- IP Streaming: Dante AV-H, RTSP, RTMP, RTMPS, SRT
- Video Codec: H.264, H.265 (HEVC), MJPEG
- Audio: Embedded HDMI, USB & IP audio with Mic/Line input
- Control: RS422/RS485, IP, ONVIF Profile S, VISCA, VISCA over IP, Pelco P/D
- AI Imaging: AI Face Auto Focus, AI Face Auto Exposure
- Image Enhancement: WDR, 2D/3D Noise Reduction, Defog, Backlight Compensation
- PTZ Presets: Up to 255 preset positions
- Power: 12V DC, PoE (IEEE 802.3af)
- Network: 1GbE RJ45 with Unicast & Multicast streaming
- Mounting: Ceiling, Wall, or Tripod
- Body: Lightweight Magnesium Alloy Construction
Banquet Halls
Casinos
Auditoriums
Houses of Worship
Educational Facilities
Convention Centres
Corporate Environments
Restaurant
Bars
| Model No. | D2-220H |
| Product Name | Dante AV-H PTZ Camera |
| Camera | 20X Full HD |
| Image Sensor | Sony Progressive Scan CMOS Image Sensor, 1/2.8 type |
| Number of Effective Pixels | 1920 × 1080 (2.13 MP) |
| Zoom | Optical Zoom 20X, Digital Zoom 16X |
| Focal Length | f = 5.2 mm (Wide) to 104 mm (Tele) |
| Aperture | F1.6 (Wide) to F3.0 (Tele) |
| Horizontal Angle of View | 55.8° (Wide) – 3.2° (Tele) |
| Vertical Angle of View | – |
| Minimum Object Distance | 10 mm (Wide) |
| Minimum Illumination | 0.5 lux (Color), 0.1 lux (Black & White) |
| Shutter Speed | 1/25 – 1/1000 sec |
| Focus | Auto, Manual, One Push |
| White Balance | Auto, Indoor, Outdoor, OPW, ATW, Manual, SVL USER |
| Exposure | Auto, Manual, Shutter/Iris Priority |
| Image Adjustment | Brightness, Color (Saturation), Contrast, Sharpness, Hue |
| Back Light Compensation | On/Off |
| E-Flip | On/Off |
| WDR | On/Off |
| Image Stabilizer | – |
| Defog | Yes |
| Mirror | Horizontal |
| Day/Night | On/Off |
| Contrast | Yes |
| Color Gain | Yes |
| Color Hue | Yes |
| Color Matrix | Yes |
| Black Level | – |
| Gamma | Yes, 4 Levels (0.45, 0.50, 0.55, 0.63) |
| High Sensitivity | Yes |
| Scene | Default, Clear, Bright, Soft |
| Focus Zone | Face Priority, All Area, Upper Area, Central Area, Lower Area |
| AI Face Detection Focus | Yes |
| AI Face Auto Exposure | Yes |
| Noise Reduction | 2D / 3D (Levels 0–100) |
| S/N Ratio | ≥50 dB |
| OSD | Editable |
