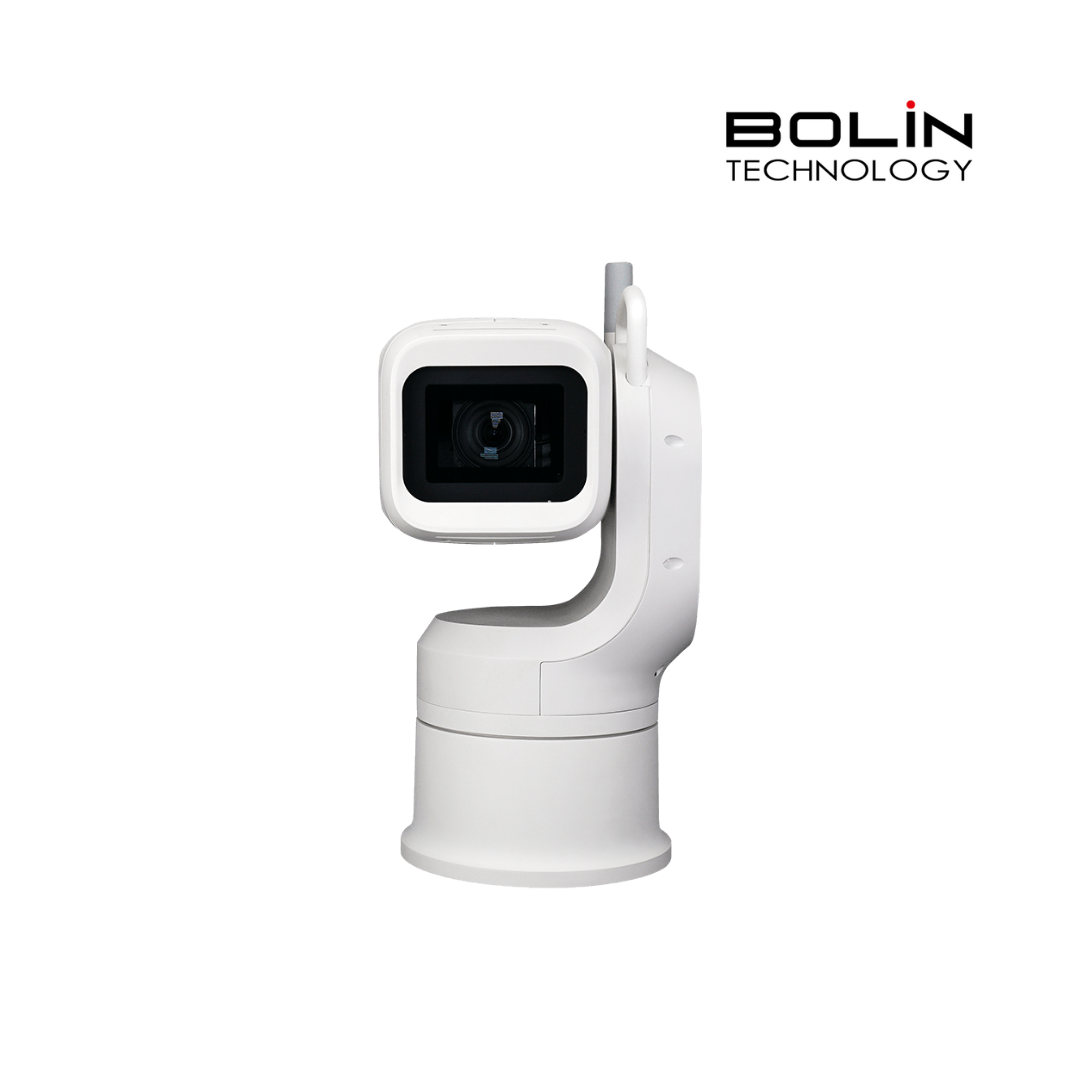

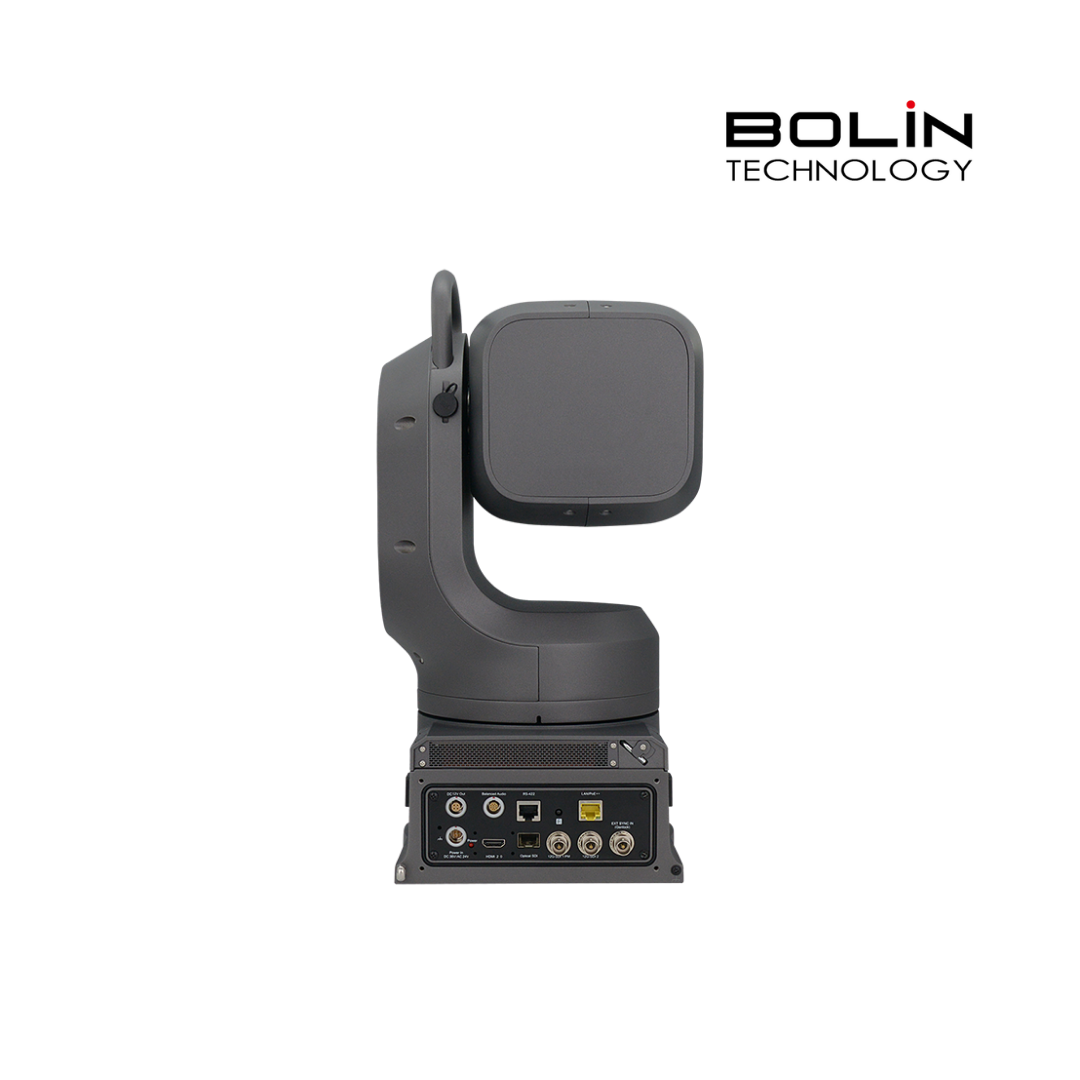

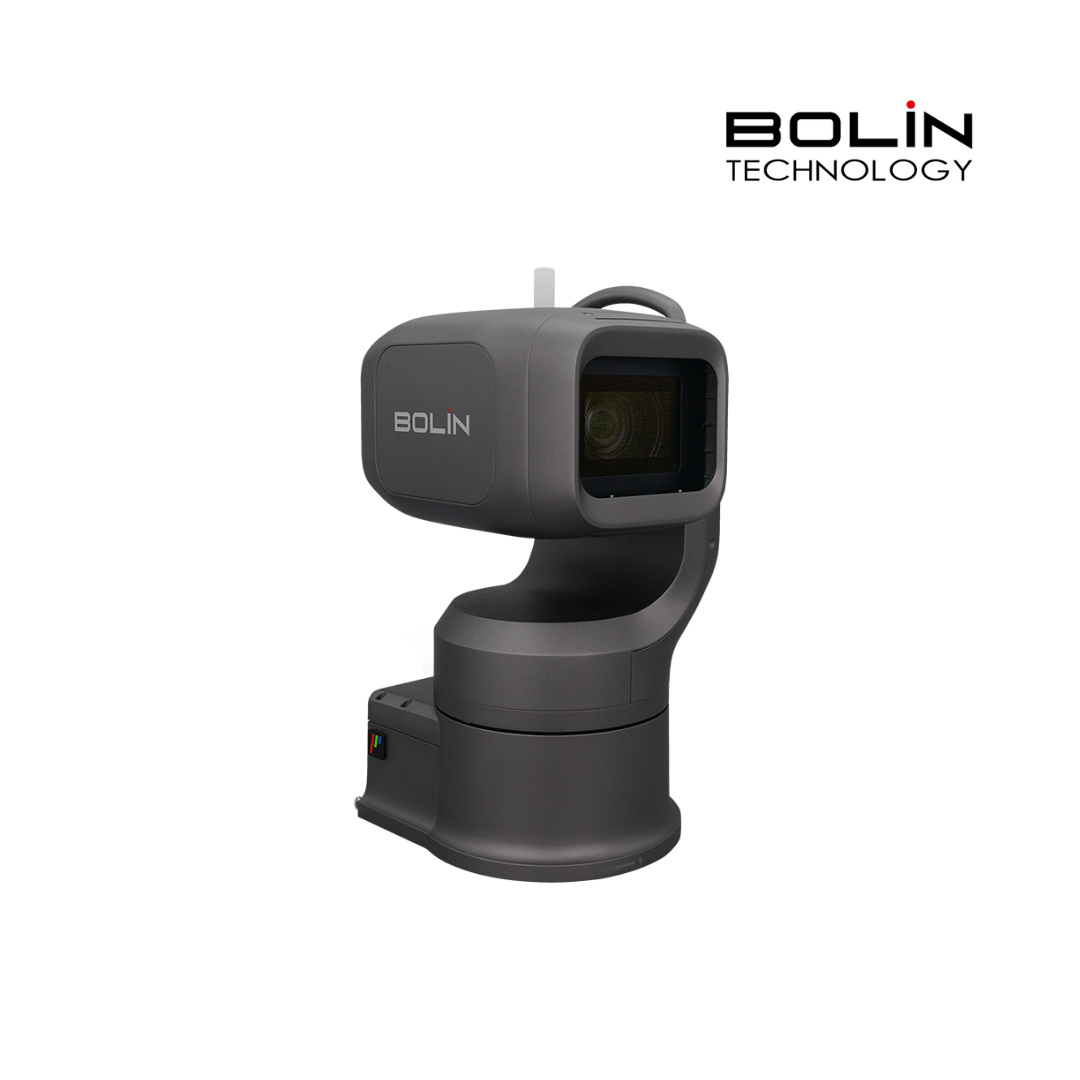

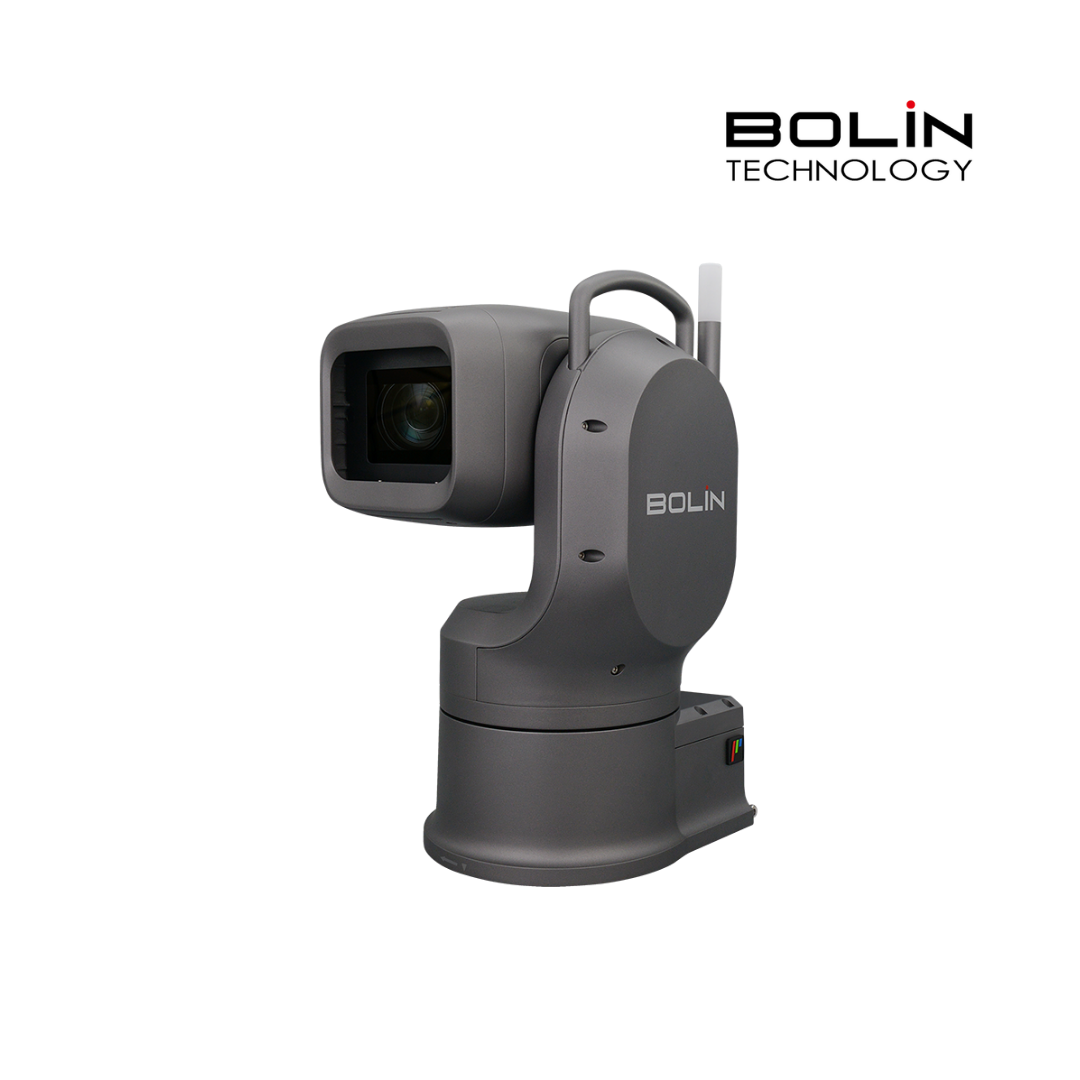

EXU420F 4K60 Outdoor PTZ Camera
Designed for professional outdoor video production, the Bolin EXU420F 4K60 Outdoor PTZ camera delivers stunning 4K60 video with high-resolution clarity, smooth motion, and precise color accuracy. Featuring a 20x zoom, the EXU420F ensures detailed, high-quality imaging from both wide and long-range shots, making it the perfect choice for live sports, outdoor concerts, weather decks, and remote event broadcasting. Built using Sony’s STARVIS sensor, the camera excels in capturing color-accurate video in low-light applications.
Engineered for demanding environments, its IP67-rated weatherproof housing protects against dust, water, and extreme temperatures, ensuring reliable 24/7 operation in rain, snow, and direct sunlight. The EXU420F is built for professional broadcast and AV-over-IP workflows, offering simultaneous 12G-SDI, HDMI 2.0, SFP Optical SDI, and IP streaming outputs for seamless integration into modern production setups. FPGA hardware FAST HEVC codec provides high-quality, low latency and low bandwidth IP streams include RTSP, RTMP, SRT, ONVIF, and MPEG-TS.
The EXU420F supports FreeD protocol, allowing for real-time tracking in AR/VR applications, making it an ideal choice for visitor engagement in outdoor venues, sports analytics, and immersive live broadcasts. For multi-camera productions, the EXU420F supports external synchronization via Genlock input, ensuring frame-accuracy when cutting between sources. Its industry-leading 255 steps of VISCA control deliver ultra-smooth pan, tilt, and zoom movements, allowing operators to capture dynamic shots with absolute precision.
With low-latency streaming, flexible connectivity, and rugged outdoor reliability, the EXU420F is the ideal PTZ camera for professional broadcast, live production, and remote video applications. Whether for fixed installations or mobile productions, the Bolin EXU420F provides exceptional image quality, robust performance, and industry-leading versatility in any outdoor environment.
- Sony 4K image sensor
- 20X zoom range
- Resolution 4K60, 1080i59.94, 1080p60
- IP Video Resolution: Up to 2160p60, 1080p60
- Video Output: Simultaneous 12G-SDI, HDMI2.0, IP
- FPGA FAST HEVC Ultra Low Lantency
- SFP Optical SDI video output
- RTSP. RTMP, SRT Supported
- Visca Over IP, Onvif, FreeD, Serial Control Supported
- Weatherproof IP67 rated
Banquet Halls
Casinos
Auditoriums
Houses of Worship
Educational Facilities
Convention Centres
Corporate Environments
Restaurant
Bars
| Model | EXU420F |
| Camera Image | 20X 4K60 |
| Image Maker | Bolin |
| Image Sensor | IMX715, CMOS image sensor 1/2.8 type |
| Number of effective pixels | 8.29MP, 8.29 MP |
| Picture elements | 3840 × 2160 |
| Lens | 20X |
| Digital Zoom | 16X |
| Horizontal Angle of View | 78.59° (W) ~ 4.92° (T) |
| Vertical Angle of View | 48.39° (W) ~ 2.79° (T) |
| Focal Length | f = 3.55 mm (WIDE) to 71 mm (TELE) |
| Min. object distance | 10 cm |
| Aperture | F2.0 (Wide) to F3.8 (Tele) |
| Min. Illumination | 0.5 lux (color), 0.1 lux (black) |
| Shutter Speed | 1/60–1/100K sec (21 steps) |
| Focus | Auto, Push, Manual |
| White Balance | Auto, Indoor, Outdoor, OPW, ATW, Manual, USER, SVL |
| Exposure | Auto, Manual, Shutter, Iris priority |
| Features | Backlight Compensation, E-FLIP, Mirror, Day/Night, Flicker, Contrast, Effect, SHARPNESS |
| WDR | 120 dB |
| Color Gain | Yes |
| Color Hue | Yes |
| Gamma | Yes |
| Gamma Level | 0–4 |
| Color Matrix | – |
| Noise Reduction | 2D / 3D (level 0 to 100) |
| S/N Ratio | ≥50 dB |
| E-Flip | Yes |
| Defog | Yes |
| Day/Night | Yes |
| Backlight Compensation | Yes |
| AI Face Detection Focus | Yes |
| AI Face Auto Exposure | Yes |
| Scene Style | Standard, Bright, Clarity, Soft |
| Focus Zone | Face Priority, All Area, Top/Central/Bottom |
