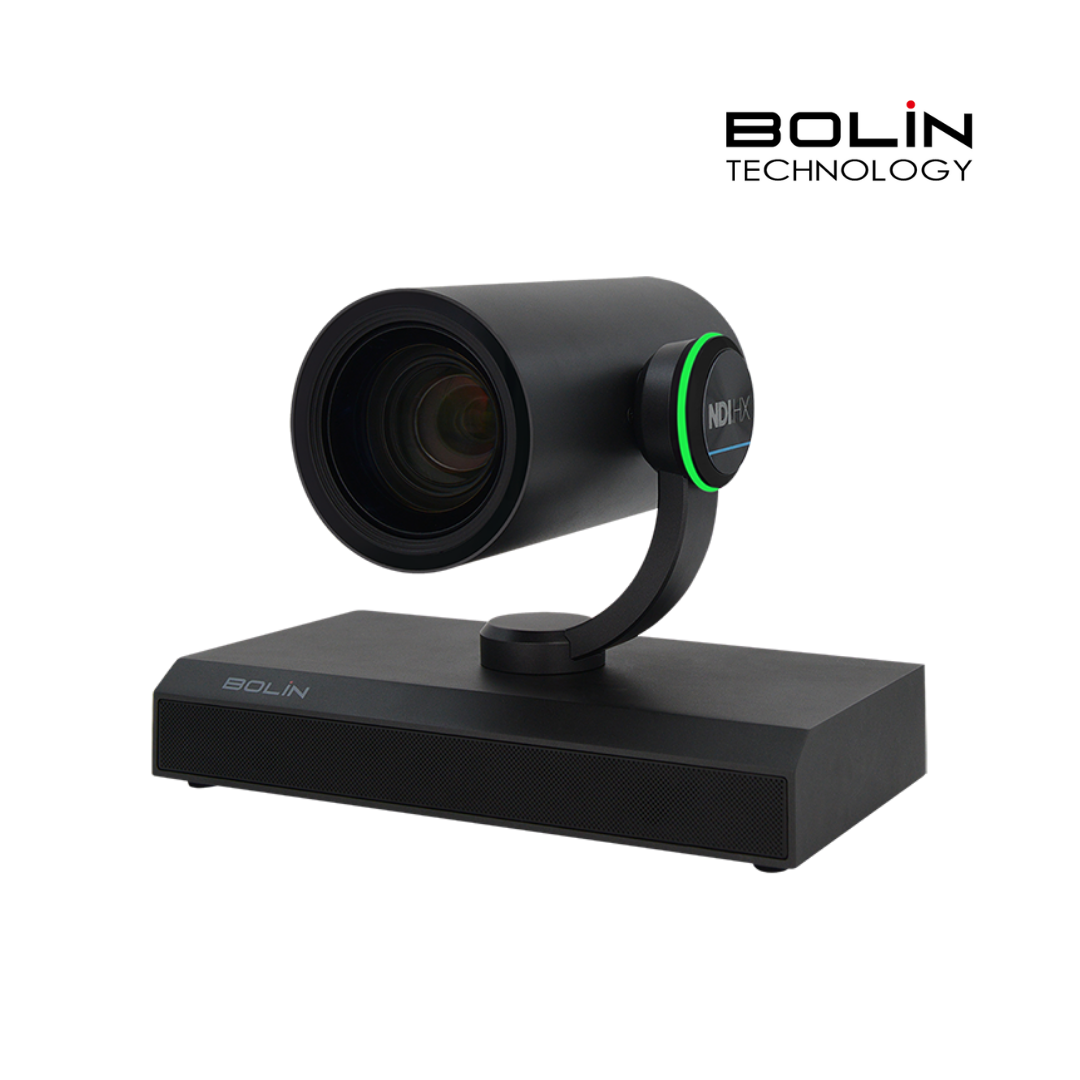

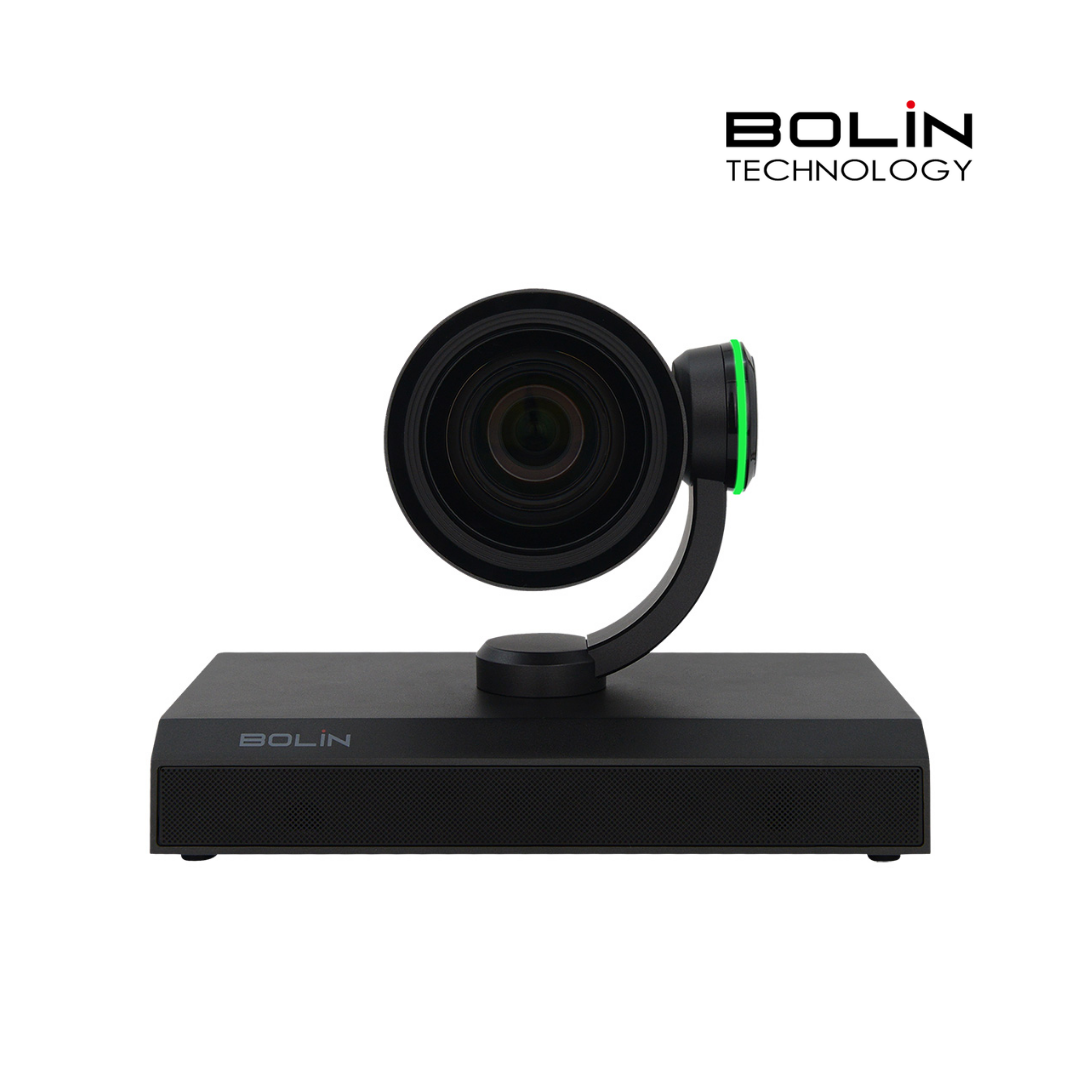

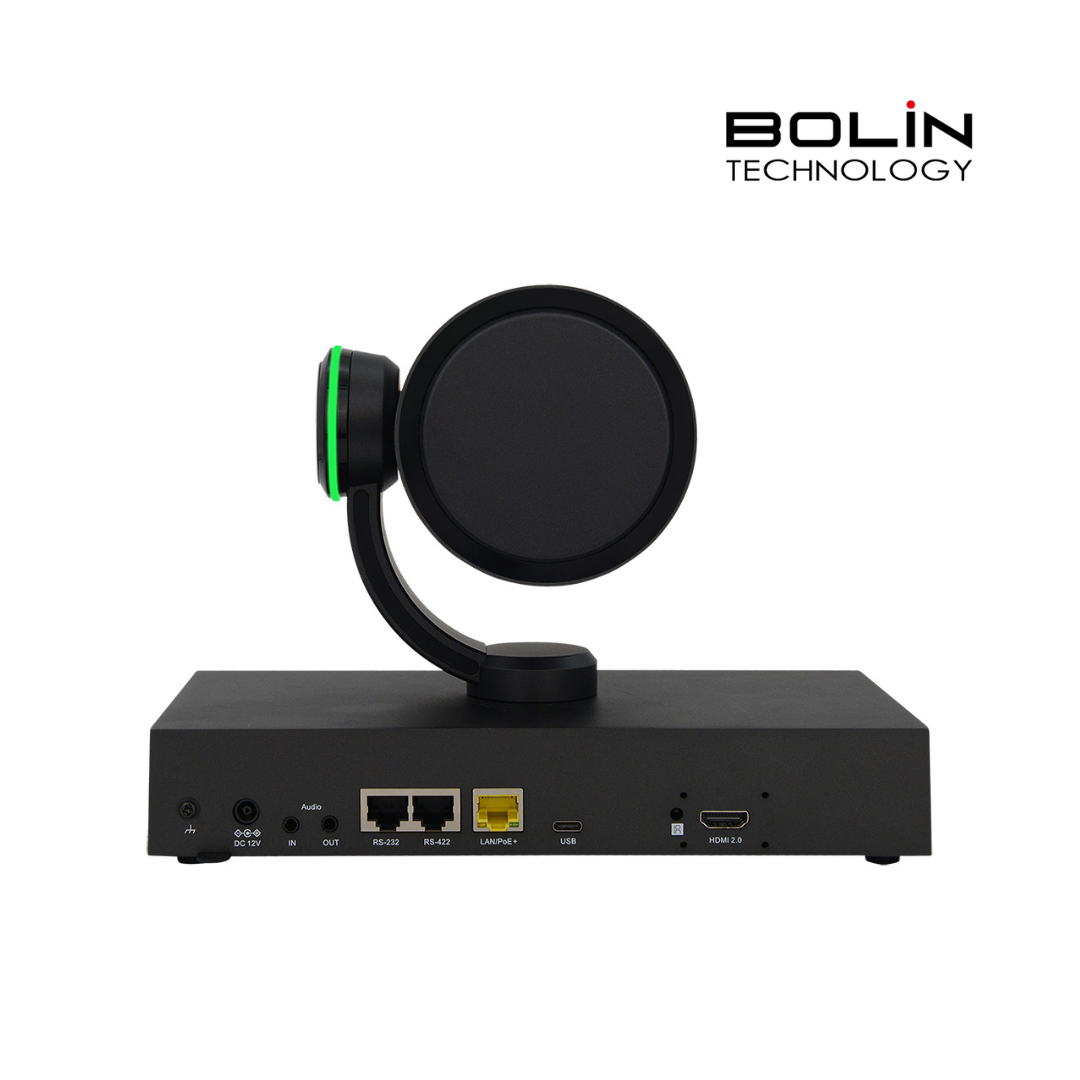

N6-420X 4K60 NDI HX3 PTZ Camera
Bolin’s N6-420X 4K60 NDI HX3 PTZ Camera delivers high-quality 4K60 video in a versatile and elegant design, making it an excellent choice for live production, corporate AV, education, and houses of worship. Built on Bolin’s Blue Line platform, it offers professional performance at an accessible price, ensuring reliable operation without sacrificing image quality, industry standards, or smooth PTZ control.
The N6-420X features a 20x zoom, allowing for wide-angle shots and close-ups with sharp detail and accurate colors, making it ideal for conference rooms, studios, event spaces, and mid-size venues. It supports Certified NDI HX3, HDMI 2.0, USB-C, and IP streaming, providing multiple output options to fit a variety of workflows. NDI HX3 support delivers high-quality IP video with reduced bandwidth demands, ensuring efficient and reliable performance for modern productions.
Designed for smooth and precise operation, the N6-420X offers responsive PTZ movement for controlled, professional framing. AI-powered auto-focus and auto-exposure adjust to changing lighting conditions, keeping video consistent and clear. A 3.5mm mic/line input allows for direct audio embedding, while a variety of control options including VISCA over IP and NDI provide flexible control options for various production setups.
IEC 60601-certified, meeting medical safety and electromagnetic standards for use in clinical, surgical, and healthcare education environments.
The N6-420X is a cost-effective solution for professionals looking for reliable 4K60 video, flexible connectivity, and smooth PTZ performance in a well-built, easy-to-integrate design.
- NDI Certified
- Zoom: Optical 20X
- Video Output: NDI HX3, HDMI, USB C
- Horizontal Angel of View: 79°
- Video Resolution up to 4K60
- IP resolution up to 4K60.
- RTSP, RTMP, SRT IP streaming
- AI Exposure, AI Focus
- Power: 12VDC, PoE+
Banquet Halls
Casinos
Auditoriums
Houses of Worship
Educational Facilities
Convention Centres
Corporate Environments
Restaurant
Bars
| Model No. | N6-420X |
| Resolution | 20X 4K60 |
| Image Sensor | Sony Progressive scan CMOS image sensor 1/2.8 type |
| Number of Effective Pixels | 3840×2160, 8.29MP |
| Zoom | Optical Zoom 20X, Digital Zoom 16X |
| Focal Length | f= 3.55 mm (WIDE) to 71 mm (TELE) |
| Aperture | F2.0 (WIDE) to F3.8 (TELE) |
| Horizontal Angle of View | 78.59° (W)–4.92° (T) |
| Vertical Angle of View | 48.39° (W)–2.79° (T) |
| Min. Object Distance | 10mm (Wide) |
| Min. Illumination | 0.5lux (Color), 0.1lux (Black) |
| Shutter Speed | 1/30–1/10000 |
| Focus | Auto, Manual, One Push |
| White Balance | Auto, Indoor, Outdoor, OPW, ATW, Manual, USER, SVL |
| Exposure | Auto, Manual, Shutter/Iris priority |
| Image Adjustment | Brightness, Color(Saturation), Contrast, Sharpness, HUE |
| Back Light Compensation | On/Off |
| E-Flip | On/Off |
| WDR | On/Off |
| Image Stabilizer | – |
| Defog | Yes |
| Mirror | Horizontal |
| Day/Night | On/Off |
| Contrast | Yes |
| Color Gain | Yes |
| Color Hue | Yes |
| Color Matrix | Yes |
| Black Level | – |
| Gamma | Yes, 4 levels (0.45, 0.50, 0.55, 0.63) |
| High Sensitivity | Yes |
| Scene | Default, Clear, Bright, Soft |
| Focus Zone | Face Priority, All Area, Upper Area, Central Area, Lower Area |
| AI Face Detection Focus | Yes |
| AI Face Auto Exposure | Yes |
| Noise Reduction | 2D/3D, 1–100 |
| S/N Ratio | ≥50dB |
| OSD | Editable |
