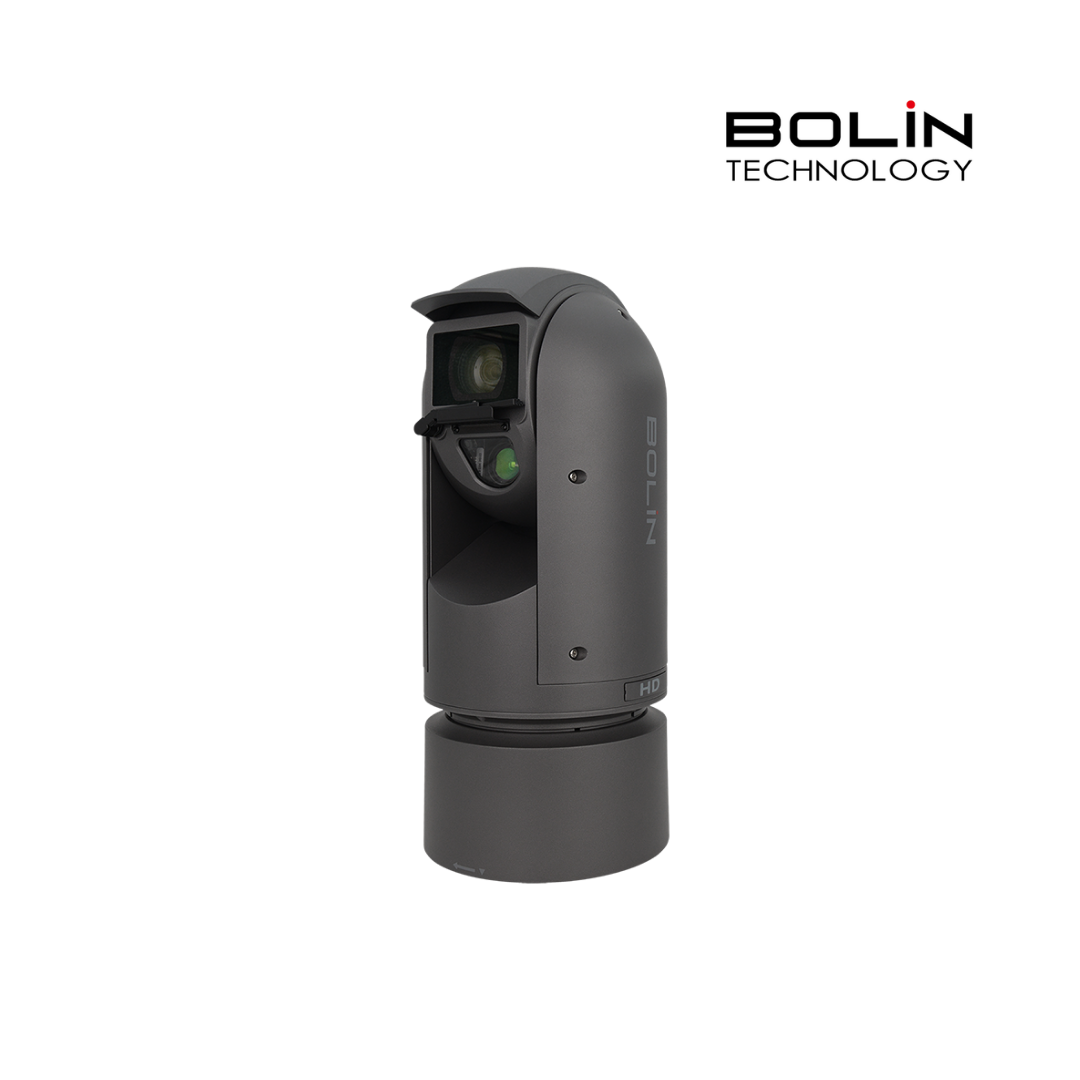

EX1030H (Gen3) SDI IP Dual Output Outdoor PTZ Camera
Designed for professional outdoor video production, the Bolin EX1030H SDI IP Dual Output Outdoor PTZ camera delivers broadcast-quality Full HD video with exceptional clarity and stability. Equipped with a 30x zoom, it captures detailed visuals from long distances, making it ideal for sports, outdoor events, and observation applications. The camera’s advanced low-light performance ensures clear and vibrant images even in challenging lighting conditions. Its Super Image Stabilization Plus feature minimizes vibrations and motion blur, providing steady shots in dynamic and high-vibration settings.

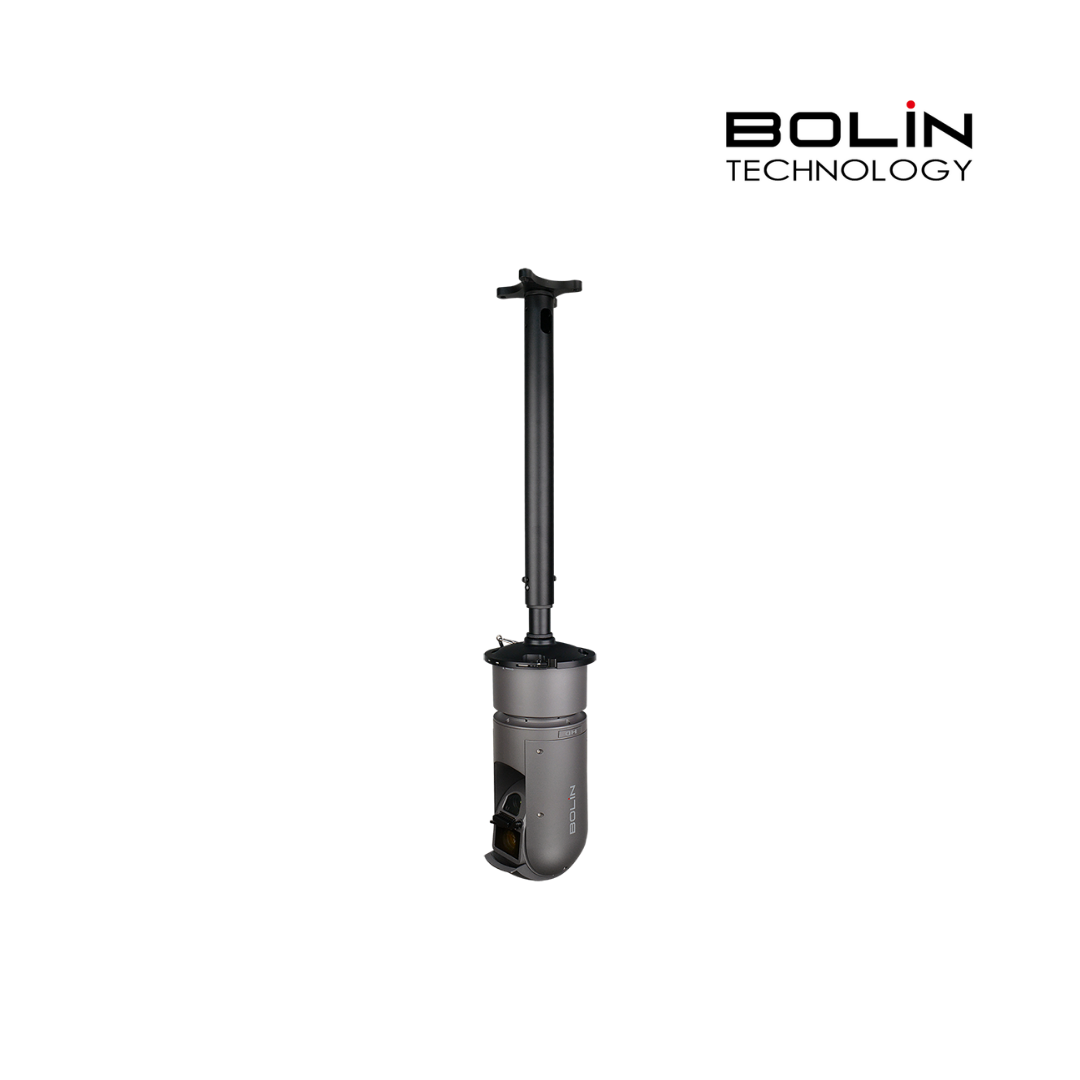

Keeping extreme weather conditions in mind, the EX1030H’s IP67-rated weatherproof and wind-resistant housing offers robust protection against dust, water, and temperature fluctuations. An integrated rain wiper and heater maintain a clear lens, allowing for uninterrupted performance. The innovative mechanical roll-axis adjustment up to 15 degrees adds flexibility for creative positioning and corrects leveling issues. With continuous 360-degree panning, upright mounting capability of 360 degree upper skyview, and industry-leading 255 steps of PTZ control, the EX1030H ensures smooth movement, making it ideal for capturing wide-area coverage with precision in professional outdoor productions.
The EX1030H supports simultaneous and independent outputs, including 3G-SDI and IP streaming for integration into broadcast, live production, and AV-over-IP workflows. It is compatible with control protocols such as VISCA over IP and ONVIF, offering versatile control options to suit various operational needs. The inclusion of the FreeD protocol enables real-time AR/VR tracking, making the EX1030H a valuable asset for interactive live experiences.
From long-duration event coverage to permanent outdoor installations, the Bolin EX1030H delivers professional video quality, reliable stability, and rugged durability, ensuring every moment is captured with clarity and precision in any environment.
- Sony 1/2.8 type CMOS sensor STARVIS II
- 30X Zoom Range
- Resolution 1080i59.94, 1080p60
- IP Video Resolution: Up to 1080p60

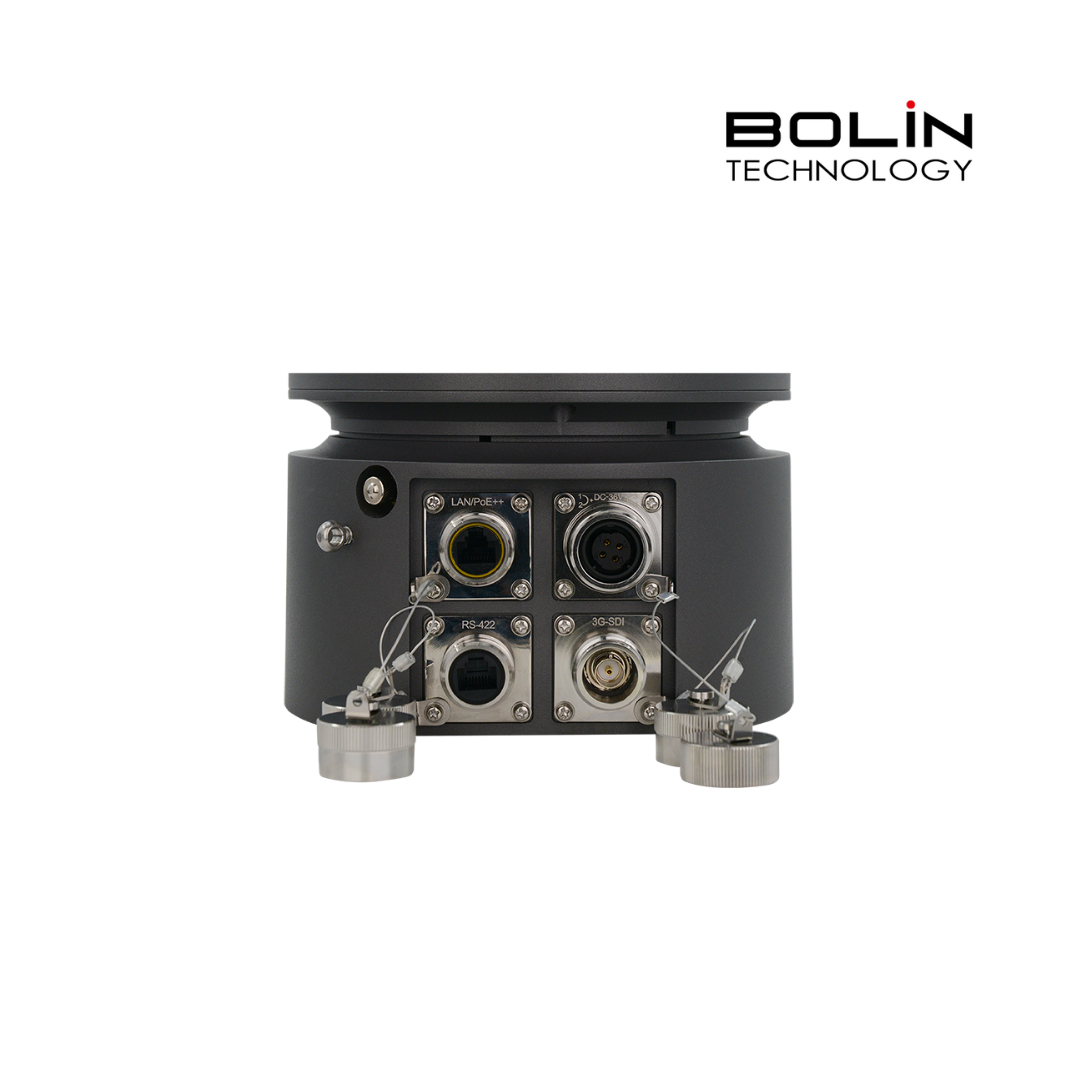

- Video Output: Simultaneous 3G-SDI, IP
- RTSP. RTMP, SRT, ONVIF Supported
- Visca Over IP, Onvif, FreeD, Serial Control Supported
- Extreme Low Light Performance
- Super Image Stabilizer
- Weatherproof IP67 rated , Nitrogen Filled Housing
- Laser LED Illumination, Rain Wiper
Banquet Halls
Casinos
Auditoriums
Houses of Worship
Educational Facilities
Convention Centres
Corporate Environments
Restaurant
Bars
| Model No. | EX1030H |
| Camera | 30X Full HD |
| Image Block | Sony |
| Image Sensor | Progressive scan CMOS image sensor 1/2.8 type, STARVIS™ 2 |
| Number of effective pixels | 2.13MP |
| Picture elements | 1920×1080 |
| Lens | Optical zoom 30X |
| Digital Zoom | 12X |
| Horizontal Angle of View | 64° (W) – 2.4° (T) |
| Focal Length | f=4.3 mm (WIDE) to 129 mm (TELE) |
| Min. Object Distance | 10mm (Wide), 1200mm (Tele) |
| Aperture | F1.6 (Wide) to F14 (Tele) |
| Min. Illumination (50%, High Sensitivity Mode ON) | ICR-OFF mode: 0.009 lx (Shutter Speed: 1/30 sec), ICR-ON mode: 0.00008 lx (Shutter Speed: 1/30 sec) |
| Min. Illumination (50%, High Sensitivity Mode OFF) | ICR-OFF mode: 0.09 lx (Shutter Speed: 1/30 sec), ICR-ON mode: 0.00063 lx (Shutter Speed: 1/30 sec) |
| Shutter Speed | 1/1 sec to 1/10000 sec (22 steps) |
| Focusing System | Auto, Manual, One Push Trigger, Full Scan, One push trigger, Near Limit, Spot Focus |
| White Balance | Auto, ATW, Indoor, Outdoor One Push WB, Manual, Outdoor Auto, Sodium Vapor Lamp Auto, Sodium Vapor Lamp, Sodium Vapor Lamp Suppression |
| Exposure | Full Auto, Gain Limit Setting, Shutter Priority, Iris Priority, Manual, EV Compensation |
| Features | Backlight Compensation, E-FLIP, Mirror, Day/Night, Flicker, Contrast, Effect, Sharpness |
| WDR | Yes |
| ND Filter | / |
| Image Stabilizer | Yes: Super image stabilizer (Super / Super+) |
| Contrast | Yes |
| Color Gain | Yes |
| Color Hue | Yes |
| Color Matrix | Yes |
| Gamma | Yes |
| Noise Reduction | On/Off (level 5 to 1 / Off, 3D / 2D Noise Reduction) |
| S/N Ratio | ≥50 dB |
| Spot Light Avoidance | Yes |
| E-Flip | Yes |
| Spherical Privacy Zone Masking | – |
| Defog | Yes (low/mid/high) |
| High Sensitivity | Yes |
| Slow AE Response | Yes |
| Day/Night (Auto ICR) | Yes: ON (B&W/Color) |
| Backlight Compensation | Yes |
| Low Latency Mode | Yes |
| Focus Zone | All, Central Area |
| Scene Style | Default, Clear, Bright, Soft |
| Auto Flip | Yes |
