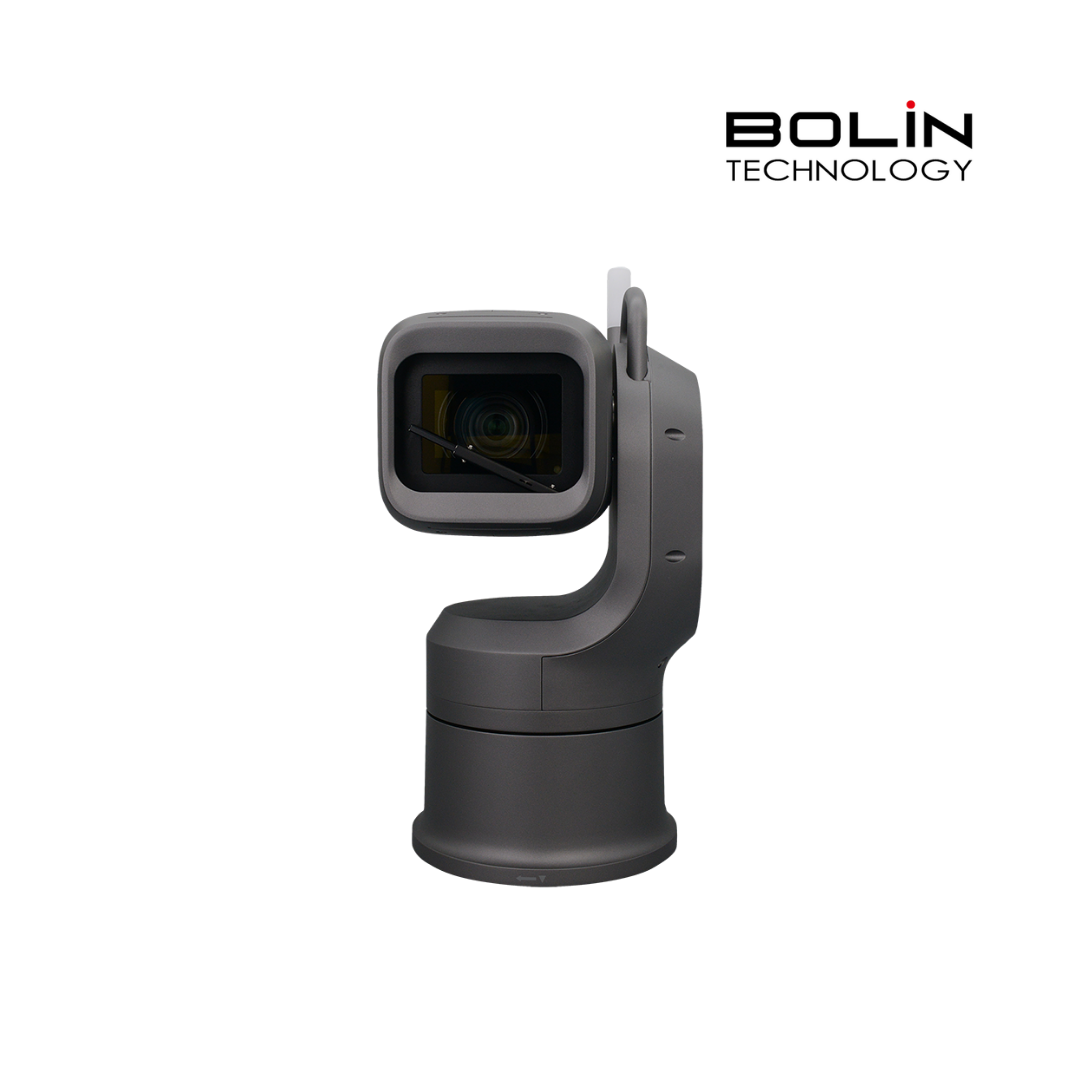

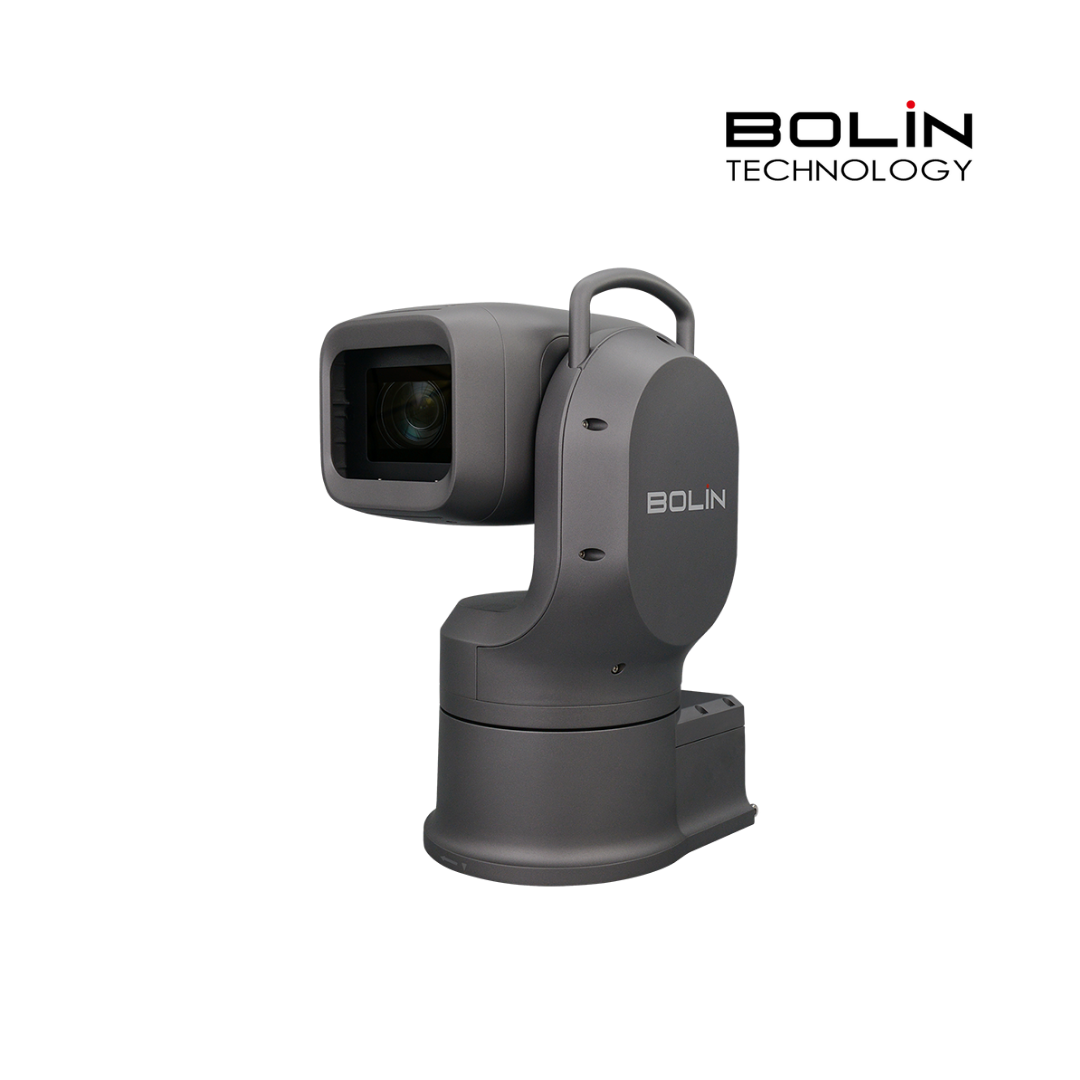

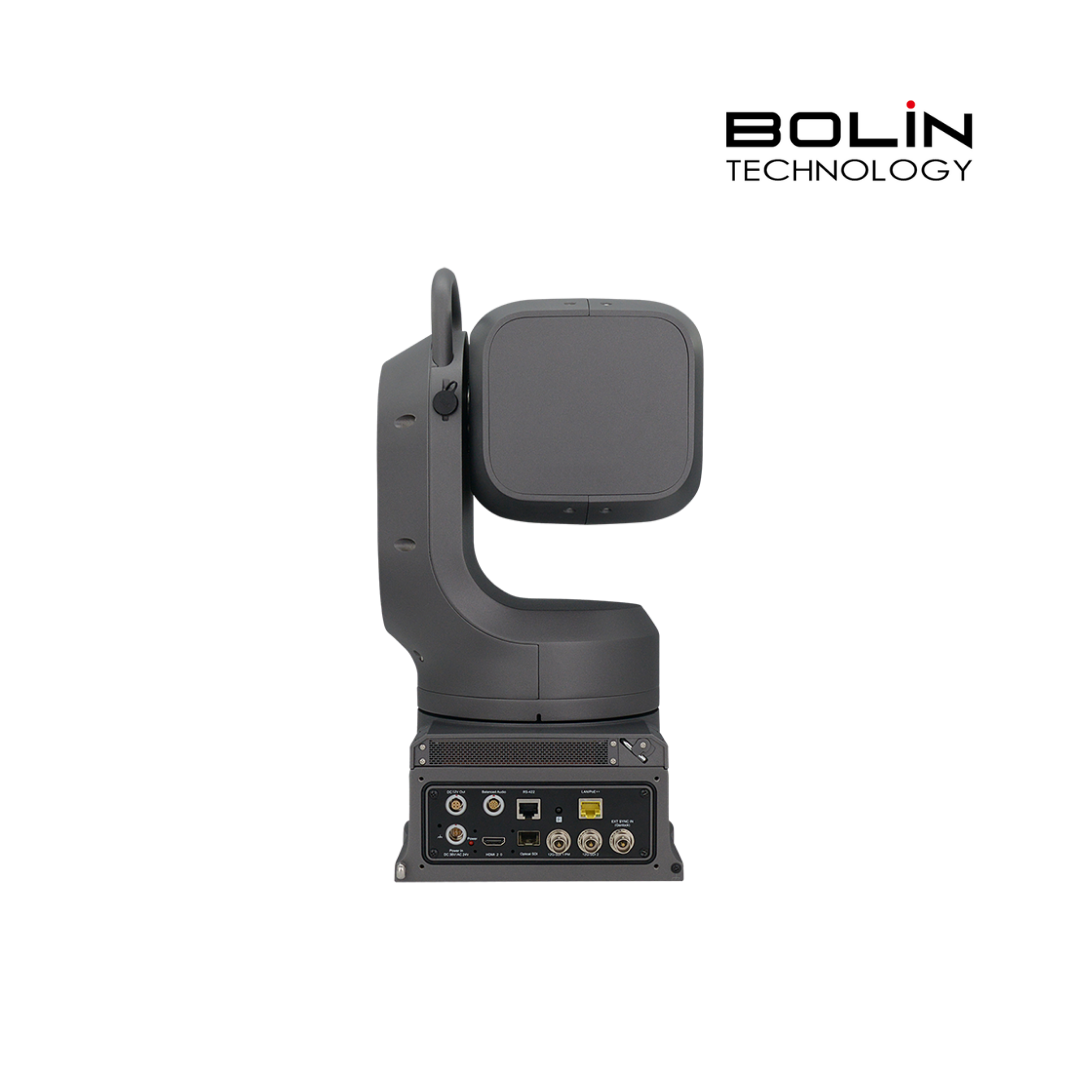

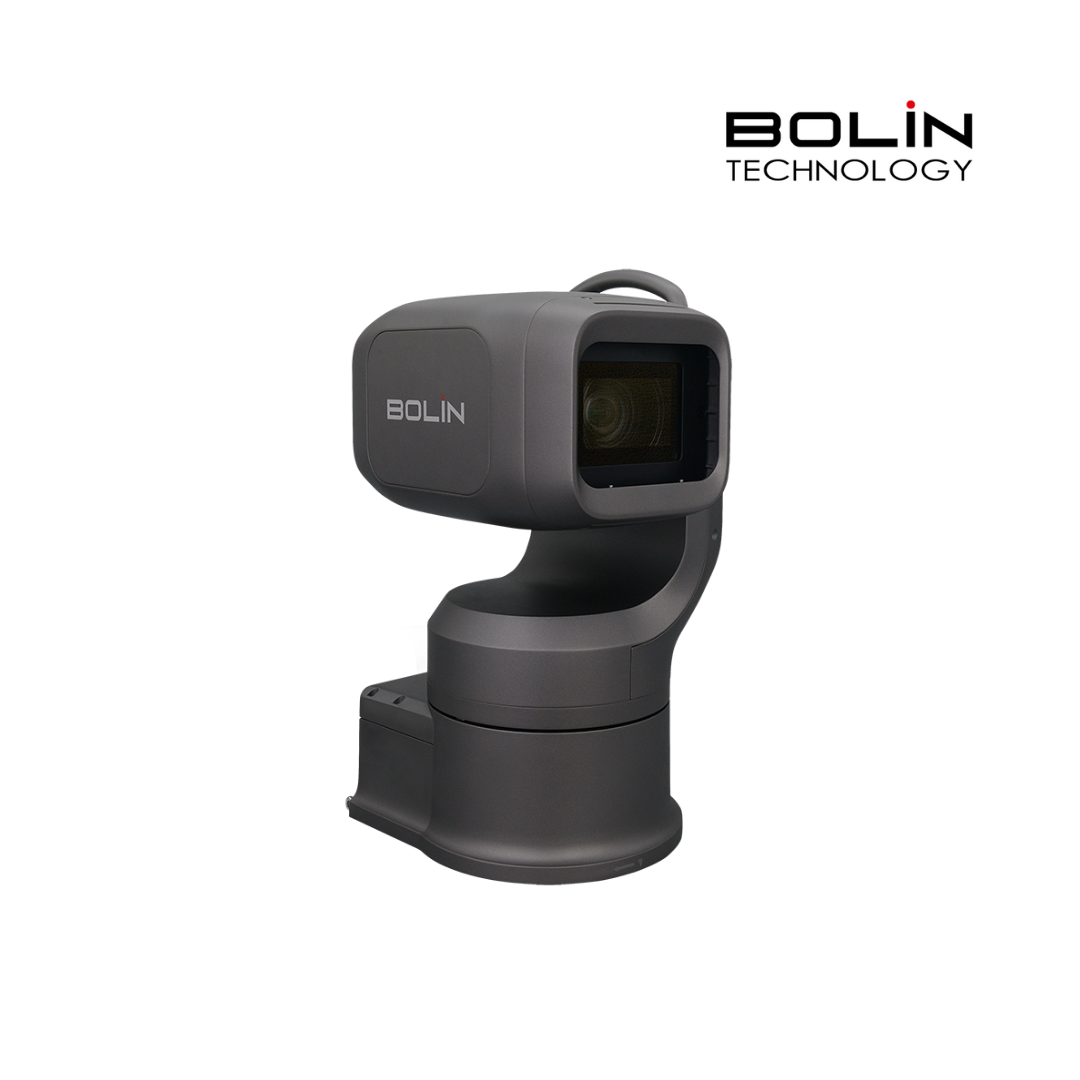

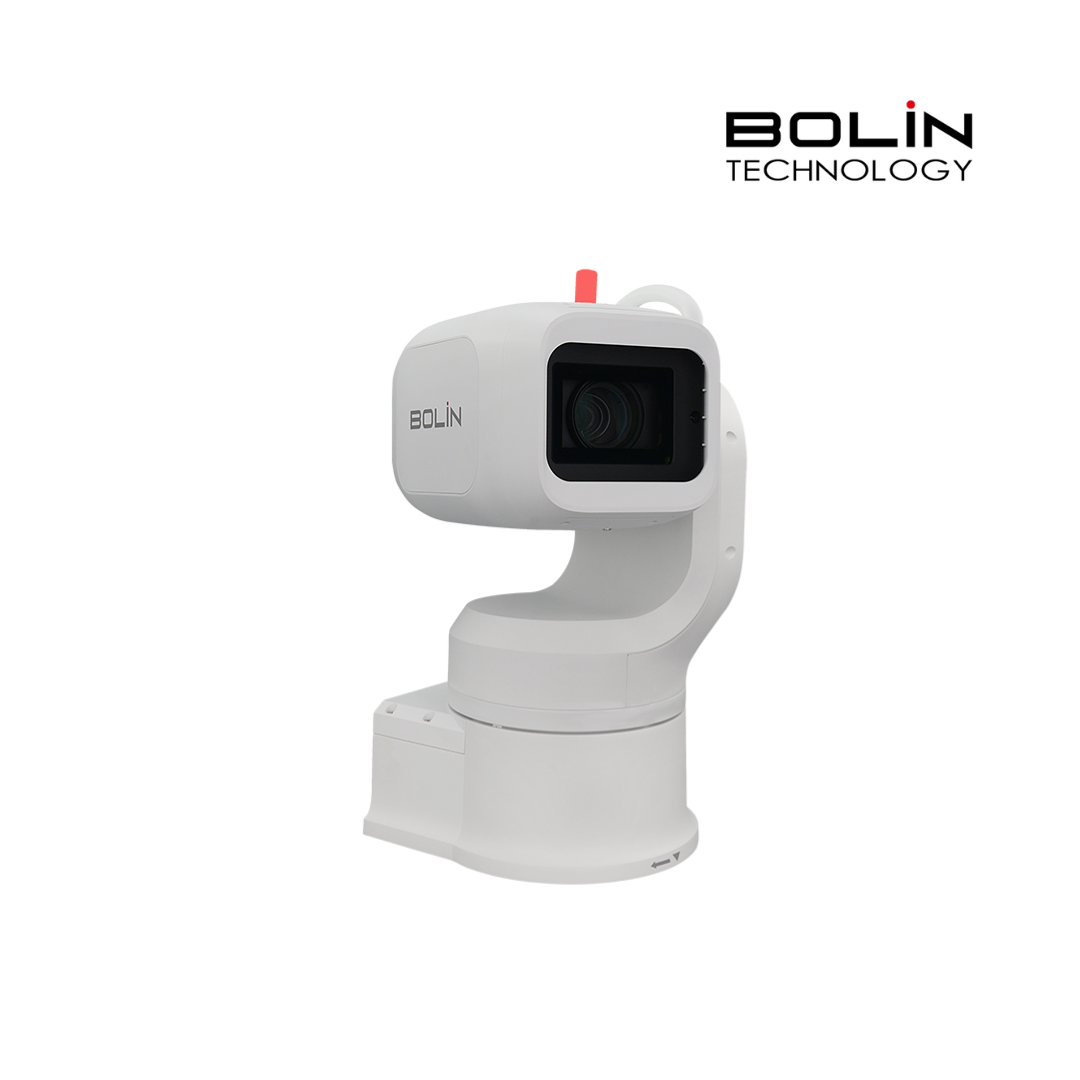

EXU230H Low Light Professional Outdoor PTZ
Designed for professional outdoor video production, the Bolin EXU230H Low Light Professional Outdoor PTZ camera delivers broadcast-quality Full HD video with high-resolution clarity, smooth motion, and precise color accuracy. Featuring a 30x zoom, the EXU230H captures detailed visuals at long distances, making it an ideal choice for sports stadiums, outdoor concerts, observation towers, and live event coverage. Equipped with a Sony Starvis CMOS sensor, the camera excels in low-light conditions, ensuring superior image quality even in challenging lighting environments. Its advanced Super Image Stabilization Plus technology significantly reduces vibrations caused by wind, ground movement, or environmental factors, providing steady and reliable footage in dynamic settings.
Built to withstand extreme conditions, the EXU230H’s IP67-rated housing offers full protection against dust, water, and temperature fluctuations, allowing for uninterrupted operation in rain, snow, and direct sunlight. The body features a salt-resistant coating, making it suitable for use in marine or coastal areas. The camera provides versatile output options, including simultaneous 3G-SDI, HDMI, optical fiber, and IP streaming, allowing for easy integration into production workflows. The camera supports multiple streaming protocols ensuring flexible and reliable video delivery. For precise synchronization in multi-camera setups, the camera includes a Genlock input, ensuring frame accuracy in complex production environments. Additionally, FreeD protocol support allows for real-time tracking in AR/VR applications, enhancing virtual productions and immersive experiences. The camera also includes balanced XLR audio inputs for professional-grade audio integration.
With its robust construction, exceptional imaging performance, and flexible connectivity options, the Bolin EXU230H is the ideal solution for capturing high-quality video in any outdoor environment.
- Sony 1/1.8 type CMOS sensor STARVIS II
- 30X zoom range
- Resolution 1080i59.94, 1080p60
- IP Video Resolution: Up to 1080p60
- Video Output: Simultaneous 3G-SDI, HDMI, IP
- SFP Optical SDI video output
- RTSP. RTMP, SRT Supported
- Visca Over IP, Onvif, FreeD, Serial Control Supported
- Extreme Low Light Performance
- Super Image Stabilizer
- Weatherproof IP67 rated
Banquet Halls
Casinos
Auditoriums
Houses of Worship
Educational Facilities
Convention Centres
Corporate Environments
Restaurant
Bars
| Model | EXU-230H |
| Codec | Standard AVC/HEVC |
| Camera Image | 30X Full HD |
| Image Maker | Sony |
| Image Sensor | CMOS image sensor 1/1.8 type STARVIS 2 |
| Number of effective pixels | 2712 × 1538, 4.17 MP |
| Picture elements | 2688 × 1520, 4.09 MP |
| Lens | Enhanced optical zoom 30X |
| Digital Zoom | 12X |
| Horizontal Angle of View | 58.1° (Wide) – 2.3° (Tele) |
| Vertical Angle of View | 34.9° (Wide) – 1.7° (Tele) |
| Focal Length | f=6.5 mm (WIDE) to 162.5 mm (TELE) |
| Min. Object Distance | 100mm (Wide), 1200mm (Tele) |
| Aperture | F1.6 (Wide) to F4.8 (Tele), 16 steps |
| Min. Illumination | ICR-Off, 0.009 lx (1/30 sec, 50%, High Sensitivity On); ICR-On, 0.00008 lx (1/30 sec, 50%, High Sensitivity On) |
| Shutter Speed | 1/1 sec to 1/10000 sec (22 steps) |
| Focus | Auto, Manual, One Push Trigger, Full Scan one push trigger, Near Limit, Spot Light Avoidance, Spot Focus |
| White Balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual, Outdoor Auto, Sodium Vapor Lamp Auto, Sodium Vapor Lamp, Sodium Vapor Lamp Outdoor Auto |
| Exposure | Full Auto, Gain Limit Setting, Shutter Priority, Iris Priority, Manual, EV Compensation |
| Features | High Sensitivity, Backlight Compensation, HLC, E-FLIP, Mirror, Day/Night |
| WDR | Yes |
| Image Stabilizer | Yes, Super, Super+ |
| Color Gain | Yes, (0–255) |
| Color Hue | Yes, (0–255) |
| Gamma | Standard / Straight gamma |
| Color Matrix | Yes |
| Noise Reduction | On/Off (level 5 to 1 / Off, 6 steps), 3D / 2D |
| S/N Ratio | ≥50 dB |
| HLC | Yes |
| E-Flip | Yes |
| Defog | Yes (off, low, mid, high) |
| High Sensitivity | Yes |
| AE Speed | Yes |
| Day/Night | Yes |
| Backlight Compensation | Yes |
| Low Latency Mode | Yes |
