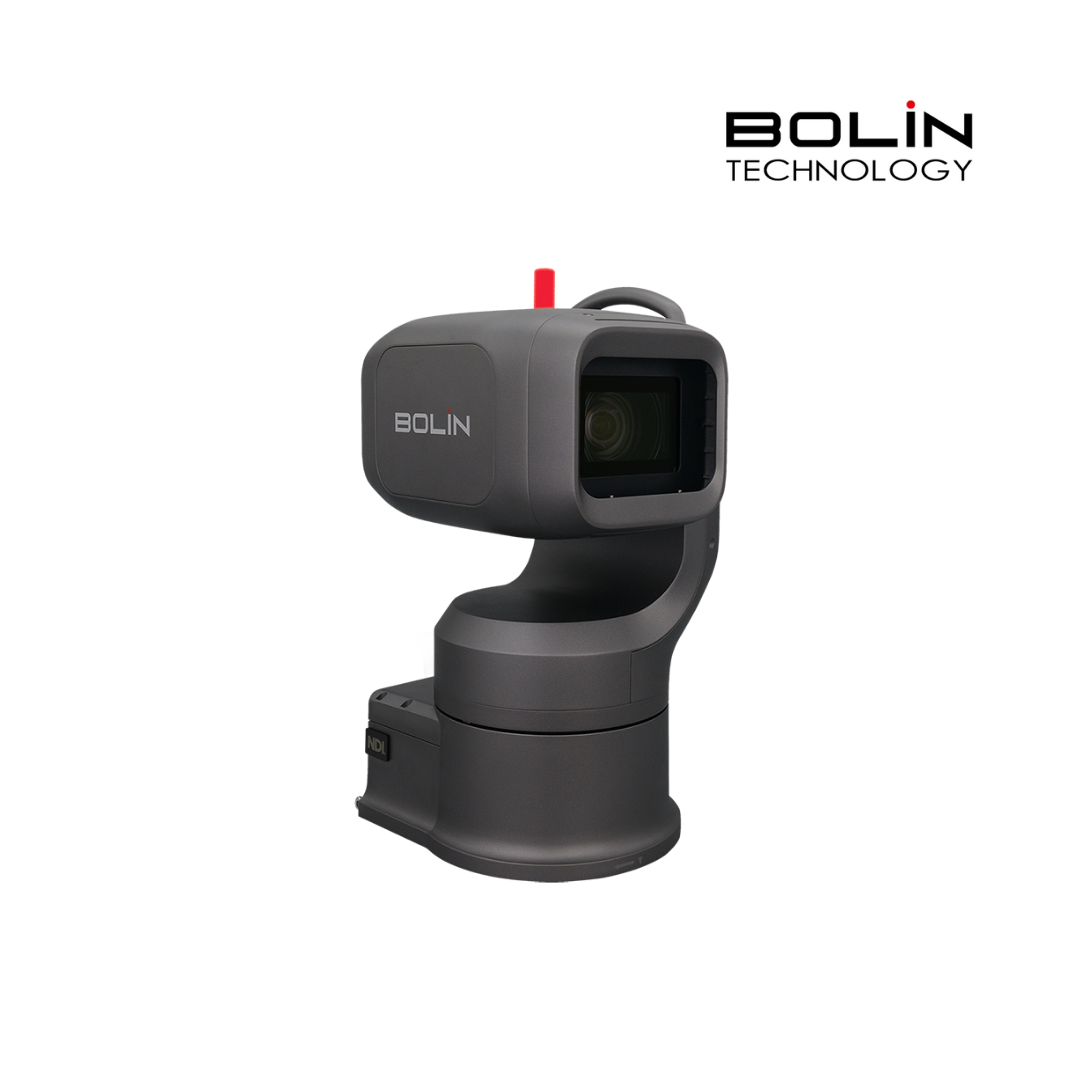

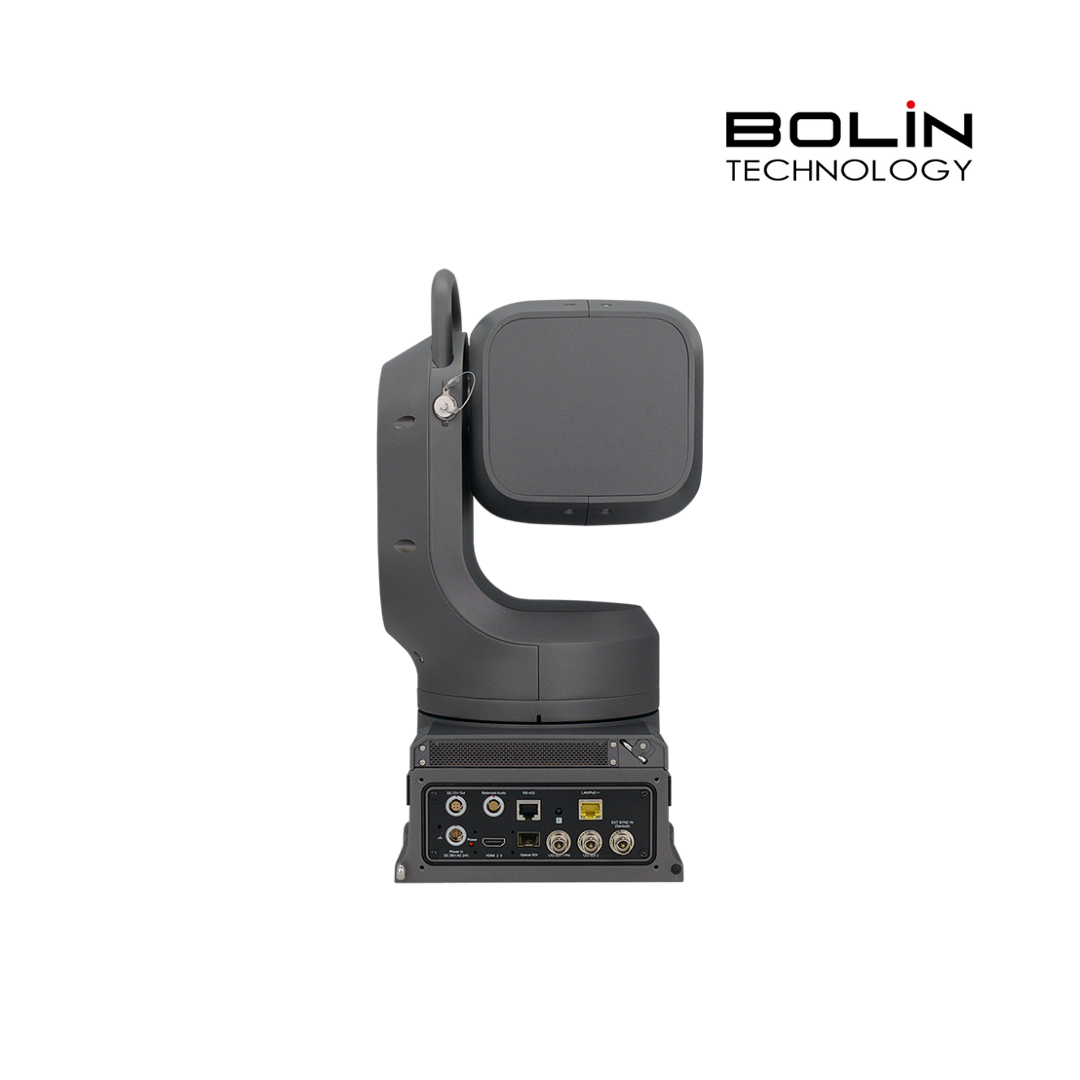

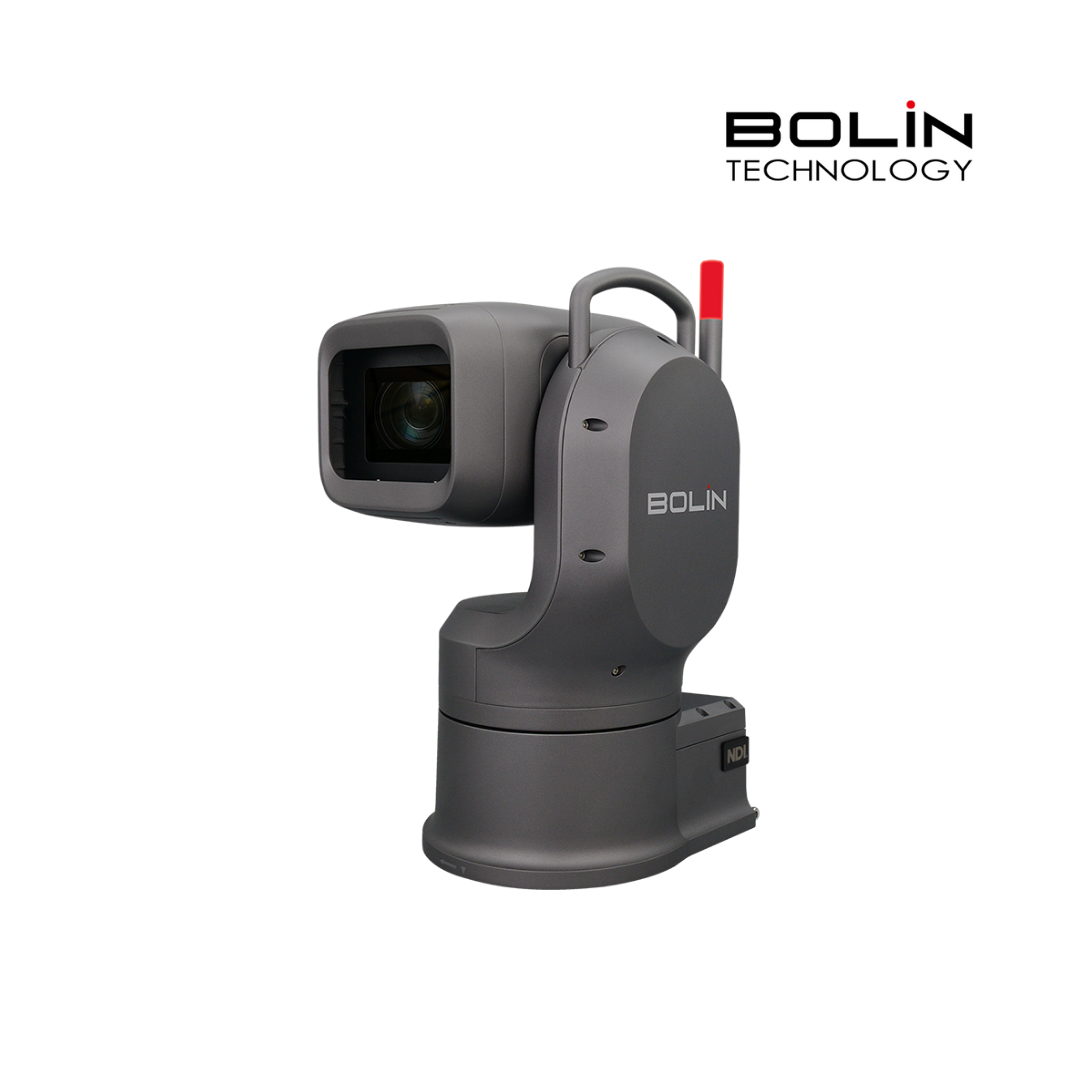

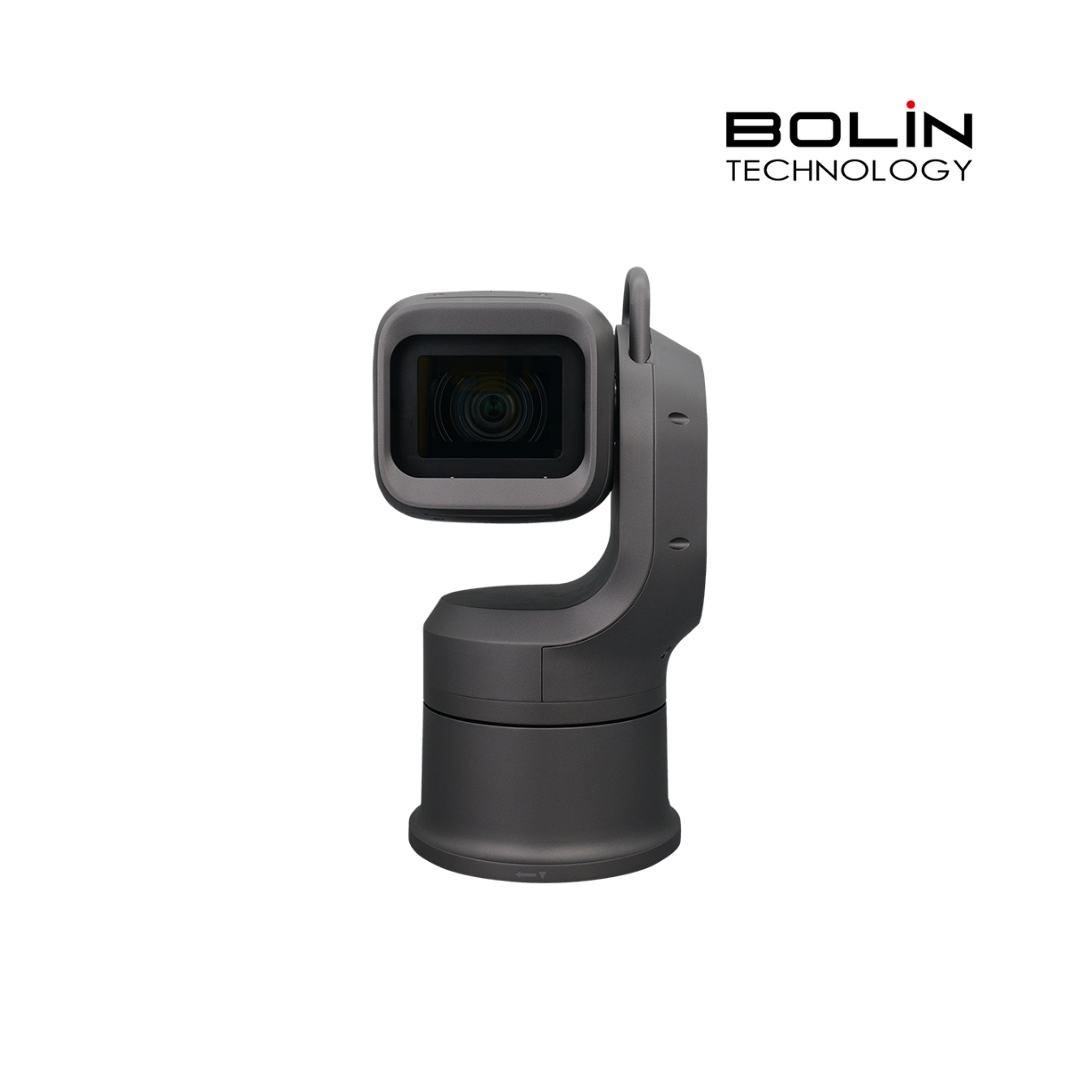

EXU248N Long Range Outdoor NDI PTZ Camera
Built to perform in the toughest outdoor environments, the Bolin EXU248N Long Range outdoor NDI PTZ camera delivers high-resolution video with unmatched long-range zoom capabilities. Featuring a powerful 48x zoom in Full HD, the EXU248N ensures detailed images from long distances, making it the ideal solution for sports stadiums, observation towers and weather decks, and outdoor event coverage where capturing distant details is essential. It features a Sony image block with a 1.0 inch 4K sensor and ND filter built-in that excels in low-light conditions, ensuring true-to-life colors and exceptional detail even in challenging environments. Designed with an IP67-rated weatherproof housing, this rugged PTZ camera is fully protected against dust, water, and extreme temperatures, ensuring reliable operation in rain, snow, or direct sunlight.
Equipped with multiple simultaneous outputs—including Certified NDI High Bandwidth, NDI HX3, dual 6G-SDI, HDMI, Optical SDI, and IP streams, the EXU248N easily integrates into AV-over-IP and baseband workflows ensuring professional-grade reliability for any production setting.
Designed to meet the demands of next-generation production workflows, the EXU248N supports NDI Embedded Bridge, enabling high-quality, low-latency video transmission across remote locations, making it perfect for multi-venue productions and large-scale outdoor broadcasts. Additionally, FreeD protocol support allows for real-time tracking in AR/VR applications, enhancing virtual productions and immersive live experiences. With optical image stabilization, precise PTZ control, and flexible power options including PoE++, the EXU248N ensures smooth and stable performance in demanding outdoor conditions.
From high-action sports to 24/7 monitoring, the Bolin EXU248N delivers exceptional image quality, extreme zoom capability, and rugged durability, empowering production teams to capture every moment with confidence, no matter the environment.
- NDI Certified, NDI 6 Ready, NDI HX3 Supported
- Sony image block with 1 Inch large 4K sensor
- Zeiss Vario-Sonnar T lens with 48X zoom range
- Resolution 4K 2160p29.97, 1080i59.94, 1080p60
- IP Video Resolution: Up to 2160p30, 1080p60
- Video Output: Simultaneous 6G-SDI, HDMI, NDI 6
- SFP Optical SDI video output
- Black Level, Color Matrix, Image Stabilizer
- RTSP. RTMP, SRT Supported
- NDI Congtrol, Visca Over IP, Onvif, FreeD, Serial Control
- Weatherproof IP67 rated
Banquet Halls
Casinos
Auditoriums
Houses of Worship
Educational Facilities
Convention Centres
Corporate Environments
Restaurant
Bars
| Model | EXU248N |
| Codec | Hardware FPGA Based, NDI High Bandwidth, NDI HX3 |
| Camera Image | 18X 4K30/FHD |
| Image Maker | Sony Image Block |
| Image Sensor | 1.0-type back-illuminated Exmor R CMOS sensor |
| Number of effective pixels | 14.2 MP |
| Picture elements | 3840×2160, 8.29 MP |
| Lens | Zeiss Vario-Sonnar T lens, Zoom Range 48X (FHD)/18X (4K) |
| Horizontal Angle of View | 64.6° (Wide) – 6.1° (Tele) |
| Vertical Angle of View | 39.2° (Wide) – 3.4° (Tele) |
| Focal Length | f=9.3 to 111.6mm, F2.8 (Wide), F4.5 (Tele) |
| Min. object distance | 80mm (Wide), 1000mm (Tele) |
| Aperture | F2.8 Constant (W)~F4.5 (T), 16 Steps |
| Min. Illumination | 0.5 lx (1/30 sec, 50%, High Sensitivity On)2.0 lx (1/30 sec, 50%, High Sensitivity Off) |
| Shutter Speed | 1/1 sec to 1/10000 sec (28 steps) |
| Focus | Spot Focus, Auto Focus (Trigger/Interval), Manual Focus (Variable Speed), One Push Trigger, Near Limit |
| White Balance | AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Outdoor Auto) |
| Exposure | Full Auto, Gain, Shutter Priority, Iris Priority, Manual, Bright |
| Features | High Sensitivity, Backlight Compensation, HLC, E-FLIP, Mirror, Day/Night |
| WDR | YES (130dB), Shown as VISIBILITY ENHANCER in OSD |
| ND Filter | Yes |
| Image Stabilizer | YES, Optical Image Stabilizer |
| Color Gain | Yes (15 step) |
| Color Hue | Yes (15 step) |
| Gamma | Standard/Straight/Pattern |
| Gamma Level | Yes (15 step) |
| Black Level | Yes (97 step) |
| Black Gamma | Yes (15 step) |
| Color Matrix | Off/Standard/High Saturation/FL light |
| Noise Reduction | On/Off (level 5 to 1/Off, 6 steps), 2D/3D |
| S/N Ratio | ≥50db |
| HLC | Yes |
| E-Flip | Yes |
| Defog | Yes (off, low, mid, high) |
| High Sensitivity | Yes |
| Slow AE Response | Yes |
| Day/Night | Yes |
| Backlight Compensation | Yes |
