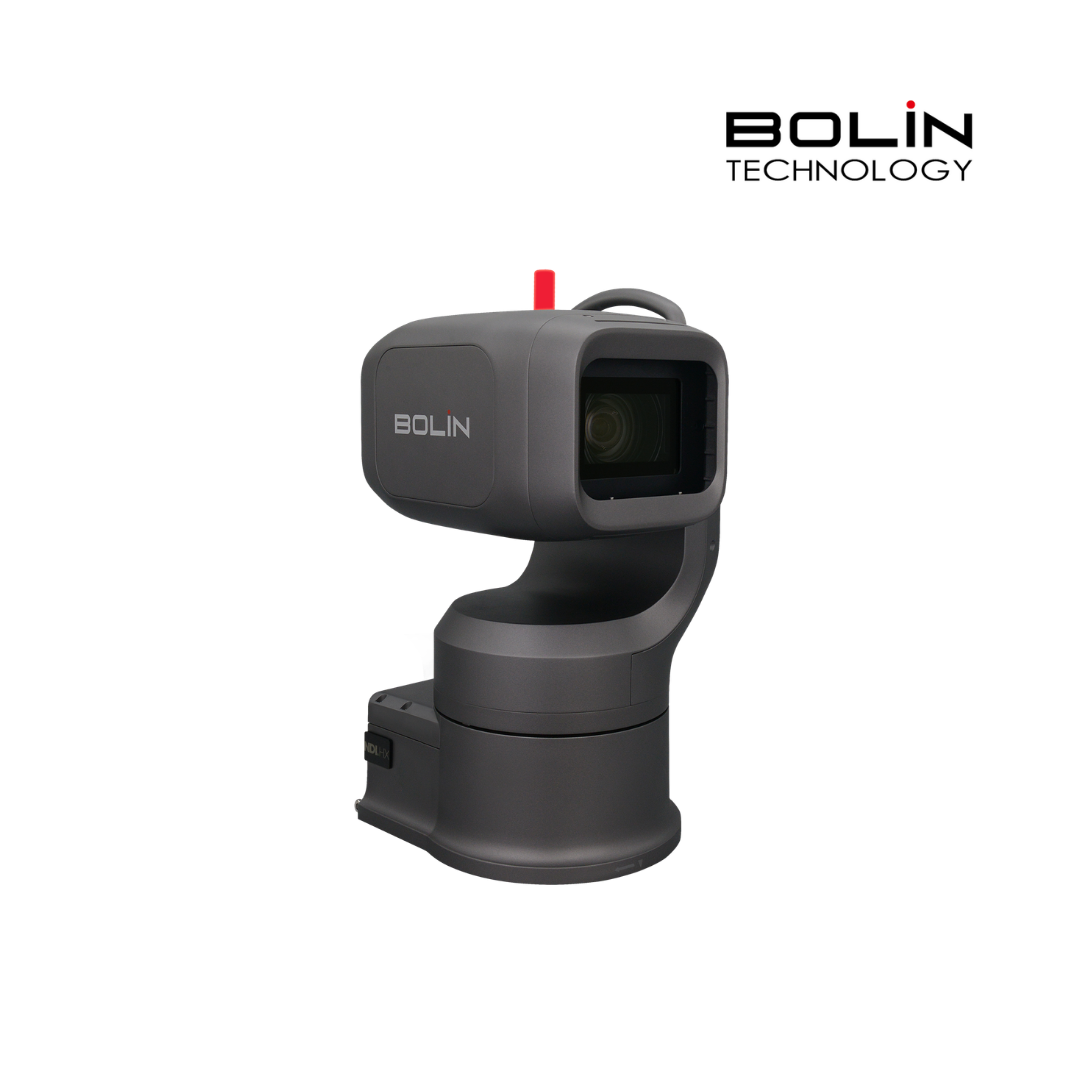

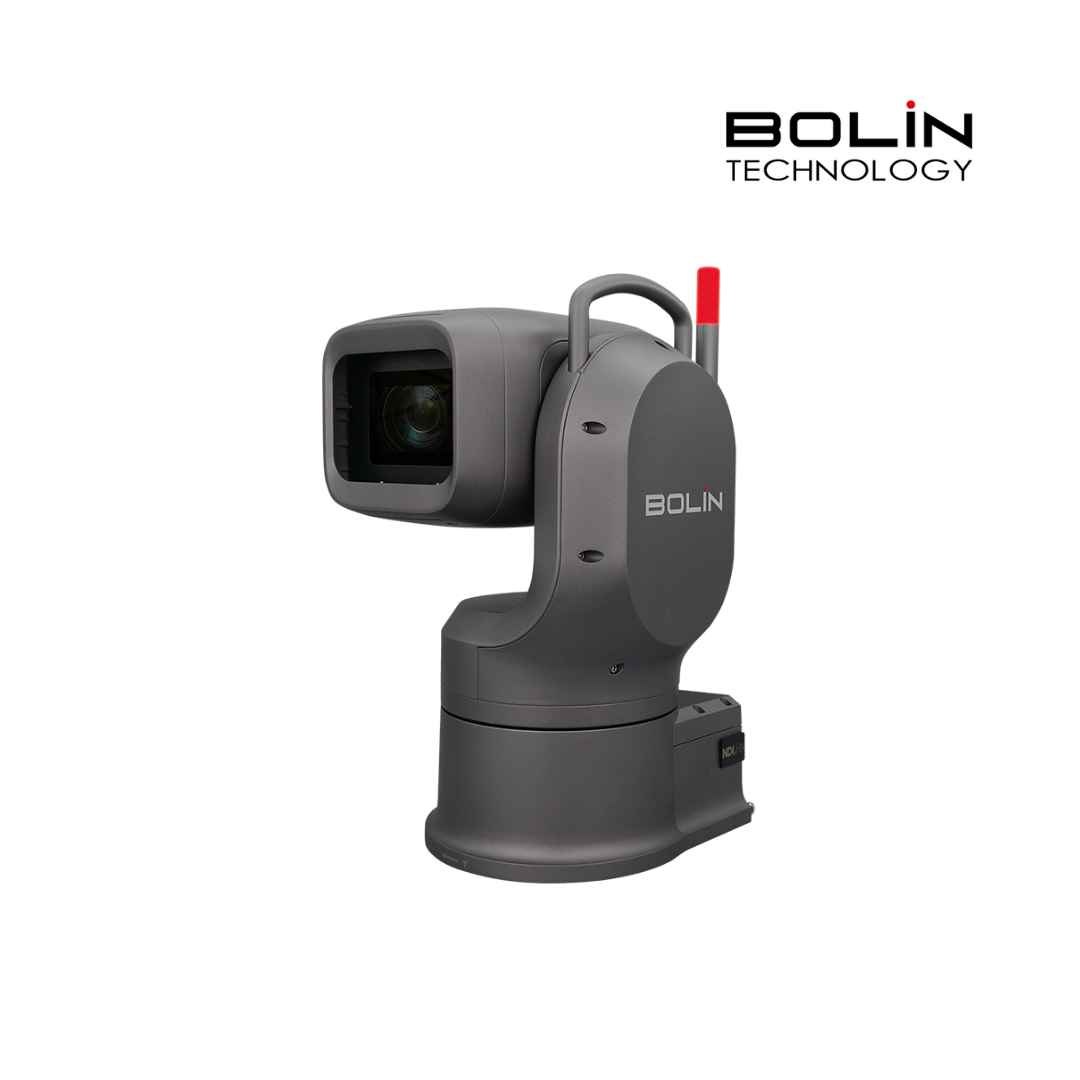

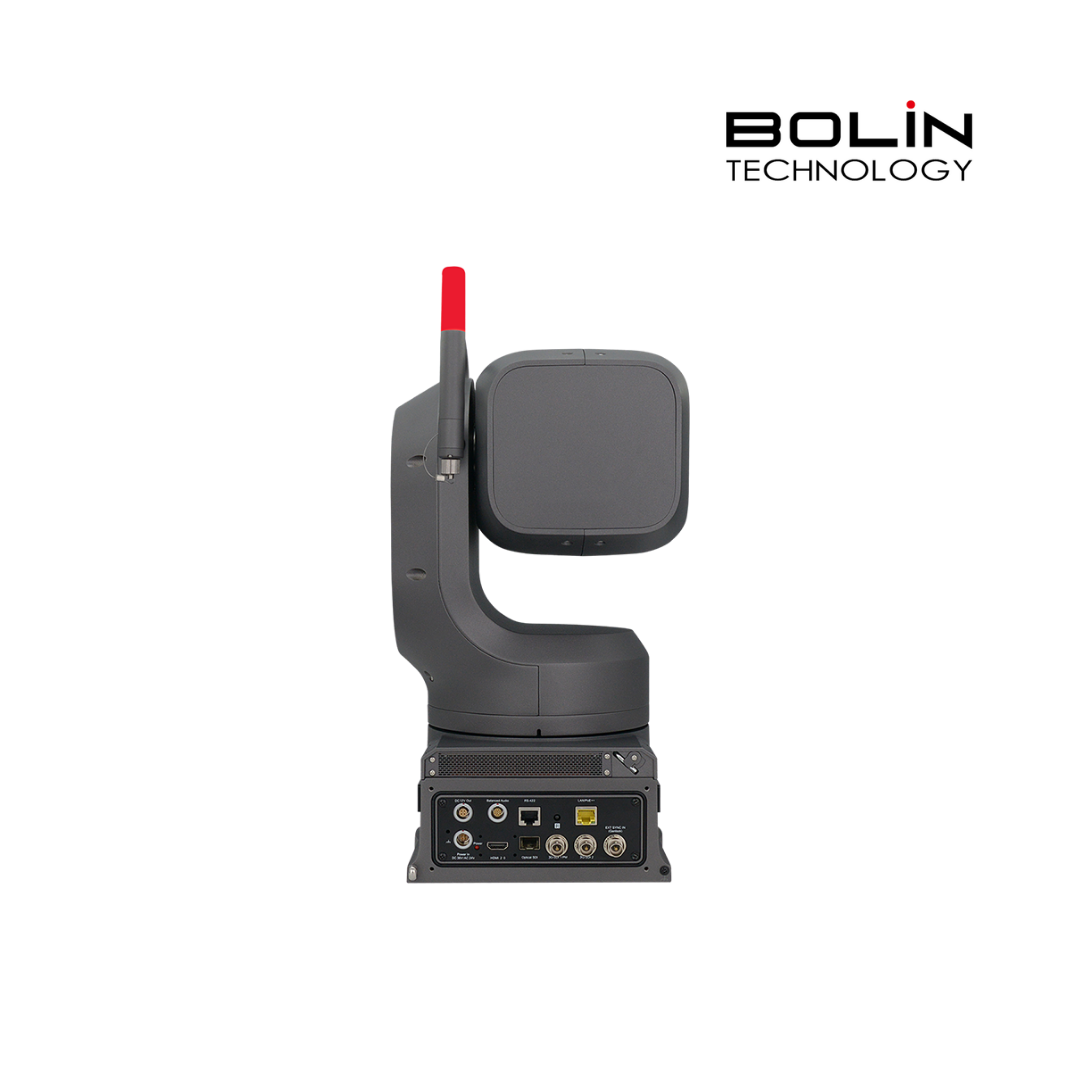

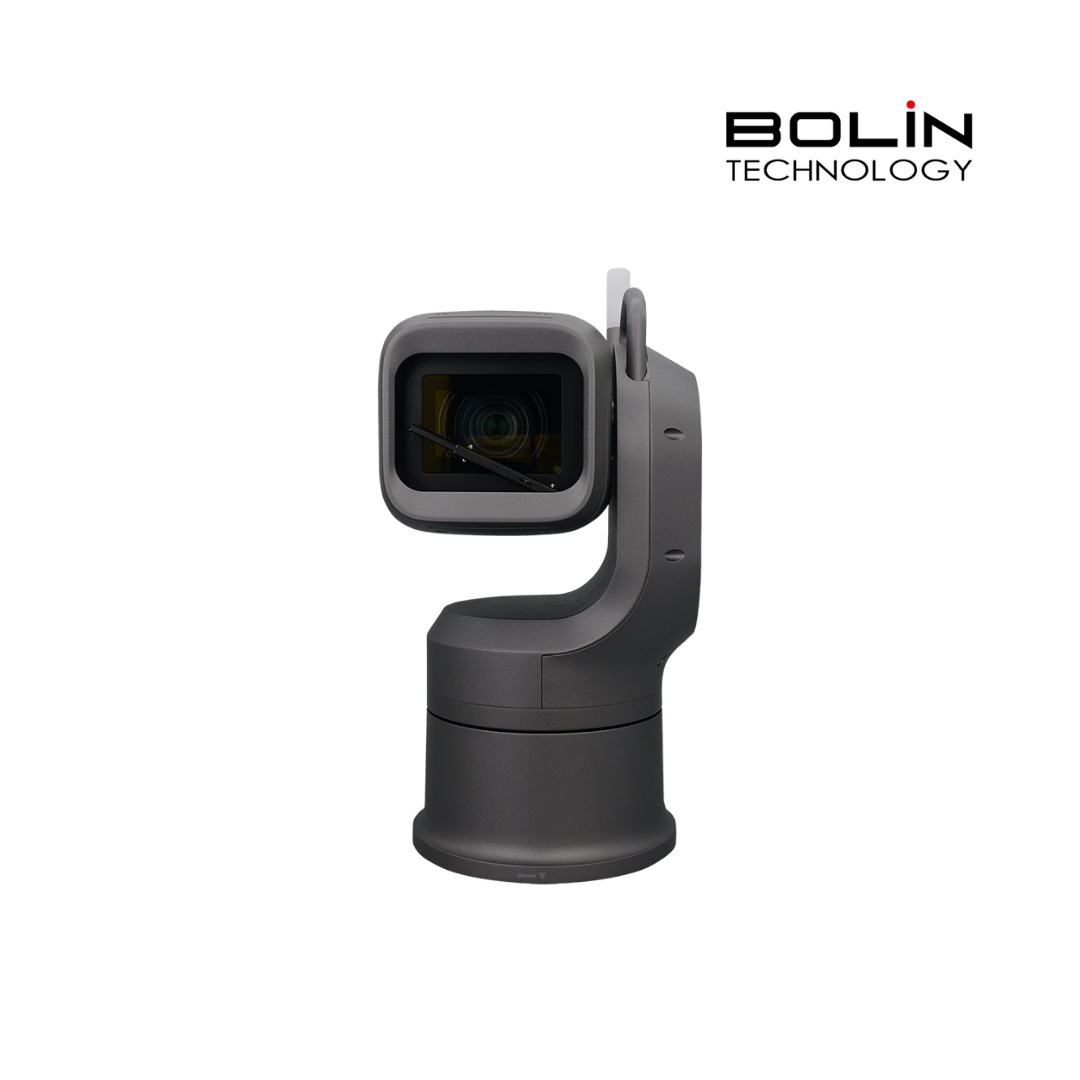

EXU230NX Outdoor NDI HX3 PTZ Camera

Built for demanding outdoor productions, the Bolin EXU230NX outdoor PTZ camera delivers broadcast-quality Full HD video with high-resolution clarity, superb low-light performance, and smooth motion. Featuring a 30x zoom, the EXU230NX captures detailed visuals at long distances, making it an ideal choice for sports stadiums, outdoor concerts, observation towers, and live event coverage. Designed to withstand extreme conditions, its IP67-rated weatherproof housing ensures full protection against dust, water, and temperature fluctuations, allowing for uninterrupted operation in rain, snow, and direct sunlight. With Certified NDI HX3, dual 3G-SDI, HDMI, Optical SDI, and IP streaming, the EXU230NX easily integrates into broadcast, live production, and AV-over-IP workflows, ensuring professional-grade reliability in any setting.

The EXU230NX is equipped with Super Image Stabilization Plus, a cutting-edge feature that significantly reduces vibrations caused by wind, ground movement, or environmental factors, making it perfect for installations in high-wind locations, elevated platforms, or moving structures like weather decks and observation points. In addition, the EXU230NX performs great color image in low light condition for remote capture production. Built for next-generation remote production, it also supports NDI Embedded Bridge, enabling low-latency, high-quality video transmission across multiple locations—ideal for multi-venue productions and large-scale outdoor broadcasts. Additionally, FreeD protocol support allows for real-time tracking in AR/VR applications, enhancing virtual productions and immersive experiences. The camera also includes balanced XLR audio inputs for professional-grade audio integration.

From live sports to large-scale outdoor productions, the Bolin EXU230NX delivers exceptional Full HD video, industry-leading image stabilization, and easy IP connectivity, ensuring that every moment is clearly captured, no matter the environment.

NDI HX3 Certified
Sony 1/1.8 type CMOS sensor STARVIS II
30X zoom range
Resolution 1080i59.94, 1080p60
IP Video Resolution: Up to 1080p60
Video Output: Simultaneous 3G-SDI, HDMI, NDI HX3
SFP Optical SDI video output
RTSP. RTMP, SRT Supported
NDI Control, Visca Over IP, Onvif, FreeD, Serial Control
Extreme Low Light Performance
Super Image Stabilizer
Weatherproof IP67 rated

Banquet Halls

Casinos

Auditoriums

Houses of Worship

Educational Facilities

Convention Centres

Corporate Environments

Restaurant

Bars

Model	EXU230NX
Codec	Standard AVC/HEVC
Camera Image	30X Full HD
Image Maker	Sony
Image Sensor	CMOS image sensor 1/1.8 type STARVIS 2
Number of effective pixels	2712 × 1538, 4.17 MP
Picture elements	2688 × 1520, 4.09 MP
Lens	Enhanced optical zoom 30X
Digital Zoom	12X
Horizontal Angle of View	58.1° (Wide) – 2.3° (Tele)
Vertical Angle of View	34.9° (Wide) – 1.7° (Tele)
Focal Length	f = 6.5 mm (Wide) to 162.5 mm (Tele)
Min. object distance	100 mm (Wide), 1200 mm (Tele)
Aperture	F1.6 (Wide) to F4.8 (Tele), 16 steps
Min. Illumination	ICR-Off, 0.009 lx (1/30 sec, 50%, High Sensitivity On);ICR-On, 0.00088 lx (1/30 sec, 50%, High Sensitivity On)
Shutter Speed	1/1 sec to 1/10000 sec (22 steps)
Focus	Auto, Manual, One Push Trigger, Full Scan, One push trigger, Near Limit, Spot Light Avoidance, Spot Focus
White Balance	Auto, ATW, Indoor, Outdoor, One Push WB, Manual, Outdoor Auto, Sodium Vapor Lamp Auto, Sodium Vapor Lamp, Sodium Vapor Lamp Outdoor Auto
Exposure	Full Auto, Gain Limit Setting, Shutter Priority, Iris Priority, Manual, EV Compensation
Features	High Sensitivity, Backlight Compensation, HLC, E-FLIP, Mirror, Day/Night
WDR	Yes
Image Stabilizer	Yes, Super, Super+
Color Gain	Yes, (0-255)
Color Hue	Yes, (0-255)
Gamma	Standard / Straight gamma
Color Matrix	Yes
Noise Reduction	On/Off (level 5 to 1/Off, 6 steps), 3D / 2D
S/N Ratio	≥50 dB
HLC	Yes
E-Flip	Yes
Defog	Yes, (off, low, mid, high)
High Sensitivity	Yes
AE Speed	Yes
Day/Night	Yes
Backlight Compensation	Yes
Low Latency Mode	Yes
