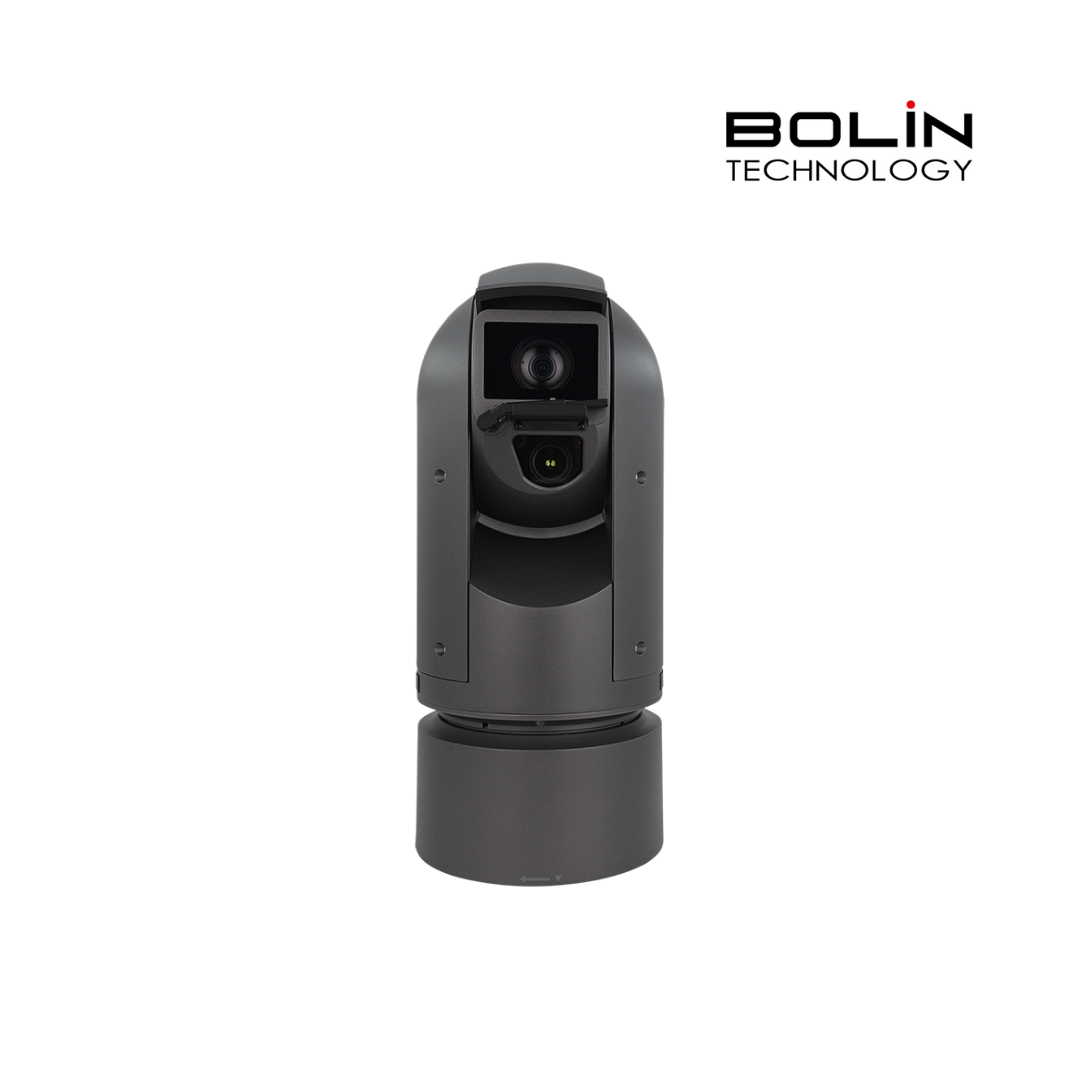

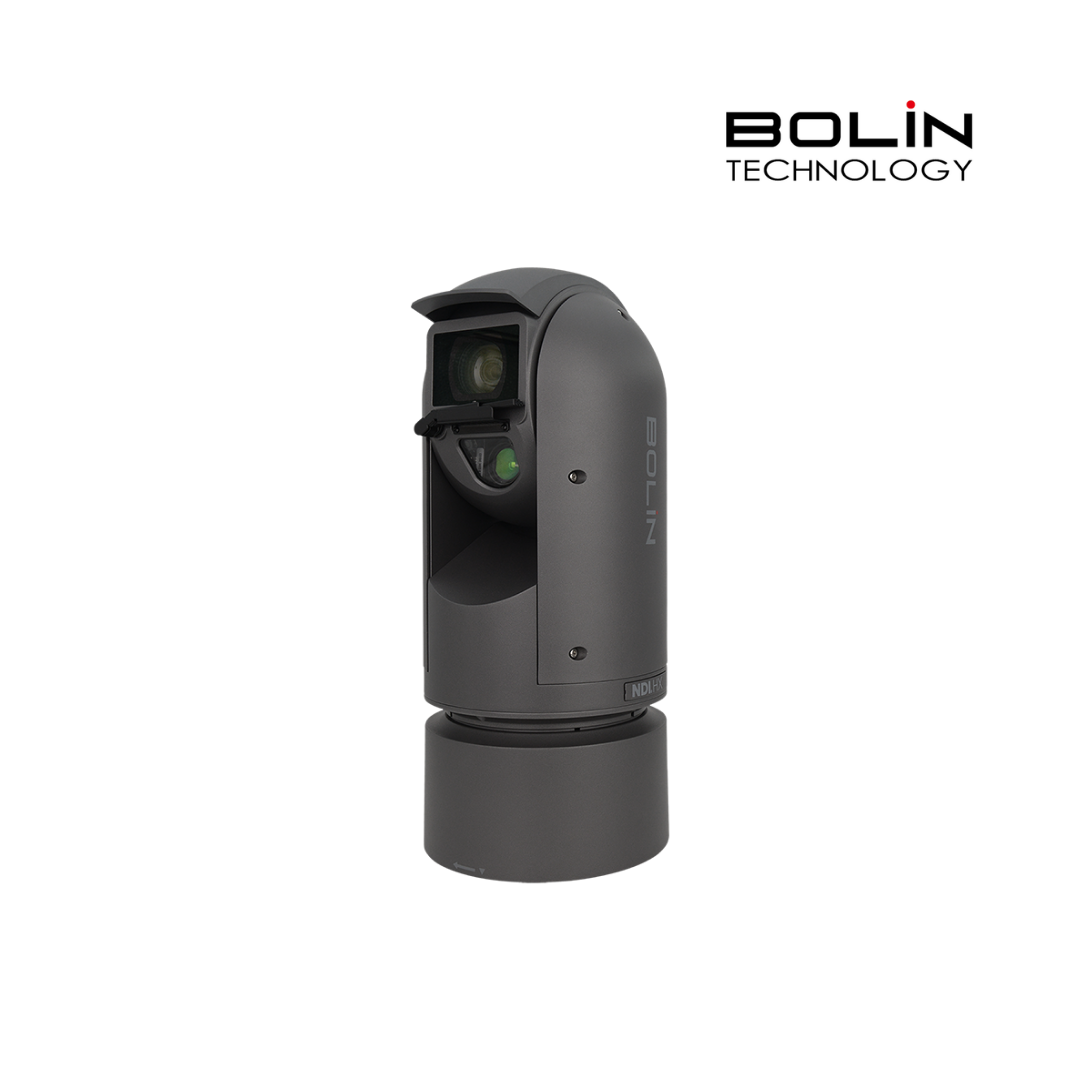

EX1030NX Outdoor NDI HX3 PTZ Camera
The Bolin EX1030NX Outdoor NDI HX3 PTZ camera is designed for professional outdoor video production, delivering broadcast-quality Full HD video with superior low-light performance with exceptional clarity and stability and rapid, precise movement. With a 30x zoom, it captures detailed visuals from long distances, making it ideal for sports, outdoor events, and observation towers. Its IP67-rated weatherproof housing protects against dust, water, and extreme temperatures, while the nitrogen-filled enclosure prevents internal lens fogging, ensuring clear imaging in fluctuating conditions. With designed upright mounting capability to provide 360 degree upper skyview. A built-in rain wiper and heater keep the lens clean for uninterrupted performance.
Designed for stability in harsh environments, the EX1030NX features a wind-resistant form factor, minimizing movement caused by strong gusts—perfect for elevated installations and high-wind locations. Super Image Stabilization Plus reduces vibrations and motion blur, ensuring steady shots in turbulent conditions. Mechanical roll-axis adjustment up to 15 degrees provides added flexibility for mounting and framing.
The EX1030NX supports Certified NDI HX3, 3G-SDI, and IP streaming, making it a strong choice for broadcast and AV-over-IP workflows. NDI Embedded Bridge enables low-latency remote video transmission, while FreeD protocol support allows for real-time AR/VR tracking.
- NDI HX3
- Sony 1/2.8 type CMOS sensor STARVIS II
- 30X zoom range
- Resolution 1080i59.94, 1080p60
- IP Video Resolution: Up to 1080p60

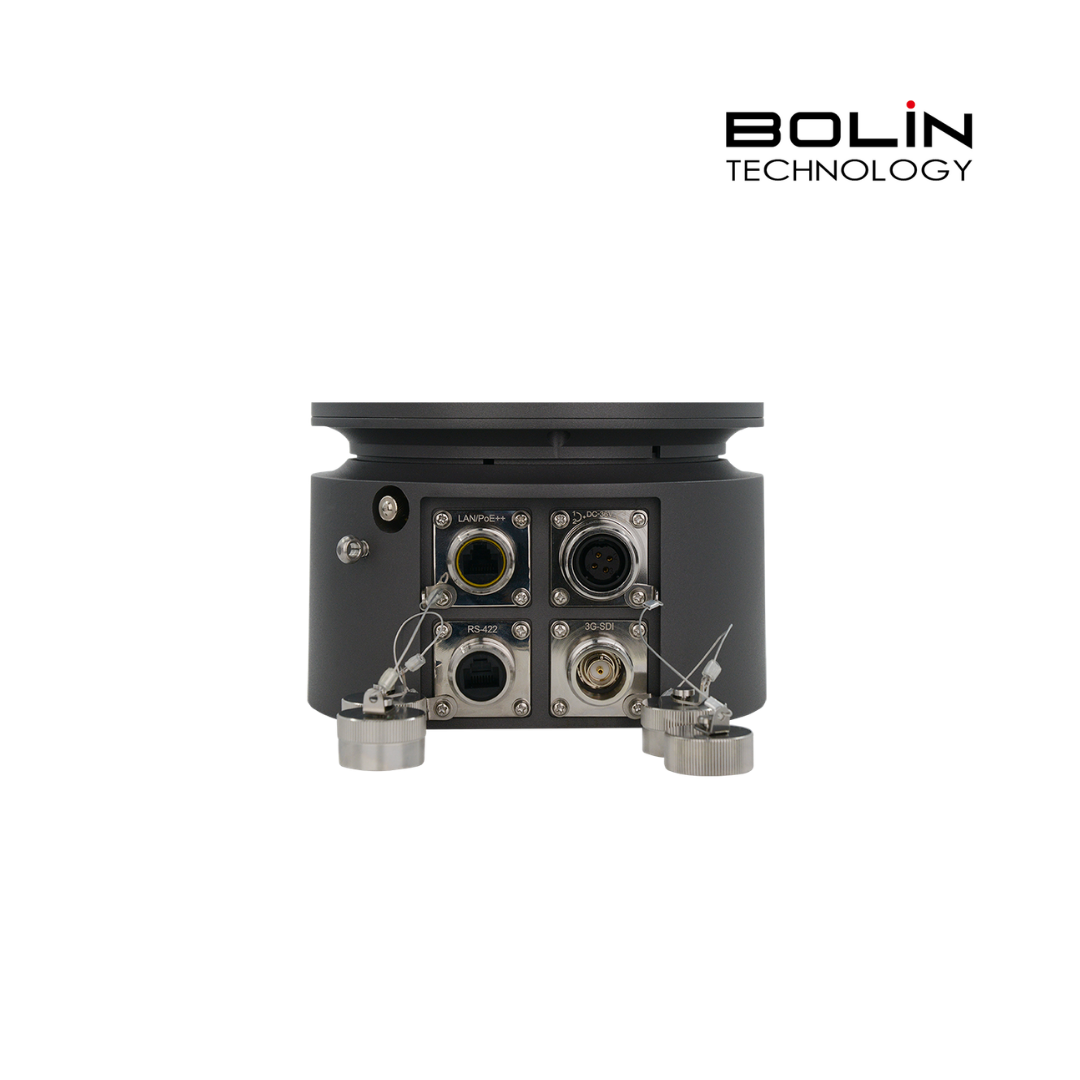

- Video Output: Simultaneous 3G-SDI, NDI HX3
- RTSP. RTMP, SRT, ONVIF Supported
- NDI Control, Visca Over IP, Onvif, FreeD, Serial Control
- Extreme Low Light Performance
- Super Image Stabilizer
- Weatherproof IP67 rated , Nitrogen Filled Housing
- Laser LED Illumination, Rain Wiper
Banquet Halls
Casinos
Auditoriums
Houses of Worship
Educational Facilities
Convention Centres
Corporate Environments
Restaurant
Bars
| Model No. | EX1030NX |
| Camera Image | 30X Full HD |
| Image Block | Sony |
| Image Sensor | Progressive scan CMOS image sensor 1/2.8 type, STARVIS™ 2 |
| Number of effective pixels | 2.13 MP |
| Picture elements | 1920 × 1080 |
| Lens | Optical zoom 30X |
| Digital Zoom | 12X |
| Horizontal Angle of View | 64° (W) – 2.4° (T) |
| Focal Length | f = 4.3 mm (Wide) to 129 mm (Tele) |
| Min. object distance | 10 mm (Wide), 1200 mm (Tele) |
| Aperture | F1.6 (Wide) to F14 (Tele) |
| Min. Illumination (50%, High Sensitivity Mode ON) | ICR-OFF mode: 0.009 lx (Shutter Speed: 1/30 s)ICR-ON mode: 0.00008 lx (Shutter Speed: 1/30 s) |
| Min. Illumination (50%, High Sensitivity Mode OFF) | ICR-OFF mode: 0.09 lx (Shutter Speed: 1/30 s)ICR-ON mode: 0.00063 lx (Shutter Speed: 1/30 s) |
| Shutter Speed | 1/1 sec to 1/10000 sec (22 steps) |
| Focusing System | Auto, Manual, One Push Trigger, Full Scan, One push trigger, Near Limit, Spot Light Avoidance, Spot Focus |
| White Balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual, Outdoor Auto, Sodium Vapor Lamp Auto, Sodium Vapor Lamp, Sodium Vapor Lamp Outdoor Auto |
| Exposure | Full Auto, Gain Limit Setting, Shutter Priority, Iris Priority, Manual, EV Compensation |
| Features | Backlight Compensation, E-FLIP, Mirror, Day/Night, Flicker, Contrast, Effect, Sharpness |
| WDR | Yes |
| ND Filter | / |
| Image Stabilizer | Yes: Super image stabilizer (Super / Super+) |
| Contrast | Yes |
| Color Gain | Yes |
| Color Hue | Yes |
| Color Matrix | Yes |
| Gamma | 0–1 |
| Noise Reduction | On/Off (level 5 to 1 / Off, 6 steps), 3D / 2D Noise Reduction |
| S/N Ratio | ≥50 dB |
| Spot Light Avoidance | Yes |
| E-Flip | Yes |
| Spherical Privacy Zone Masking | – |
| Defog | Yes (low/mid/high) |
| High Sensitivity | Yes |
| Slow AE Response | Yes |
| Day/Night (Auto ICR) | Yes: ON (B&W/Color) |
| Backlight Compensation | Yes |
| Low Latency Mode | Yes |
| Focus Zone | All, Central Area |
| Scene Style | Default, Clear, Bright, Soft |
| Auto Flip | Yes |
