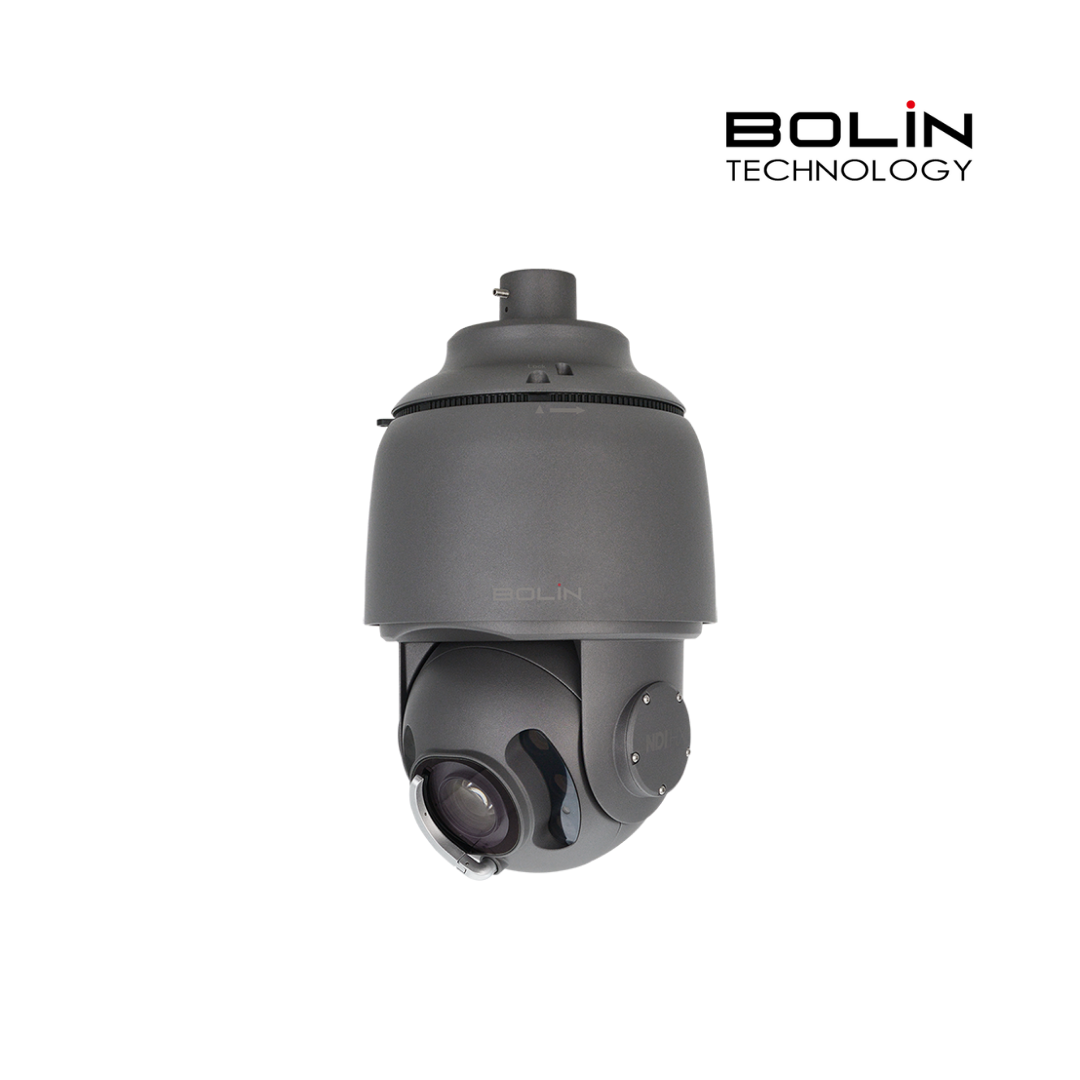

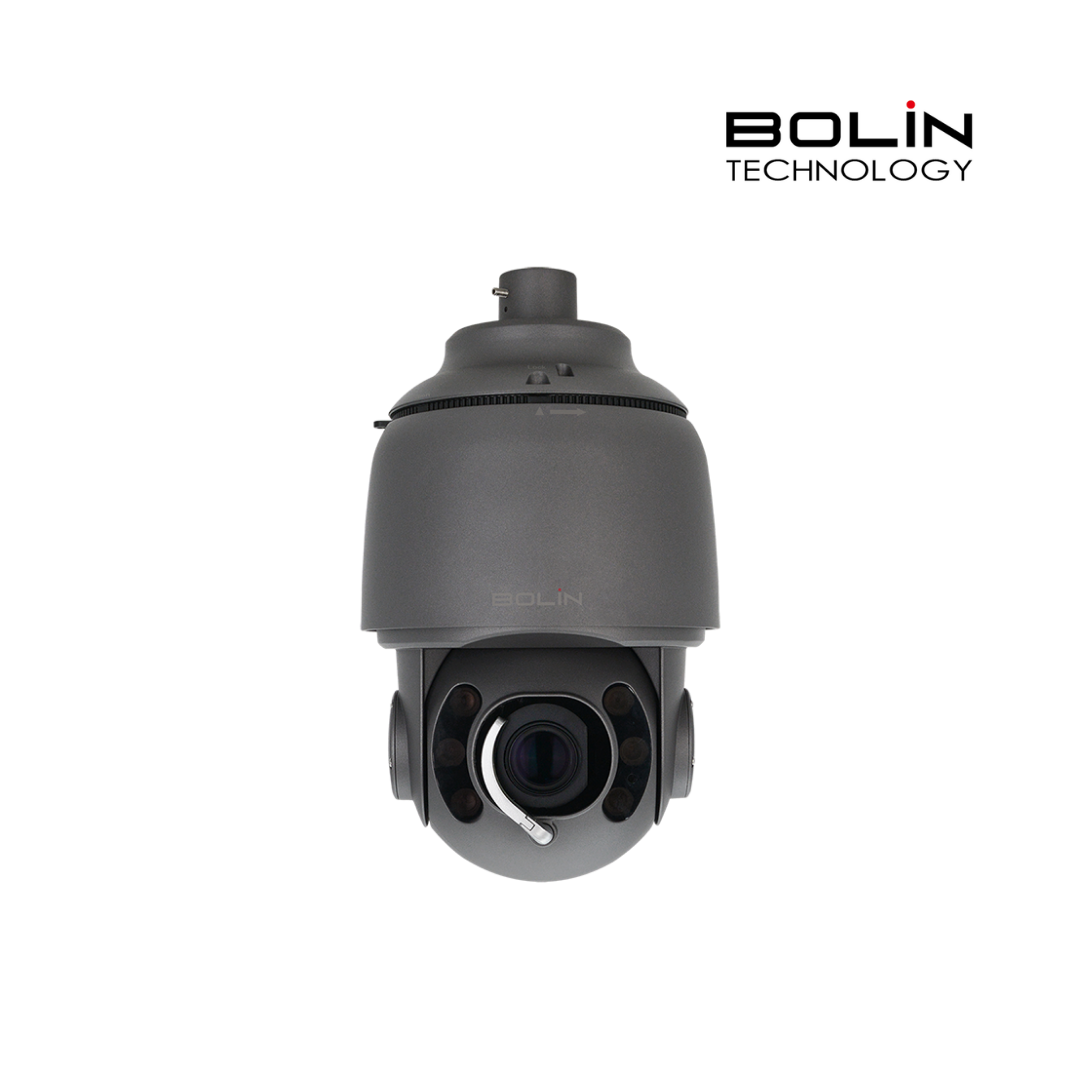

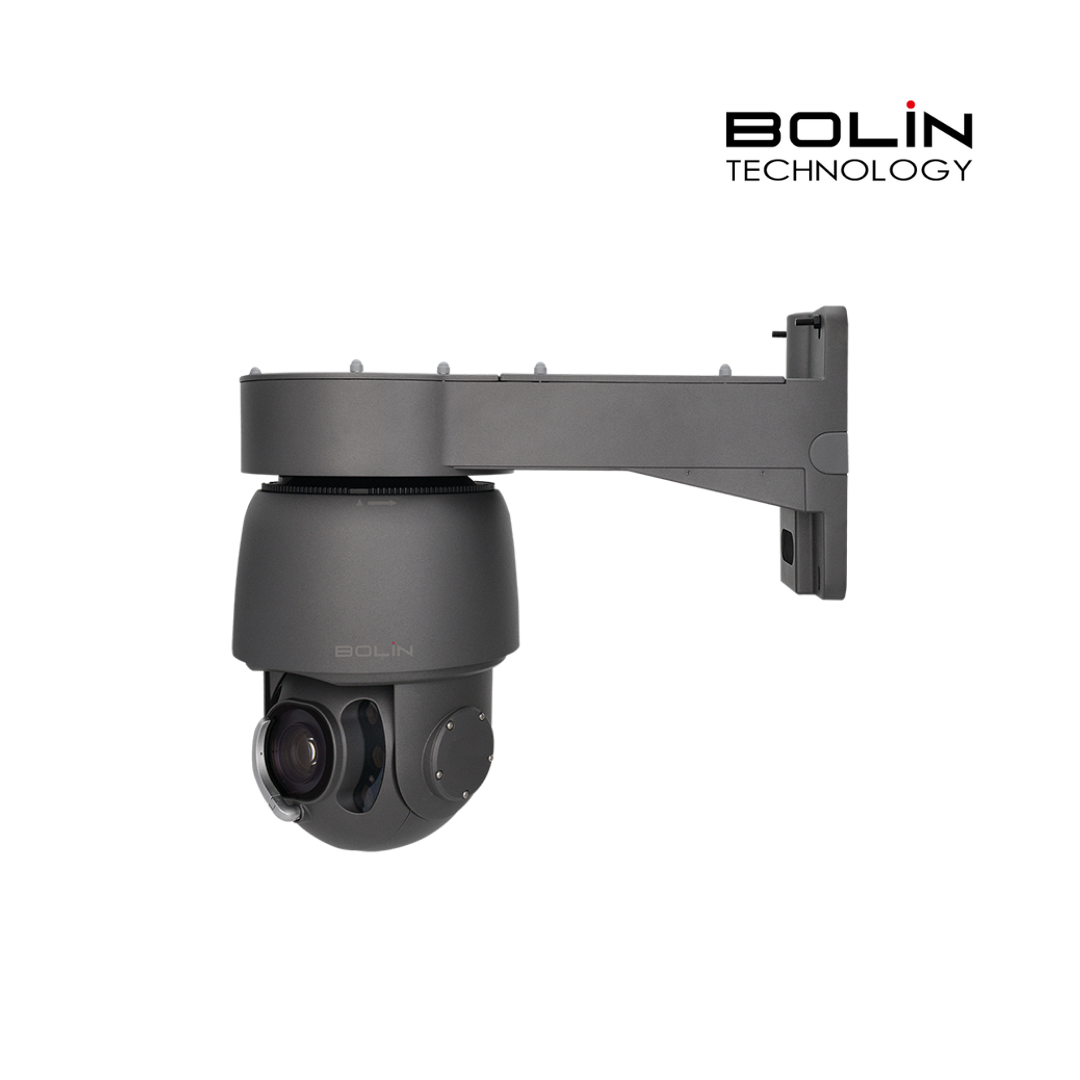

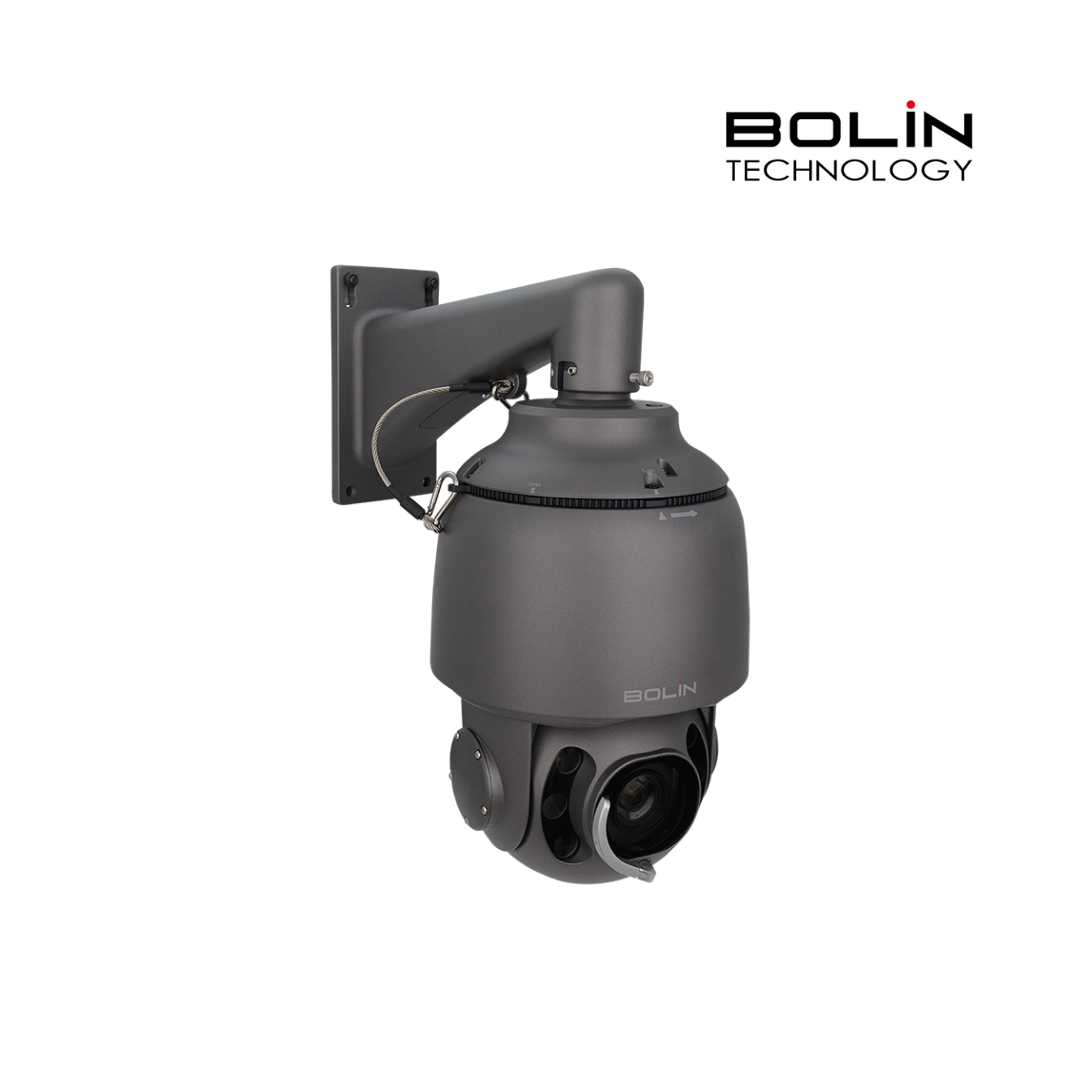

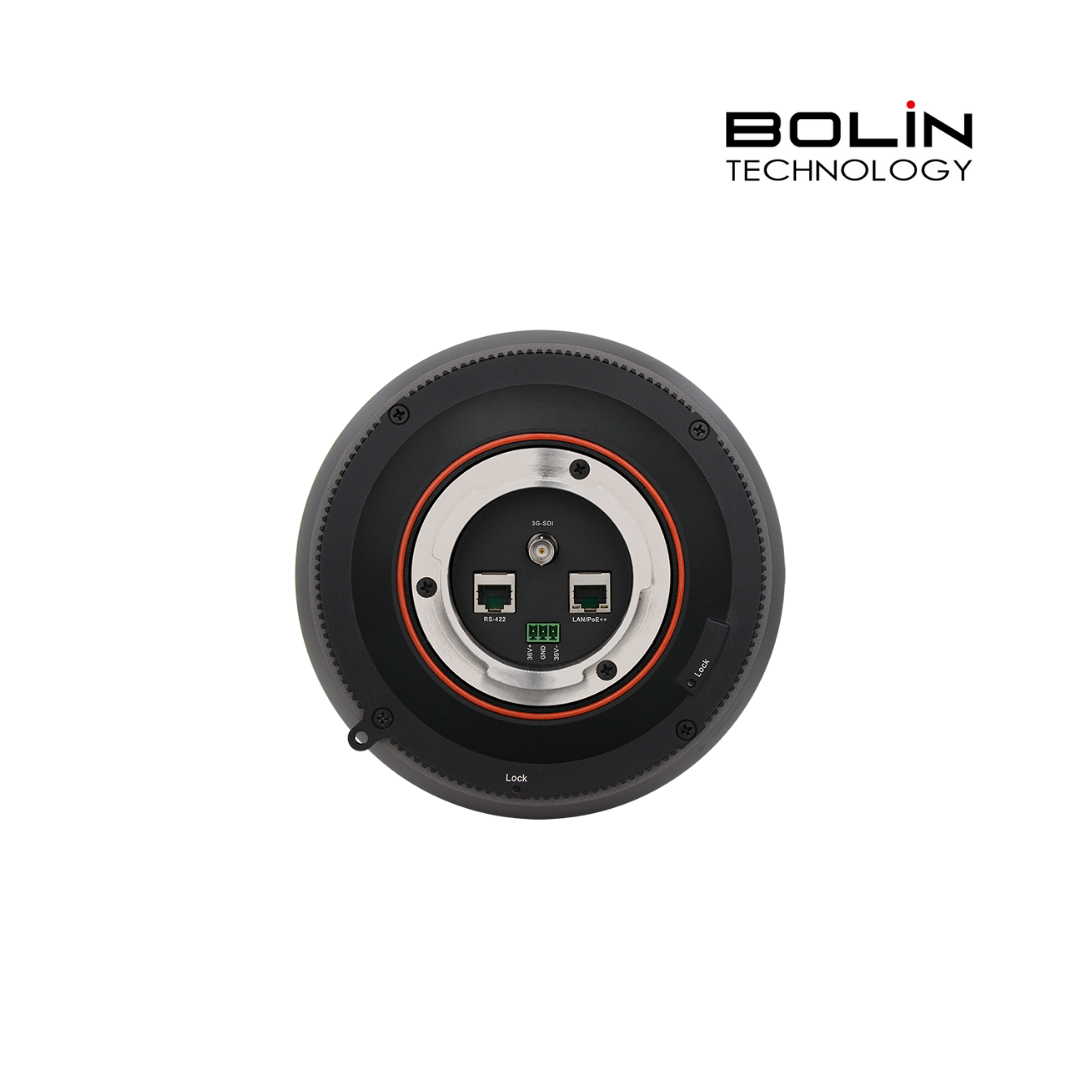

SD530NX Outdoor NDI HX3 PTZ Camera
The Bolin SD530NX outdoor NDI HX3 PTZ camera is built for demanding outdoor production environments, delivering broadcast-quality Full HD video with superior low-light performance and rapid, precise movement. Featuring a 30x zoom, the SD530NX captures clear, detailed images even from long distances, making it an ideal choice for sports, outdoor event coverage, and remote situational awareness. Designed for unmatched durability, its IP67-rated housing protects against water, dust, and corrosion, ensuring reliable operation in rain, snow, and extreme temperatures. The built-in rain wiper and heater keep the lens clear, providing uninterrupted performance in any weather condition.
With 360-degree continuous pan and high-speed movement, the SD530NX allows operators to track fast-moving subjects with smooth, precise control. This makes it perfect for capturing dynamic live events, sports action, and large-area monitoring where real-time responsiveness is critical. Super Image Stabilization Plus minimizes vibrations and motion blur, ensuring steady shots even in windy environments or elevated installations. The mechanical roll-axis adjustment up to 15 degrees adds flexibility for creative camera positioning and correcting any leveling issues.
The SD530NX supports Certified NDI HX3, 3G-SDI, and IP streaming, making it a powerful choice for Sport broadcast, live production, and AV-over-IP workflows. NDI Embedded Bridge enables low-latency remote video transmission, while FreeD protocol support allows for real-time AR/VR tracking, making it a valuable tool for virtual productions and interactive live experiences.
- NDI HX3
- Sony 1/2.8 type CMOS sensor STARVIS II
- 30X zoom range
- Resolution 1080i59.94, 1080p60
- IP Video Resolution: Up to 1080p60
- Video Output: Simultaneous 3G-SDI, NDI HX3
- RTSP. RTMP, SRT, ONVIF Supported
- NDI Control, Visca Over IP, Onvif, FreeD, Serial Control
- Extreme Low Light Performance
- Super Image Stabilizer
- Weatherproof IP67 rated
Banquet Halls
Casinos
Auditoriums
Houses of Worship
Educational Facilities
Convention Centres
Corporate Environments
Restaurant
Bars
| Model No. | SD530NX |
| Camera Image | 30X Full HD |
| Image Block | Sony |
| Image Sensor | Progressive scan CMOS image sensor 1/2.8 type, STARVIS™ 2 |
| Number of Effective Pixels | 2.13MP |
| Picture Elements | 1920 × 1080 |
| Lens | Optical Zoom 30X |
| Digital Zoom | 12X |
| Horizontal Angle of View | 64° (W) ~ 2.4° (T) |
| Focal Length | f = 4.3 mm (WIDE) to 129 mm (TELE) |
| Min. Object Distance | 10 mm (Wide), 1200 mm (Tele) |
| Aperture | F1.6 (Wide) to F14 (Tele) |
| Min. Illumination (50%, High Sensitivity) – Mode ON | ICR-OFF mode: 0.009 lx (Shutter Speed: 1/30 s), ICR-ON mode: 0.00008 lx (Shutter Speed: 1/30 s) |
| Min. Illumination (50%, High Sensitivity) – Mode OFF | ICR-OFF mode: 0.09 lx (Shutter Speed: 1/30 s), ICR-ON mode: 0.00063 lx (Shutter Speed: 1/30 s) |
| Shutter Speed | 1/1 sec to 1/10000 sec (22 steps) |
| Focusing System | Auto, Manual, One Push Trigger, Full Scan One Push, Near Limit, Spot Light Avoidance, Spot Focus |
| White Balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual, Outdoor Auto, Sodium Vapor Lamp Auto, Sodium Vapor Lamp, Sodium Vapor Lamp Control Auto |
| Exposure | Full Auto, Gain Limit Setting, Shutter Priority, Iris Priority, Manual, EV Compensation |
| Features | Backlight Compensation, E-FLIP, Mirror, Day/Night, Flicker, Contrast, Effect, Sharpness |
| WDR | Yes |
| ND Filter | / |
| Image Stabilizer | Yes: Super Image Stabilizer (Super / Super+) |
| Contrast | Yes |
| Color Gain | Yes |
| Color Hue | Yes |
| Color Matrix | Yes |
| Gamma | Yes |
| Noise Reduction | On/Off (Level 5 to 1 / Off, 6 steps), 3D / 2D Noise Reduction |
| S/N Ratio | ≥50 dB |
| Spot Light Avoidance | Yes |
| E-FLIP | Yes |
| Spherical Privacy Zone Masking | – |
| Defog | Yes (Low/Mid/High) |
| High Sensitivity | Yes |
| Slow AE Response | Yes |
| Day/Night (Auto ICR) | Yes: ON (B&W/Color) |
| Backlight Compensation | Yes |
| Low Latency Mode | Yes |
| Focus Zone | All, Central Area |
| Scene Style | Default, Clear, Bright, Soft |
| Auto Flip | Yes |
