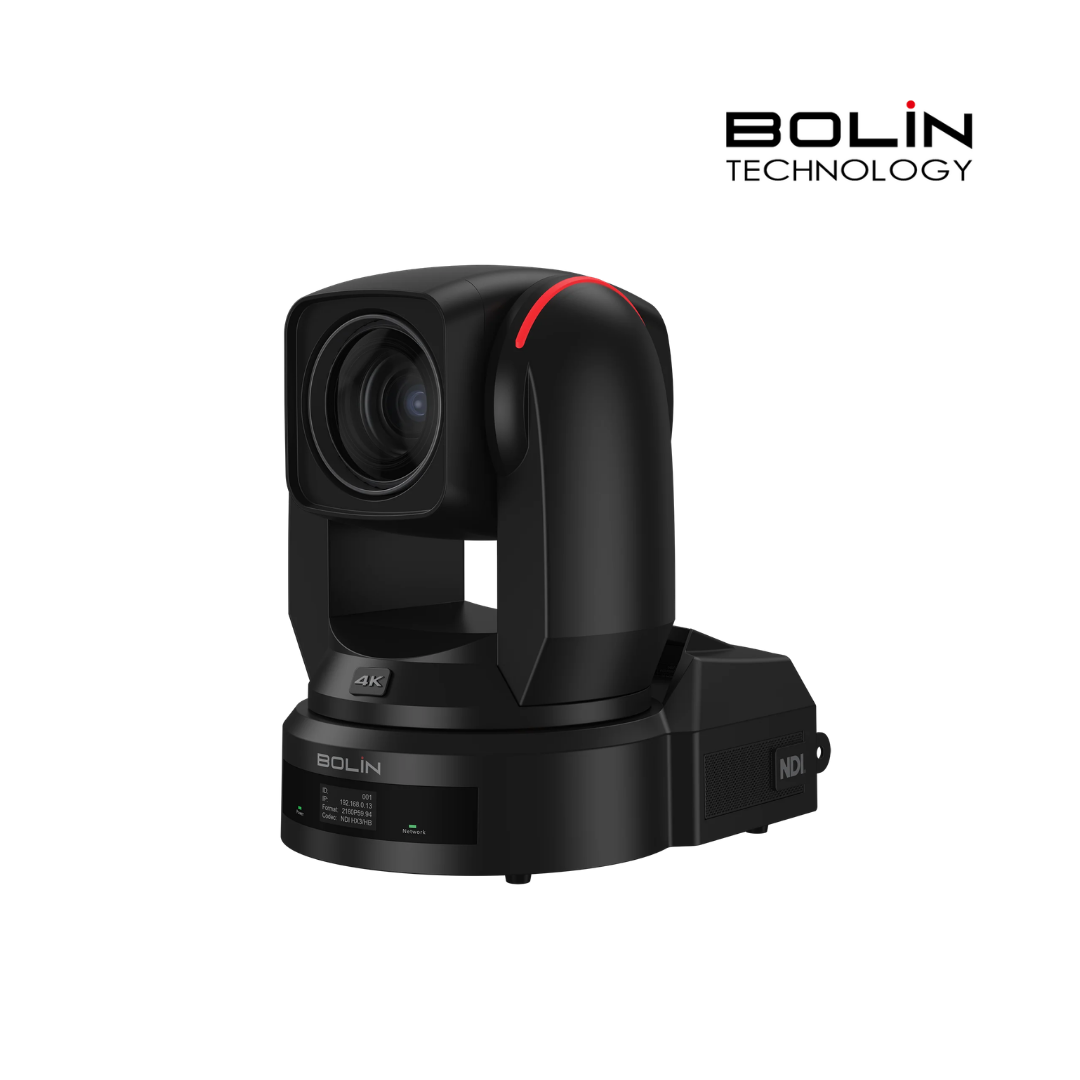

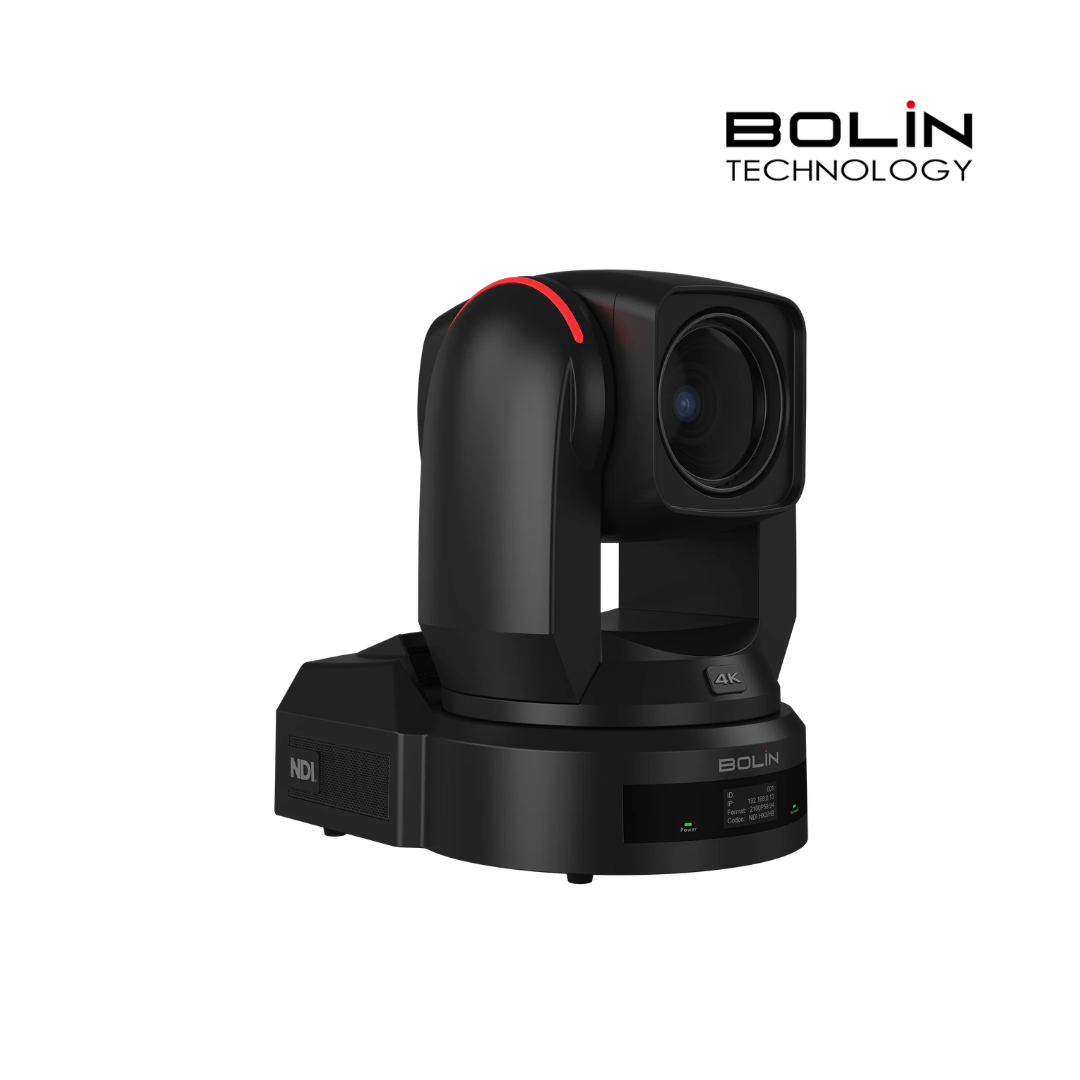

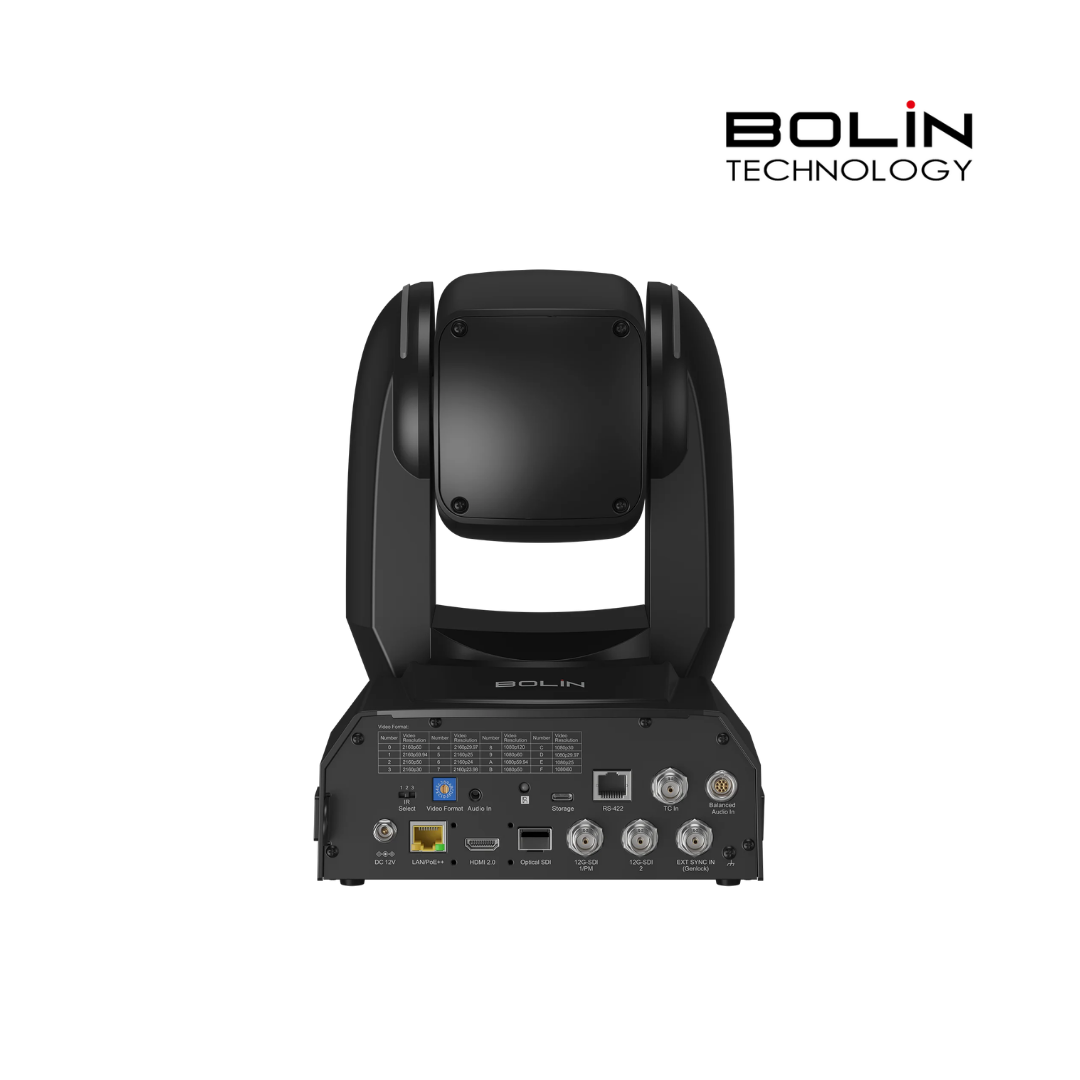

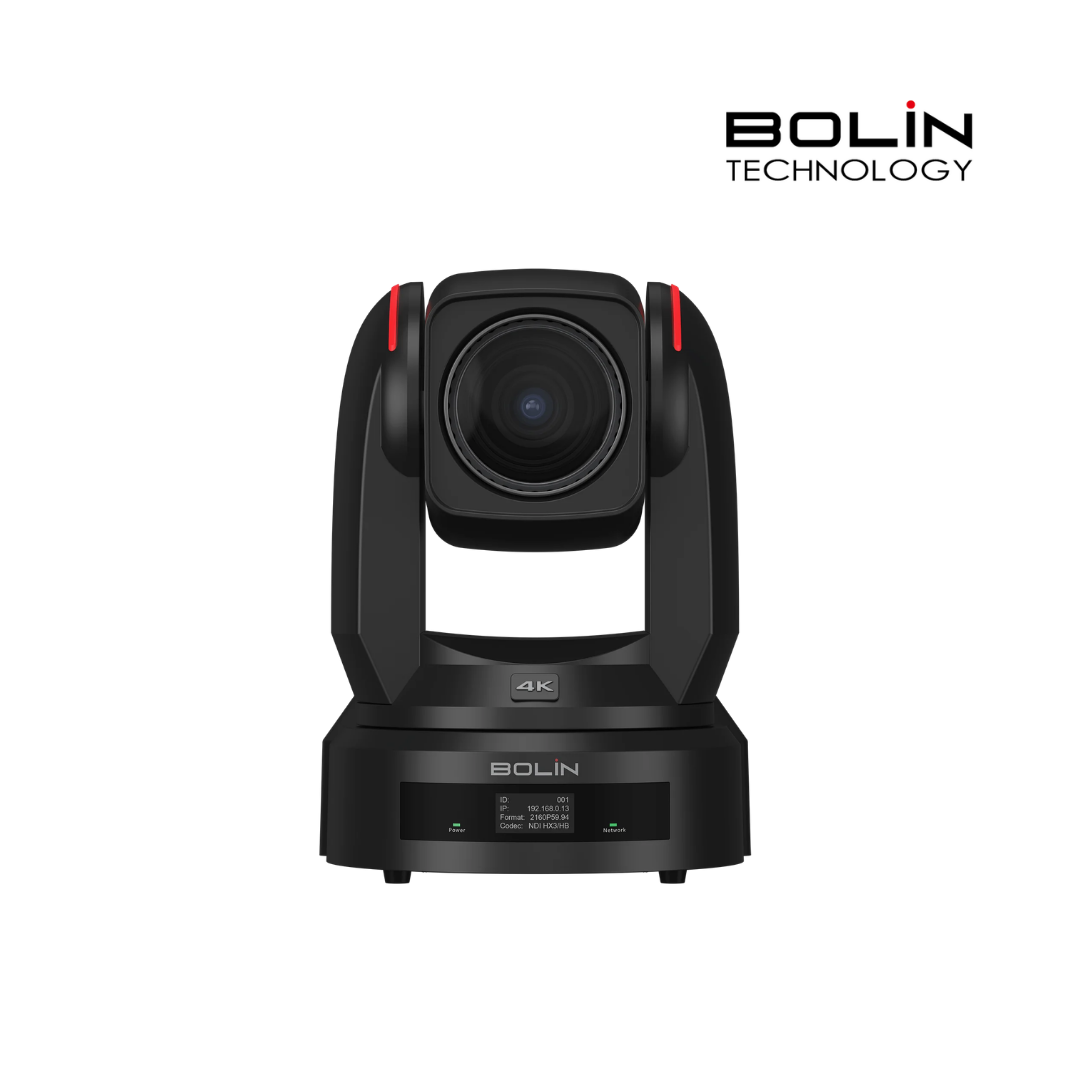

R9-L420N 1 Inch 4K60 PTZ Camera
The R9-L420N features a 1-inch Sony image sensor capable of capturing detailed 4K60 video. The larger sensor captures more light, improving image clarity, dynamic range, and color reproduction. This allows the camera to deliver high-resolution video with natural color and strong performance across a wide range of lighting conditions, making it well suited for demanding broadcast and live production environments.
Description
- 4K resolution up to 60fps
- 20X optical zoom with 16X digital zoom
- NDI High Bandwidth and NDI HX3
- Dual 12G-SDI, HDMI 2.0, Optical 12G-SDI and IP video output
- RTSP, RTMP, SRT and RTP supported
- VISCA Over IP, ONVIF, NDI, FreeD and serial control
- Genlock and timecode synchronization
- AI face detection autofocus and auto exposure
- Ultra-low-light performance with advanced WDR and 2D/3D noise reduction
Banquet Halls
Casinos
Auditoriums
Houses of Worship
Educational Facilities
Convention Centres
Corporate Environments
Restaurant
Bars
| Image Sensor | 1 Inch Sony Back-illuminated CMOS |
| Number of effective pixels | 50MP |
| Picture elements | 3840 × 2160 |
| Lens Zoom | 20X Optical Zoom |
| Digital Zoom | 16X |
| Horizontal Angle of View | 71.28° (W) ~ 4.08° (T) |
| Vertical Angle of View | 40.22° (W) ~ 2.16° (T) |
| Focal Length | f = 9.8mm (WIDE) to 196mm (TELE) |
| Min. object distance | 100 mm (Wide end), 200 mm (Tele end) |
| Aperture | F/2.8–F4.5 |
| Min. Illumination | 0.5 Lux (F2.8, AGC ON) |
| Shutter Speed | 1/25 sec to 1/100K sec (24 steps) |
| Focus | Auto, Manual |
| Focus Mechanism | PDAF (Phase Detection Auto Focus) + CDAF (Contrast Detection Auto Focus) |
| White Balance | Auto, ATW, Indoor, One Push WB, Manual WB, Outdoor Auto |
| Exposure | Auto, Manual, Shutter/Iris/Gain Priority |
| Image Adjustments | Backlight Compensation, E-FLIP, Mirror, Day/Night, Flicker, Contrast, Effect, SHARPNESS |
| WDR | Yes |
| Mechanical ND Filter | Yes, Through, 1/4, 1/16, 1/64 |
| Contrast | Yes |
| Color Gain | Yes |
