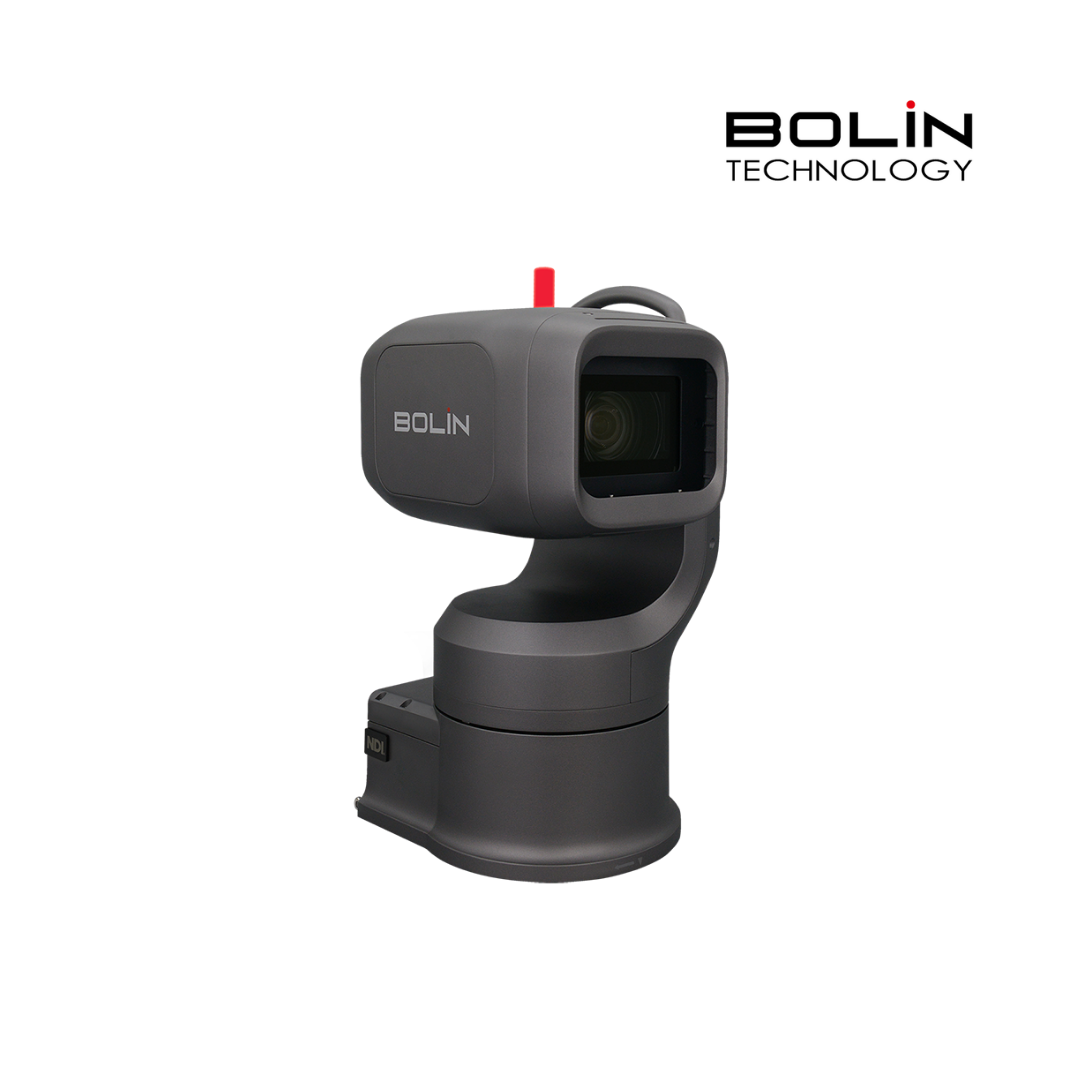

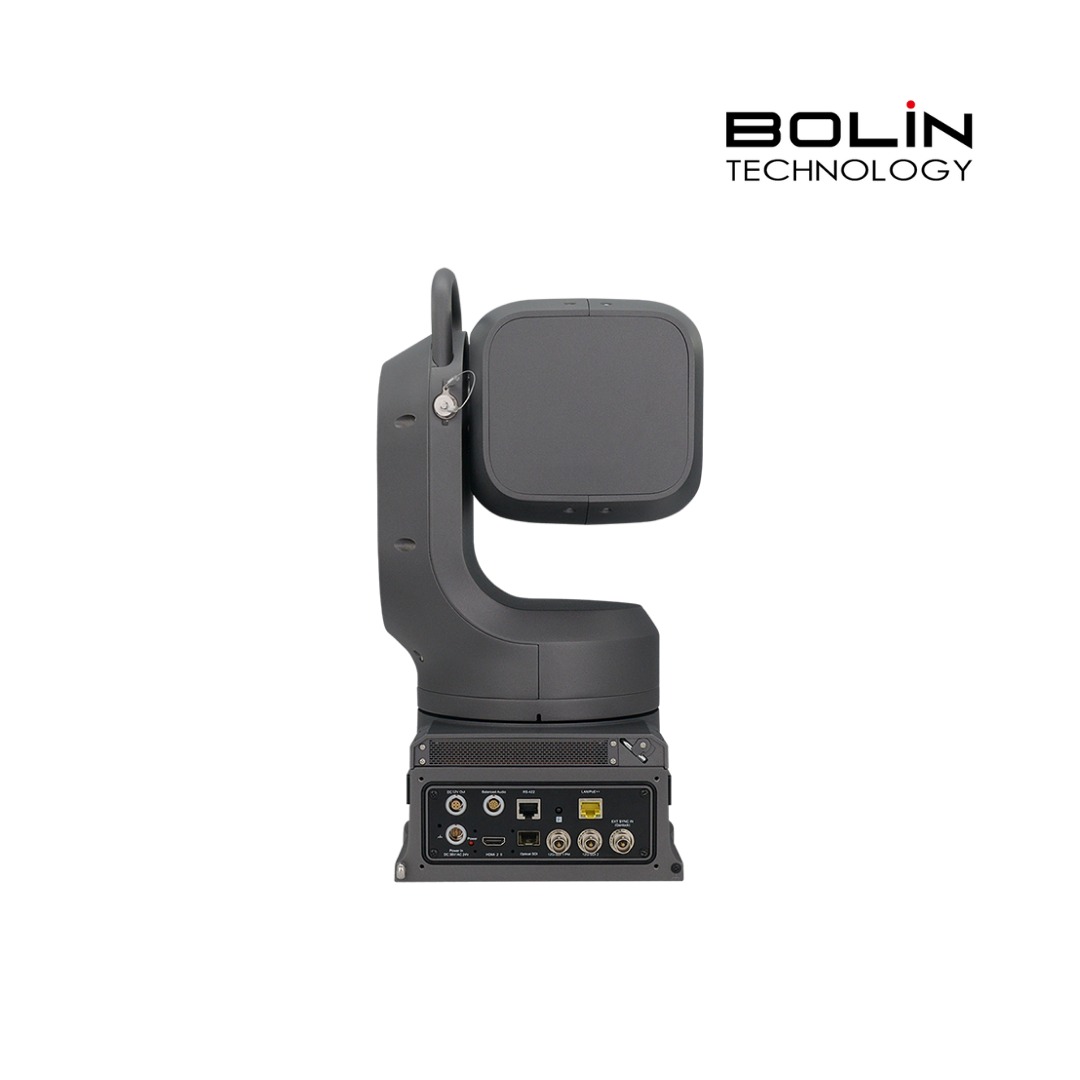

EXU420N 4K60 Outdoor NDI PTZ Camera
Designed for professional outdoor video production, the Bolin EXU420N 4K60 outdoor NDI PTZ camera delivers stunning 4K60 video with high-resolution clarity, smooth motion, and precise color accuracy. Featuring a 20x zoom, the EXU420N ensures detailed, high-quality imaging from both wide and long-range shots, making it the perfect choice for live sports, outdoor concerts, weather decks, and remote event broadcasting. Engineered for demanding environments, its IP67-rated weatherproof housing protects against dust, water, and extreme temperatures, ensuring reliable 24/7 operation in rain, snow, and direct sunlight. With Certified NDI High Bandwidth, NDI HX3, dual 12G-SDI, HDMI, Optical SDI, and IP streaming, the EXU420N provides seamless integration into broadcast and AV-over-IP workflows, offering professional-grade flexibility for any production setting.
Built for remote workflows, the EXU420N supports NDI Embedded Bridge, enabling low-latency video transmission across multiple locations, making it ideal for multi-venue productions and large-scale broadcasts. Additionally, FreeD protocol support allows for real-time tracking in AR/VR applications, enhancing virtual productions and interactive live experiences. The camera also features balanced XLR audio inputs, ensuring professional audio connectivity alongside its broadcast-quality visuals. With image stabilization, precise PTZ control, and flexible power options including PoE++, the EXU420N is designed to deliver smooth, stable, and high-performance results in even the most challenging outdoor conditions.
From high-action sports to dynamic live productions, the Bolin EXU420N delivers exceptional 4K60 image quality, easy IP connectivity, and rugged durability, giving production teams the confidence to capture every moment with precision, no matter the environment.
- NDI Certified, NDI 6 Ready, NDI HX3 Supported
- Sony 4K image sensor
- 20X zoom range
- Resolution 4K60, 1080i59.94, 1080p60
- IP Video Resolution: Up to 2160p60, 1080p60
- Video Output: Simultaneous 12G-SDI, HDMI2.0, NDI
- SFP Optical SDI video output
- RTSP. RTMP, SRT Supported
- Visca Over IP, Onvif, FreeD, Serial Control Supported
- Weatherproof IP67 rated
Banquet Halls
Casinos
Auditoriums
Houses of Worship
Educational Facilities
Convention Centres
Corporate Environments
Restaurant
Bars
| Model | EXU420N |
| Codec | Hardware FPGA Based, NDI High Bandwidth, NDI HX3 |
| Camera Image | 20X 4K60 |
| Image Maker | Bolin |
| Image Sensor | IMX715, CMOS image sensor 1/2.8 type |
| Number of Effective Pixels | 8.29MP / 8.29 MP |
| Picture Size | 3840 × 2160 |
| Lens | 20X |
| Digital Zoom | 16X |
| Horizontal Angle of View | 78.59° (W) – 4.92° (T) |
| Vertical Angle of View | 48.39° (W) – 2.79° (T) |
| Focal Length | f = 3.55 mm (WIDE) – 71 mm (TELE) |
| Min. Object Distance | 10 cm |
| Aperture | F2.0 (Wide) to F3.8 (Tele) |
| Min. Illumination | 0.5 lux (color) – 0.1 lux (black) |
| Shutter Speed | 1/60–1/100k sec (21 steps) |
| Focus | Auto, Push, Manual |
| White Balance | Auto, Indoor, Outdoor, OPW, ATW, Manual, USER, SVL |
| Exposure | Auto, Manual, Shutter, Iris priority |
| Features | Backlight Compensation, E-FLIP, Mirror, Day/Night, Flicker, Contrast, Effect, SHARPNESS |
| WDR | 120 dB |
| Color Gain | Yes |
| Color Hue | Yes |
| Gamma | Yes |
| Gamma Level | 0–4 |
| Color Matrix | – |
| Noise Reduction | 2D / 3D (level 0 to 100) |
| S/N Ratio | ≥50 dB |
| E-Flip | Yes |
| Defog | Yes |
| Day/Night | Yes |
| Backlight Compensation | Yes |
| AI Face Detection Focus | Yes |
| AI Face Auto Exposure | Yes |
| Scene Style | Standard, Bright, Clarity, Soft |
| Focus Zone | Face Priority, All Area, Top/Central/Bottom |
