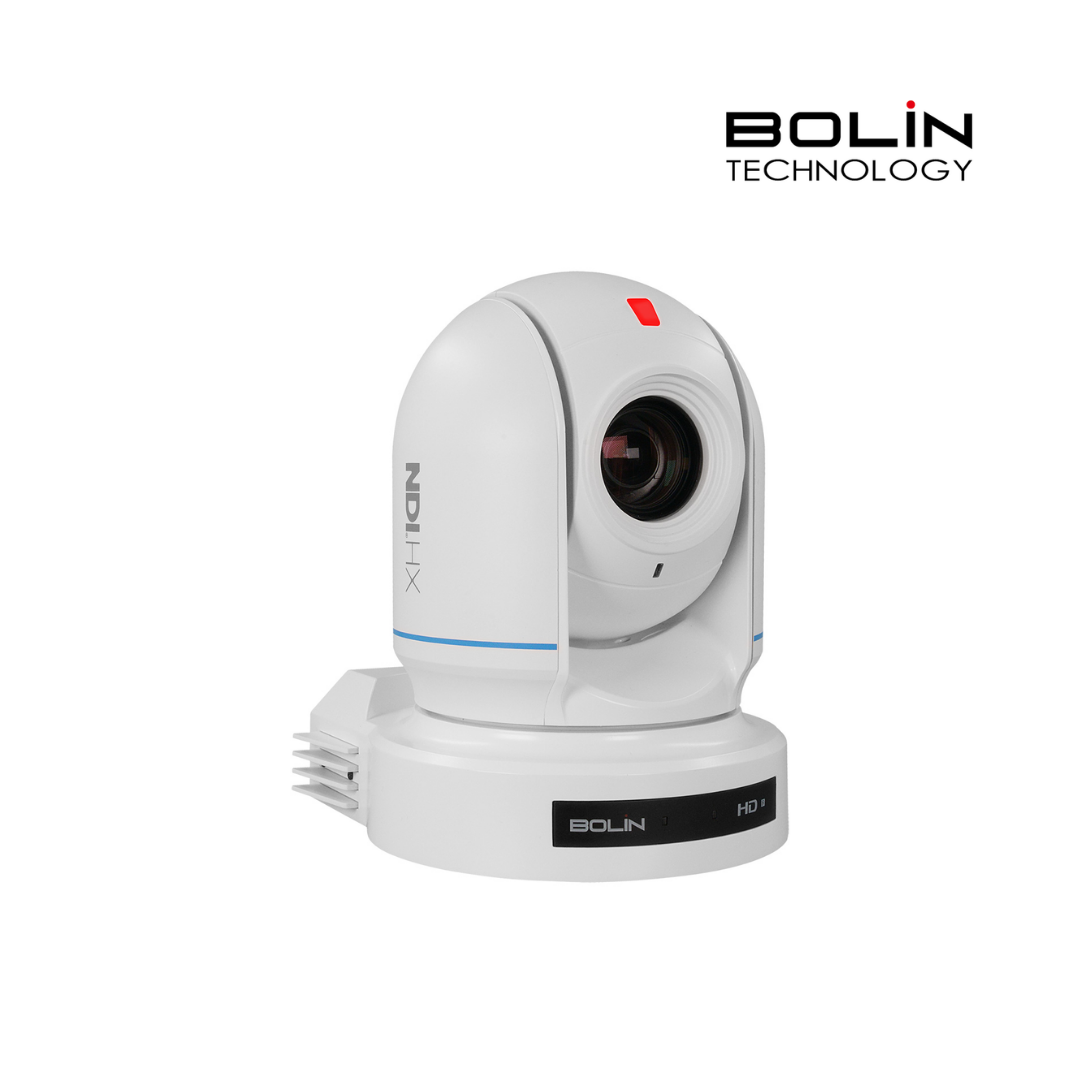

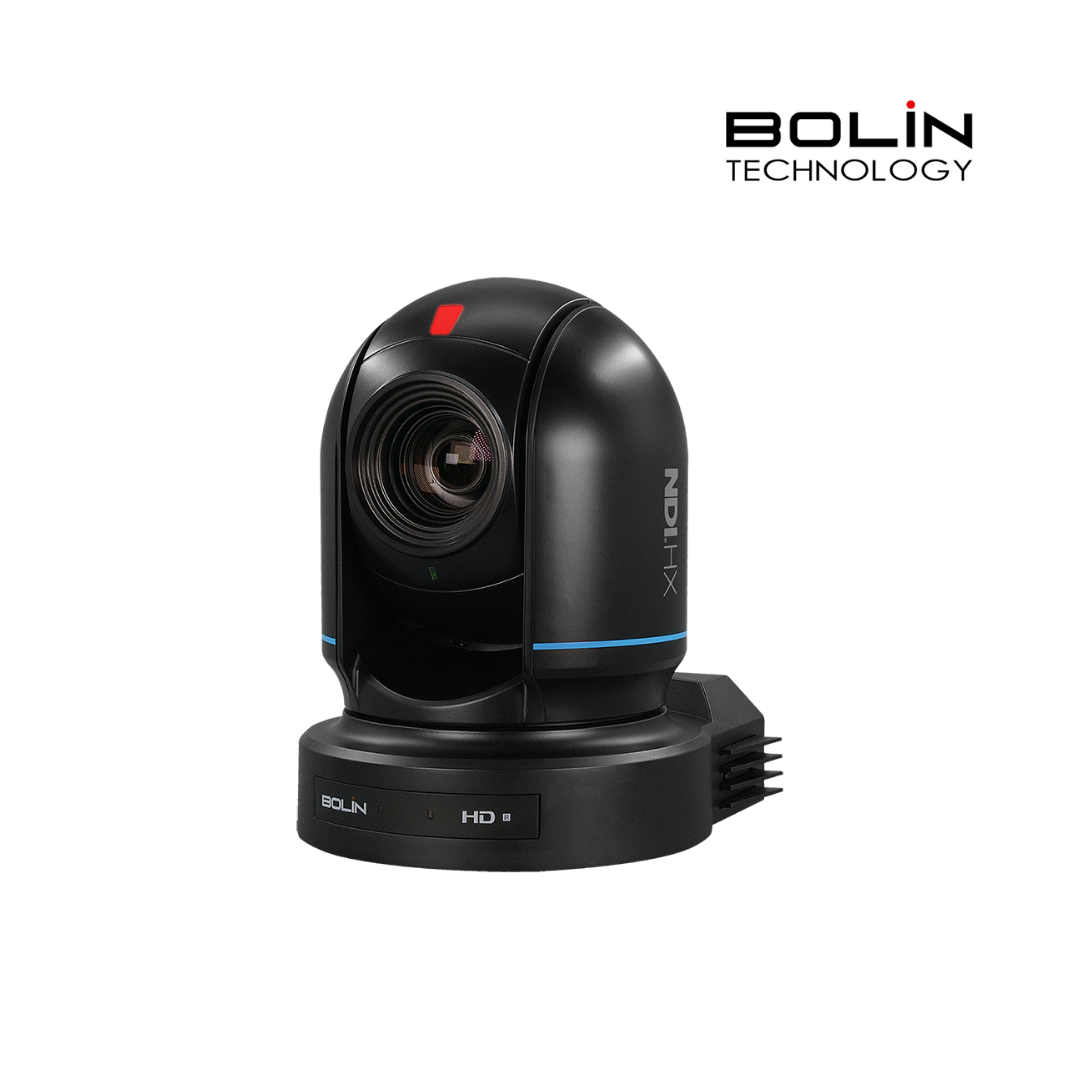

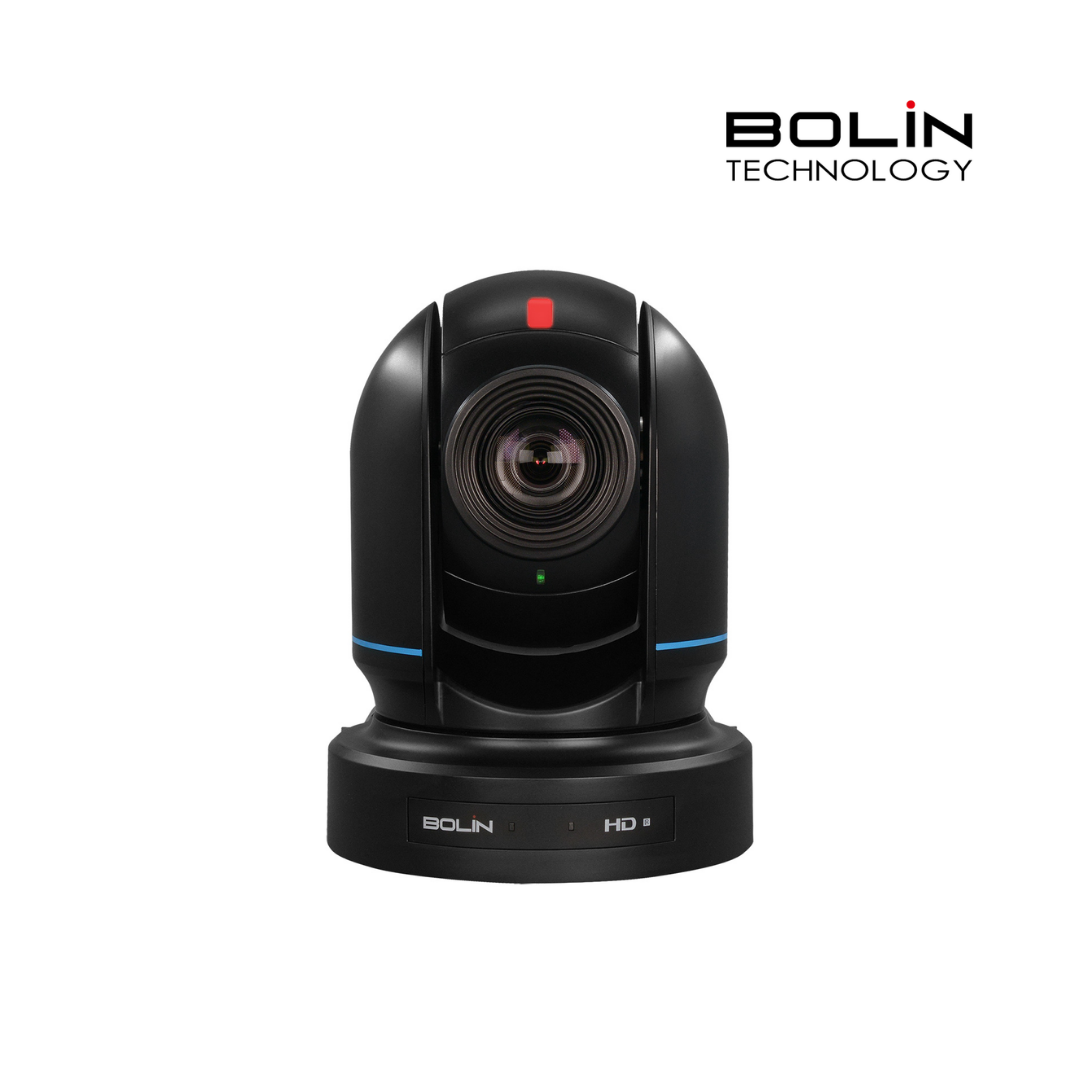

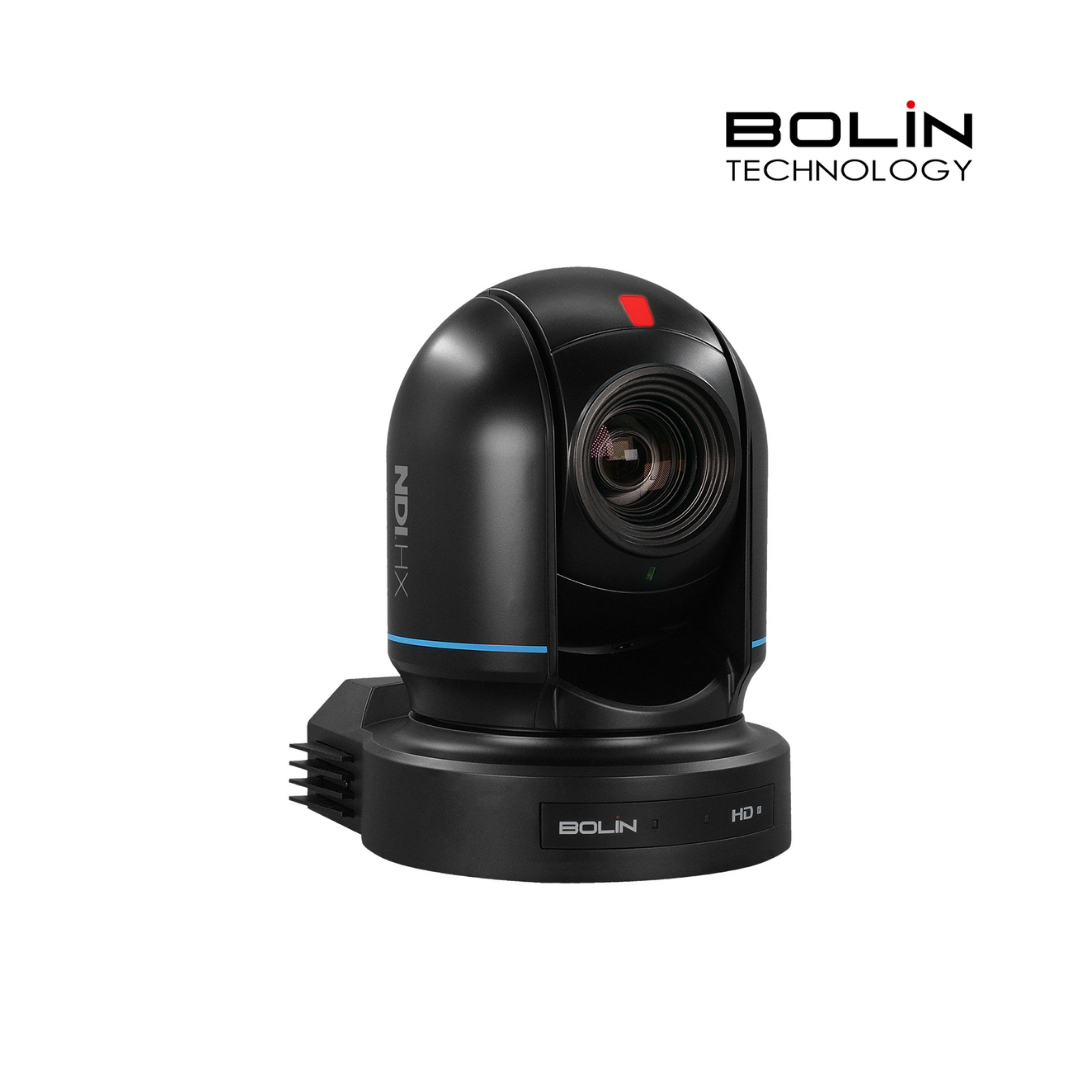

N7-220X NDI HX3 PTZ Camera
Bolin’s N7-220X Low Latency NDI HX3 PTZ Camera delivers high-quality Full HD video in a versatile and professional design, making it a strong choice for studio production, live events, houses of worship, and corporate AV applications. Built on Bolin’s Blue Line platform, the N7-220X provides advanced features at an accessible price, ensuring professional-grade performance without compromising image quality or smooth PTZ control.
With a 20x zoom, the N7-220X captures sharp images with detail, whether used for wide-angle coverage or close-up shots. It supports Certified NDI HX3, HDMI, 3G-SDI, USB, and IP streaming, offering multiple simultaneous outputs to meet the demands of modern production workflows. NDI HX3 technology delivers high-quality, low-latency video over IP, ensuring efficient, reliable video distribution across a variety of setups.
Designed for smooth and precise operation, the N7-220X offers smooth, responsive PTZ movement for controlled, professional framing. AI-powered auto-focus and auto-exposure adjust to changing lighting conditions, keeping video consistent and clear. A 3.5mm mic/line input allows for direct audio embedding, while a variety of control options including VISCA over IP and NDI provide flexible control options for various production setups. A built-in color matrix, accessible via WebUI, provides real-time adjustments for color customization, helping to fine-tune images for any production environment.
With a sleek form-factor, the camera blends into studios, conference rooms, and live event venues, offering both aesthetic flexibility and professional performance. The N7-220X provides Full HD resolution, versatile connectivity, and precise PTZ functionality, making it a valuable addition to any modern video production setup.
- NDI Certified
- Zoom: Optical 20X
- Video Output: NDI HX3, HDMI, SDI, USB C
- Video Resolution up to Full HD
- IP resolution up to 1080P60
- RTSP, RTMP, SRT IP streaming
- Control: RS232, RS422/485, IP/Onvif/Visca Over IP
- AI Exposure, AI Focus
- Power: 12VDC, PoE+
Banquet Halls
Casinos
Auditoriums
Houses of Worship
Educational Facilities
Convention Centres
Corporate Environments
Restaurant
Bars
| Model No. | N7-220X |
| Camera | 20X Full HD |
| Image Sensor | Sony Progressive scan CMOS image sensor 1/2.8 type |
| Number of effective pixels | 1920 × 1080, 2.13 MP |
| Zoom | Optical Zoom 20X, Digital Zoom 16X |
| Focal Length | f = 5.2 mm (Wide) to 104 mm (Tele) |
| Aperture | F1.6 (Wide) to F3.0 (Tele) |
| Horizontal Angle of View | 55.8° (W) ~ 3.2° (T) |
| Vertical Angle of View | — |
| Min. Object Distance | 10 mm (Wide) |
| Min. Illumination | 0.5 lux (color), 0.1 lux (black) |
| Shutter Speed | 1/25 ~ 1/100K sec |
| Focus | Auto, Manual, One Push |
| White Balance | Auto, Indoor, Outdoor, OPW, ATW, Manual, SVL USER |
| Exposure | Auto, Manual, Shutter/Iris priority |
| Image Adjustment | Brightness, Color (Saturation), Contrast, Sharpness, HUE |
| Back Light Compensation | On/Off |
| E-Flip | On/Off |
| WDR | On/Off |
| Image Stabilizer | — |
| Defog | Yes |
| Mirror | Horizontal |
| Day/Night | On/Off |
| Contrast | Yes |
| Color Gain | Yes |
| Color Hue | Yes |
| Color Matrix | Yes |
| Black Level | — |
| Gamma | Yes, 4 levels (0.45, 0.50, 0.55, 0.63) |
| High Sensitivity | Yes |
| Scene | Default, Clear, Bright, Soft |
| Focus Zone | Face Priority, All Area, Upper Area, Central Area, Lower Area |
| AI Face Detection Focus | Yes |
| AI Face Auto Exposure | Yes |
| Noise Reduction | 2D/3D, 0–100 |
| S/N Ratio | ≥50 dB |
| OSD | Editable |
