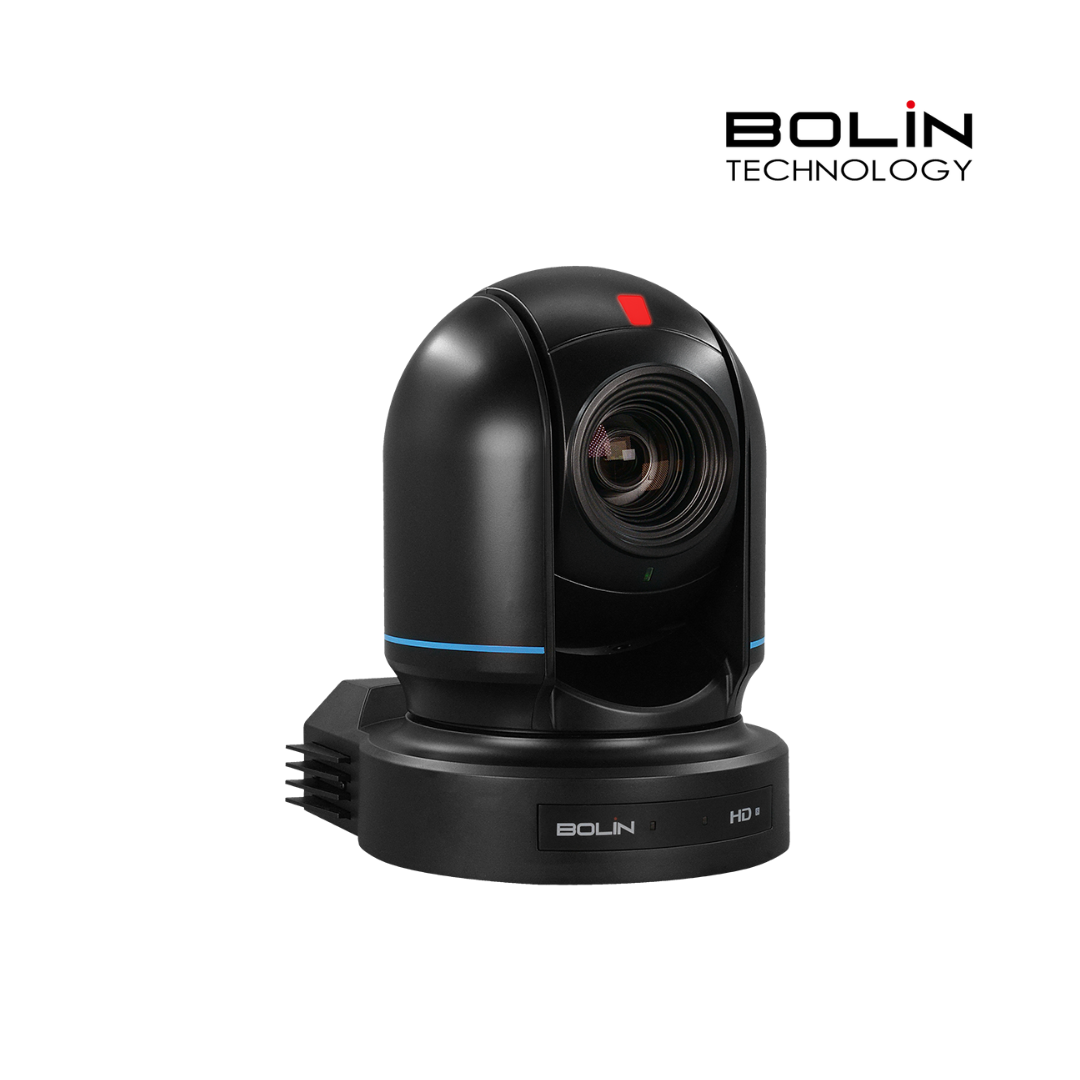

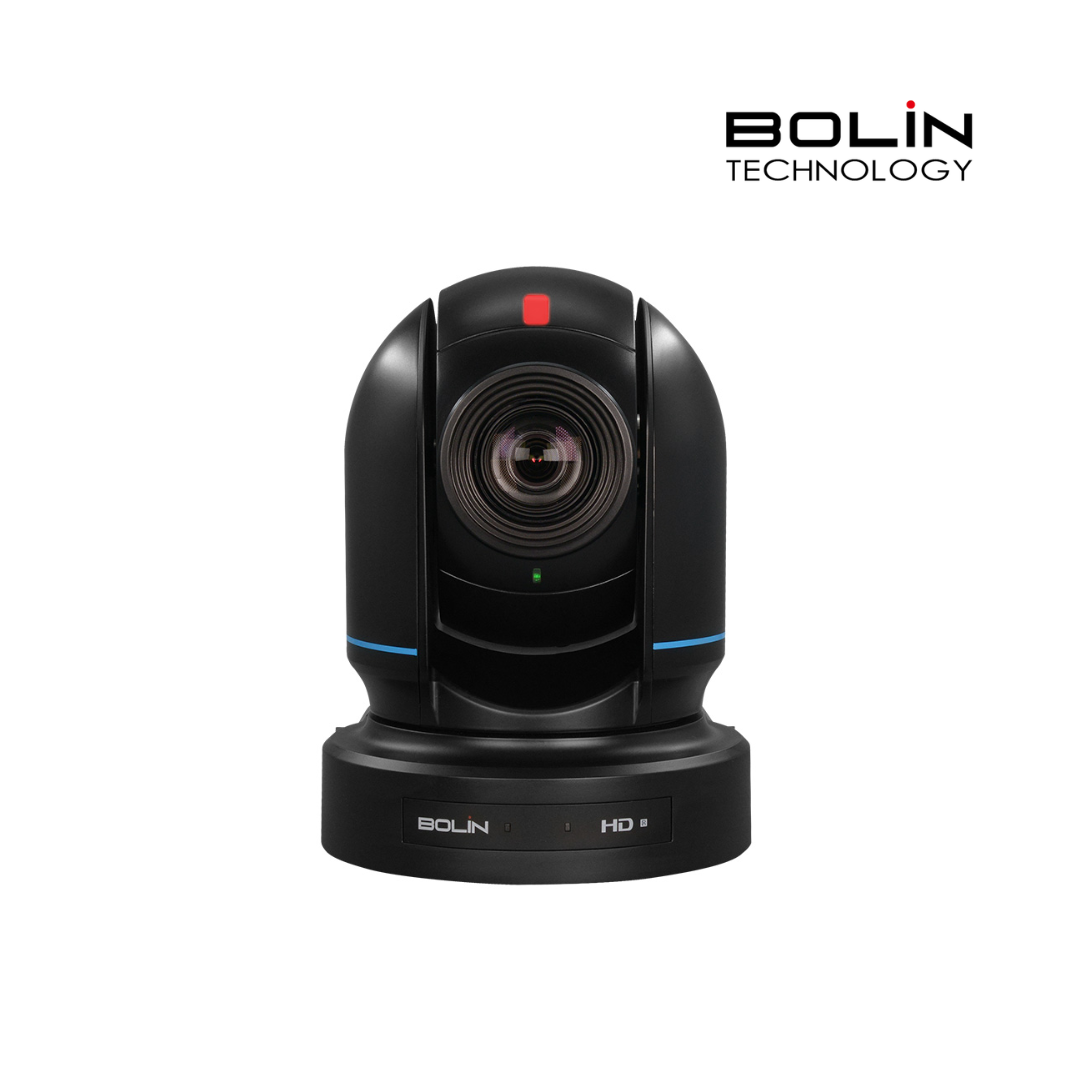

B7-220 FHD PTZ Camera
The Bolin B7-220 PTZ camera delivers high-quality Full HD video in a versatile and professional design, making it an excellent choice for studio production, live events, houses of worship, and corporate AV applications. As part of Bolin’s Blue Line series, the B7-220 offers advanced features at an accessible price, ensuring professional-grade performance without compromising image quality or smooth PTZ control.

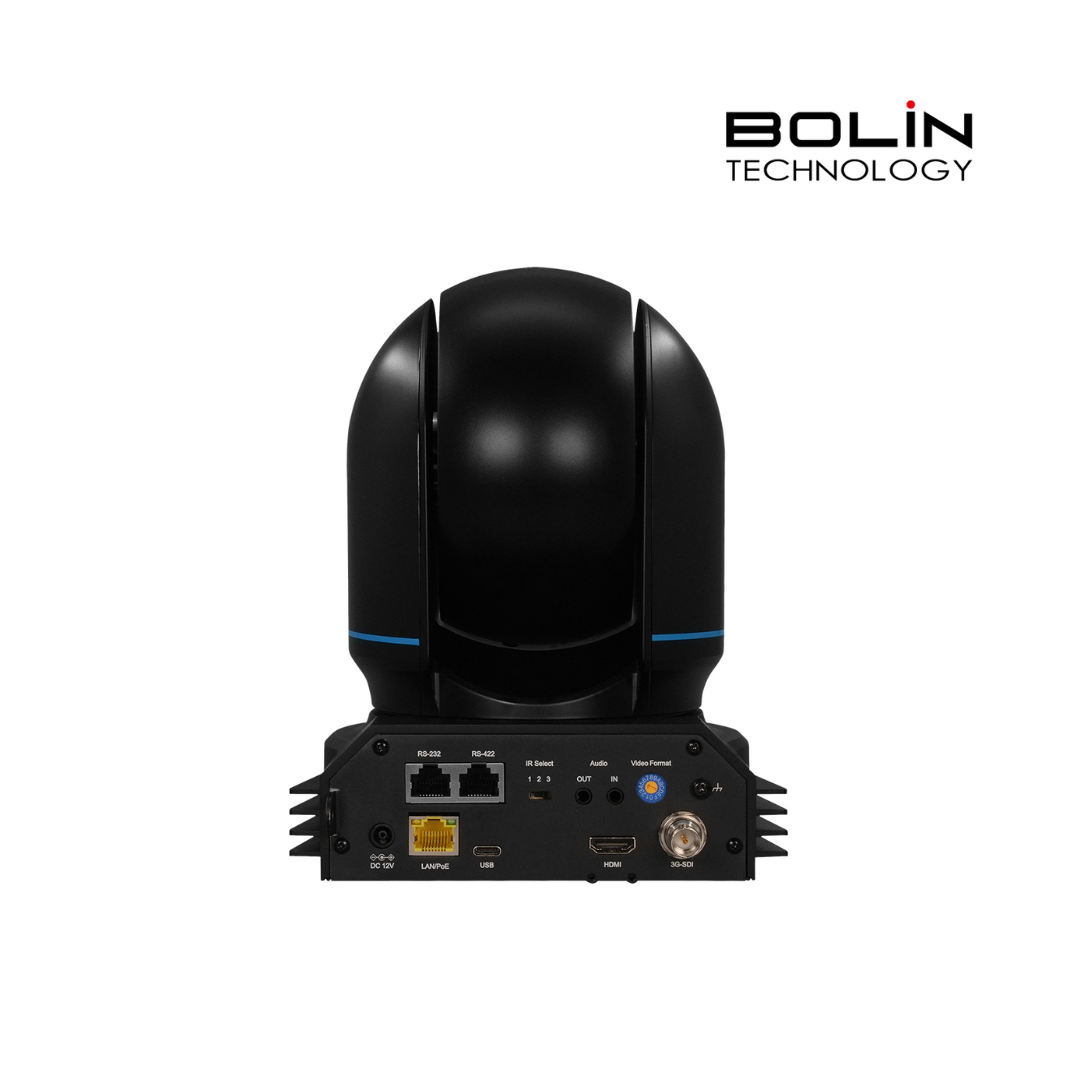

Equipped with a 20x zoom, the B7-220 captures sharp images with precise detail, suitable for both wide-angle coverage and close-up shots. It supports multiple simultaneous outputs, including HDMI, 3G-SDI, USB, and IP streaming, to meet the demands of modern production workflows. The camera’s IP streaming capabilities include support for RTSP, RTMP, SRT, ONVIF, and MPEG-TS protocols, ensuring efficient and reliable video distribution across various setups.
Designed for smooth and precise operation, the B7-220 offers responsive PTZ movement for controlled, professional framing. AI-powered auto-focus and auto-exposure adjust to changing lighting conditions, maintaining consistent and clear video quality. A 3.5mm mic/line input allows for direct audio embedding, while various control options, including VISCA over IP and ONVIF, provide flexibility for different production environments. The built-in color matrix, accessible via WebUI, enables real-time adjustments for color customization, allowing users to fine-tune images to suit any production setting.
With its sleek form factor, the B7-220 seamlessly integrates into studios and live event venues, offering both aesthetic appeal and professional performance. The Bolin B7-220 provides Full HD resolution, versatile connectivity, and precise PTZ functionality, making it a valuable addition to any modern video production setup.
• Bolin’s Blue Line PTZ cameras B7 Series are equipped with Sony sensor to provide brilliant, high-quality images in 1080p60 resolutions with 20x optical zoom.
• Blue Line B7 Series PTZ cameras deliver IP streaming video to network with local HDMI video and USB streaming to PC software for conventional video production and cloud based video conferencing applications. And 3G-SDI, lossless baseband video for live production and light broadcast use.
• Image parameter adjustments include exposure, focus, iris, shutter speed, white balance, color matrix, gamma, wide dynamic range, E-flip/mirror and more with configurable video settings.
• Built with Bolin’s latest AI-powered face analytical engine which enables precise smart focus and smart exposure to bring customer a greater level of user experience and effective image quality improvement in a complex user environments.
• HDMI/SDI/USB and IP video streaming signal has high–quality audio streaming embedded with support for Mic-in and Line-in audio input.
• Extremely quiet and smooth operation for Pan/Tilt movements combined with enhanced adaptive, variable, and super slow speed control provides accurate and effective operation experiences. Picture Profile Preset: Image parameter settings restored with presets and quick access operation.
• Supports traditional serial RS232, RS422/485 via VISCA and Pelco P/D protocol, and IP remote control over network via Visca-over-IP and Onvif IP protocol, IR remote control.
• Simply connect one network cable from camera to any 1GB Ethernet network/POE device to access to existing IP network and HDMI/SDI cable to baseband video work flow. Standard mounting and ceiling mounting with E-Flip function.
• Firmware updates, upgrade via USB and IP interface to keep camera features and performance up to date.
• Bolin certifies it does not and will not provide “covered telecommunications equipment or services” or products containing “covered telecommunications equipment or services” complying with Section 889(a)(1)(B) of the National Defense Authorization Act (NDAA) for the Fiscal Year 2019 as a part of its offered products or services to customers.
Banquet Halls
Casinos
Auditoriums
Houses of Worship
Educational Facilities
Convention Centres
Corporate Environments
Restaurant
Bars
| Image Sensor | Sony Progressive scan CMOS image sensor 1/2.8 type | |
| Number of effective pixels | 1920X1080, 2.13 MP | |
| Zoom | Optical Zoom 20X, Digital Zoom 16X | |
| Focal Length | f= 5.2 mm (Wide) to 104 mm (Tele) | |
| Aperture | F1.6 (Wide) to F3.0 (Tele) | |
| Horizontal Angle of View | 55.8° (W)~3.2° (T) | |
| Vertical Angle of View | – | |
| Min. object distance | 10mm (Wide) | |
| Min. Illumination | 0.5lux（color），0.1lux（black） | |
| Shutter Speed | 1/25~1/100K sec | |
| Focus | Auto, Manual, One Push | |
| White Balance | Auto, Indoor, Outdoor, OPW, ATW, Manual, SVL USER | |
| Exposure | Auto, Manual, Shutter/Iris priority | |
| Image Adjustment | Brightness, Color(Saturation), Contrast, Sharpness, HUE | |
| Back Light Compensation | On/Off | |
| E-Flip | On/Off | |
| WDR | On/Off | |
| Image Stabilizer | – | |
| Defog | Yes | |
| Mirror | Horizontal | |
| Day/Night | On/Off | |
| Contrast | Yes | |
| Color Gain | Yes | |
| Color Hue | Yes | |
| Color Matrix | Yes | |
| Black Level | – | |
| Gamma | Yes, 4 levels (0.45, 0.50, 0.55, 0.63) | |
| High Sensitivity | Yes | |
| Scene | Default, Clear, Bright, Soft | |
| Focus Zone | Face Priority, All Area, Upper Area, Central Area, Lower Area | |
| AI Face Detection Focus | Yes | |
| AI Face Auto Exposure | Yes | |
| Noise Reduction | 2D/3D, 0-100 | |
| S/N Ratio | ≥50db | |
| OSD | Editable | |
