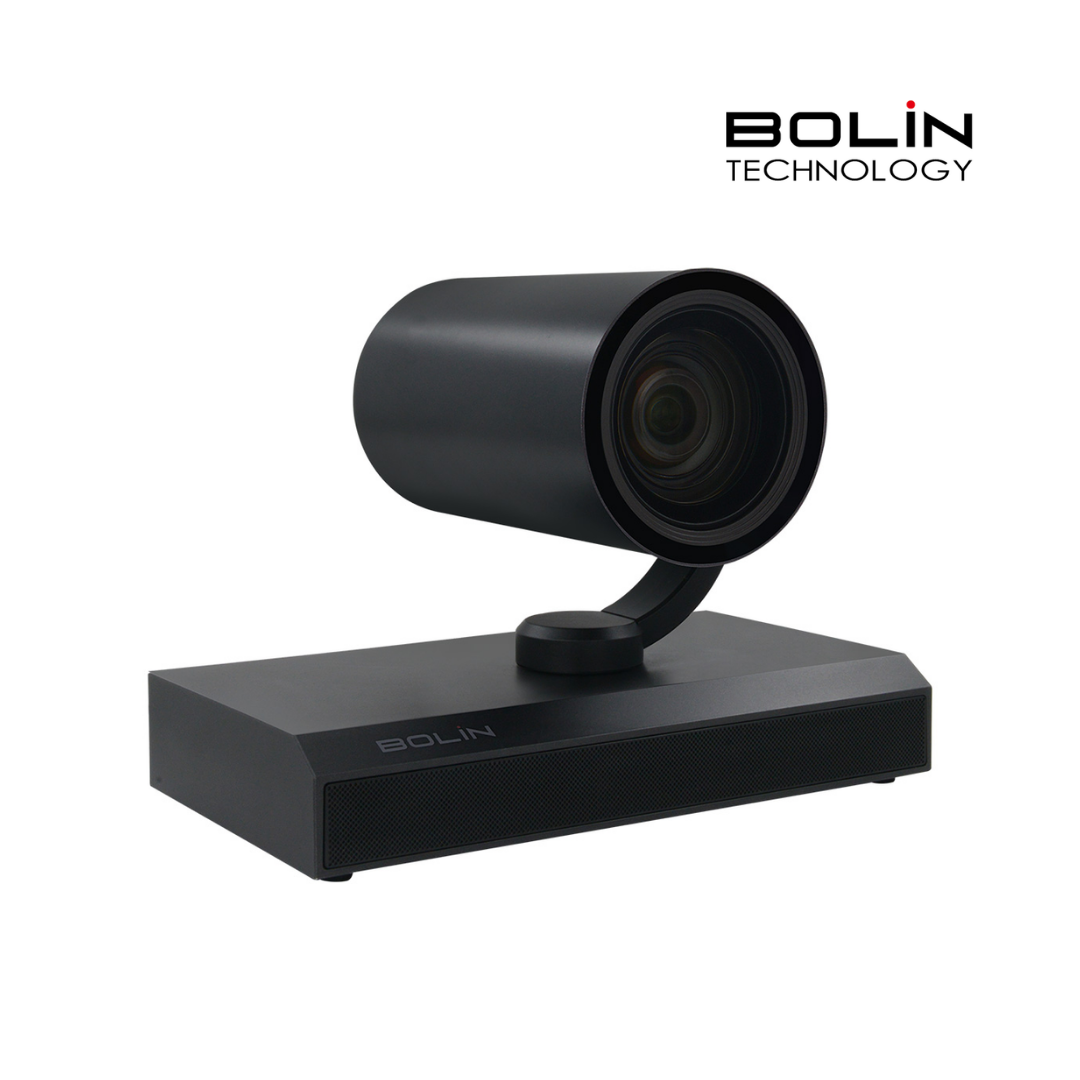

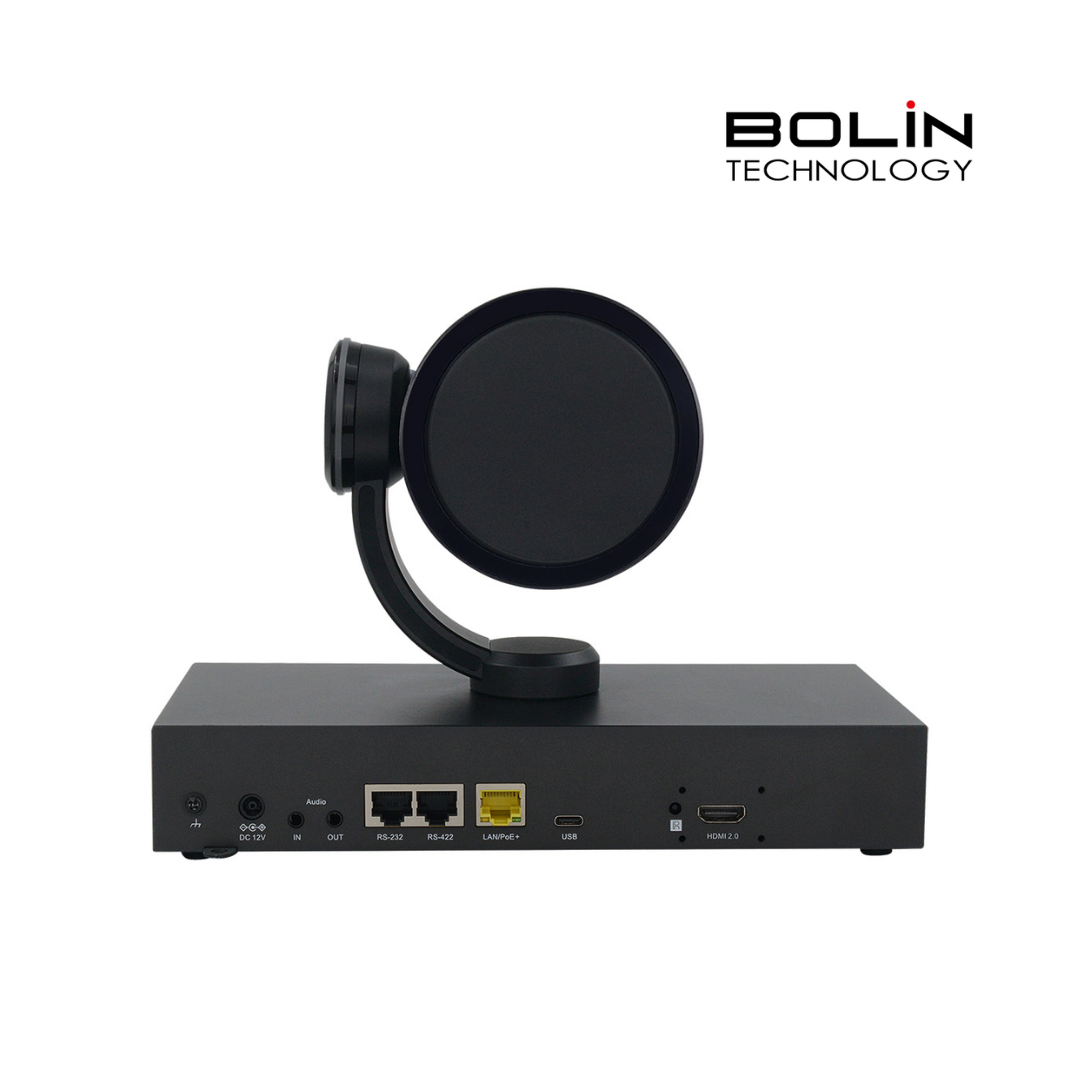

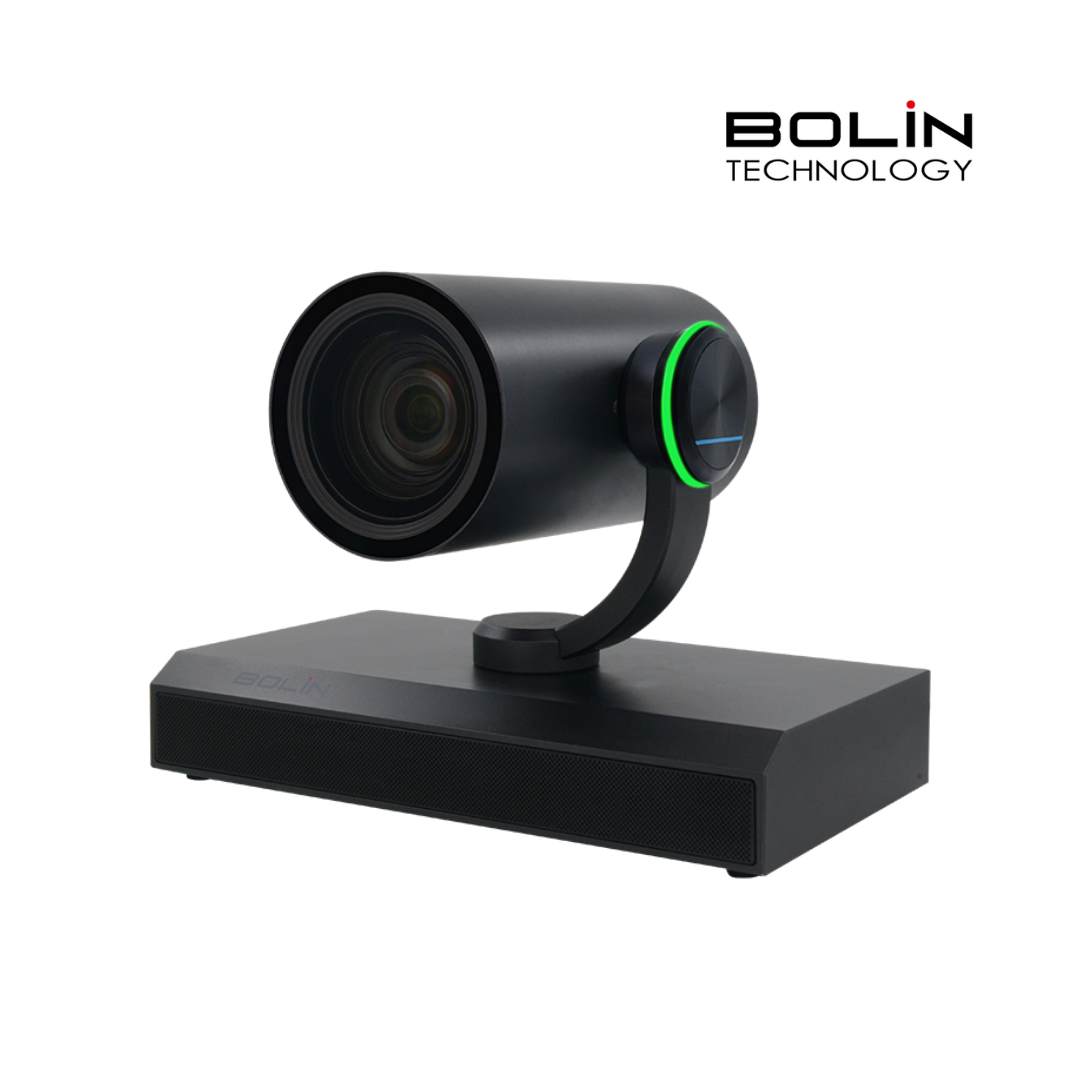

B6-420 4K60 PTZ Camera
The Bolin B6-420 4K60 PTZ camera delivers high-quality video in a versatile and elegant design, making it an excellent choice for live production, corporate AV, education, and houses of worship. Built on Bolin’s Blue Line platform, it offers professional performance at an accessible price, ensuring reliable operation without compromising image quality, industry standards, or smooth PTZ control.
Featuring a 20x zoom and wide field-of-view, the B6-420 captures sharp details and accurate colors, suitable for both wide-angle shots and close-ups in various settings such as conference rooms, studios, event spaces, and mid-sized venues. It supports HDMI 2.0, USB-C, and IP streaming outputs, providing multiple options to fit diverse workflows. The camera’s IP streaming capabilities include support for RTSP, RTMP, SRT, ONVIF, and MPEG-TS protocols, ensuring efficient and reliable performance for modern productions.
Designed for smooth and precise operation, the B6-420 offers responsive PTZ movement for controlled, professional framing. The built-in color matrix allows users to fine-tune color settings for precise image customization and color matching across multi-camera productions. AI-powered auto-focus and auto-exposure adjust to changing lighting conditions, maintaining consistent and clear video quality. A 3.5mm mic/line input allows for direct audio embedding, while various control options, including VISCA over IP, provide flexibility for different production setups.
IEC 60601-certified, ensuring safe use in electromagnetic-sensitive environments such as hospitals, clinics, and surgical suites.
The B6-420 is a cost-effective solution for professionals seeking reliable 4K60 video, flexible connectivity, and smooth PTZ performance in a well-built, easy-to-integrate design.
- Zoom: Optical 20X
- Video Output: HDMI, IP, USB C
- Horizontal Angel of View: 79°
- Video Resolution up to 4K60
- UVC/UAC supported for video conference use
- IP resolution up to 4K60.
- RTSP, RTMP, SRT IP streaming
- Control: RS232, RS422/485, IP/Onvif/Visca Over IP
- AI Exposure, AI Focus
- Power: 12VDC, PoE+
Banquet Halls
Casinos
Auditoriums
Houses of Worship
Educational Facilities
Convention Centres
Corporate Environments
Restaurant
Bars
| Model No. | B6-420 |
| Camera | 20X 4K60 |
| Image Sensor | Sony Progressive Scan CMOS Image Sensor, 1/2.8 type |
| Number of Effective Pixels | 3840 × 2160 (8.29 MP) |
| Zoom | Optical Zoom 20X, Digital Zoom 16X |
| Focal Length | f = 3.55 mm (Wide) to 71 mm (Tele) |
| Aperture | F2.0 (Wide) to F3.8 (Tele) |
| Horizontal Angle of View | 78.59° (Wide) – 4.92° (Tele) |
| Vertical Angle of View | 48.39° (Wide) – 2.79° (Tele) |
| Minimum Object Distance | 10 mm (Wide) |
| Minimum Illumination | 0.5 lux (Color), 0.1 lux (Black & White) |
| Shutter Speed | 1/30 – 1/1000 sec |
| Focus | Auto, Manual, One Push |
| White Balance | Auto, Indoor, Outdoor, OPW, ATW, Manual, USER, SVL |
| Exposure | Auto, Manual, Shutter/Iris Priority |
| Image Adjustment | Brightness, Color (Saturation), Contrast, Sharpness, Hue |
| Back Light Compensation | On/Off |
| E-Flip | On/Off |
| WDR | On/Off |
| Image Stabilizer | – |
| Defog | Yes |
| Mirror | Horizontal |
| Day/Night | On/Off |
| Contrast | Yes |
| Color Gain | Yes |
| Color Hue | Yes |
| Color Matrix | Yes |
| Black Level | – |
| Gamma | Yes, 4 Levels (0.45, 0.50, 0.55, 0.63) |
| High Sensitivity | Yes |
| Scene | Default, Clear, Bright, Soft |
| Focus Zone | Face Priority, All Area, Upper Area, Central Area, Lower Area |
| AI Face Detection Focus | Yes |
| AI Face Auto Exposure | Yes |
| Noise Reduction | 2D / 3D (Levels 1–100) |
| S/N Ratio | ≥50 dB |
| OSD | Editable |
